Rear radio controller wiring diagram?
I removed the rear radio controller from the back of the console and installed a power inverter in its place. It fit great and everything went smoothly. I should have known it was too easy... I now have no sound coming out of the rear speakers. I assume there is a way to jump the wires to allow the speakers to work, but I'd need a wiring diagram. Right now I have the controller hooked up and buried in the console, which I guess is fine. It's just annoying.
Thread Starter
|
Mountain Pass
Joined: Mar 2013
Posts: 201
Likes: 8
From: Long Island, NY
There's a switch on the rear controller to turn off the back speakers-- I guess if you are using headphones to listen to something different than the front passengers.
Thread Starter
|
Mountain Pass
Joined: Mar 2013
Posts: 201
Likes: 8
From: Long Island, NY
Thank you.
Cargo Master
Joined: Jul 2009
Posts: 2,885
Likes: 24
From: Chino, California
I removed mine like you did, but didn't realize the rear speakers wouldn't work. I had given my rear controller away and then realized I had no back speakers.
I did this in its place to run an external DVD player. I could hook up a game console if I wanted to.
I did this in its place to run an external DVD player. I could hook up a game console if I wanted to.
Senior User
Joined: Feb 2007
Posts: 188
Likes: 0
From: Tampa, Fl
I tried to jumper it and couldn't get it to work. I just took the PCB out plugged it in and tucked it away all nice and hidden. No problems as of yet.
Trending Topics
Thread Starter
|
Mountain Pass
Joined: Mar 2013
Posts: 201
Likes: 8
From: Long Island, NY
I need to find something to frame the hole with, or at least clean that gook off of there. Like most things that are 13 it's incredibly stubborn.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Ford Super Duty: 5 Things Owners LOVE, 5 Things They LOATHE!
Joe Kucinski
Every 2026 Ford Truck Engine RANKED from WORST to FIRST!
Michael S. Palmer
The Best F-150 Deal of Every Trim Level (XL through Raptor)
Joe Kucinski
Cargo Master
Joined: Jul 2009
Posts: 2,885
Likes: 24
From: Chino, California

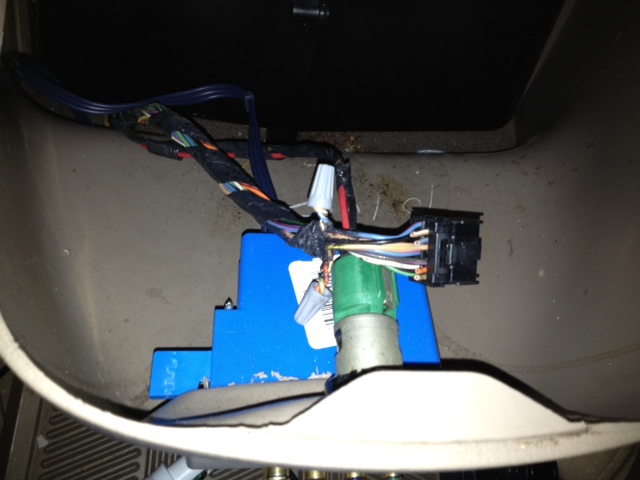

You can try doing what I did. That AV outlet I installed is actually the same size as an electrical outlet. I installed a plastic electrical box to hold the AV outlet. You can install a 120V AC wall outlet instead.
For the wiring, you can get a standard outlet cord and cut it. Plug the cord into your power inverter and wire the loose ends into the wall electrical socket like you do when you wire one in your house. The wires to the outlet is protected in the plastic electrical box.
You can also see on the plug which wires I jumped to get the rear speakers back up.
I just realized your power inverter has USB outlets, too. You can get the standard wall outlets now with USB outlets, too. They have ones that has 2 USB.
I was scared when I tried jumping the speaker wires as well. What I did was I used my mp3 player with headphone jack plugged in with bare wire ends. With the Excursion powered off, I tapped the speaker wires from the diagram until I heard music coming out of the speaker. That was when I knew which wire I had to cut.
For the wiring, you can get a standard outlet cord and cut it. Plug the cord into your power inverter and wire the loose ends into the wall electrical socket like you do when you wire one in your house. The wires to the outlet is protected in the plastic electrical box.
You can also see on the plug which wires I jumped to get the rear speakers back up.
I just realized your power inverter has USB outlets, too. You can get the standard wall outlets now with USB outlets, too. They have ones that has 2 USB.
I was scared when I tried jumping the speaker wires as well. What I did was I used my mp3 player with headphone jack plugged in with bare wire ends. With the Excursion powered off, I tapped the speaker wires from the diagram until I heard music coming out of the speaker. That was when I knew which wire I had to cut.
