AC suction side fitting?
Thread Starter
|
Cargo Master
Joined: Sep 2012
Posts: 2,112
Likes: 286
From: Eastern TN
AC suction side fitting?
I see an AC fitting above where the oil filler tube curls back towards the engine. Is this the only low side fitting? The air cleaner hoses have to be off to charge the system with the engine running? I expected to see somthing by the receiver/dryer on the passenger fender. I see a high side fitting by the radiator cap.
Sixto
'93 E150 Chateau 5.8 184K miles
Sixto
'93 E150 Chateau 5.8 184K miles
Thread Starter
|
Cargo Master
Joined: Sep 2012
Posts: 2,112
Likes: 286
From: Eastern TN
I just realized this van was delivered with R-12. I don't see a retrofit decal so I have some work to do confirming what's in there. If these are R-134a fittings, which they must be since they're not threaded, they were installed as part of a comprehensive conversion because they're not the kind that fit over and destroy R-12 fittings.
Here are some pictures of the engine bay:

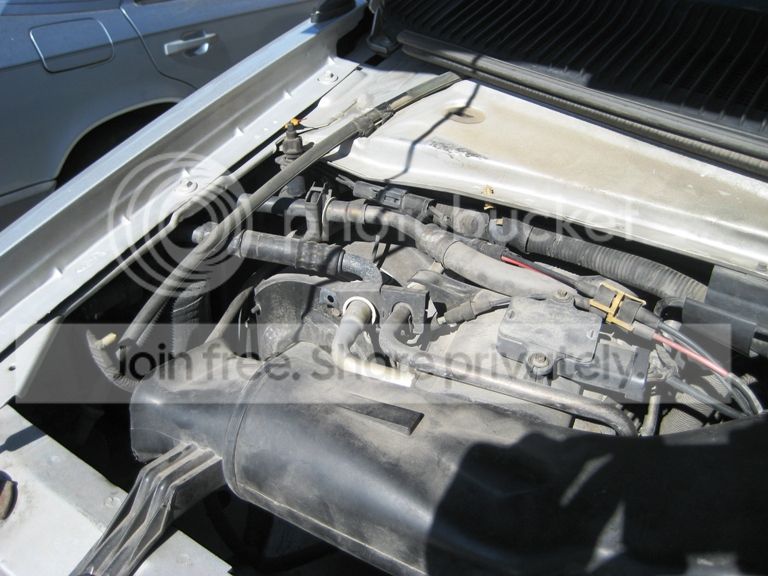

Passenger side overview, no fittings -

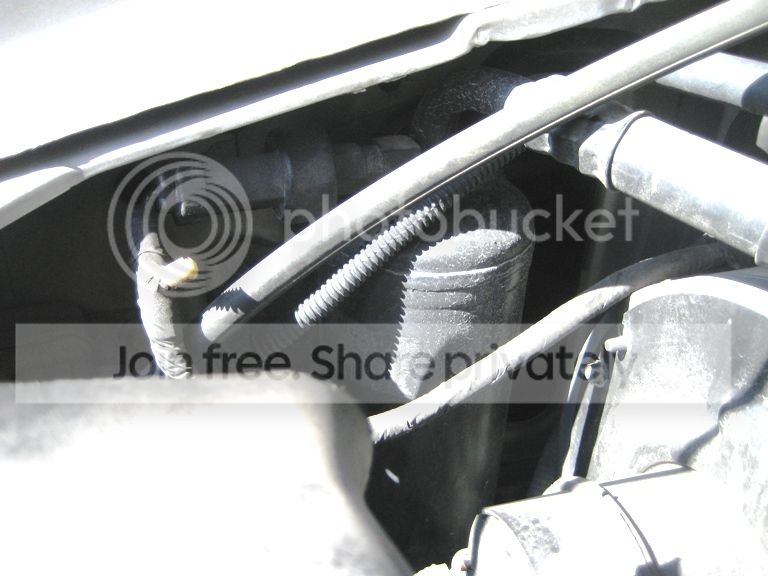

Detail of drier with low pressure switch, no fittings -
Detail of evaporator box, no fittings -

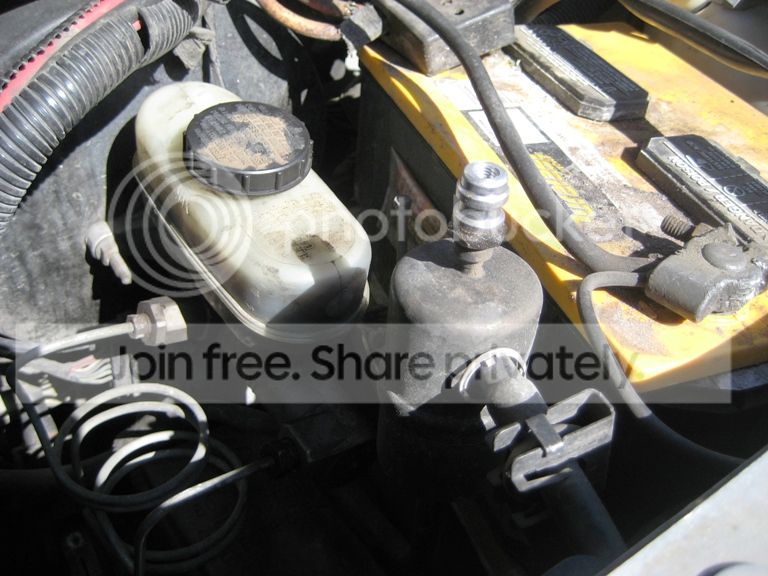

Detail of accumulator with fitting (cap removed), looks high side to me -

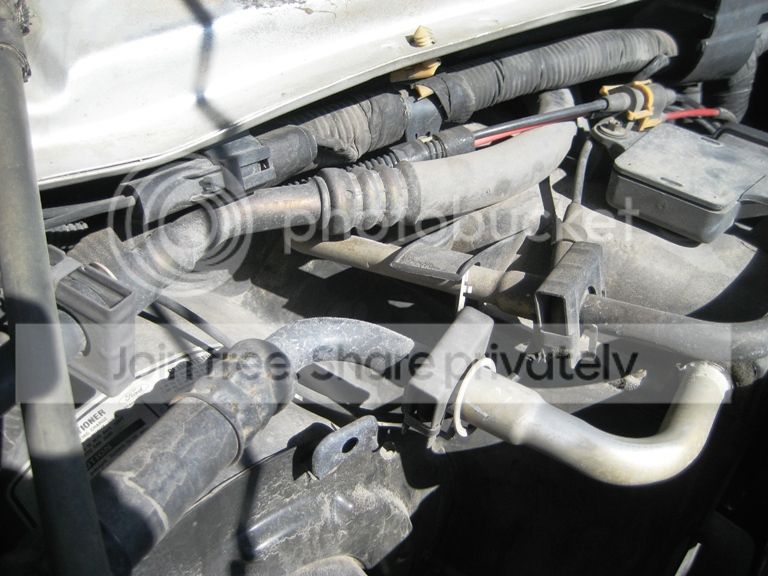

Fitting near where the oil filler tube turns towards the valve cover -
Detail of previous fitting -

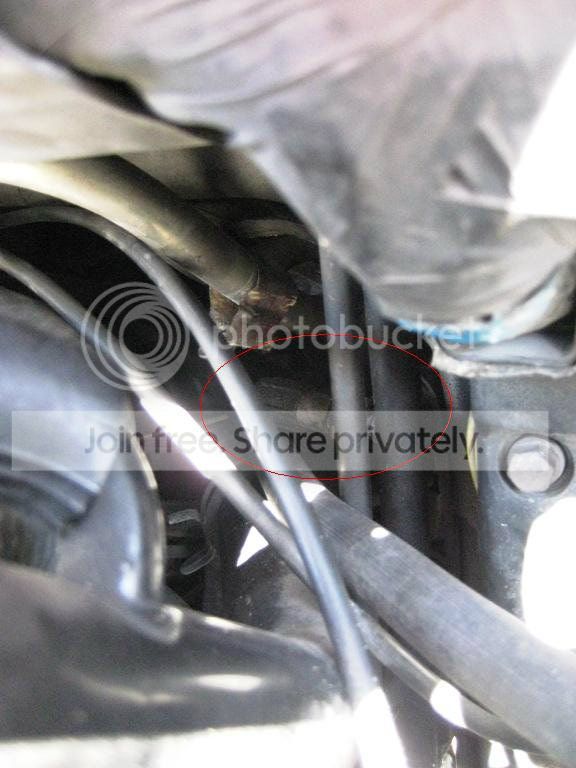

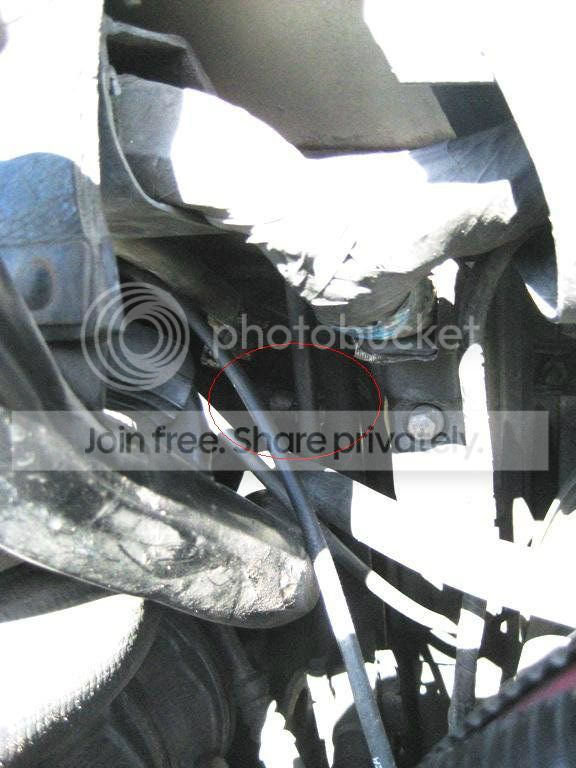

I can't reach the fitting without removing the hoses that lead from the air cleaner to the throttle body. I suppose I can reattach the hoses once the guage set is hooked up. I can't imagine that's where Ford originally put the fitting.
Where's the suction side fitting in your van?
Unrelated view of second and third row captain chairs and late model 4-passenger bench -
Sixto
'93 E150 Chateau 5.8 184K miles
Here are some pictures of the engine bay:
Passenger side overview, no fittings -
Detail of drier with low pressure switch, no fittings -
Detail of evaporator box, no fittings -
Detail of accumulator with fitting (cap removed), looks high side to me -
Fitting near where the oil filler tube turns towards the valve cover -
Detail of previous fitting -
I can't reach the fitting without removing the hoses that lead from the air cleaner to the throttle body. I suppose I can reattach the hoses once the guage set is hooked up. I can't imagine that's where Ford originally put the fitting.
Where's the suction side fitting in your van?
Unrelated view of second and third row captain chairs and late model 4-passenger bench -
