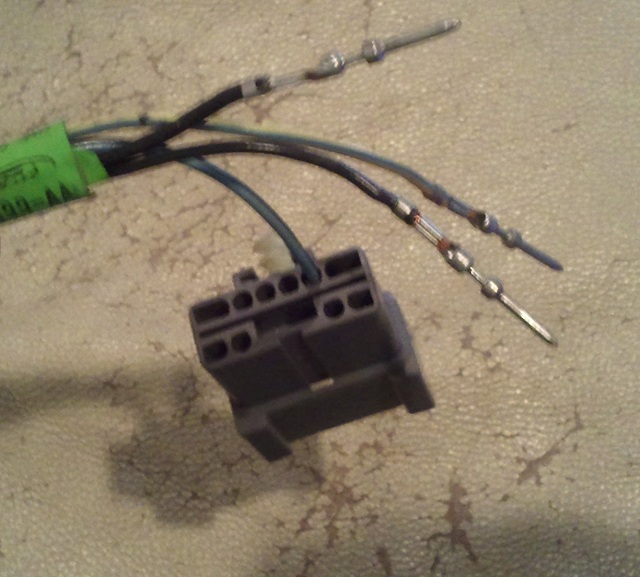

So... I took apart the connector on the end of the cruise control connector and forgot to take a picture of it...
Can someone shoot a picture of the back steering wheel side of the cruise control connecter under the dash...
Thanx,
Richard
Can someone shoot a picture of the back steering wheel side of the cruise control connecter under the dash...
Thanx,
Richard
Postmaster
Joined: Sep 2007
Posts: 4,195
Likes: 6
From: Medford Oregon
Let me go look and see if I can determine actual wire colors with a flashlight ...
Postmaster
Joined: Sep 2007
Posts: 4,195
Likes: 6
From: Medford Oregon
On mine ...
Top Right - Blue with Yellow stripe
Bottom Right - Black - Larger wire
Middle - Blue with red stripe
Left - Black - Smaller wire
Can't see any stripe markings on the black wires.
Top Right - Blue with Yellow stripe
Bottom Right - Black - Larger wire
Middle - Blue with red stripe
Left - Black - Smaller wire
Can't see any stripe markings on the black wires.
