Just finished my X code and modified B code spring swap - WOW!!!


  #31
Old 12-07-2015, 07:13 PM
WE3ZS's Avatar
WE3ZS
WE3ZS is online now
World Famous Mod
Join Date: Jul 2010
Location: Media PA
Posts: 8,203
WE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputation
Originally Posted by Isaac Brown View Post
To revive an old thread...I have nearly the exact X as Hunter, DDS. It has some kind of a mini pack lift on it with stock springs. Rides horrible.

Hunter, DDS: regarding your measurements, were they actually from the ground, rather than from the center of the hub?

"Now, with my 275/65/20 tires on and the updated springs, my front sits 42.25 inches to the wheel well measured from the center of the hub. The rear sits 43 inches."


Obviously I'm not the good Doctor Hunter but yes, those measurements were from the ground to the wheel well.
This thread is a great resource for anyone looking to modify their EX suspension, it shows many different setups and the various amounts of lift attained from each. Good stuff!
https://www.ford-trucks.com/forums/1...easurents.html

  #32
Old 12-07-2015, 08:26 PM
Stewart_H's Avatar
Stewart_H
Stewart_H is offline
The Nekkid Super Mod
Join Date: May 2004
Location: Central Coast of CA
Posts: 27,964
Stewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputation
Originally Posted by Isaac Brown View Post
Hunter, DDS: regarding your measurements, were they actually from the ground, rather than from the center of the hub?

"Now, with my 275/65/20 tires on and the updated springs, my front sits 42.25 inches to the wheel well measured from the center of the hub. The rear sits 43 inches."
Originally Posted by WE3ZS View Post
Obviously I'm not the good Doctor Hunter but yes, those measurements were from the ground to the wheel well.
Hmmm, not according to the portion of the quote in quotation marks I highlighted.

Stewart

  #33
Old 12-07-2015, 10:11 PM
WE3ZS's Avatar
WE3ZS
WE3ZS is online now
World Famous Mod
Join Date: Jul 2010
Location: Media PA
Posts: 8,203
WE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputation
Oh, I know what it says Bossman, but if you read the entire statement from the original post it become obvious that he was measuring from the ground (and just stated the measurement points incorrectly) plus looking at the pics the distance from hub center to wheel well isn't several (8" to 9") inches taller than the tires (they are 34" tall).

"Anyhow, below are my pre and post pictures. With the X-codes on the front I picked up 2.5 inches of lift. I picked up nearly the same on the rear. Now, with my 275/65/20 tires on and the updated springs, my front sits 42.25 inches to the wheel well measured from the center of the hub. The rear sits 43 inches."

  #34
Old 12-08-2015, 12:22 AM
Krazee Matt's Avatar
Krazee Matt
Krazee Matt is offline
Leadfoot
Join Date: Jan 2014
Posts: 3,582
Krazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputation
Tom beat me to it, 42" would be running 40's easily.

  #35
Old 12-08-2015, 04:19 AM
Stewart_H's Avatar
Stewart_H
Stewart_H is offline
The Nekkid Super Mod
Join Date: May 2004
Location: Central Coast of CA
Posts: 27,964
Stewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputationStewart_H has a superb reputation
Originally Posted by WE3ZS View Post
Oh, I know what it says Bossman, but if you read the entire statement
Originally Posted by Krazee Matt View Post
Tom beat me to it, 42" would be running 40's easily.
Wait, what? We have expectations of reading posts and not scanning posts? Reading, so specific information that is present within, will easily provide the information to those of us familiar with the Ex suspension? The heck you say!



Stewart

  #36
Old 12-08-2015, 05:57 AM
Jointasset's Avatar
Jointasset
Jointasset is online now
Senior User
Join Date: Nov 2015
Location: Tampa
Posts: 167
Jointasset has a good reputation on FTE.Jointasset has a good reputation on FTE.Jointasset has a good reputation on FTE.
Hunter, your X looks great. I was looking for some good pics of X codes in the front. I am getting ready to do some X/C codes on mine. I did the swaybar first and can't wait to do the leafs.
Good Job and thanks for the tips

  #37
Old 04-25-2018, 05:11 PM
Jregezeino
Jregezeino is offline
Freshman User
Join Date: Mar 2018
Posts: 38
Jregezeino is gaining momentum as a positive member of FTE.Jregezeino is gaining momentum as a positive member of FTE.
Originally Posted by Hunter,DDS View Post
My EX was exhibiting the classic wandering behavior and I was not satisfied with the ride. Expansion joints were uncomfortable to say the least. Towing modest amounts I would get pushed around a bit. After reading and re-reading the forums, I decided that X-codes and modified B codes would suit my interests best. Located the springs I needed and proceeded.

Started at 7:00 this morning. Got finished exactly 4 hours later. Spent several hours this past week on the phone rounding up parts, stopped by the salvage yard to pick up the springs. Also went by the local spring shop and had them custom make some new U-bolts for me. I also got some new center bolts for the modified rear spring packs. Finally I ordered some new bushings from Energy Suspension to place since I was under there. As it turned out, they sent me the wrong size bushings. However, my OEM ones weren't in bad shape anyhow. I think they have a year or two left in them.

Anyhow, below are my pre and post pictures. With the X-codes on the front I picked up 2.5 inches of lift. I picked up nearly the same on the rear. Now, with my 275/65/20 tires on and the updated springs, my front sits 42.25 inches to the wheel well measured from the center of the hub. The rear sits 43 inches.

Before:


After:

Technique:

I have a buddy with a shop and a lift which made life much easier. We put it up on the lift and worked on one axle at a time. On the passenger rear side the only complication we ran in to was having to unbolt and move the rear A/C line in order to get the front spring bolt out. Otherwise the rear was very straight forward.

The fronts were a little more difficult just because we had to remove that low hanging Prius saver from under the front bumper. This had to come off in order to get the front bolts off. Also, on the driver side we had to take the entire shackle off of the frame instead of removing the spring from the shackle. The front drive shaft was in the way and we couldn't get the bolt off to remove only the spring. The front and rear custom U-bolts worked fabulously.

Tips:

1) I would not have wanted to try to tackle this job without air tools.
2) Make sure you have a torch handy as many of my bolts had loc-tite on them and were impossible to get off without torching them. My truck has never seen snow or salt so corrosion was not an issue. If your truck has rusty bolts this will complicate the process more.
3) IMO you cannot safely and efficiently do this by yourself. You really need another person, especially to remove the old spring and to seat the new one in place.
4) I suppose you could do this with a few jacks and jack stands, but having the lift and TALL jack stands was a God send.
5) Instead of buying new springs, look for some low mileage ones at a salvage yard. Also, don't buy U-bolts from the dealer. Dealer cost PER U BOLT was $27. I got custom make ones with higher quality steel from a spring shop for $14 per bolt. My springs were also $50 each from the salvage yard. In total I have less than $500 in this whole process, and $100 of that was for my buddy for his time.

Driving Impression

I am extremely satisfied with this swap. My truck has never ridden so good. On the highway any steering wander is absolutely gone. I tracks straight and true. Expansion joints are no longer a problem. My truck rides firmer perhaps, but better and much more comfortable. Firmer makes one think of harsher, which is absolutely not true. Firmer means you aren't bouncing all over the road. The body of the truck isn't sloshing around like a water bed anymore. I even took a back road home this evening which is really rough, and I was smiling ear to ear going down this road I used to avoid. Now it rides like a very nice riding truck. Sharp curves are more confidently handled. Lane changes are quick and crisp. The X codes gave me enough lift to clear my 34.5" tires. They have some miles on them already so I don't expect them to settle much more.

Final Impression

IMO I am very pleased with the X codes. If I would have gone with new V codes they probably would have been OK for the first while until they settled, then I would have a little too much rake for my liking. With broken in X codes it should sit right where it is for a long time. The ride is absolutely perfect, as is the height with the modified B code swap. With 1" or trailer induced squat I will be nearly level. This combo of springs seems like it was designed for this beast of a vehicle. Best mod I have done to date, which is saying alot. I have now done:

1) 2008 tow mirrors
2) 2007 OEM wheels
3) 275-65-20 michelins
4) Third row headrests
5) A smattering of 6.0 PSD upgrades.

I highly recommend this mod to anybody, whether you are experiencing steering wander or not. I really can't say enough about the new driving experience

Reviving this thread as this is my favorite pic of an XB Swap to date, what size rear blocks was this using?

  #38
Old 12-08-2018, 10:26 AM
Jregezeino
Jregezeino is offline
Freshman User
Join Date: Mar 2018
Posts: 38
Jregezeino is gaining momentum as a positive member of FTE.Jregezeino is gaining momentum as a positive member of FTE.

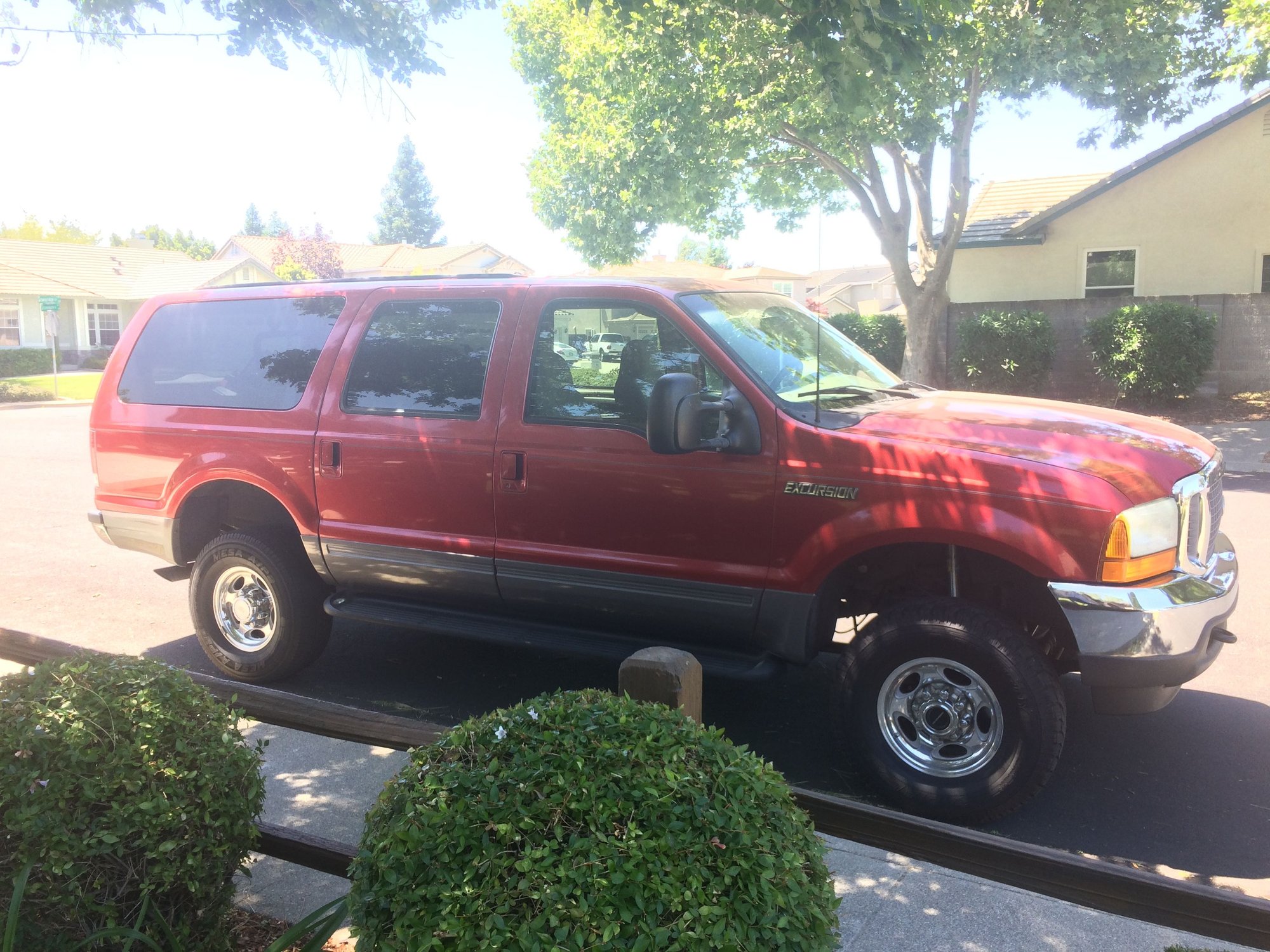

I did the X/modB swap on mine as well, here are some pics. Thinking of swapping the factory 2 blocks for some 3.5 f250 blocks now. I like the ride a lot, and the look, but the rear does look to sit just a tad lower than the front on level ground.

  #39
Old 12-09-2018, 11:22 PM
Daewoo's Avatar
Daewoo
Daewoo is offline
Senior User
Join Date: Jan 2012
Posts: 156
Daewoo has a great reputation on FTE.Daewoo has a great reputation on FTE.Daewoo has a great reputation on FTE.Daewoo has a great reputation on FTE.
When I did my X/ModB swap, I used 4 inches of blocks and it sits level loaded.
X-codes are the way to go if you have a plow on the front.

  #40
Old 12-09-2018, 11:59 PM
Jregezeino
Jregezeino is offline
Freshman User
Join Date: Mar 2018
Posts: 38
Jregezeino is gaining momentum as a positive member of FTE.Jregezeino is gaining momentum as a positive member of FTE.



Yessir a plow or a Ranch Hand!
