Started my 6.0L intercooler install yesterday.
Got the holes cut, cooler mounted and lower brackets welded up.
Didn't run into ANY of the issues that I've read in any write ups. Not sure why my situation is different.
Didn't need to move the a/c condenser towards the engine.
Didn't need to flatten out the bracket that goes from the hood latch to the bottom of the rad support either.

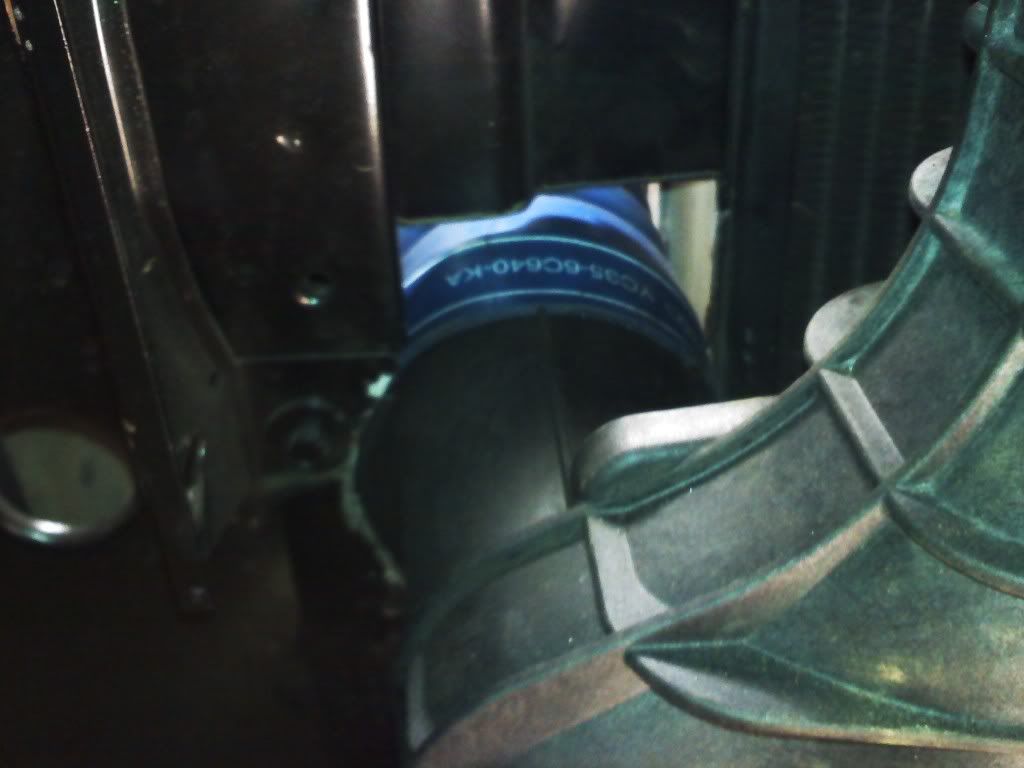

The cooler-side clamps will be accessible from the front when the grill is removed. So like 4-6 screws and the grill is off and you can reach in there to get a 1/4 ratchet on them.
Basically use this guys thread as reference: 6.0L intercooler install in '92-'96 body
I have a bunch of pics, just have to get them on here. Will take more through the day (today) as I finish it up. Piping will be on a later date.
Got the holes cut, cooler mounted and lower brackets welded up.
Didn't run into ANY of the issues that I've read in any write ups. Not sure why my situation is different.
Didn't need to move the a/c condenser towards the engine.
Didn't need to flatten out the bracket that goes from the hood latch to the bottom of the rad support either.
The cooler-side clamps will be accessible from the front when the grill is removed. So like 4-6 screws and the grill is off and you can reach in there to get a 1/4 ratchet on them.
Basically use this guys thread as reference: 6.0L intercooler install in '92-'96 body
I have a bunch of pics, just have to get them on here. Will take more through the day (today) as I finish it up. Piping will be on a later date.
Thread Starter
|
Senior User
Joined: Sep 2010
Posts: 377
Likes: 0

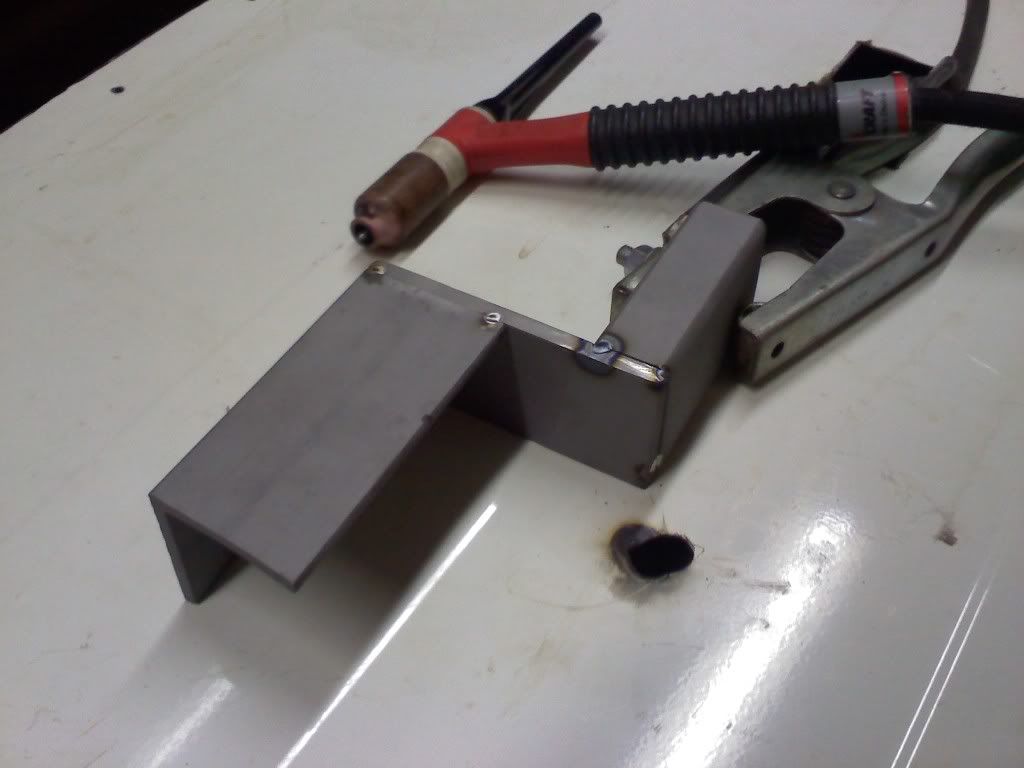

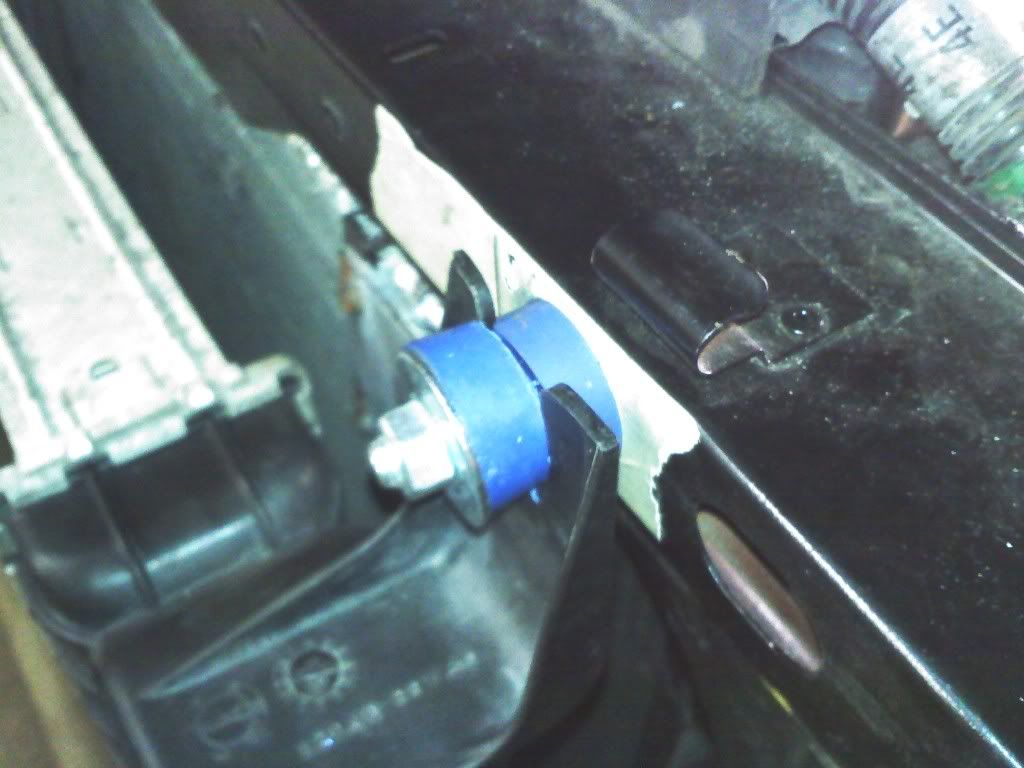

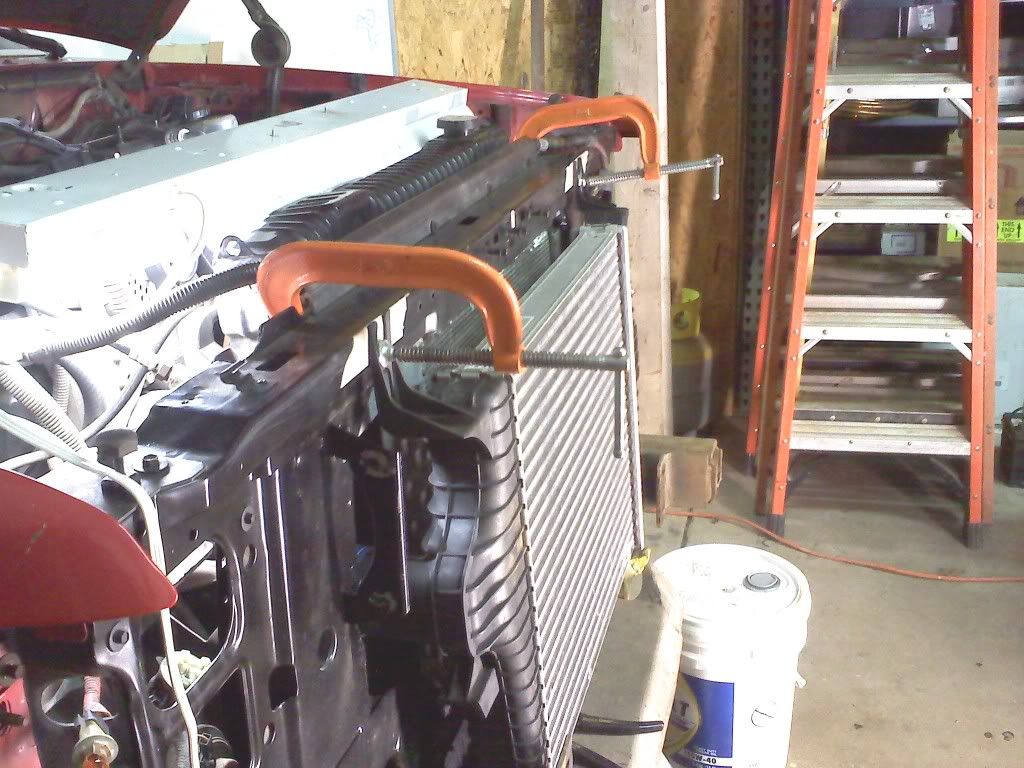

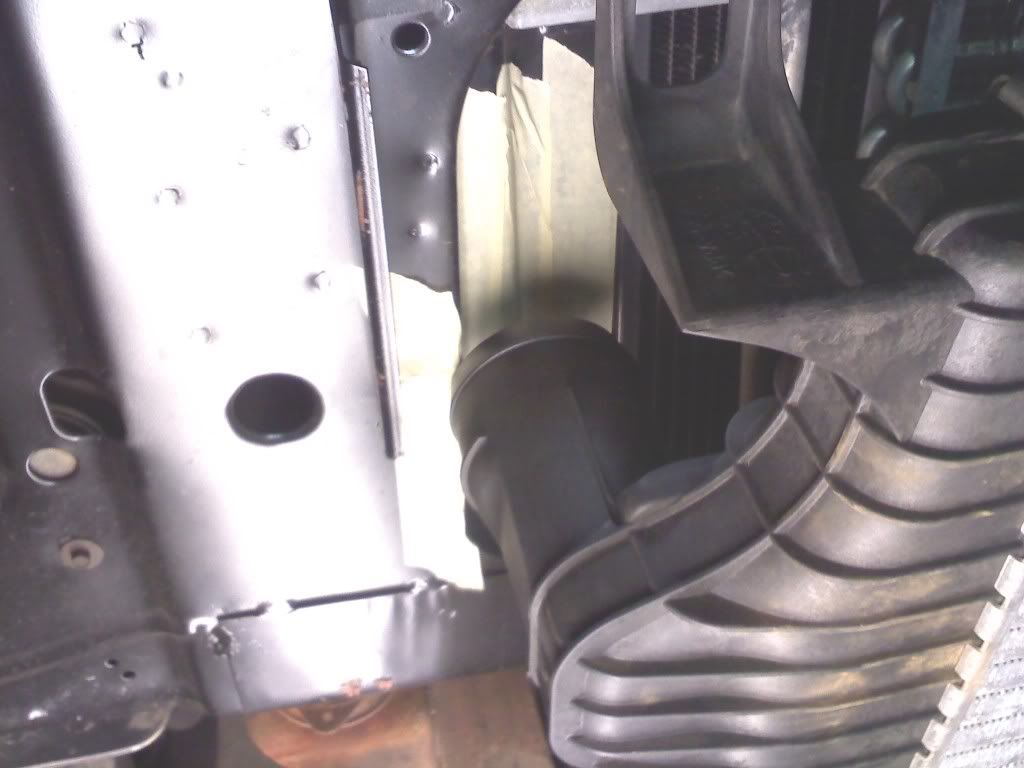

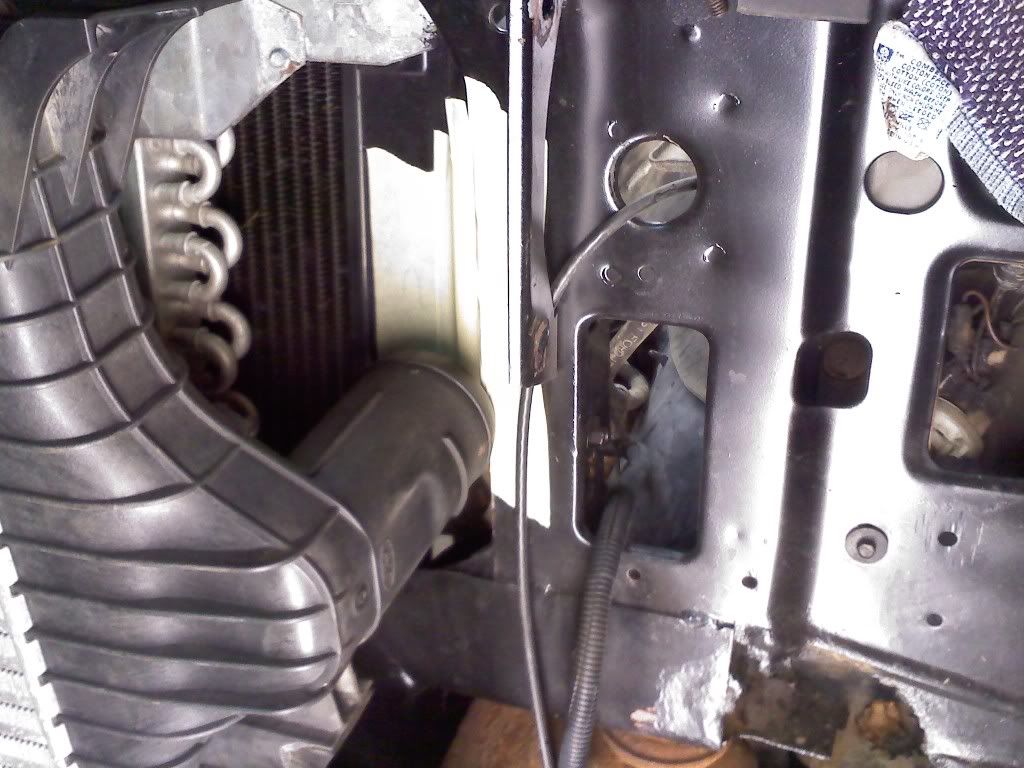

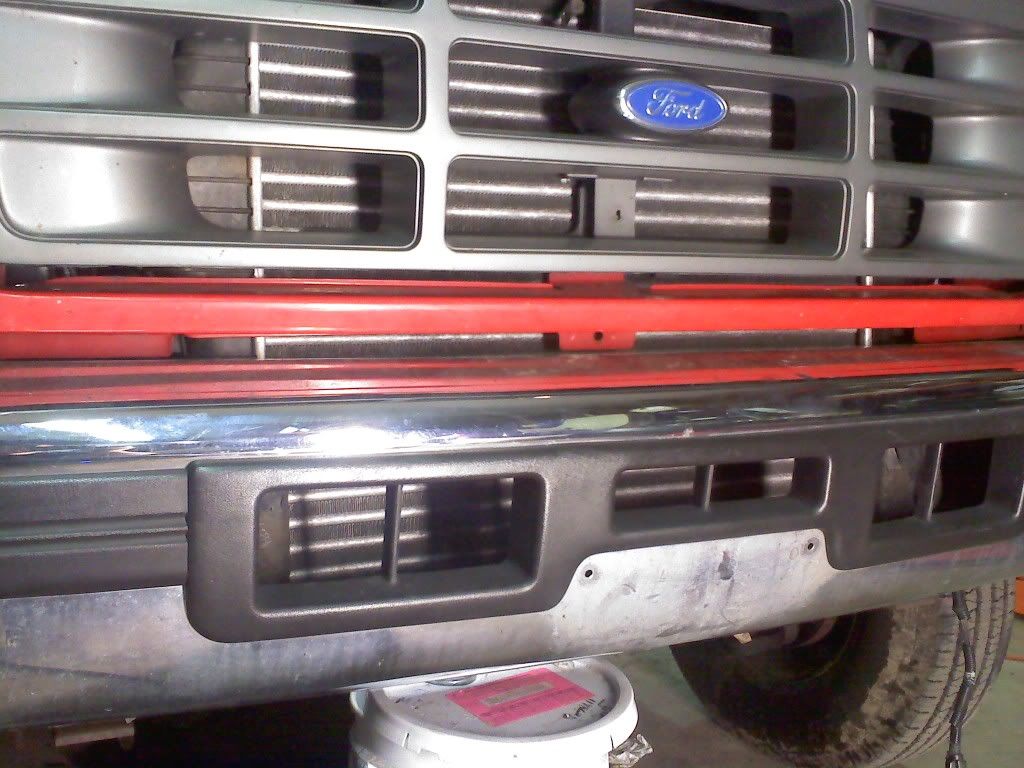

In the pic below it shows how high I mounted the cooler, much easier to drill and attach the rubber mounts at this location versus lowering it. Another reason is if the cooler was lower then this, the nuts for the bumper would have been hard to get on the studs on the bumper.
Laughing Gas
Joined: Dec 2005
Posts: 1,087
Likes: 189
From: Reno, NV
Nice job! Great pics too. IMO, you mounted it in the perfect location. I mounted mine the same as the fourdoorbronco write up. I probably did need to mash the support, but did. With yours mounted 2" higher, it's spaced out towards the front more, so you have even more clearance.
Thanks for sharing, reps sent!
Thanks for sharing, reps sent!
Trending Topics
Thread Starter
|
Senior User
Joined: Sep 2010
Posts: 377
Likes: 0

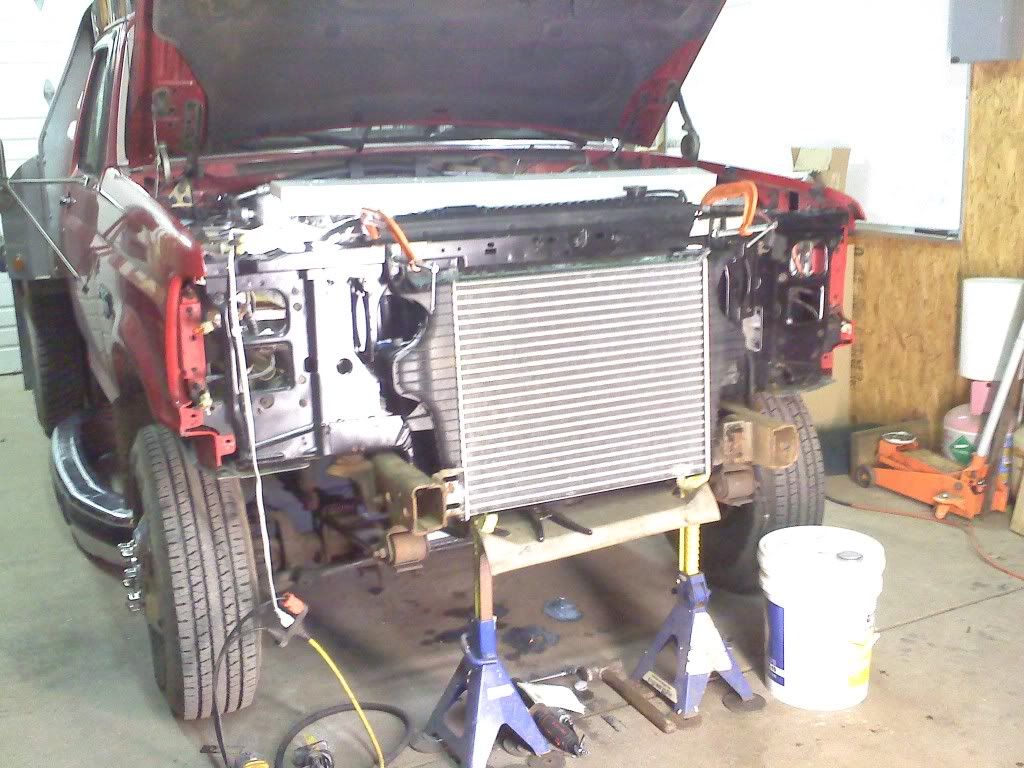

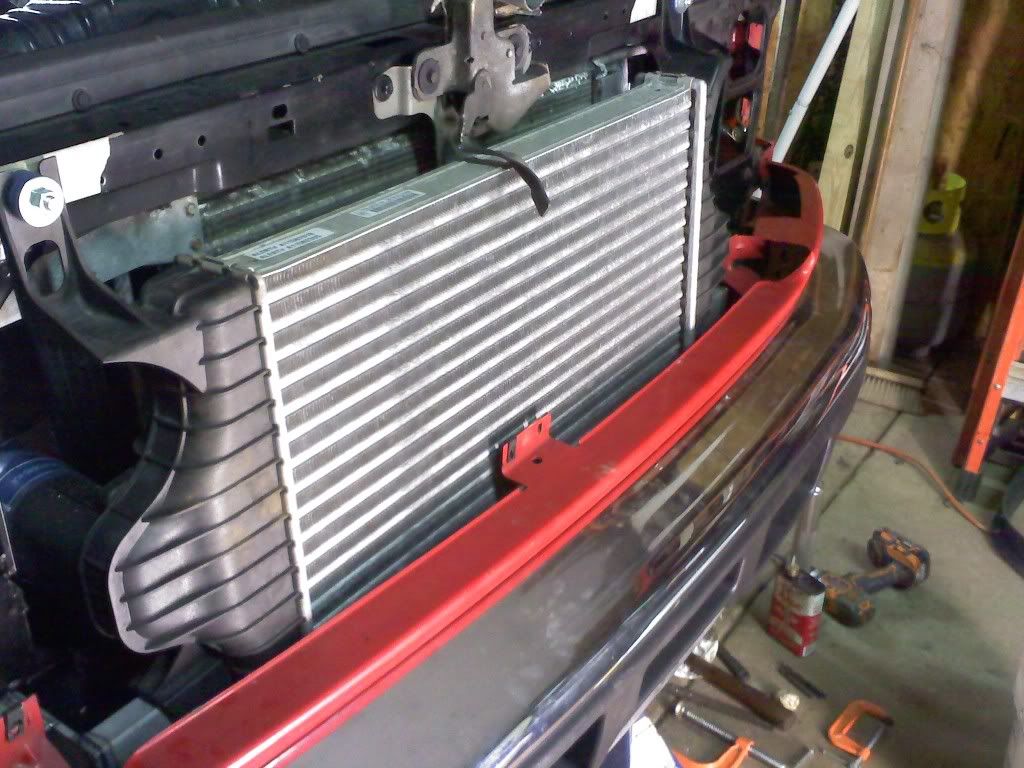

All together...

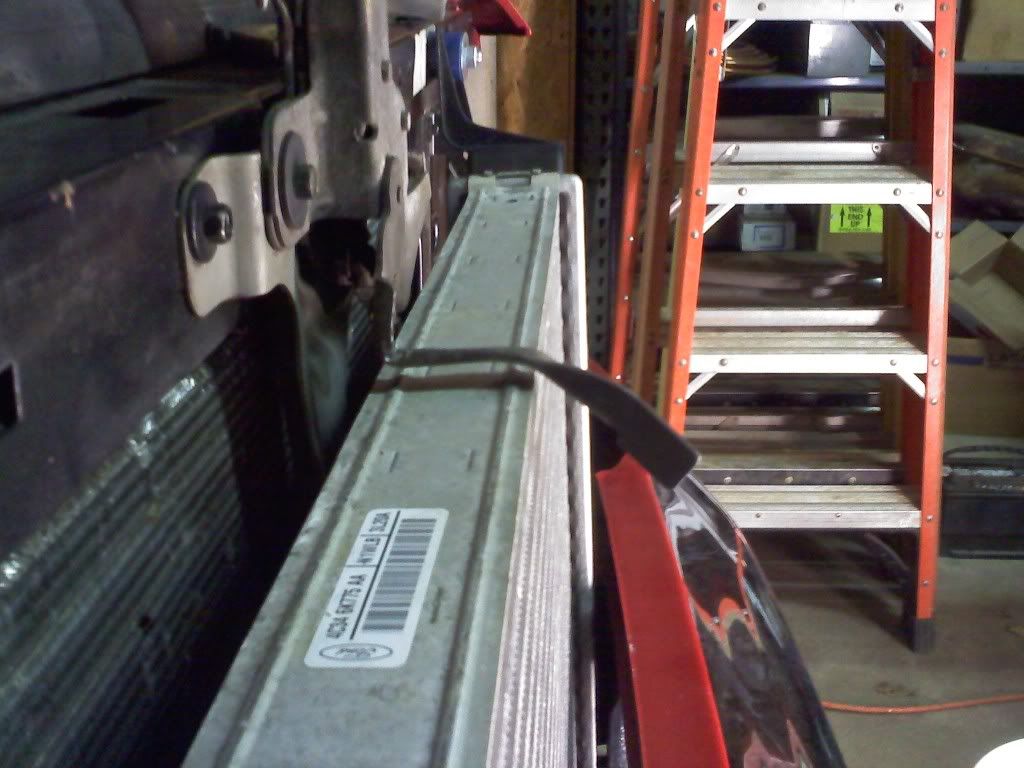

Nice tight fit

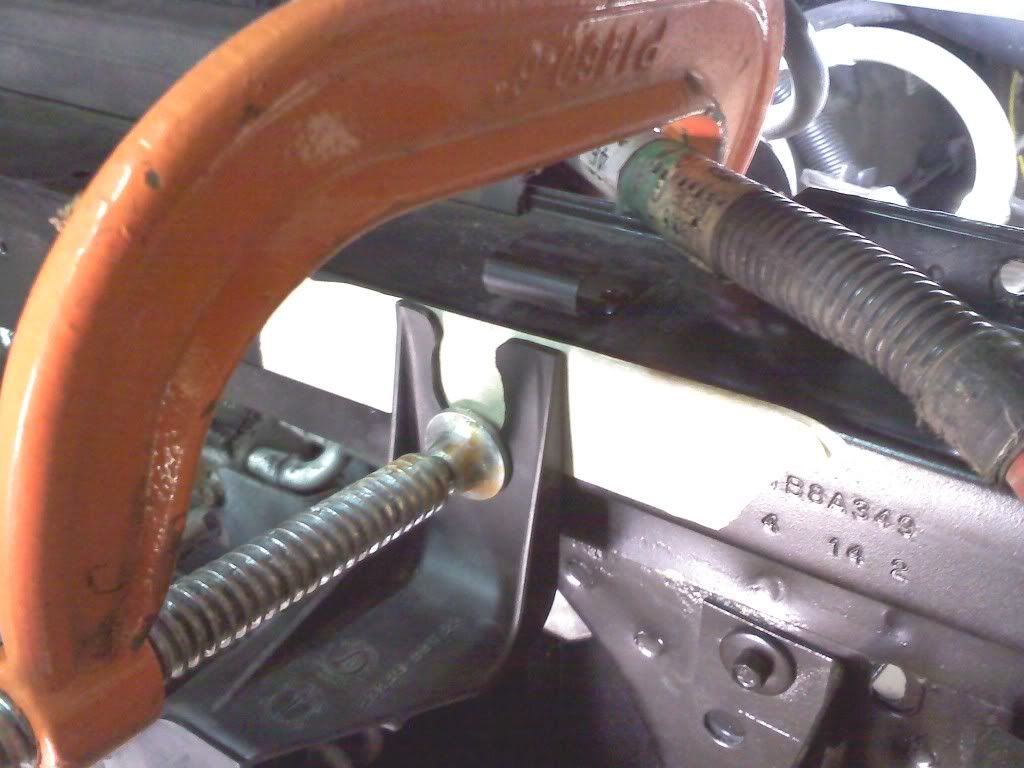

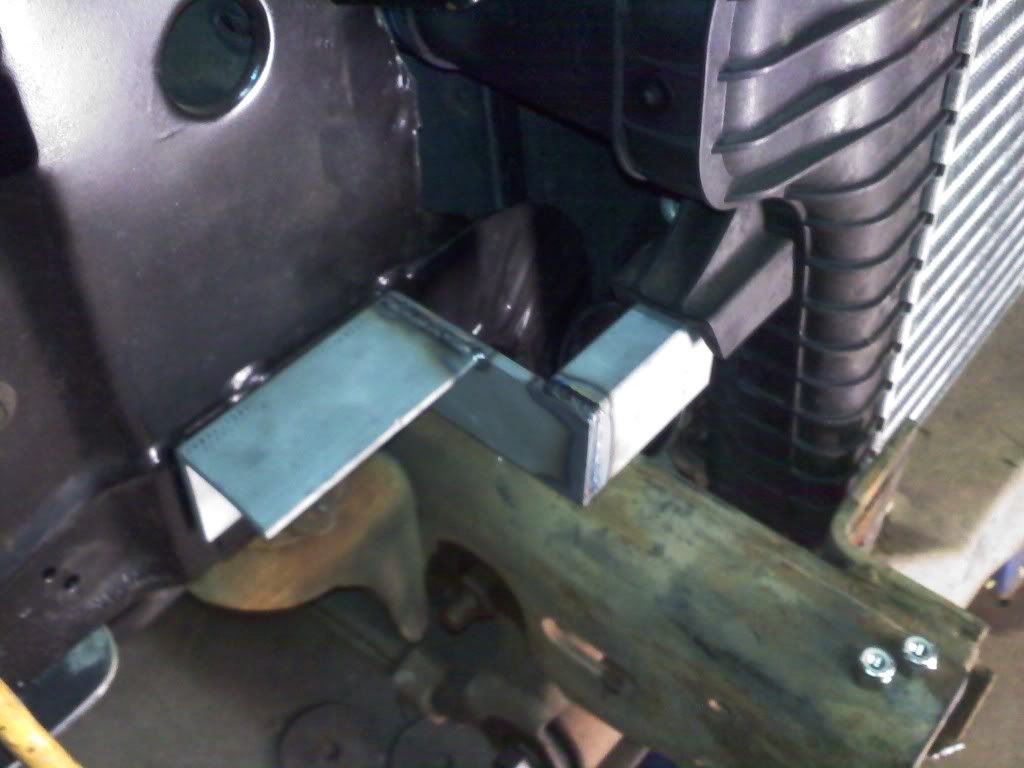

This is my F up....

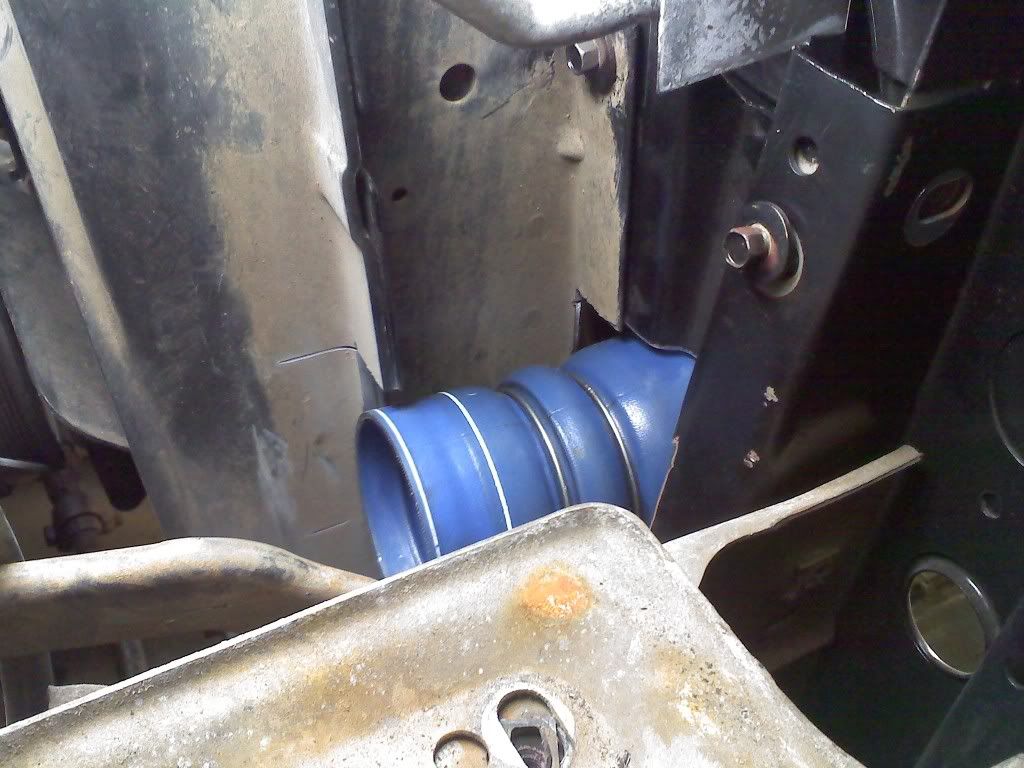

This is the corrected way. Had to go to the junkyard and get another to replace the one I messed up.

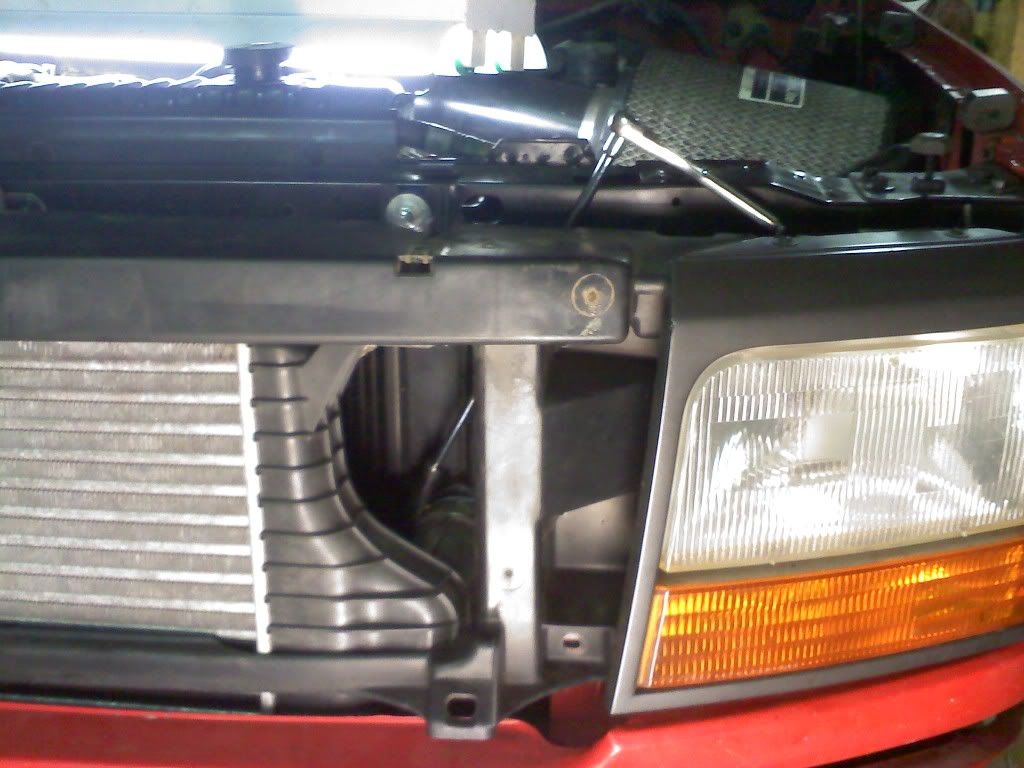

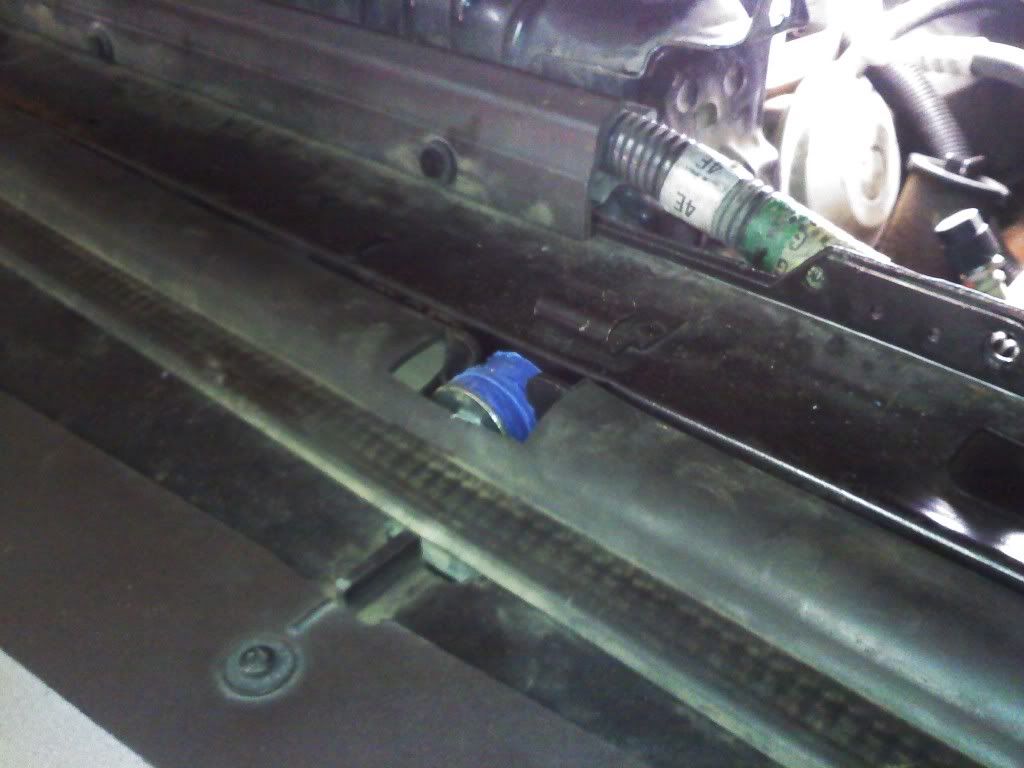

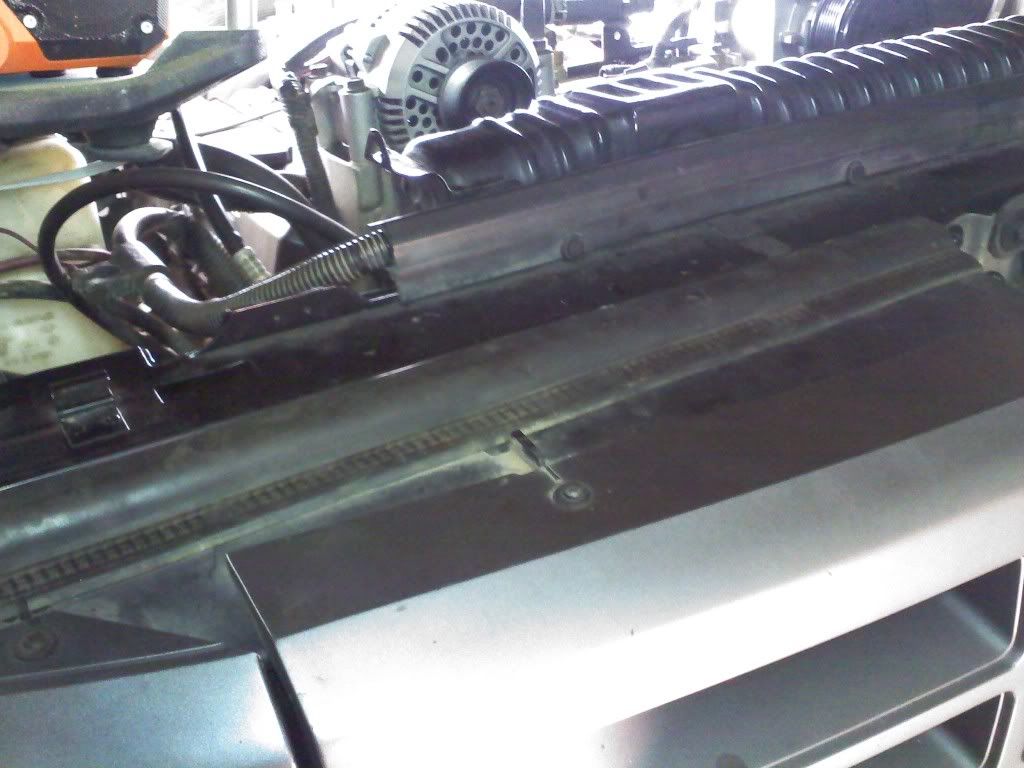

This is how I reached the cooler clamps, just a 1/4" extension. Granted... the grill has to come off to do this. But that is only 5 screws.
Nice tight fit
This is my F up....
This is the corrected way. Had to go to the junkyard and get another to replace the one I messed up.
This is how I reached the cooler clamps, just a 1/4" extension. Granted... the grill has to come off to do this. But that is only 5 screws.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Ford Super Duty: 5 Things Owners LOVE, 5 Things They LOATHE!
Joe Kucinski
Every 2026 Ford Truck Engine RANKED from WORST to FIRST!
Michael S. Palmer
The Best F-150 Deal of Every Trim Level (XL through Raptor)
Joe Kucinski
FOREIGN GURU
Joined: Jul 2006
Posts: 7,655
Likes: 7
From: Celaya, Gto. MX
Started my 6.0L intercooler install yesterday.
Got the holes cut, cooler mounted and lower brackets welded up.
Didn't run into ANY of the issues that I've read in any write ups. Not sure why my situation is different.
Didn't need to move the a/c condenser towards the engine.
Didn't need to flatten out the bracket that goes from the hood latch to the bottom of the rad support either.
The cooler-side clamps will be accessible from the front when the grill is removed. So like 4-6 screws and the grill is off and you can reach in there to get a 1/4 ratchet on them.
Got the holes cut, cooler mounted and lower brackets welded up.
Didn't run into ANY of the issues that I've read in any write ups. Not sure why my situation is different.
Didn't need to move the a/c condenser towards the engine.
Didn't need to flatten out the bracket that goes from the hood latch to the bottom of the rad support either.
The cooler-side clamps will be accessible from the front when the grill is removed. So like 4-6 screws and the grill is off and you can reach in there to get a 1/4 ratchet on them.
Thread Starter
|
Senior User
Joined: Sep 2010
Posts: 377
Likes: 0
Here's some pictures of the piping work. Started on the cold side.

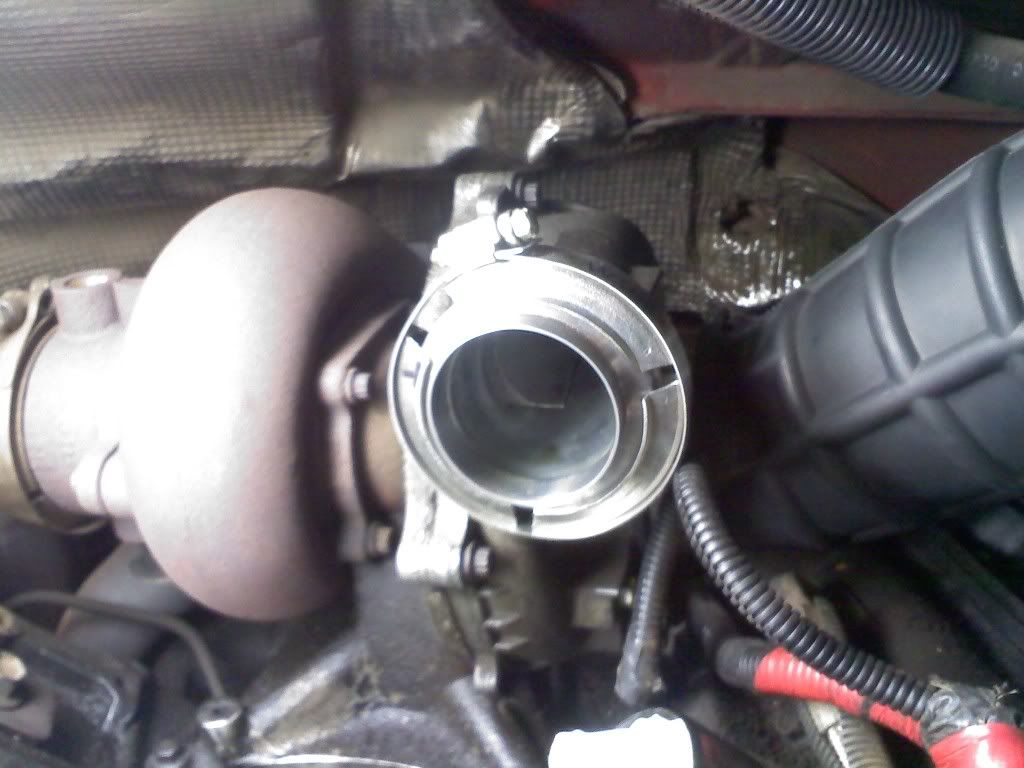

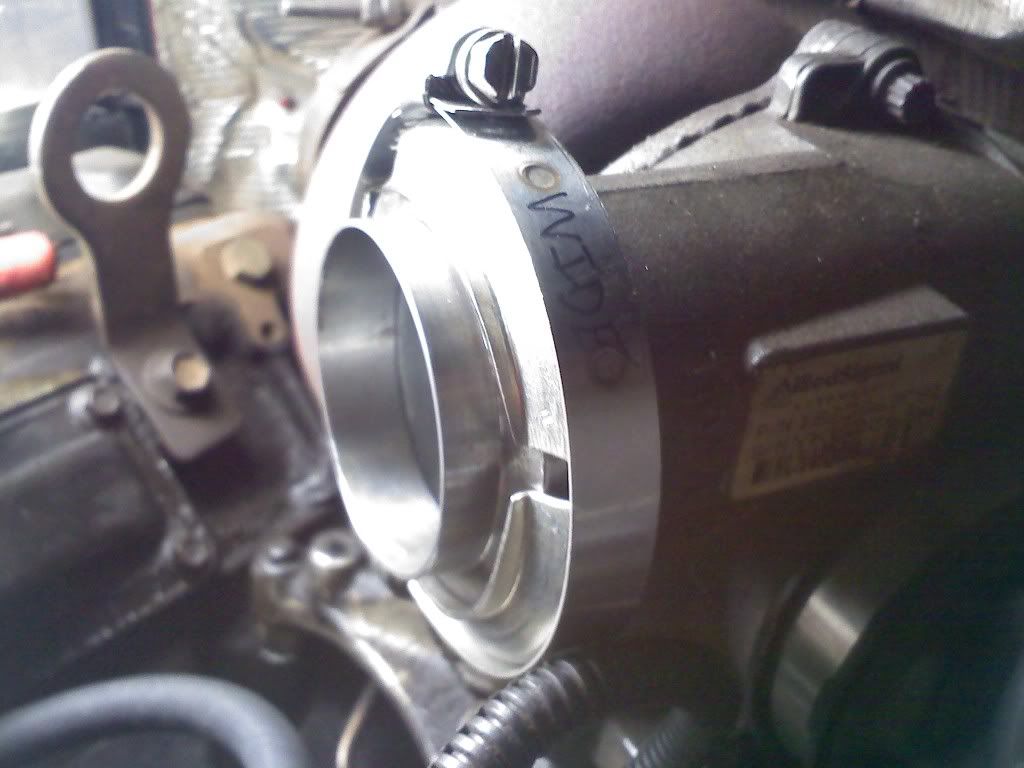

I started with a new flange and a SD clamp (wider then the OBS clamp)

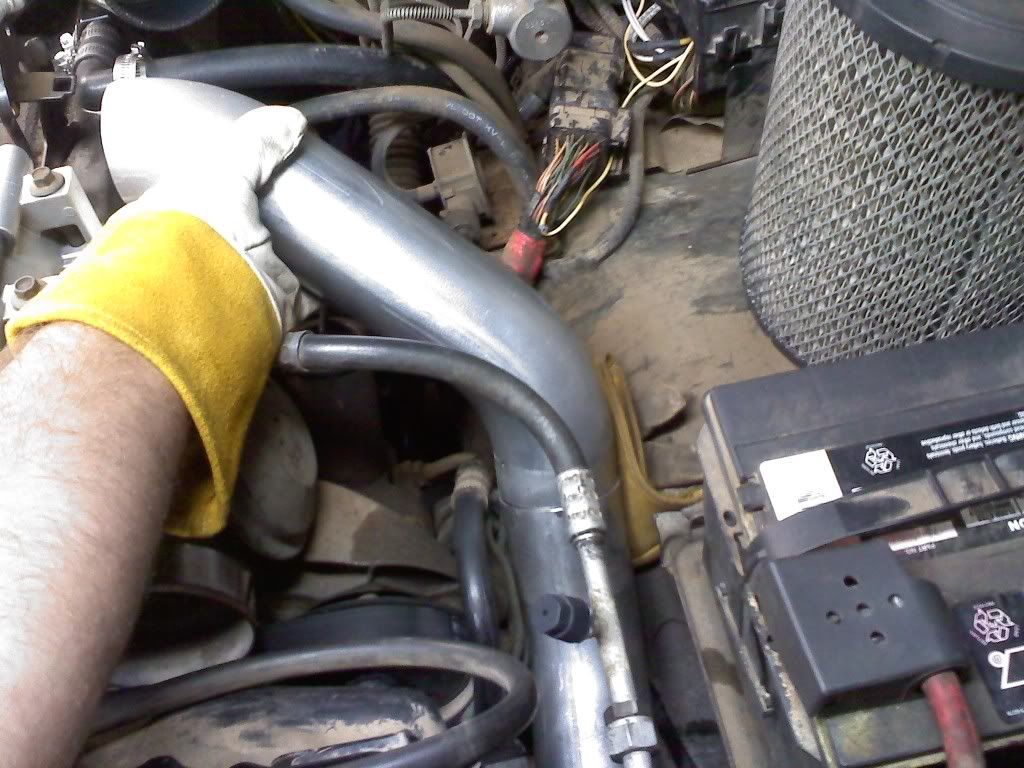

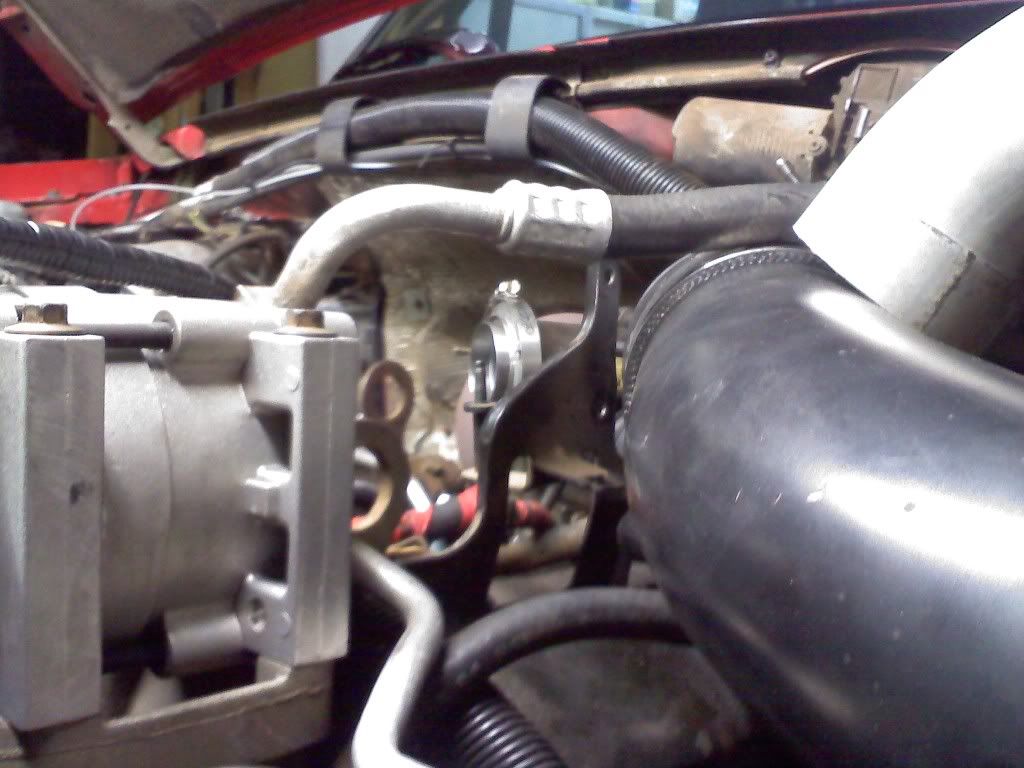

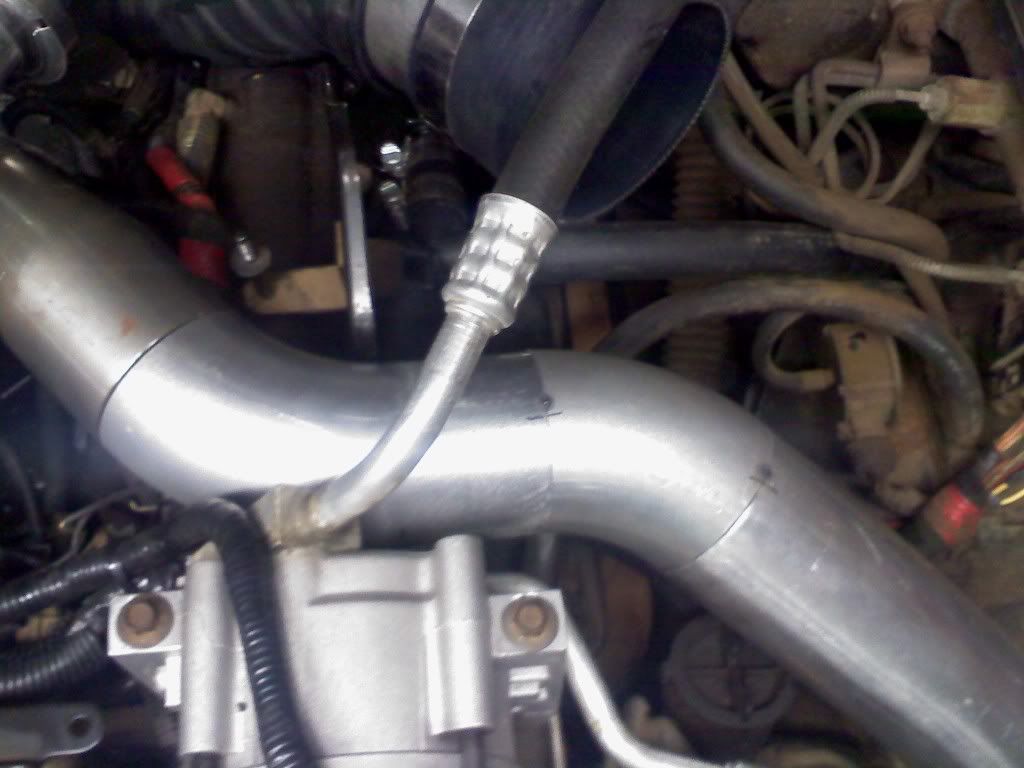

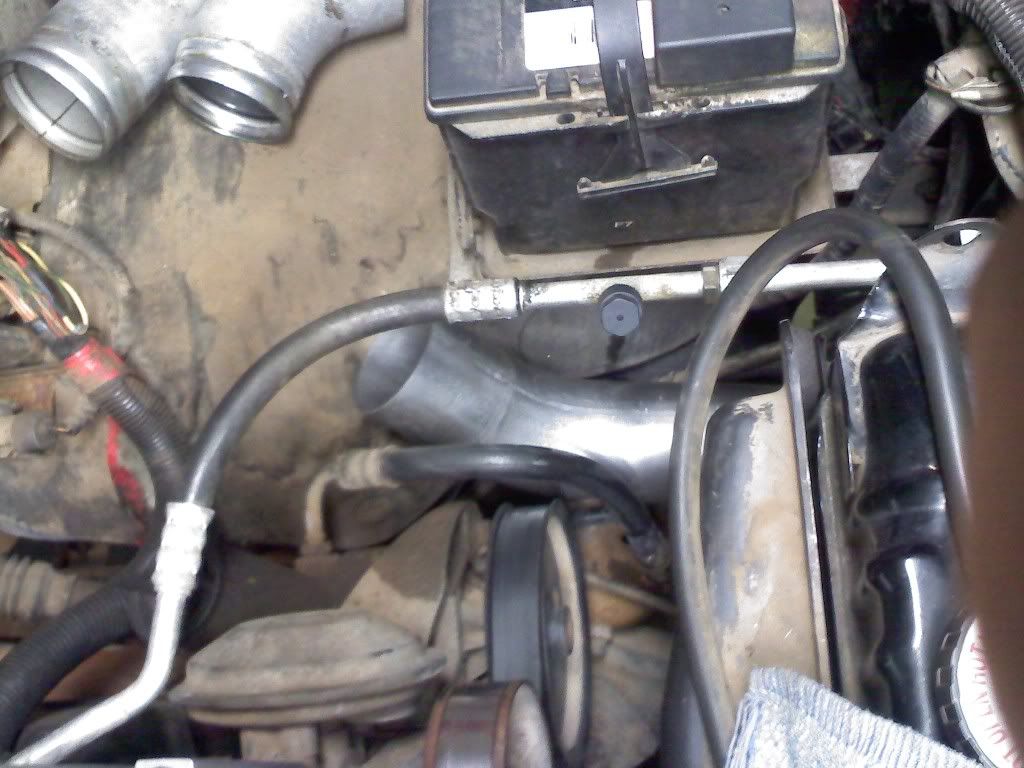

This was my first obstacle, the A/c line. I couldn't 90 up like I had wanted to.

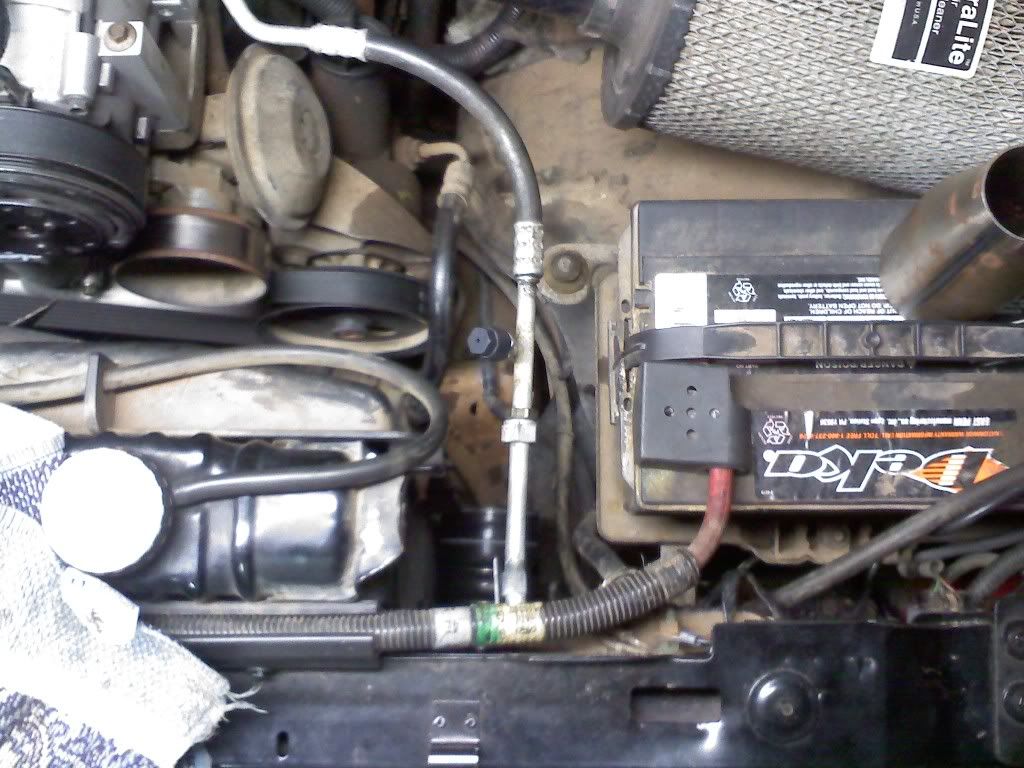

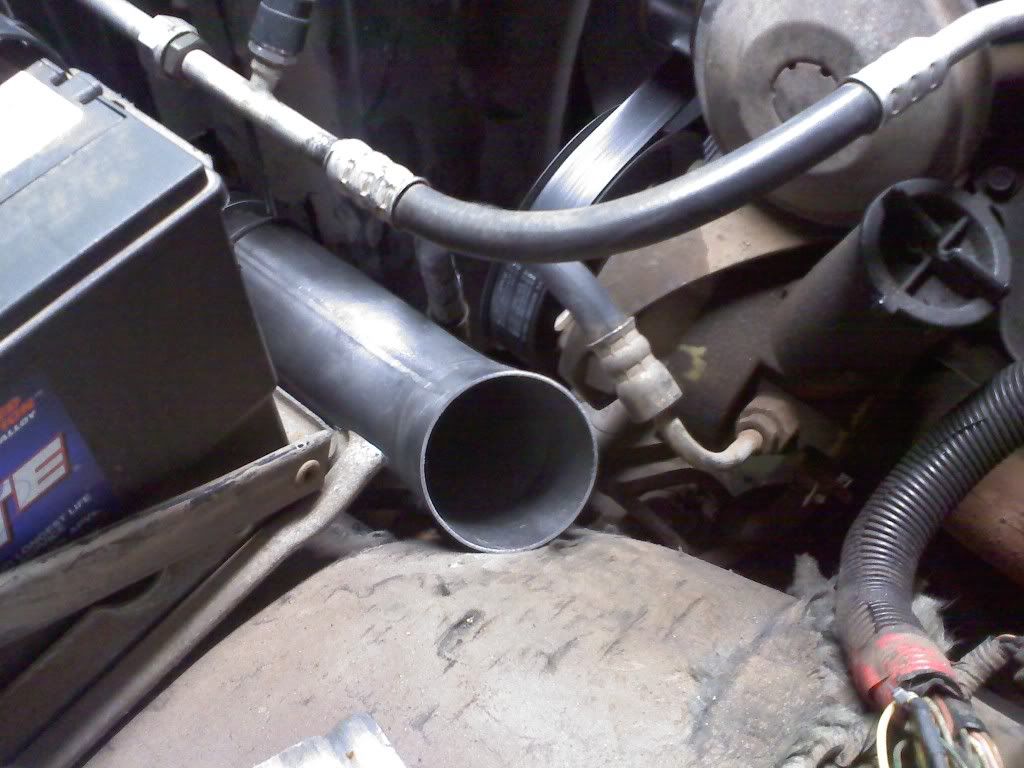

Here is the small hole I wanted to run through.

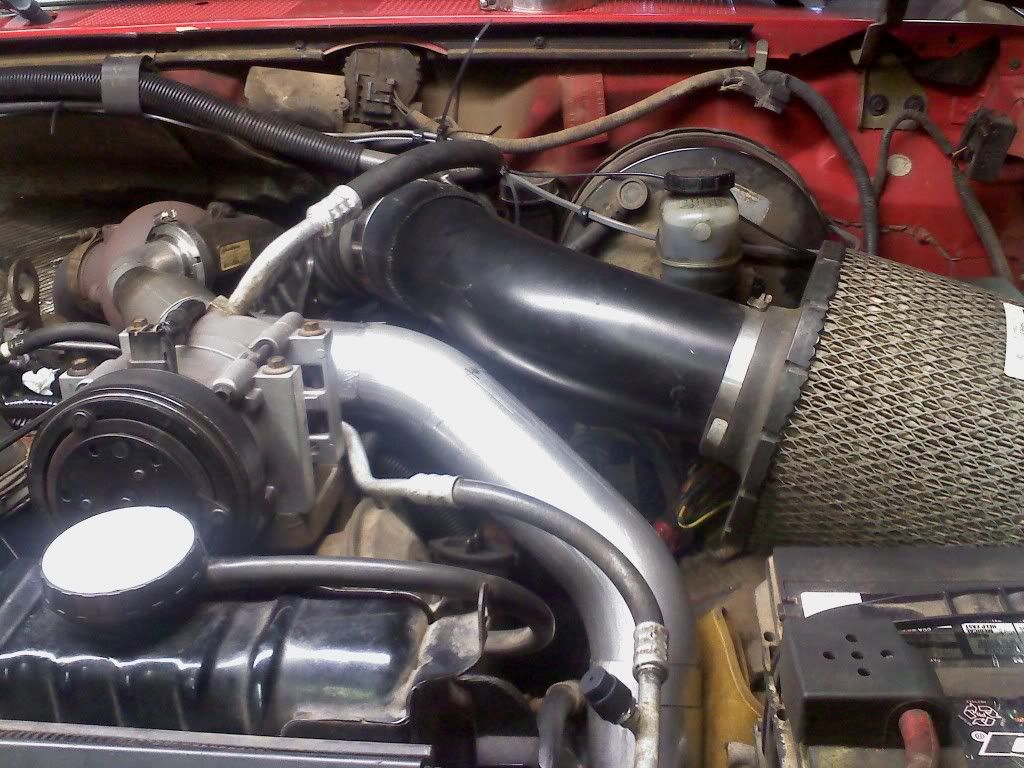

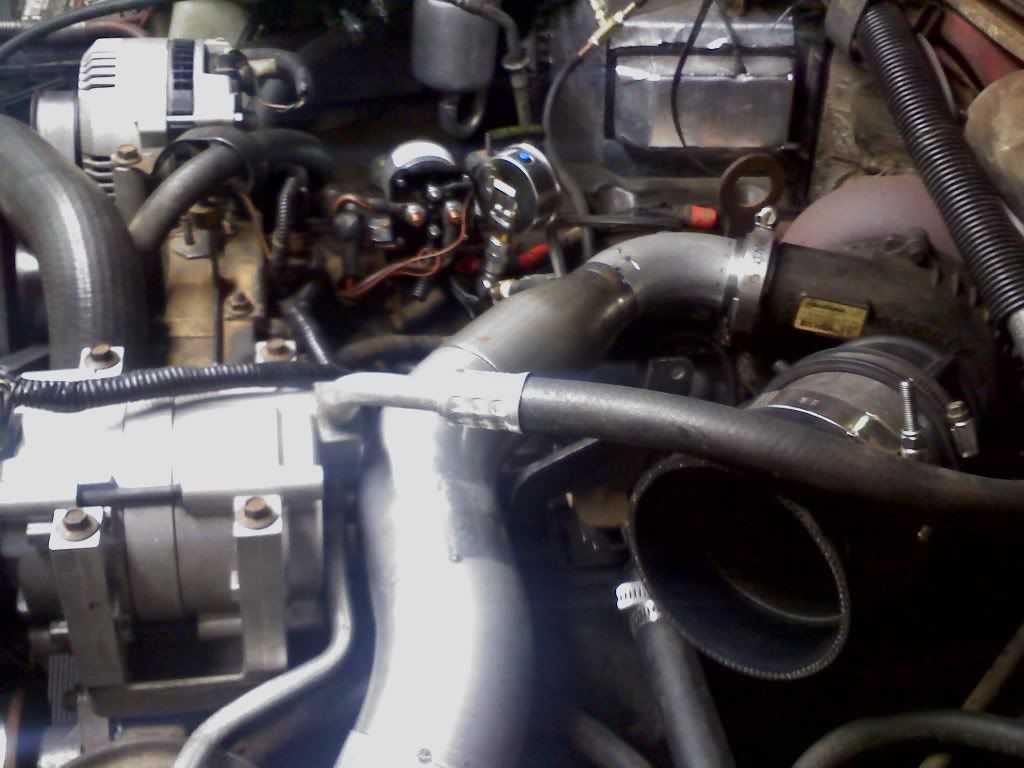

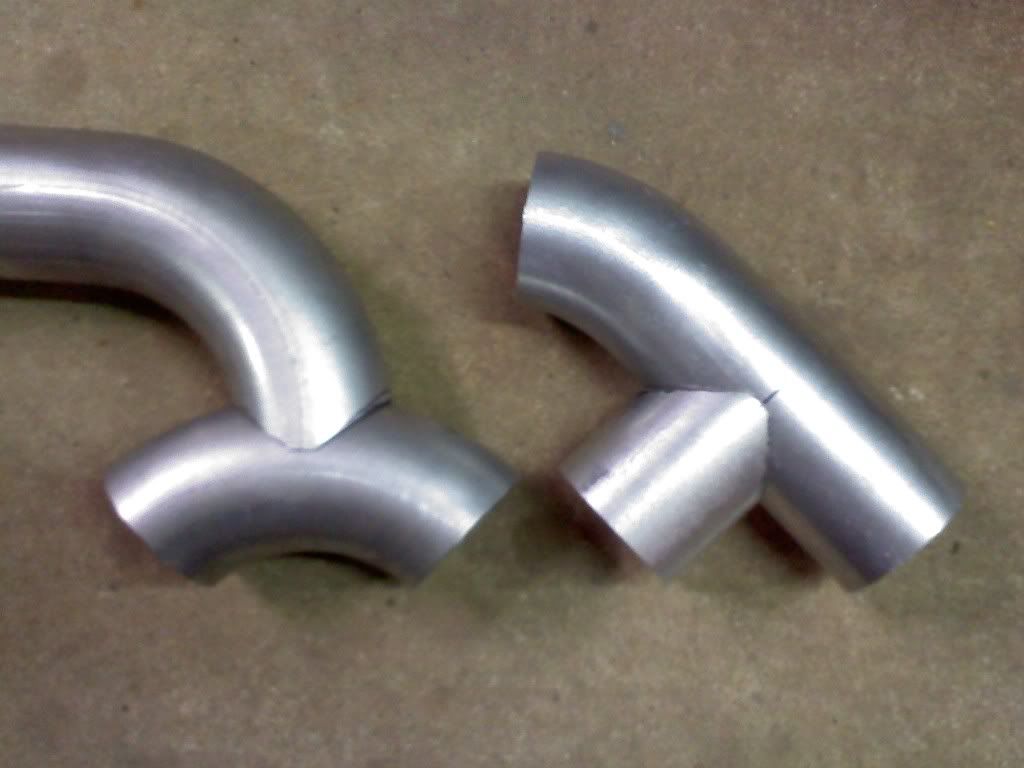

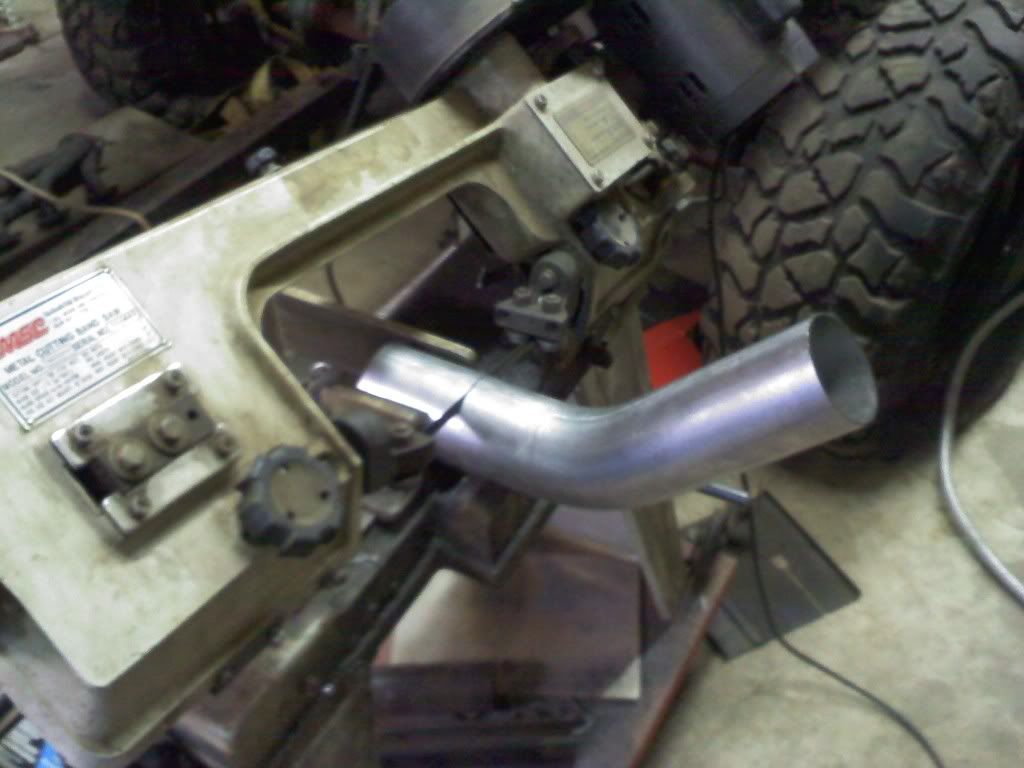

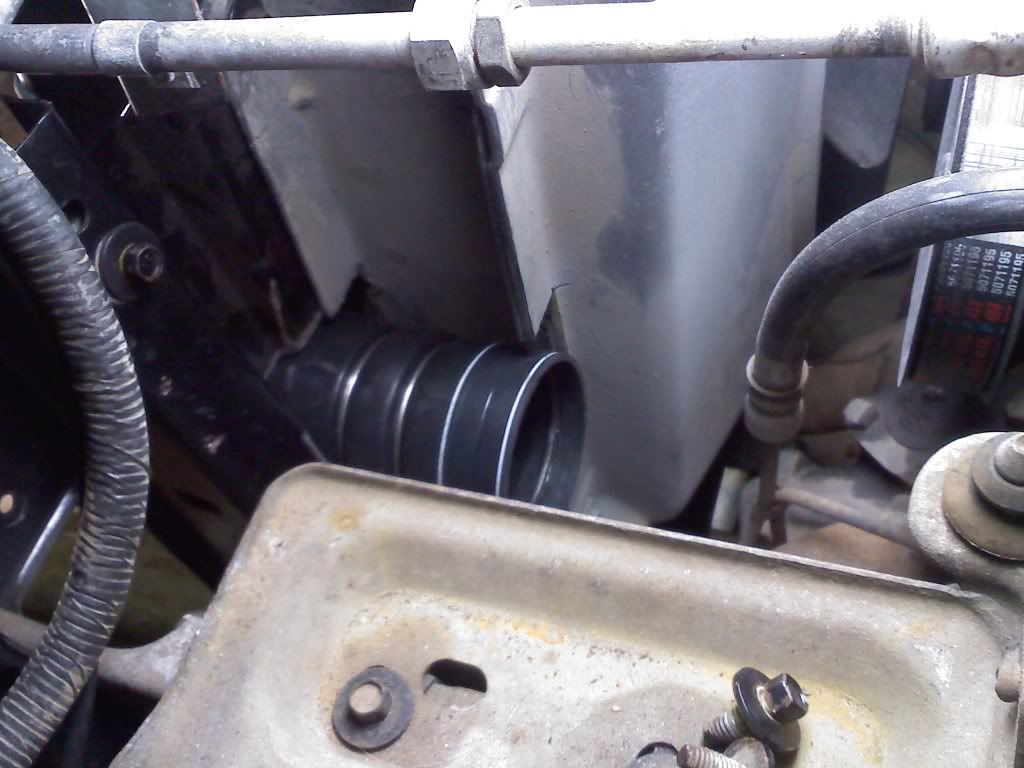

Coming out of the coupling on the cooler, I used a 45

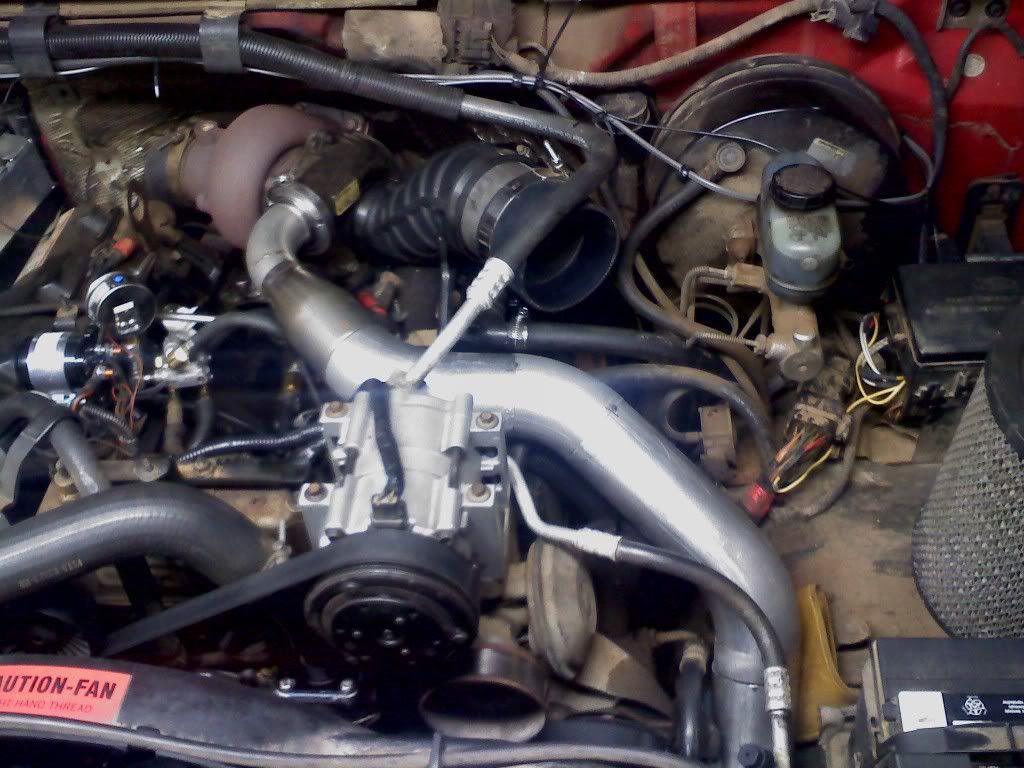

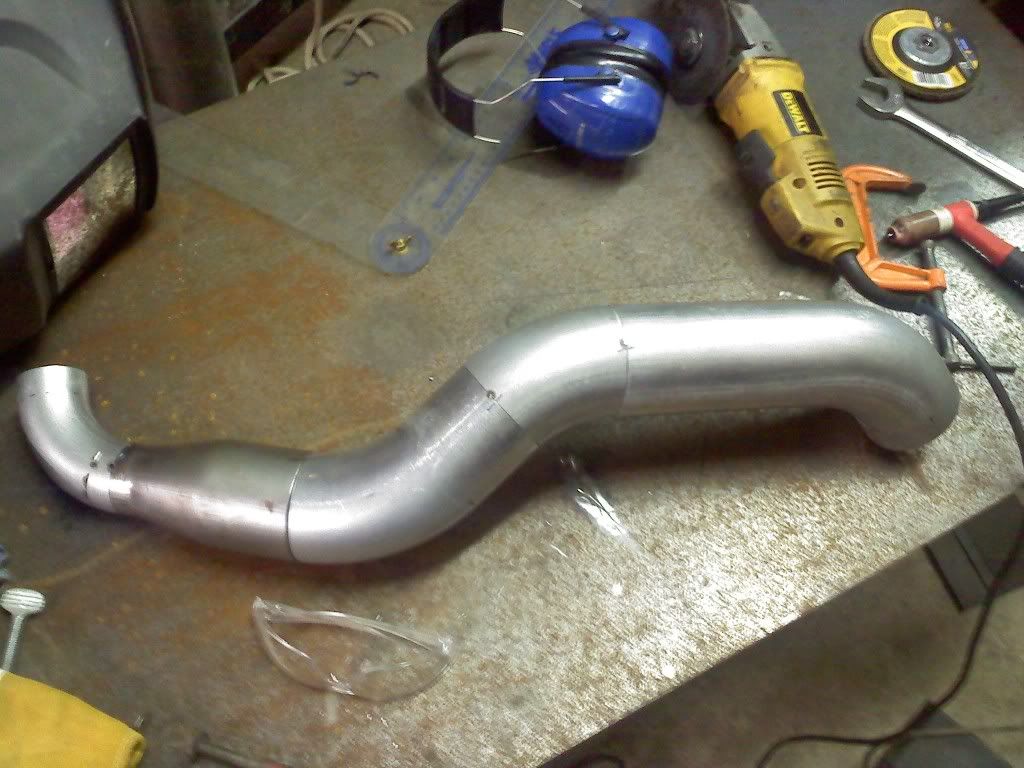

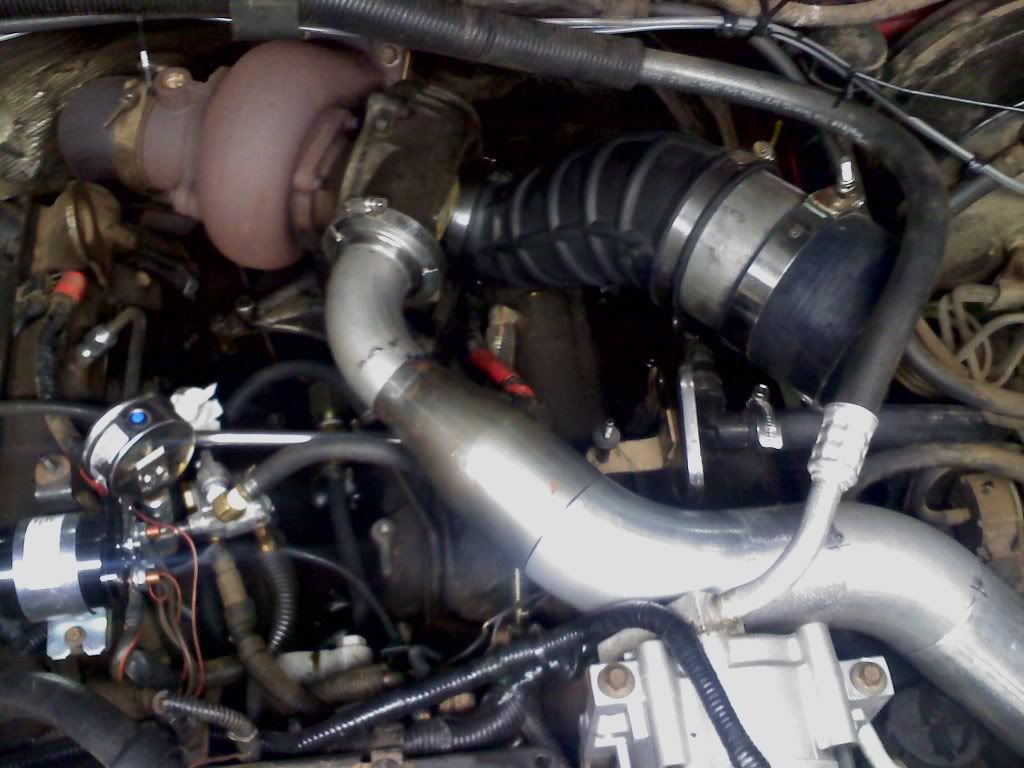

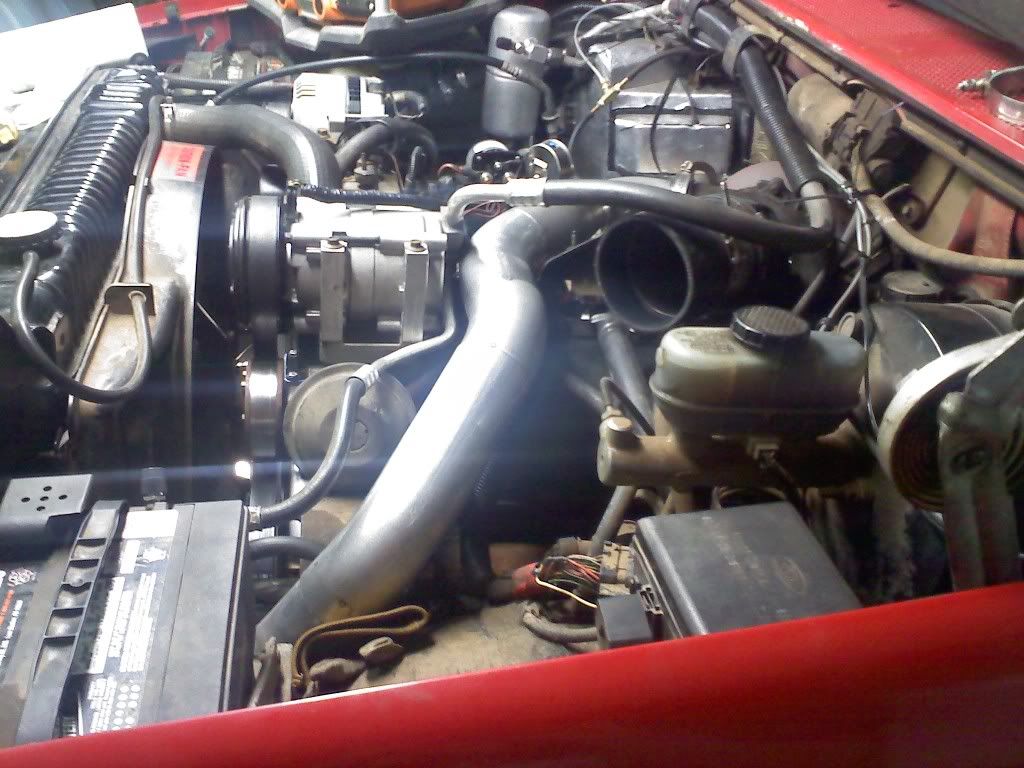

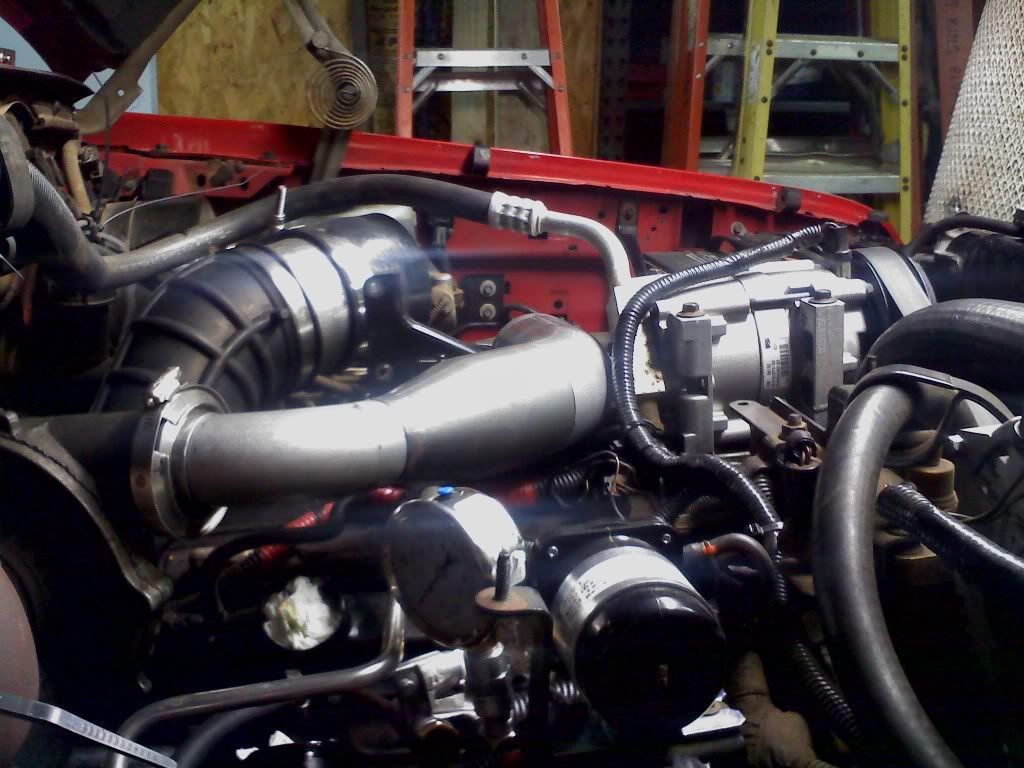

Kind of a BIG jump forward. But here's the finished piece all tacked up minus the piece coming off the cooler.

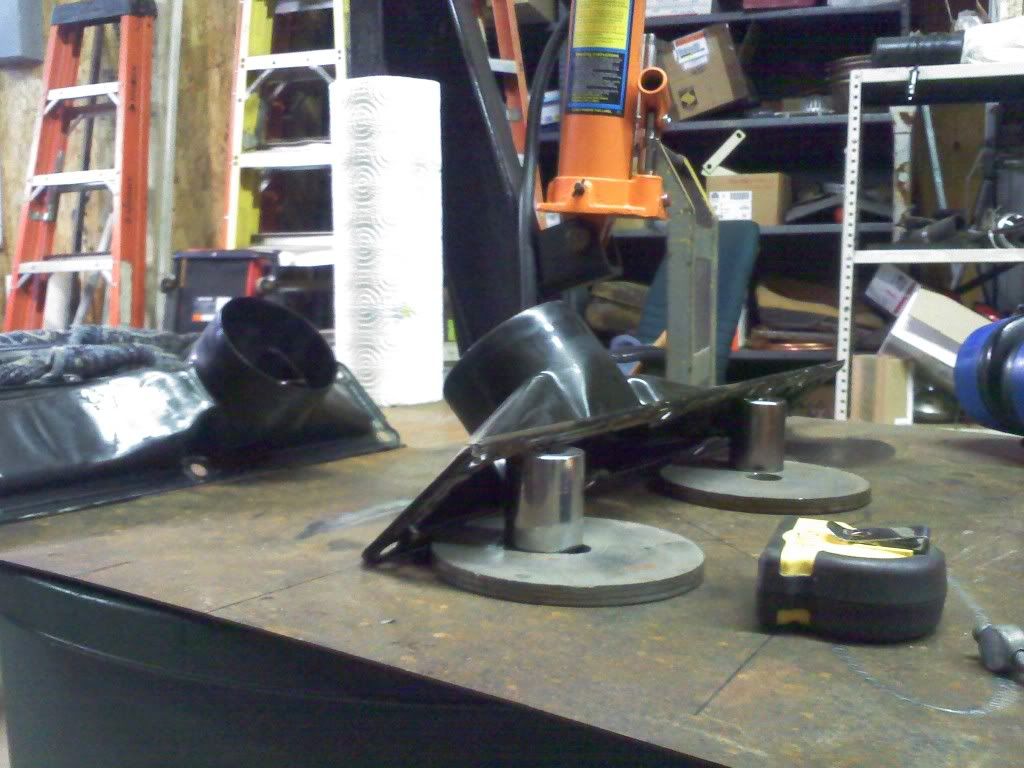

Here's the new plenums mocked up on the bench.
Sooooooooo here's the question for you.... which one to use? The left one will look cooler and flow better, but not hold the clamps on as well as the right one.....
I started with a new flange and a SD clamp (wider then the OBS clamp)
This was my first obstacle, the A/c line. I couldn't 90 up like I had wanted to.
Here is the small hole I wanted to run through.
Coming out of the coupling on the cooler, I used a 45
Kind of a BIG jump forward. But here's the finished piece all tacked up minus the piece coming off the cooler.

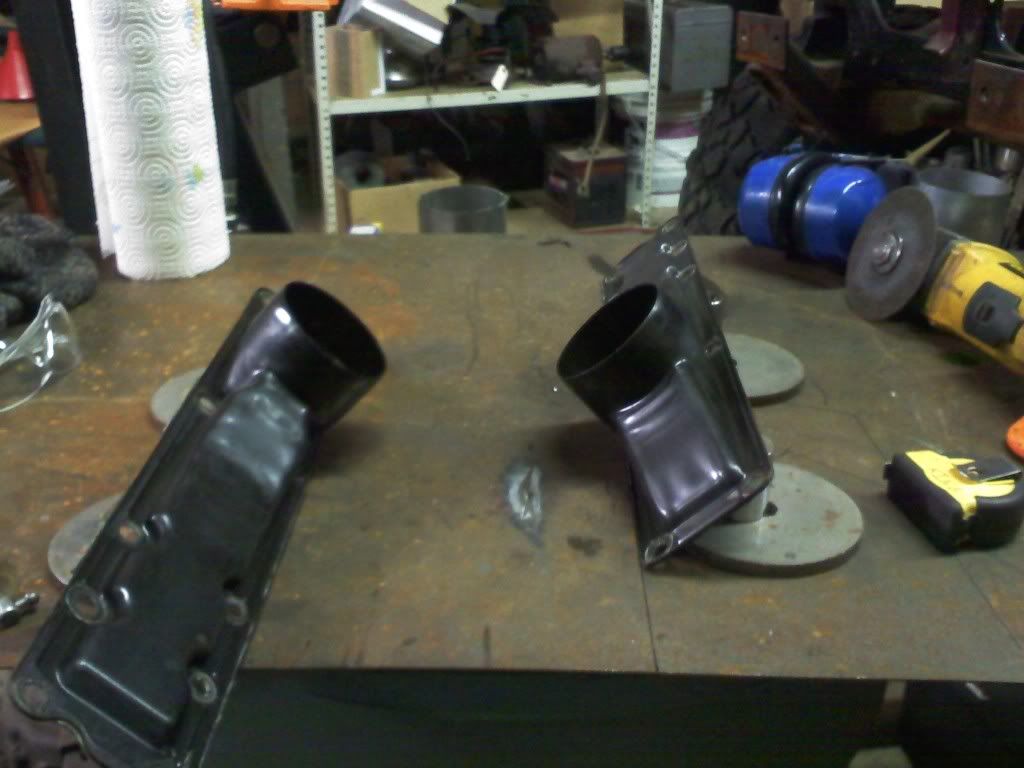

Here's the new plenums mocked up on the bench.
