Do you have a 23+ Super duty?

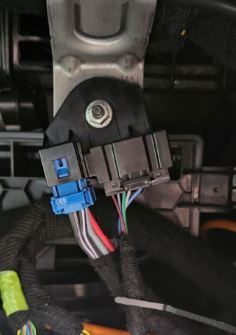

Ever drop your glove box and see a blue connector stuffed up out of the way? Ever wonder what it is used for? Ford left that there for the Vehicle Integration Module 2.0, a $400 option you probably do not have.
I have built a harness with 36" leads that will plug right into the blue plug and give you 12v constant power you can route anywhere in the truck. 36" is more than enough to route the harness under the hinge to the center stack. You can choose to terminate it right there to a 12v - USB power port, This can be used to recharge cell phone, dash cams etc.
These are powered by fuse 58 and 101. Located in the underhood fuse box. Passenger side between battery and firewall. 50a slotted M case fuses.
Harnesses are built to order and will ship USPS Ground advantage next business day.
Longer/shorter wiring lengths are available. Please inquire for custom options.
Payment can be sent PayPal, Cashapp, Zelle, Venmo, whatever you are most comfortable with.
Friends and Family not required. Shoot me a PM and we can get one on the way to you tomorrow.
Check out our website for more details. dieselcurrent.com
Last edited by Neohio; May 3, 2026 at 05:23 AM.
Reply
Do you have a 23+ Super duty?
Ever drop your glove box and see a blue connector stuffed up out of the way? Ever wonder what it is used for? Ford left that there for the Vehicle Integration Module 2.0, a $400 option you probably do not have.
I have built a harness with 36" leads that will plug right into the blue plug and give you 12v constant power you can route anywhere in the truck. 36" is more than enough to route the harness under the hinge to the center stack. You can choose to terminate it right there to a 12v - USB power port, This can be used to recharge cell phone, dash cams etc.
Harnesses are built to order and will ship USPS Ground advantage next business day.
Payment can be sent PayPal, Cashapp, Zelle, Venmo, whatever you are most comfortable with.
Friends and Family not required. Shoot me a PM and we can get one on the way to you tomorrow.
$45 shipped to lower 48.
I bought one of these Harnesses earlier this week and one-word sums this up. Its "FANTASTIC" !!!!!!!!
Way higher quality than the OEM wiring. Plus it utilizes a circuit that probably 99.9999% of the people on the Forum will never be using on their trucks. It uses the Customer Interface Module circuit that already has a fuse in the battery junction Fuse Box under the hood. I wanted a circuit under the dash that didn't call for me tapping into any other circuits. Utilizing this harness let me use wiring that was already in the truck without cutting into a factory harness or putting a tap into the fuse box, Very professional and clean wiring with this harness. Thank you for taking the time to help truck owners out with a unique product offering.
Thanks for stopping by!
I now offer an additional harness like the one above.
It is made using 12awg wire. all 6 terminals are populated.
I worked with a forum member to make a 13' long harness that he could route down the pass side of his crew cab and bring it to the back seat.
The harness ends up with 2 complete circuits. Using 12awg wire allows you to take advantage of the full 50a(100 total using both circuits) available to you.
I did not happen to take a picture of this harness. I will assemble another harness and take pictures.
I am offering this harness at $95 shipped anywhere in the lower 48.
If you are interested, please reach out. I can custom make these to any length you need.
Thanks for stopping by!
I now offer an additional harness like the one above.
It is made using 12awg wire. all 6 terminals are populated.
I worked with a forum member to make a 13' long harness that he could route down the pass side of his crew cab and bring it to the back seat.
The harness ends up with 2 complete circuits. Using 12awg wire allows you to take advantage of the full 50a(100 total using both circuits) available to you.
I did not happen to take a picture of this harness. I will assemble another harness and take pictures.
I am offering this harness at $95 shipped anywhere in the lower 48.
If you are interested, please reach out. I can custom make these to any length you need.
First question is will you ship into Canada (either version) via the US Postal service
2nd question; can this be used to power aux lights
In the now deleted post just prior to Neohio's post immediately above, an impersonation scammer by the username "Neohiø" claimed to have sent you a pm. I have deleted the post, PM, and user account of "Neohiø" for attempting to impersonate Neohio by substituting an "ø" for an "o" at the end of the "Neohiø" user name.
What impersonation scammers have done after coming up with a facsimile username is to establish contact with victims who fall for the fake username, and request payment for the item in the listing via Apple gift cards.
Please carefully compare any username with the original username in the first post of any given Marketplace listing.
In the now deleted post just prior to Neohio's post immediately above, an impersonation scammer by the username "Neohiø" claimed to have sent you a pm. I have deleted the post, PM, and user account of "Neohiø" for attempting to impersonate Neohio by substituting an "ø" for an "o" at the end of the "Neohiø" user name.
What impersonation scammers have done after coming up with a facsimile username is to establish contact with victims who fall for the fake username, and request payment for the item in the listing via Apple gift cards.
Please carefully compare any username with the original username in the first post of any given Marketplace listing.
Further to what @Y2KW57 said above.
If you end up here, please drop a visitor message on my profile. I will see the notification and get you sorted out.
Please also notice I am a gold member, have 300+ posts at the time of this post.
I have links and a description of my personal truck in my signature.
I will never suggest a gift card of any sort. My original post shows which payment methods I will accept. Whichever method YOU are most comfortable with.
If you have concerns, scroll up to post #1. Click my user name and it will bring you directly to me.
