Ford 9 Inch Tag help
Thread Starter
|
Elder User
Joined: Oct 2007
Posts: 790
Likes: 0
From: Highland Village, TX
Ford 9 Inch Tag help
I'm looking at a 9 inch from a 59 F100. The tag reads either 4EC 301 or 4EC 801 from what the owner can read. I'm assuming 3.01 gear ratio, non locker?
Anybody have other ideas, from what I can find Ford changed these tags quite abit.
Anybody have other ideas, from what I can find Ford changed these tags quite abit.
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 790
From: Simi Valley, CA
Originally Posted by 53OlderThanMe
I'm looking at a 9 inch from a 59 F100. The tag reads either 4EC 301 or 4EC 801 from what the owner can read. I'm assuming 3.01 gear ratio, non locker? INCORRECT
Anybody have other ideas, from what I can find Ford changed these tags quite abit.
Anybody have other ideas, from what I can find Ford changed these tags quite abit.
There's no ratio of 301 anything.
1957/72 9's. The tag on the rear end should have three letters, a hyphen, then another letter like this: WCC-A / WDM-B
If Limited Slip, there's a separate tag used thru 1966 with an L on it.
1959 F100 9" rear axle ratios: 3.70-1 / 3.89-1 / 4.11-1
Rear end tags: facing the carrier = on one of the carrier bolts at about 5 o'clock...the L tag if present, will be at 4 o'clock.
Another way to ID...look on the trucks Rating Plate inside the glove box door for the AXLE code. Post what code you find.
1959 was the first year Ford offered a Limited slip rear end. Most of them thru 1966 are Spicer 44's, not 9 inchers. Ford called these early Limited Slips an EQUA-LOK.
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 790
From: Simi Valley, CA
Originally Posted by 4tl8ford
There is a number in front of the numbers you gave;
3.89 4EC 301
The 3.89 is the ratio, if it's a locker it should look something like 3L.89.
also there is a line above this one with more info.
3.89 4EC 301
The 3.89 is the ratio, if it's a locker it should look something like 3L.89.
also there is a line above this one with more info.
A separate tag if LS is present was used prior to 1967.
See my post above for examples, explanations.
Most LS's of this vintage are Spicer 44's, not 9 inchers.
I'll have the Roast Duck
Joined: Jul 2002
Posts: 9,622
Likes: 110
From: Northshore, MN
if there's a rear cover plate that's removeable, it's a dana 44. If not, then a 9". If it's a 9", you'll have to pull the center-section out to really know the gear ratio. More work, but more certainty. My .02
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 790
From: Simi Valley, CA
Originally Posted by 4tl8ford
I would suggest that if the numbers were on the tag as he stated in his post that he might want to follow the information that I gave.
It came from the Heart.
It came from the Heart.
There's no L in the tag number's ratio prior to 1967.
When LS was present, there was a separate tag used..it had an L on it.
Ford only used the WDM, WCC, etc on rear axle tag codes till 1973 on 9's.
Most LS's in F100's were Spicer 44's thru 1966.
The cars used either 8's or 9's when LS is present.
What I typed came from over 35 years of experience reading Ford parts catalogs, and owning over 80 Ford products since 1956.
Trending Topics
Fleet Mechanic
Joined: May 2006
Posts: 1,696
Likes: 1
From: S.W. Florida
Perhaps there is some info here you can use. A great Ford rear website with 7 other rear sites at the bottom. Enjoy! www.kevinstang.com/Ninecase.htm
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 6 Best Deals Available on New Fords & Lincolns Right Now
Brett Foote
This Hennessey Takes the Expedition Tremor's Off-Roading Capability to the Next Level
Verdad Gallardo
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
I'll have the Roast Duck
Joined: Jul 2002
Posts: 9,622
Likes: 110
From: Northshore, MN

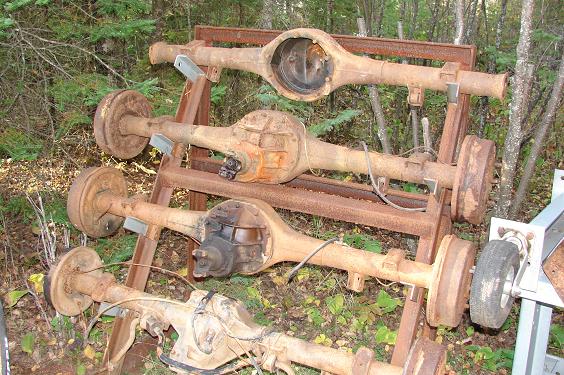

older style to me means before the tapered tube section, like that of the mid and later 70's F150's. Here's a pic, though it's not so obvious. The untapered ones are not in the pic.
