Clutch linkage
Ok so I finnaly completed my upgrade to hiem joints or as I call them rod ends.
The ends are available at any bearing house for about $7.00 each. I bought a 3' length of 3/8" galvanized coated rod for $4.25 and 6 3/8"X24 jam nuts for $0.48, so total cost around $20.00. The rod ends were 3/8" 24 thread both on the female side and the stud.
The complete job took me about 2 hours from start to finish.
I will try and post some photos.
My rod was a total of 18.25 " long center to center, the threaded rod with out ends was 17.25" long end to end with about 1.25" of thread on both ends.

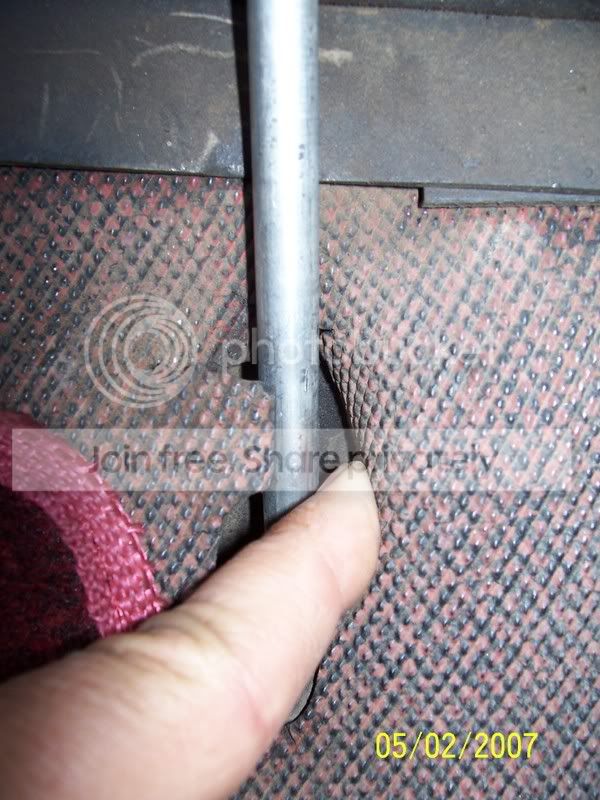

I mounted the top end on the inside of the clutch peddle lever. I had to remove it to install the rod end. the other end mounted as normal. This did position the rod a bit closer to the right side of the hole but I still had room to slide my finger between the side of the hole and the rod.
It works smooth and quite and I didn't relise I was worn thru the bushing and getting into metal with the lower pivot.
I hope this helps someone to build there own.
The ends are available at any bearing house for about $7.00 each. I bought a 3' length of 3/8" galvanized coated rod for $4.25 and 6 3/8"X24 jam nuts for $0.48, so total cost around $20.00. The rod ends were 3/8" 24 thread both on the female side and the stud.
The complete job took me about 2 hours from start to finish.
I will try and post some photos.
My rod was a total of 18.25 " long center to center, the threaded rod with out ends was 17.25" long end to end with about 1.25" of thread on both ends.
I mounted the top end on the inside of the clutch peddle lever. I had to remove it to install the rod end. the other end mounted as normal. This did position the rod a bit closer to the right side of the hole but I still had room to slide my finger between the side of the hole and the rod.
It works smooth and quite and I didn't relise I was worn thru the bushing and getting into metal with the lower pivot.
I hope this helps someone to build there own.
Thread Starter
|
Posting Guru
Joined: Nov 2004
Posts: 1,111
Likes: 0
From: Turlock CA
No need to drill anything on the truck. In fact you need to leave the bushing in place to make the rod end fit properly. I did have to remove the clutch peddle arm to install the rod end on the back side.
