97 HD 250 dim headlights
Thread Starter
|
Tuned
Joined: Aug 2009
Posts: 274
Likes: 4
From: British Columbia
97 HD 250 dim headlights
Th headlights on my 97 HD are really dim. Daytime running lights same way, and the high beam indicator quit as well.
Any suggestions, Im thinking maybe daytime running lights module.
Any suggestions, Im thinking maybe daytime running lights module.
Fleet Mechanic
Joined: Jan 2023
Posts: 1,318
Likes: 446
The problem could be anything from the battery to a bad ground or wiring.

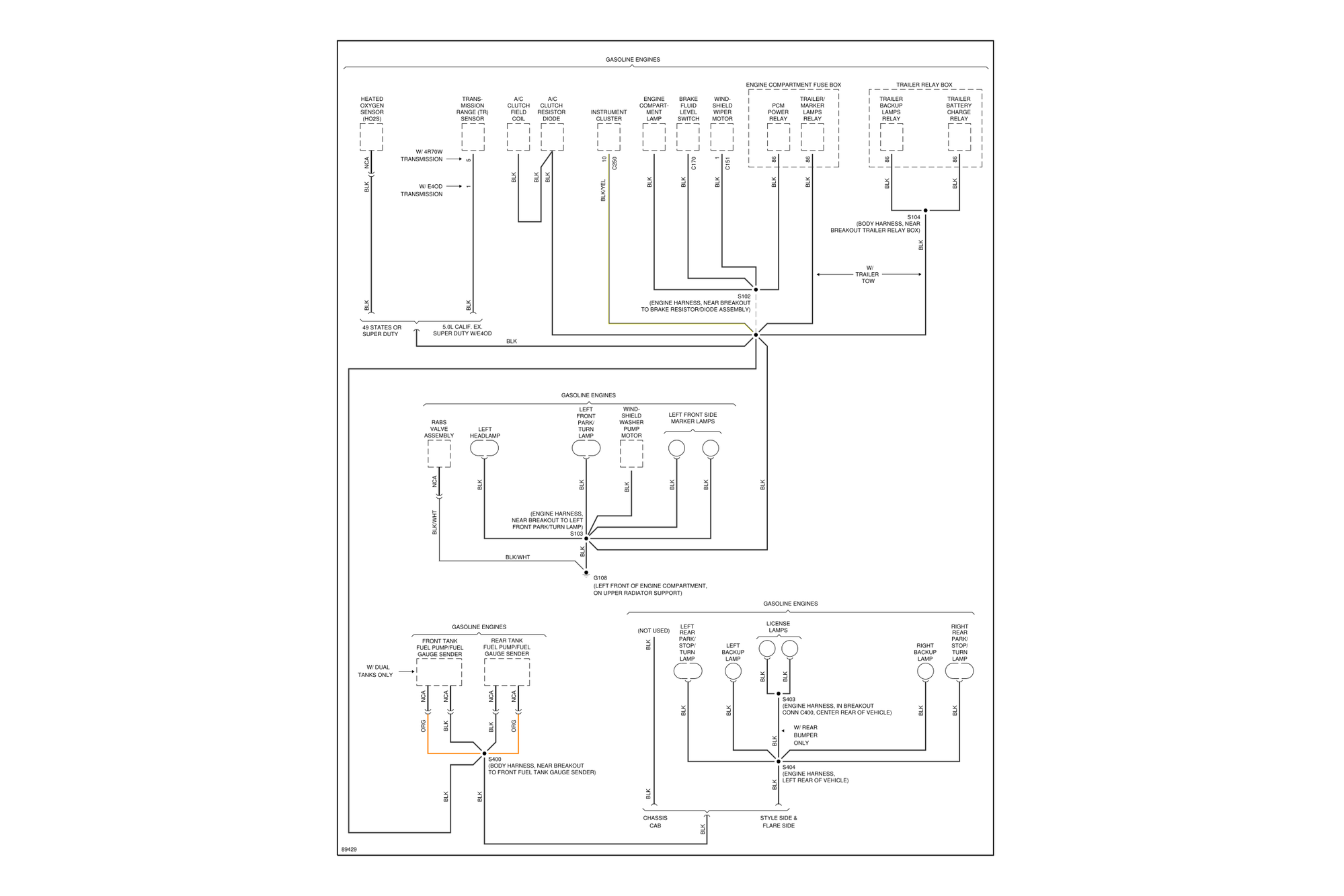

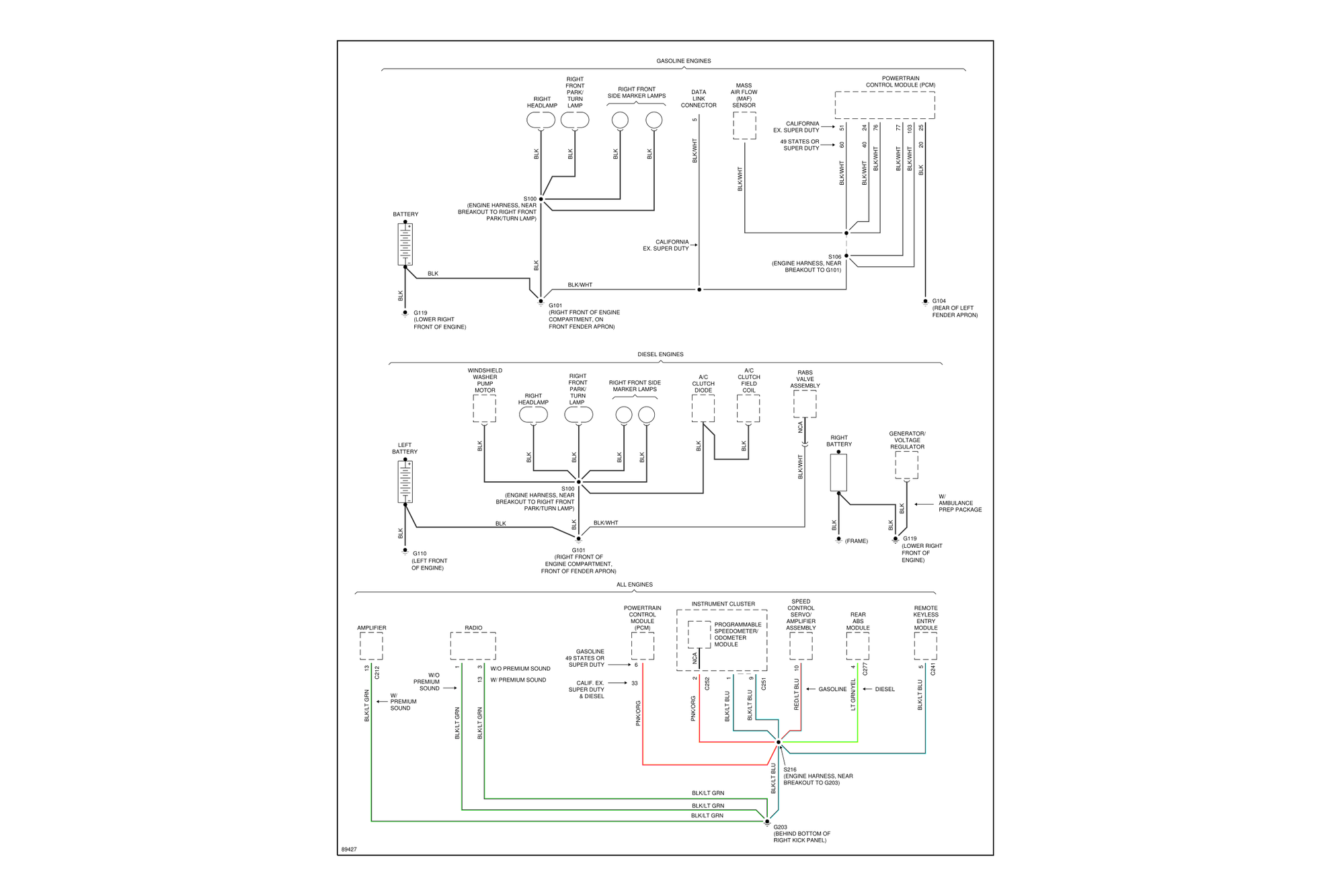

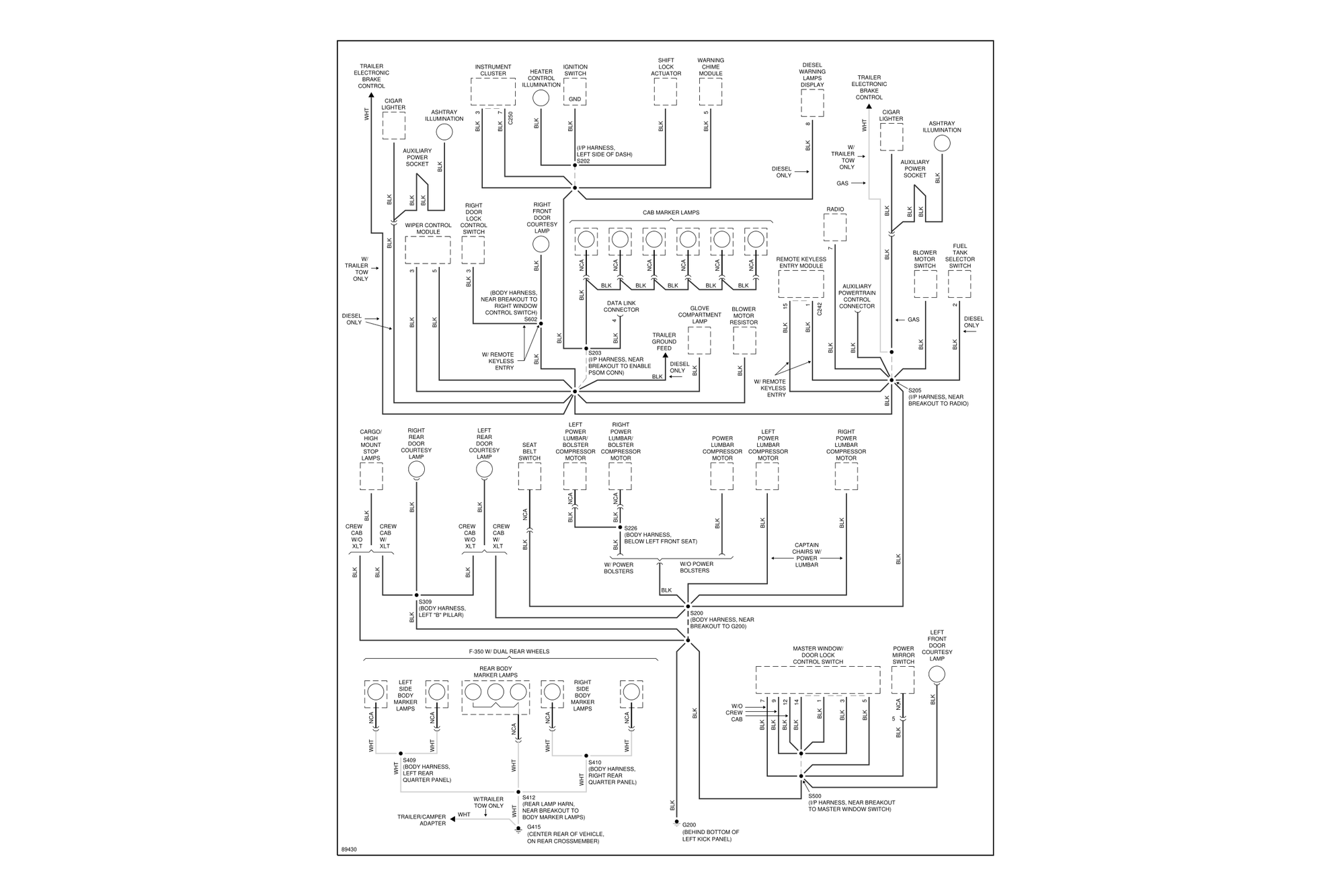

Here are the wiring diagrams. DRL sends low power to high beams. It should not affect the low beams. Take some voltage measurements at the battery and headlights.
https://lemon-manuals.la/Ford/1997/E...unning%20Lamp/
Here are the wiring diagrams. DRL sends low power to high beams. It should not affect the low beams. Take some voltage measurements at the battery and headlights.
https://lemon-manuals.la/Ford/1997/E...unning%20Lamp/
PLATINUM SPONSOR
Joined: Feb 2026
Posts: 130
Likes: 18
Good points above—I'd also start with checking grounds and voltage at the headlights. On older trucks, even a small voltage drop or corroded connector can make DRLs and low beams look very dim. If wiring checks out, it’s also worth looking at the headlight lenses themselves since haze can reduce output a lot.
Hotshot
Joined: Jul 2020
Posts: 10,478
Likes: 2,636
From: Near Salt Lake City
I would be finding the ground locations in a 1997 EVTM for the headlights
A visual inspection of the harness at the headlight switch to see if it's melted
And a visual inspection of the TS switch connectors to verify they are plugged in all the way
How bright are the lamps when you pull the T/S stalk back for "flash to pass"?
A visual inspection of the harness at the headlight switch to see if it's melted
And a visual inspection of the TS switch connectors to verify they are plugged in all the way
How bright are the lamps when you pull the T/S stalk back for "flash to pass"?
Cargo Master
Joined: Mar 2007
Posts: 2,826
Likes: 1,030
Take a volt meter and measure the voltage drop on the power side of the bulb, then the ground side. The bulb must be plugged in to do this test.
Once you see which side [power or ground] is bad, then you can proceed. Otherwise, you will be wasting a lot of time.
Once you see which side [power or ground] is bad, then you can proceed. Otherwise, you will be wasting a lot of time.
Fleet Owner
Joined: Jul 2006
Posts: 20,362
Likes: 824
From: Mi'kma'ki
LED bulbs are cheaper than that relay kit now. No longer a need to do that. Sometimes bulbs just get very dim due to age too, don't forget. I had a car that you couldn't hardly see anything, horrible yellow and dim. Put a new set of bulbs in it, just some halogens and it was like a new car again. It's far less common than when they just blow, but I assure you, it happens.
