Wire diagram heated steering plug

Does anyone have the wiring diagram for this plug in a heated steering wheel for a 2017 F-250 I need the wiring for the plug that goes in this green plug




Last edited by AnthonyWAdams; Feb 26, 2026 at 07:16 PM.
Reply
Old Feb 26, 2026 | 11:00 PM
  #2
Rich1961's Avatar
Rich1961
More Turbo
15 Year Member
Liked
Loved
Community Favorite
Joined: Feb 2011
Posts: 580
Likes: 289
Club FTE Silver Member

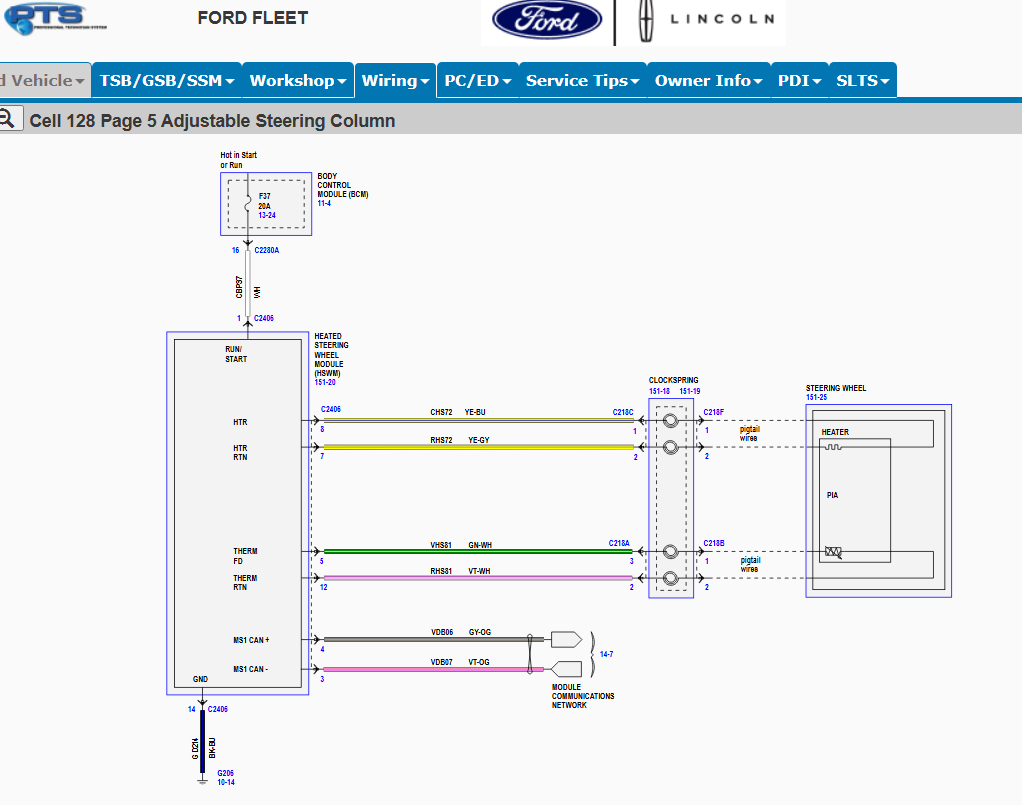

Is this what you're looking for?

Reply
Old Mar 2, 2026 | 08:33 PM
  #3
AnthonyWAdams's Avatar
AnthonyWAdams
Thread Starter
|
3rd Gear
Joined: Jul 2024
Posts: 3
Likes: 0
I actually need the wiring diagram for wires in the steering wheel from heating element to clock spring.
