Making oil pressure gauge give precise reading?
Thread Starter
|
Mountain Pass
Joined: Jun 2024
Posts: 114
Likes: 4
Making oil pressure gauge give precise reading?
I've heard the oil pressure gauge is a dummy gauge, and Is actually an on/off switch and will only read low if it's below a certain threshold. Is it possible to modify the gauge so that it actually will move up and down based on the oil pressure in real time?
for reference I have a 97 f250hd with the 351W.
for reference I have a 97 f250hd with the 351W.
Hotshot
Joined: Jun 2015
Posts: 12,768
Likes: 2,420
I made this modification several years ago but I have an ‘89. I think you can do it on the ‘92-96/7 cluster as well but I might be wrong. I don’t believe the article I used isn’t still available but there might be a thread somewhere online. There is a resistor on the back of the cluster. Bypass the resistor and swap out the oil pressure switch for a sending unit from an ‘87 or older engine.
Logistics Pro
Joined: Mar 2012
Posts: 3,507
Likes: 121
From: Oregon

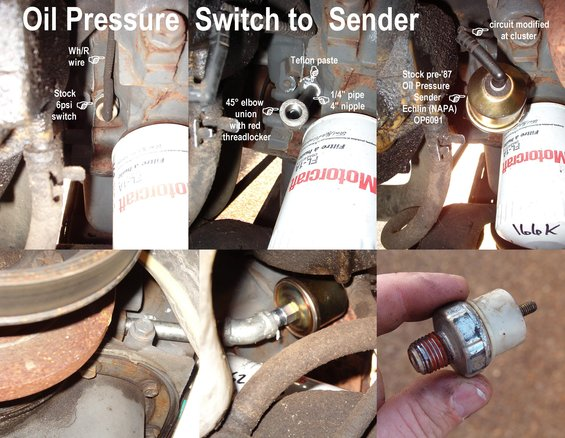

Pull the cluster out and you will see a resistor as stated above for the oil pressure gauge. I soldered a wire around it. Installed a Motorcraft SW1547B switch. You will have to get some pipe fittings to space the sender out as it will not fit where the factory switch is. At least it didn’t on mine…
Hotshot
Joined: Jun 2015
Posts: 12,768
Likes: 2,420
I got mine from the junkyard.
Lead Driver
Joined: Jun 2021
Posts: 5,208
Likes: 798

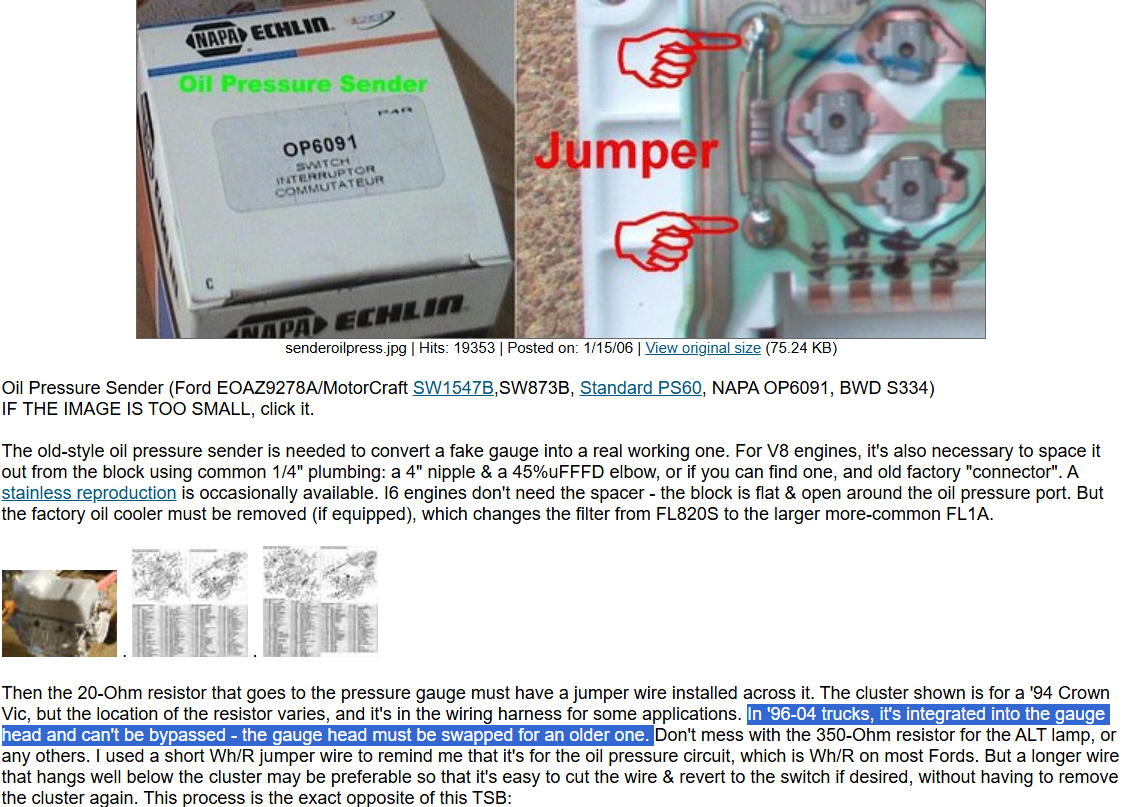

On '92-95, the resistor is on the instrument cluster film circuit. I normally make the jumper wire long enough to hang down below the cluster so it can be cut if a future owner chooses to convert back to the original switch & have an idiot-gauge again
96-97 trucks need to use a 92-95 oil pressure gauge to work for this mod
Cargo Master
Joined: Mar 2007
Posts: 2,757
Likes: 999
I've heard about this 'mod' for some time, but does this apply to all of these OBS Fords? I have a 1995 F250 and I swear my gauge seems to vary with engine temp/RPM. Is it because I have an XLT which might just have enough options to get the real oil pressure gauge?
Any input would be appreciated.
Any input would be appreciated.
Logistics Pro
Joined: Aug 2014
Posts: 3,547
Likes: 845
I've heard about this 'mod' for some time, but does this apply to all of these OBS Fords? I have a 1995 F250 and I swear my gauge seems to vary with engine temp/RPM. Is it because I have an XLT which might just have enough options to get the real oil pressure gauge?
Any input would be appreciated.
Any input would be appreciated.
Then I thought, maybe previous owner did this mod?
What I really need to do, is hook up a DVOM, record and monitor that on the sensor, from cold start to warm up, and driving at various engine speeds.
