It will physically bolt in. I have 2019 and in the process of trying to add it aswell. The wiring in the console for the charger isn’t there on 2019 and the console wiring is different on 2020+ infotainment.com sells a kit to add it to f150s. Their kit looks like it pulls the control power and canbus signals from the apim with a tap harness. Then need run the one wire to the bcm. I’ll let you know what I find out. I have all the stuff to put it on mine just haven’t done it yet. I did see in forscan option for wireless charging so I do believe I’ll be able to get it to work
Assuming you are talking about the front of the center console charger, I personally wouldn't spend the time or money to add it. My 22 will charge for about 4 minutes stop and if I move the phone it will charge again, it's very consistent with my old phone and new.
Assuming you are talking about the front of the center console charger, I personally wouldn't spend the time or money to add it. My 22 will charge for about 4 minutes stop and if I move the phone it will charge again, it's very consistent with my old phone and new.
there are 2 versions. The first versions came out I think in 2021 on the super duties. Look at the rectangle rubber pad. Is there breather holes in it? The orginal first designed ones is solid with no opening. The newer upgraded model has cooling holes and also a cooling fan on the back of the charger itself. It’s also supposed to work a lot better than the early version. Also note the plastic bin it mounts in varies from one version to the next- they mount differently so if changing from one style to the other you need both pieces. Wiring is direct swap plug and play between the 2 styles.
there are 2 versions. The first versions came out I think in 2021 on the super duties. Look at the rectangle rubber pad. Is there breather holes in it? The orginal first designed ones is solid with no opening. The newer upgraded model has cooling holes and also a cooling fan on the back of the charger itself. It’s also supposed to work a lot better than the early version. Also note the plastic bin it mounts in varies from one version to the next- they mount differently so if changing from one style to the other you need both pieces. Wiring is direct swap plug and play between the 2 styles.
Copy that, mine is in the covered section directly under the HVAC controls and does not have holes in it, just a rubber covering from what I can tell.
I can confirm i added & tested the oem wireless charging setup on my 19 250 lariat value package. i used the newer style with vented charger. i checked in forscan prior and it showed options for "WIRELESS ACCESSORY CHARGING MODULE" in both the APM & BCM modules. i bought the apim harness for the rear view camera and tapped off 4 wires for the charger from there- control power from pin #1, ground from pin #37, hs3 can + from pin #19, & hs3 can - from pin #20. tapped these together with tessa tape and dropped down out bottom of dash. added wire to bcm connector C2280B pin #11 and ran it under the carpet to center to meet up with other 4 wires. connected as shown in post #3. enabled WIRELESS ACCESSORY CHARGING MODULE in both apm & bcm modules in forscan and it works!
Pin for the BCM connector C2280B - Part # 1924955-1 (QTY1)
Pins For Wireless Charger Connector - Part # 560023-0721 (QTY 5)
Connector for wireless Charger Module - Part # 34791-5182 (QTY 1)
Also note the APIM adapter i ordered was for adding an aftermarket reverse camera to older sync unit- it did not have all 54 pins wired pass through- the rear view ciruit does not pass through so my reverse camera is not active right now. i am going to remove the rca jack and put straight wires between the 2 connectors to restore the factory camera connection. apparently some have all 54 pins passing through 1:1 some do not. whatever you get make sure you get one that has all pins populated or some functions may not work. once i add these 2 pins and wire between the 2 connectors at the apim adapter everything will be fully functioning!

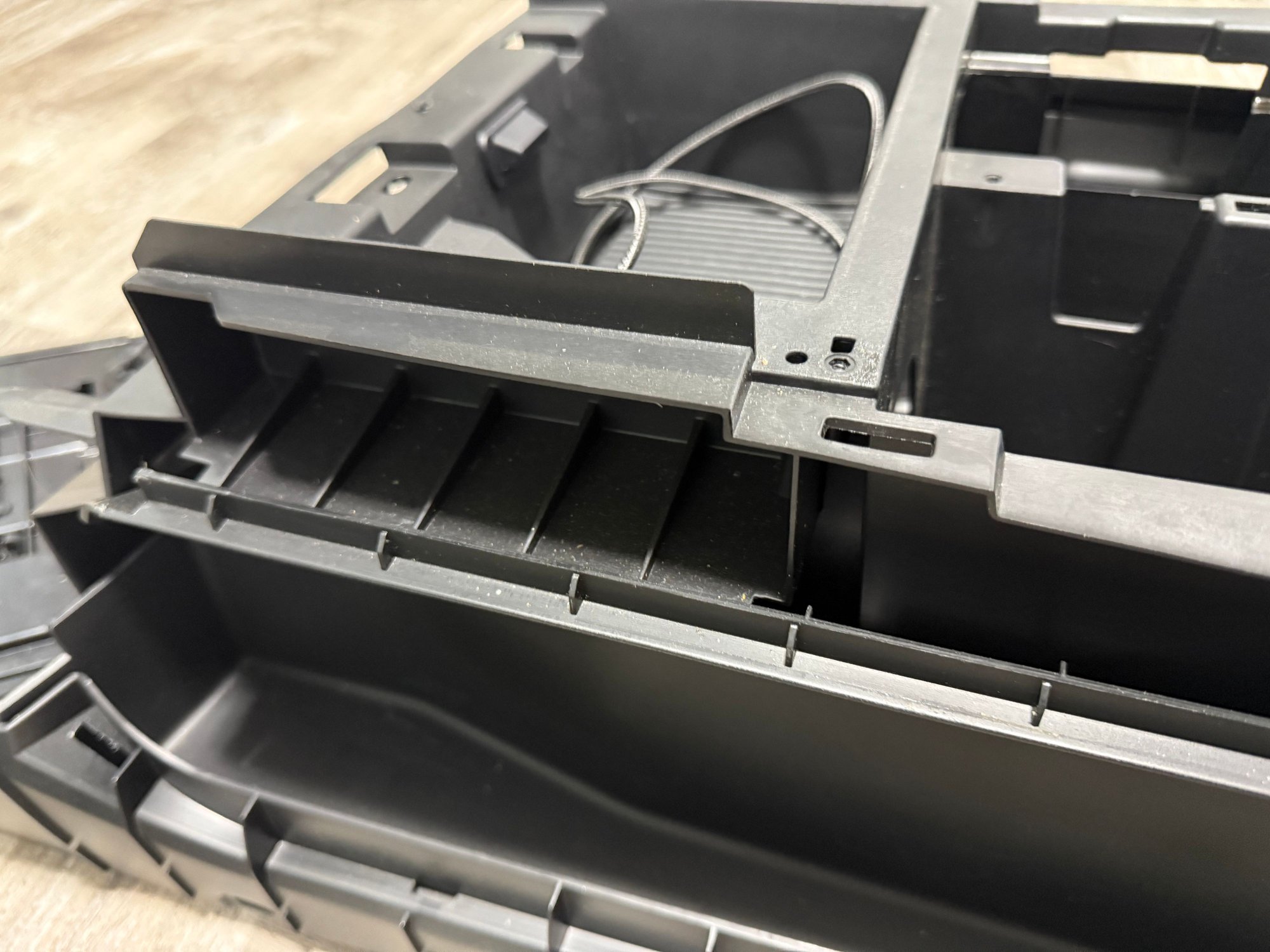

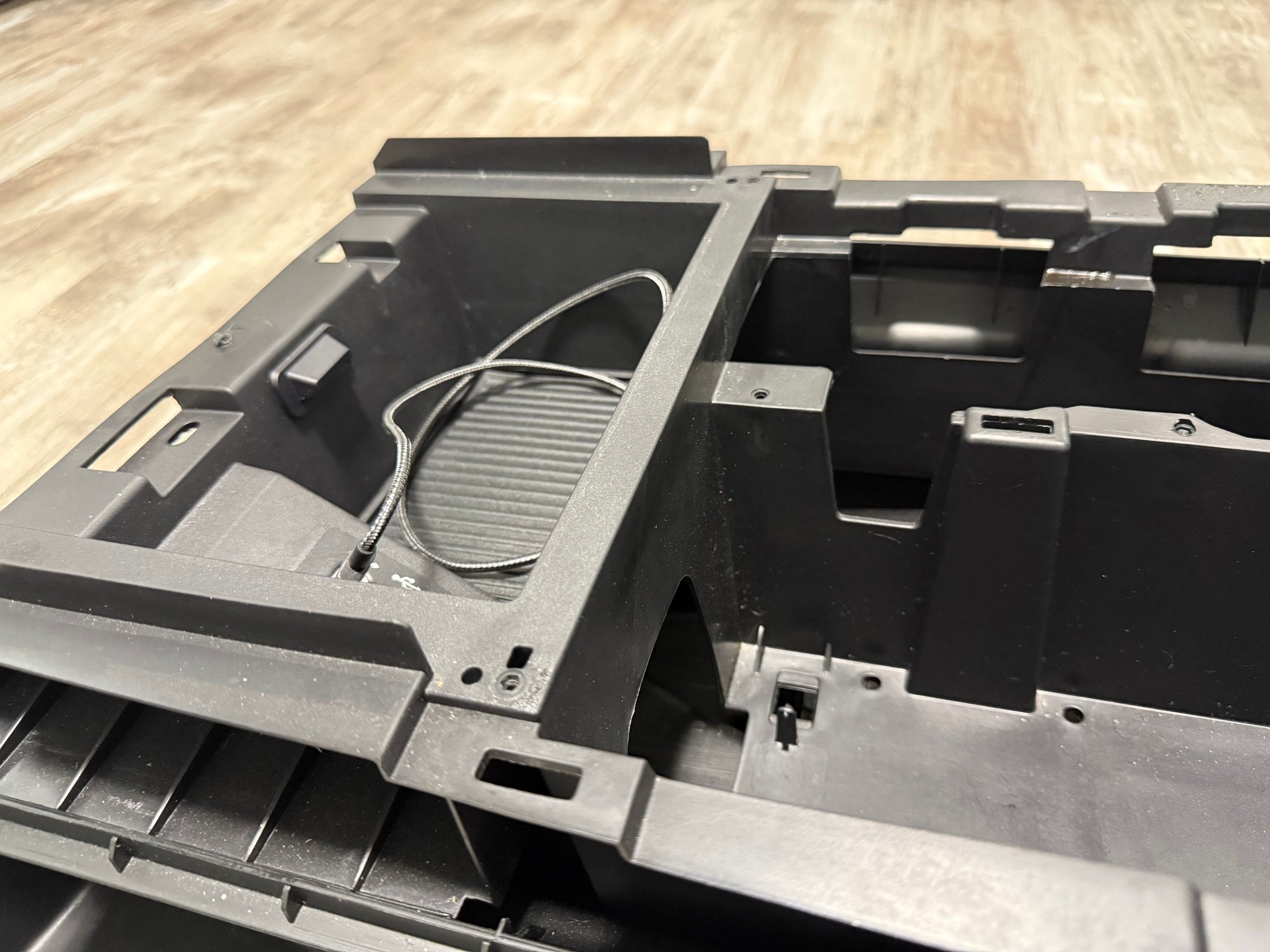

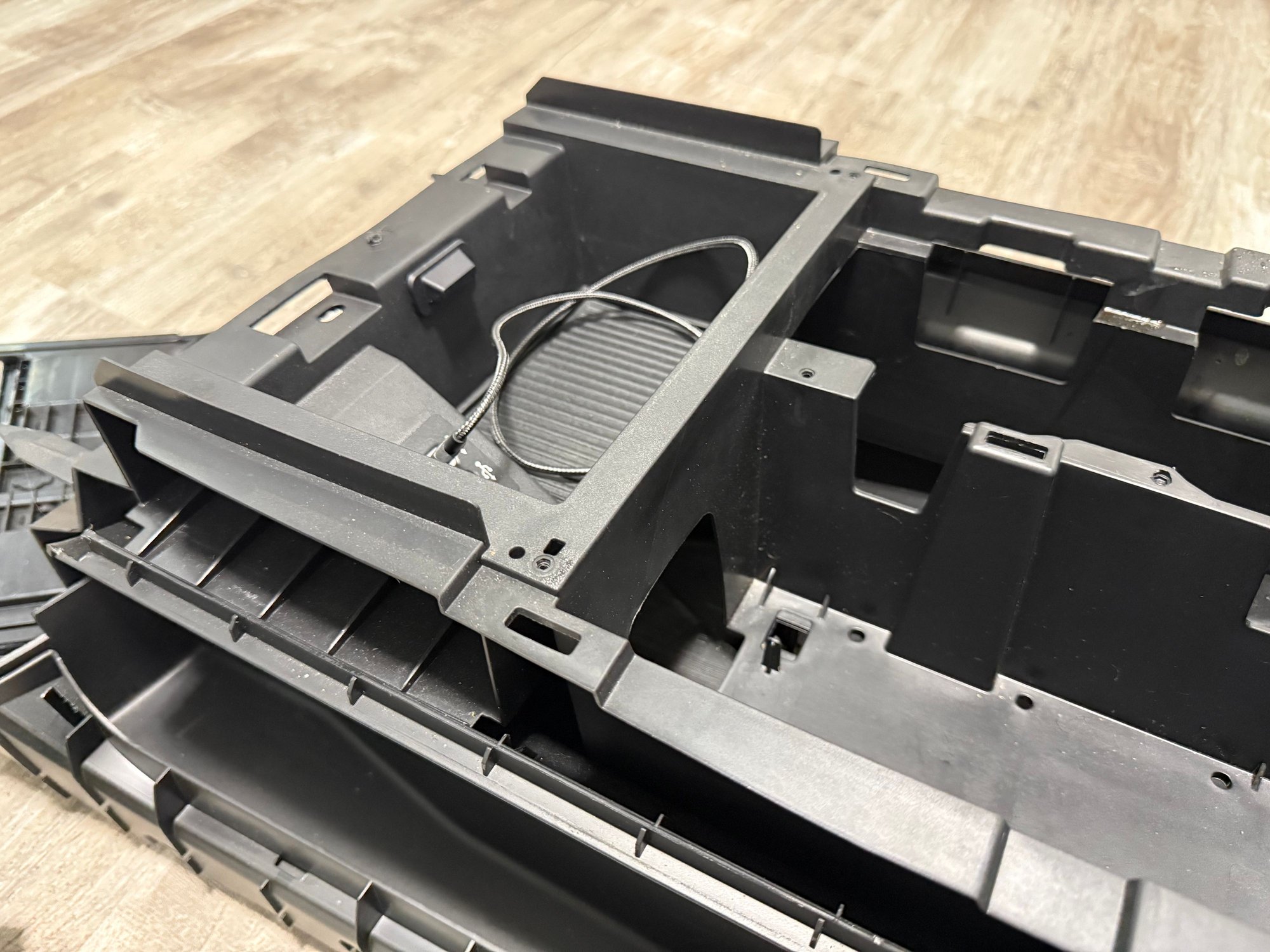

Well the wiring and electrical side is all good. I got a surprise when I went to bolt it all into my console. My console is not modular and the front media bin is molded/part of the console body… it’s strange tons of guys on the f150 forums all swap them both ways some don’t like the wireless charger so they go to the big bin and some ditch the bin for the wireless charger. All holes look the same but they are not. Gonna hunt around and see if I can find console base/frame/guts that’s not all one piece then transfer my trim over to it…
