Wire help

I have a connector laying herewith PN F4TB15A702P260H and don’t know where it goes. Can anyone help? Thanks!

Reply

Old

Nov 9, 2024 | 03:08 PM

#2

Soup bean

Cargo Master

Joined: Aug 2021

Posts: 2,249

Likes: 738

From: Maryland

Quote:

Originally Posted by pdhulteng

I have a connector laying herewith PN F4TB15A702P260H and don’t know where it goes. Can anyone help? Thanks!

Got a picture?

Reply

Old

Nov 10, 2024 | 07:36 AM

#3

manicmechanic007

Hotshot

Joined: Jul 2020

Posts: 10,268

Likes: 2,563

From: Near Salt Lake City

Club FTE Silver Member

15A702 is the basic part number for a hood lamp harness

Reply

Old

Nov 19, 2024 | 09:17 AM

#4

pdhulteng

Thread Starter

|

Cross-Country

Joined: Dec 2006

Posts: 79

Likes: 48

From: Billings

Quote:

Originally Posted by Soup bean

Got a picture?

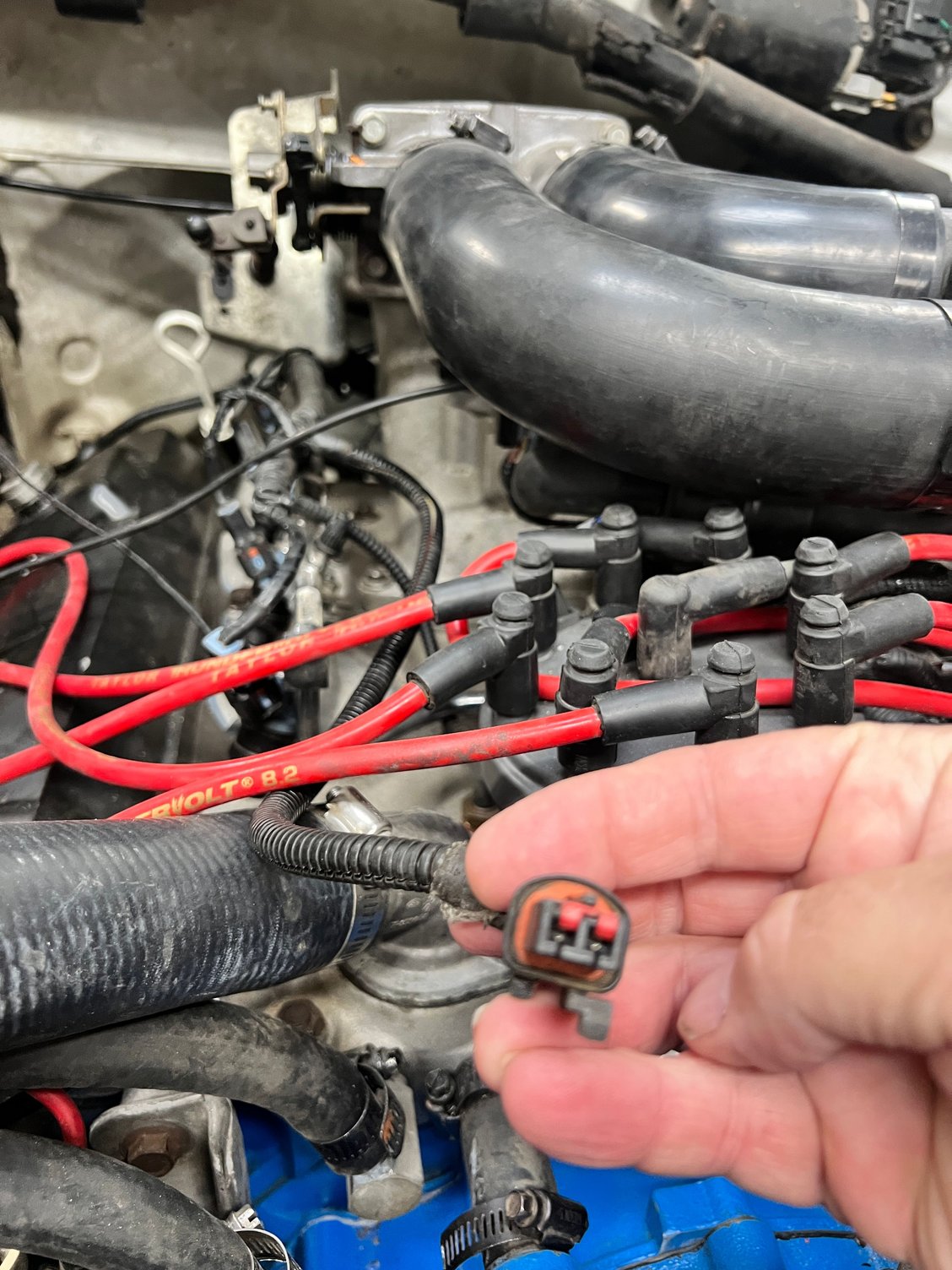

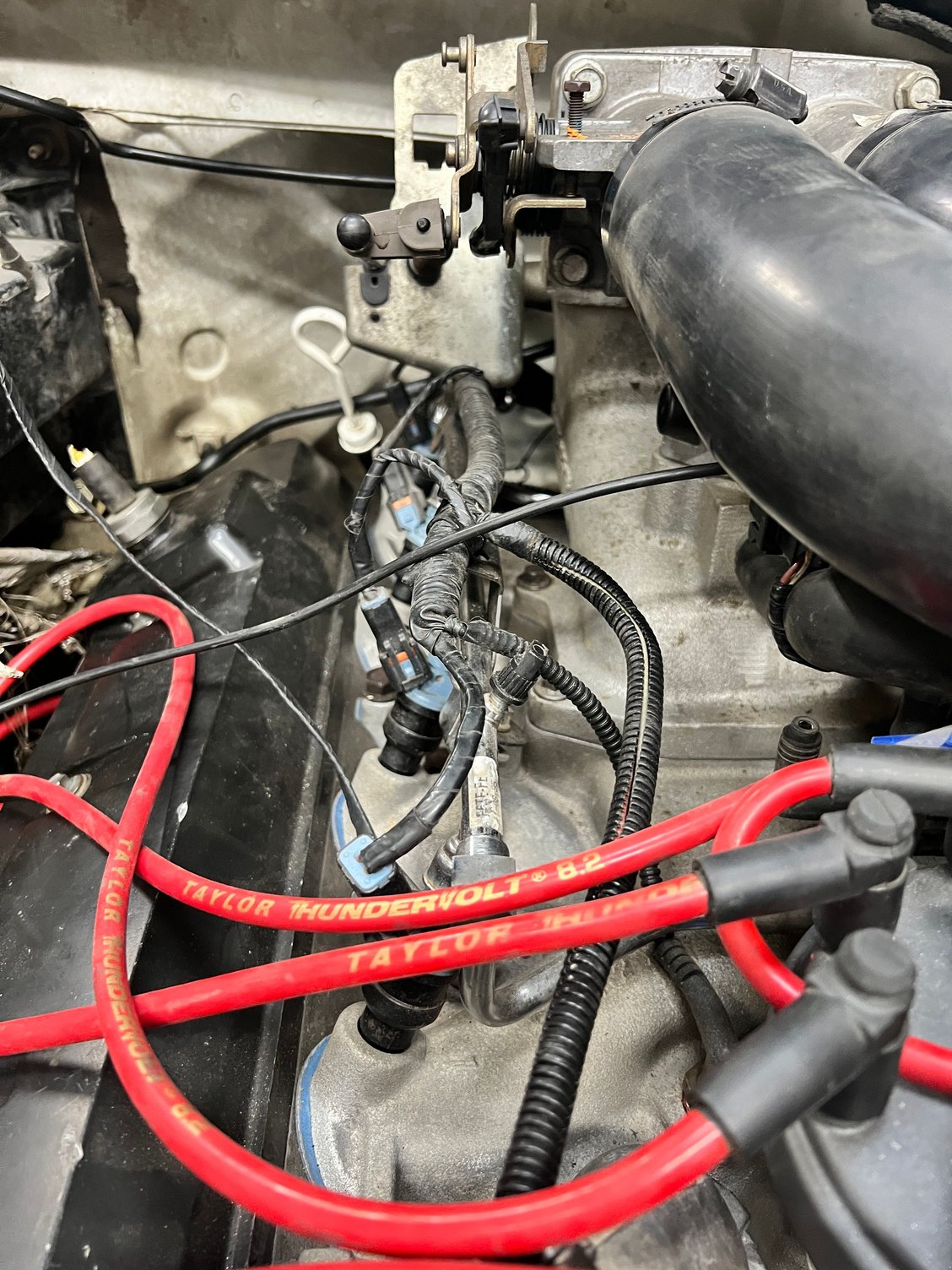

This is a different wire from the fuel rail. Any ideas?

This is a different wire from the fuel rail. Any ideas?

Reply

Old

Nov 19, 2024 | 09:34 AM

#5

wwhite

Logistics Pro

Joined: Aug 2014

Posts: 3,547

Likes: 845

What is on your engine that doesn't have anything plugged in?
Guessing with IAC or ECT.

Reply

Old

Nov 19, 2024 | 10:06 AM

#6

McLeod

Cargo Master

Joined: Mar 2003

Posts: 2,333

Likes: 296

Do you have AC compressor. check there.
Wire colors would help decipher the circuit

Reply

Old

Nov 19, 2024 | 10:08 AM

#7

rla2005

Fleet Owner

Joined: Oct 2005

Posts: 20,783

Likes: 1,748

From: Kentucky

Looks more like connector C171 that goes to the Canister Purge (CANP) solenoid/valve. On a 7.5L engine the CANP is teed into the PCV valve vacuum line that also continues onto the charcoal canister.

VECI label:

Reply
