Wiper switch query
Thread Starter
|
Hotshot
Joined: Feb 2004
Posts: 10,730
Likes: 2,584
From: The Shenandoah Valley
Wiper switch query
After reading the "You know you drive a dent ..........", mention was made about a mid '80s Bronco intermittent wiper switch being used in a former regular non intermittent Dent, sounded interesting. I looked at RA, they list both types for my '77, but the intermittent one has a separate ground wire. Terminals look the same, switch otherwise looks the same. I can understand ground wire for a heater type timer.
Query ... Anyone else tried this?
I'm thinking about it, think it'd be better than a separate add on wiper delay control.
Query ... Anyone else tried this?
I'm thinking about it, think it'd be better than a separate add on wiper delay control.
Tuned
Joined: Dec 2009
Posts: 448
Likes: 31
From: Park City, Utah
After reading the "You know you drive a dent ..........", mention was made about a mid '80s Bronco intermittent wiper switch being used in a former regular non intermittent Dent, sounded interesting. I looked at RA, they list both types for my '77, but the intermittent one has a separate ground wire. Terminals look the same, switch otherwise looks the same. I can understand ground wire for a heater type timer.
Query ... Anyone else tried this?
I'm thinking about it, think it'd be better than a separate add on wiper delay control.
Query ... Anyone else tried this?
I'm thinking about it, think it'd be better than a separate add on wiper delay control.
Lead Driver
Joined: Jul 2017
Posts: 9,545
Likes: 1,156
From: San Jose, CA
And those use the separate module as well. It plugged into the factory switch, but the timing module was separate.
You had to have the interconnect harness but it was relatively easy plug-and-play.
My 79 had one from the factory and I picked one out of a 78 or 79 to put in my old bronco.
Are the 80 and newer models supposed to be better?
And I’m sure I’ll have a forehead slapping moment, but who is RA?
You had to have the interconnect harness but it was relatively easy plug-and-play.
My 79 had one from the factory and I picked one out of a 78 or 79 to put in my old bronco.
Are the 80 and newer models supposed to be better?
And I’m sure I’ll have a forehead slapping moment, but who is RA?
Laughing Gas
Joined: Oct 2015
Posts: 990
Likes: 109
From: Dallas, OR
I used a module and switch out of an 80's truck and it worked fine. The only issue that I had was that the washer pump wouldn't work with the new setup. I searched online and found with certain years, you had to reconfigure the pins (they are removable). Once I switched one or two wires (too long ago to remember) to different locations, everything works fine now.
Fleet Mechanic
Joined: Jul 2017
Posts: 1,448
Likes: 163
From: East Texas
We did this mod to our truck. We got the delay box from eBay and I think the proper switch form RA.
Bronco Graveyard has the delay boxes for 100.00.
I think I paid 75 used so not too bad for new.
Several suppliers carry the switch.
I It is plug and play. Plus a ground wire iirc.
Bronco Graveyard has the delay boxes for 100.00.
I think I paid 75 used so not too bad for new.
Several suppliers carry the switch.
I It is plug and play. Plus a ground wire iirc.
Logistics Pro
Joined: Oct 2006
Posts: 4,026
Likes: 890
From: East Central Ia

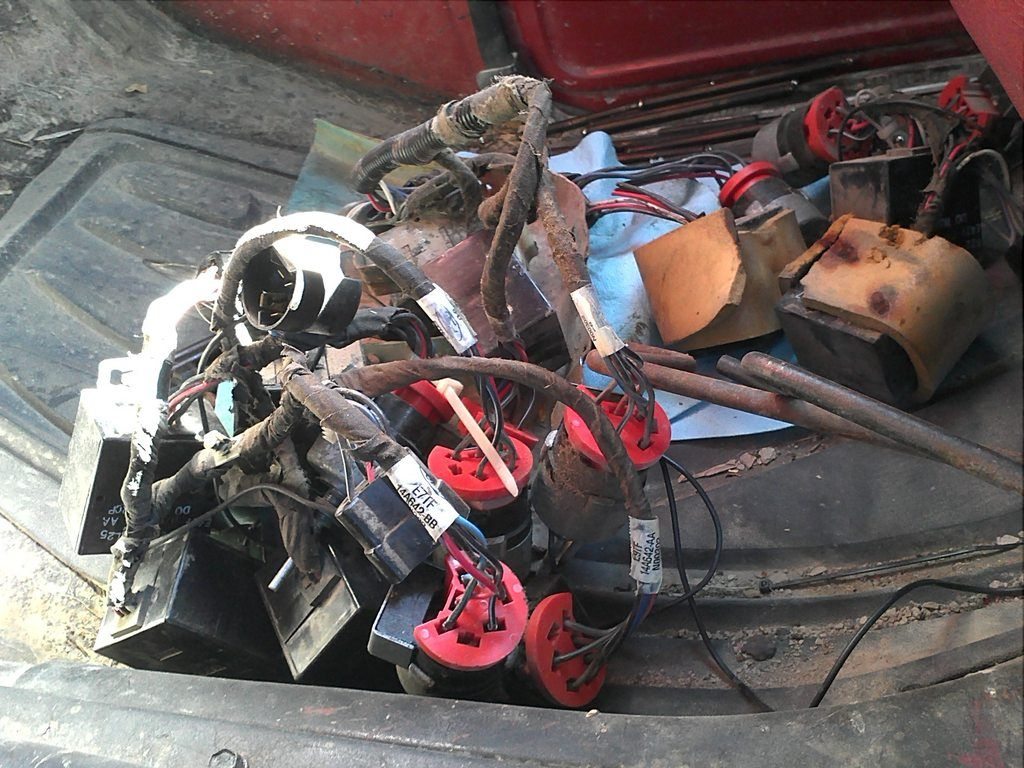

Middle 80's XLT's came with them standard. If you have a pick and pull, I check them all. If **** rotated counterclock wise your golden. Wire as WYRM if washer don't work Switch, T harness and module. Don't drop the module. This and cruise are great swaps. Not just the Broncos, the pickups on XLTs.
Trending Topics
Moderator & parts slinger
Joined: Feb 2007
Posts: 50,098
Likes: 5,759
From: S/W Missouri, Polk county
The delay wiper set up is available in reproduction. https://shop.broncograveyard.com/searchprods.asp
Number Dummy info below....
Two differenttypes of windshield wipers, two differentwiper switches. Two speed wiper switches have a low & high speed.
Intermittent (delay) wipers were optional on 1973/79 F100/350's and 1978/79 Bronco's. Intermittent is not another name for low speed!
DOOZ-17A553-A.. Two Speed Wiper Switch-Notused with intermittent wipers (Motorcraft SW-896) / Marked: D0OB-17A553-A orD/ Obsolete
1973/79 F100/350 / 1978/79 Bronco // 1970/71 Fairlane/Torino/Montego / 1970/72 Maverick/Comet.
SUSANVILLE FORD in Susanville CA = 530-257-2137.
NOS ONLY in San Jose CA = 800-667-6659.
WESLEY OBSOLETE PARTS in Liberty KY= 606-787-5293.
GREEN SALES CO. in Cincinnati OH = 800-543-4959.
D1OZ-17A553-A.. Two Speed Wiper Switch-Used withintermittent wipers (Motorcraft SW-1010) / Marked: D1OB-17A553-AA/ Obsolete
1973/79 F100/350 / 1978/79 Bronco // 1971 Fairlane/Torino/Montego.
NOS ONLY
BURNS FORD in Burns OR = 541-573-7278.
WESLEY OBSOLETE PARTS
GREEN SALES CO.
And D1OZ-17A553-A.. Two Speed Wiper Switch-Used with intermittent wipers (Motorcraft SW-1010) / Marked: D1OB-17A553-AA / Obsolete
DON'S TRUCK SALES in Fairbank IA= 319-365-2751.
MCDONALD OBSOLETE PARTS CO. in Rockport IN= 812-359-4965.
WESLEY OBSOLETE PARTS in Liberty KY= 606-787-5293.
GREEN SALES CO. in Cincinnati OH= 800-543-4959.
CARPENTER NOS OBSOLETE PARTS in Concord NC = 800-476-9653.
There are TWO different intermittent wiper governors. 1973/77 is one type, 1978/79 is another.
D3TZ-17C476-A(replaced D1ZZ-17C476-A) Intermittent Wiper Governor / Obsolete
Number Dummy info below....
Two differenttypes of windshield wipers, two differentwiper switches. Two speed wiper switches have a low & high speed.
Intermittent (delay) wipers were optional on 1973/79 F100/350's and 1978/79 Bronco's. Intermittent is not another name for low speed!
DOOZ-17A553-A.. Two Speed Wiper Switch-Notused with intermittent wipers (Motorcraft SW-896) / Marked: D0OB-17A553-A orD/ Obsolete
1973/79 F100/350 / 1978/79 Bronco // 1970/71 Fairlane/Torino/Montego / 1970/72 Maverick/Comet.
SUSANVILLE FORD in Susanville CA = 530-257-2137.
NOS ONLY in San Jose CA = 800-667-6659.
WESLEY OBSOLETE PARTS in Liberty KY= 606-787-5293.
GREEN SALES CO. in Cincinnati OH = 800-543-4959.
D1OZ-17A553-A.. Two Speed Wiper Switch-Used withintermittent wipers (Motorcraft SW-1010) / Marked: D1OB-17A553-AA/ Obsolete
1973/79 F100/350 / 1978/79 Bronco // 1971 Fairlane/Torino/Montego.
NOS ONLY
BURNS FORD in Burns OR = 541-573-7278.
WESLEY OBSOLETE PARTS
GREEN SALES CO.
And D1OZ-17A553-A.. Two Speed Wiper Switch-Used with intermittent wipers (Motorcraft SW-1010) / Marked: D1OB-17A553-AA / Obsolete
DON'S TRUCK SALES in Fairbank IA= 319-365-2751.
MCDONALD OBSOLETE PARTS CO. in Rockport IN= 812-359-4965.
WESLEY OBSOLETE PARTS in Liberty KY= 606-787-5293.
GREEN SALES CO. in Cincinnati OH= 800-543-4959.
CARPENTER NOS OBSOLETE PARTS in Concord NC = 800-476-9653.
There are TWO different intermittent wiper governors. 1973/77 is one type, 1978/79 is another.
D3TZ-17C476-A(replaced D1ZZ-17C476-A) Intermittent Wiper Governor / Obsolete
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Ford Super Duty: 5 Things Owners LOVE, 5 Things They LOATHE!
Joe Kucinski
Every 2026 Ford Truck Engine RANKED from WORST to FIRST!
Michael S. Palmer
The Best F-150 Deal of Every Trim Level (XL through Raptor)
Joe Kucinski
Thread Starter
|
Hotshot
Joined: Feb 2004
Posts: 10,730
Likes: 2,584
From: The Shenandoah Valley
THANK YOU ALL.
I have an aftermarket kit with a module I had bought long long ago, then lost in a cabinet and forgot about. I have re-found it, it'snever been opened so I don't know what's in the kit, but for my uses, it might be the way I go.
I have an aftermarket kit with a module I had bought long long ago, then lost in a cabinet and forgot about. I have re-found it, it'snever been opened so I don't know what's in the kit, but for my uses, it might be the way I go.
