Hey guys I am looking for the wiring diagram for a 2020 F-350 obd2 connector. I have no power at pin 16 and can’t find the fuse. I tried searching online for diagram and can only find paper version not pdf. I am in need of it now so that won’t work. Any help would be greatly appreciated!!!
FTE Leadership Emeritus
Joined: Sep 2000
Posts: 23,174
Likes: 1,678
From: Stephensville WI
Welcome to FTE!
On the earlier generation trucks, the OBDII connector got power from the Power Point circuit. I don't know if this generation is the same,, but I'd check fuses 62, 64, 66 and maybe 68.
On the earlier generation trucks, the OBDII connector got power from the Power Point circuit. I don't know if this generation is the same,, but I'd check fuses 62, 64, 66 and maybe 68.
Thread Starter
|
New User
Joined: Apr 2022
Posts: 3
Likes: 0

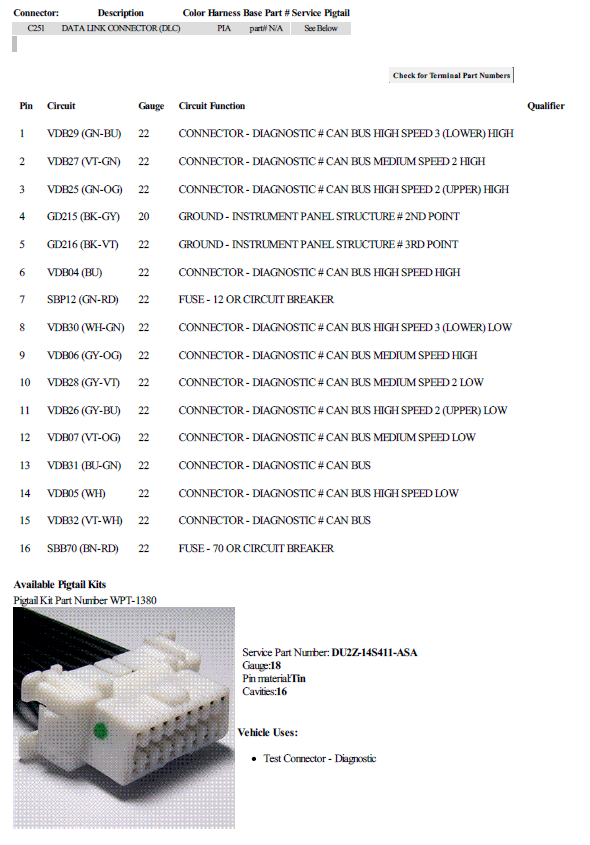

Thank you for the welcome and reply! This forum is always helpful!! First time I have had to post my own I usually can just search and find the answer. I remember the fuse always being the cigarette lighter but this one I do not believe is. I checked all fuses in the footwell. I was hoping I could get a diagram to know for sure.
