Over head console

How do you remove the overhead console(where the upfitter switchs are) I need to run a wire down from there

Oct 17, 2021 | 07:03 PM

17350kr

Mountain Pass

Joined: Nov 2017

Posts: 180

Likes: 36

The whole headliner comes out if you pull down on it after the a pillar plastic is pulled away. The headliner is held in with magnets. But if you are looking to tie in to a upfillter the wires are by the driver side battery.

Oct 17, 2021 | 07:07 PM

GMB Racing

Thread Starter

Mountain Pass

Joined: Feb 2013

Posts: 147

Likes: 58

From: NH

Magnets on Aluminum body ?

Oct 17, 2021 | 07:18 PM

senix

Super Moderator

Joined: Aug 2008

Posts: 37,375

Likes: 1,860

From: Frederick, MD

upfitter wires have moved to the passenger side by that battery.at least on the diesels.

Oct 17, 2021 | 07:26 PM

peebeeaitch

Freshman User

Joined: Jun 2021

Posts: 42

Likes: 15

From the rear of the vehicle pull down on the overhead console. Eventually, once you are pulling so hard you think you're going to collapse the roof, the clips will release. Now, be very careful and slowly work your way forward pulling down on the edges. Eventually the front clips will also be pulled free. In my experience, this is a max of 3 operation before the console breaks (mine broke on try 4, and in another spot on pull 5). You can't just buy the facia - you need to buy the whole thing including switches which is like $450.

Here are some photos: https://www.ford-trucks.com/forums/1...lectrical.html

Oct 17, 2021 | 07:27 PM

GMB Racing

Thread Starter

Mountain Pass

Joined: Feb 2013

Posts: 147

Likes: 58

From: NH

I need to tie on to the ign power and ground for the controller that is mounted to overhead console and run a control cable down to back seat

Oct 17, 2021 | 07:46 PM

peebeeaitch

Freshman User

Joined: Jun 2021

Posts: 42

Likes: 15

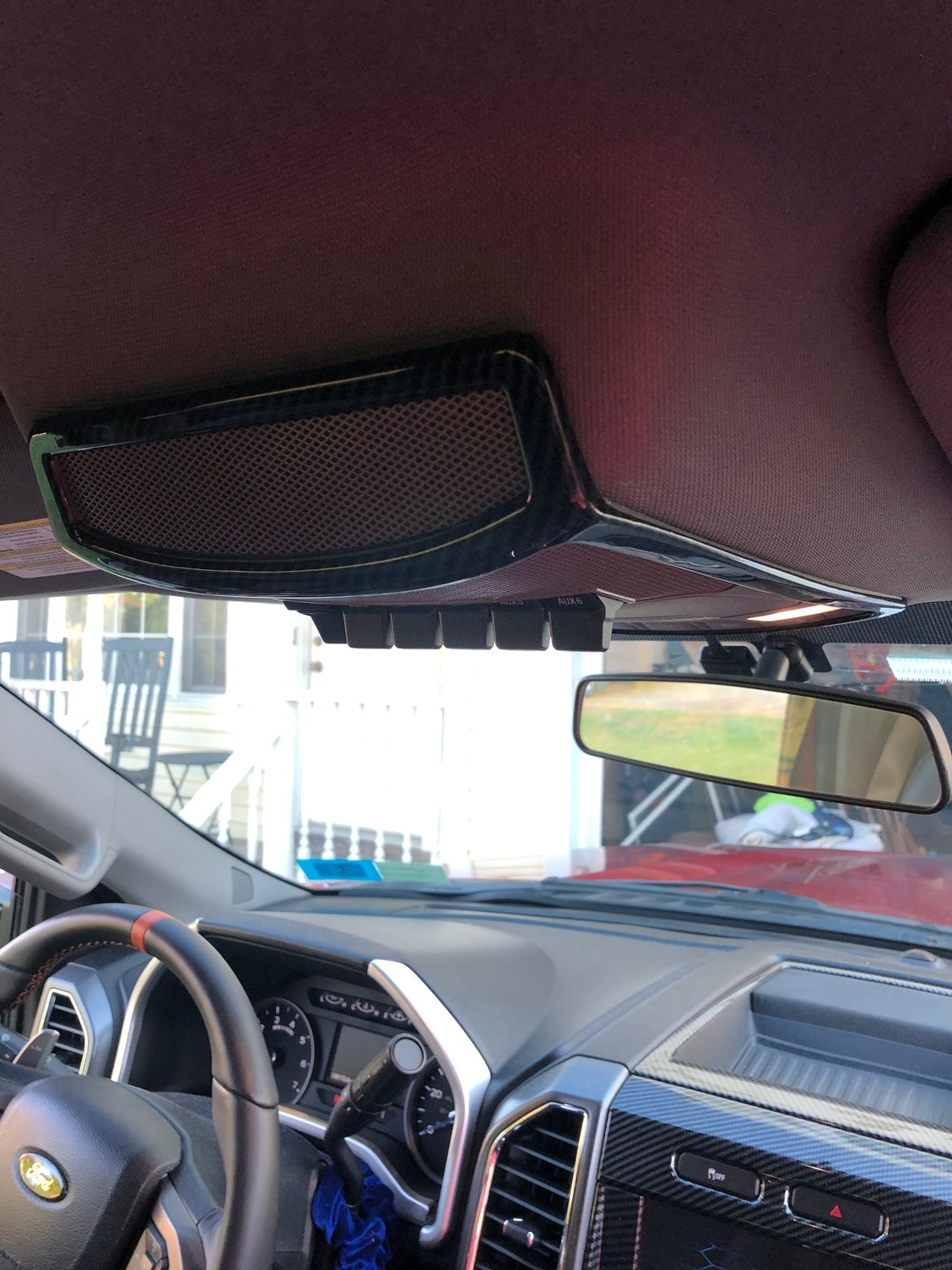

THIS shows some more shots from my truck.

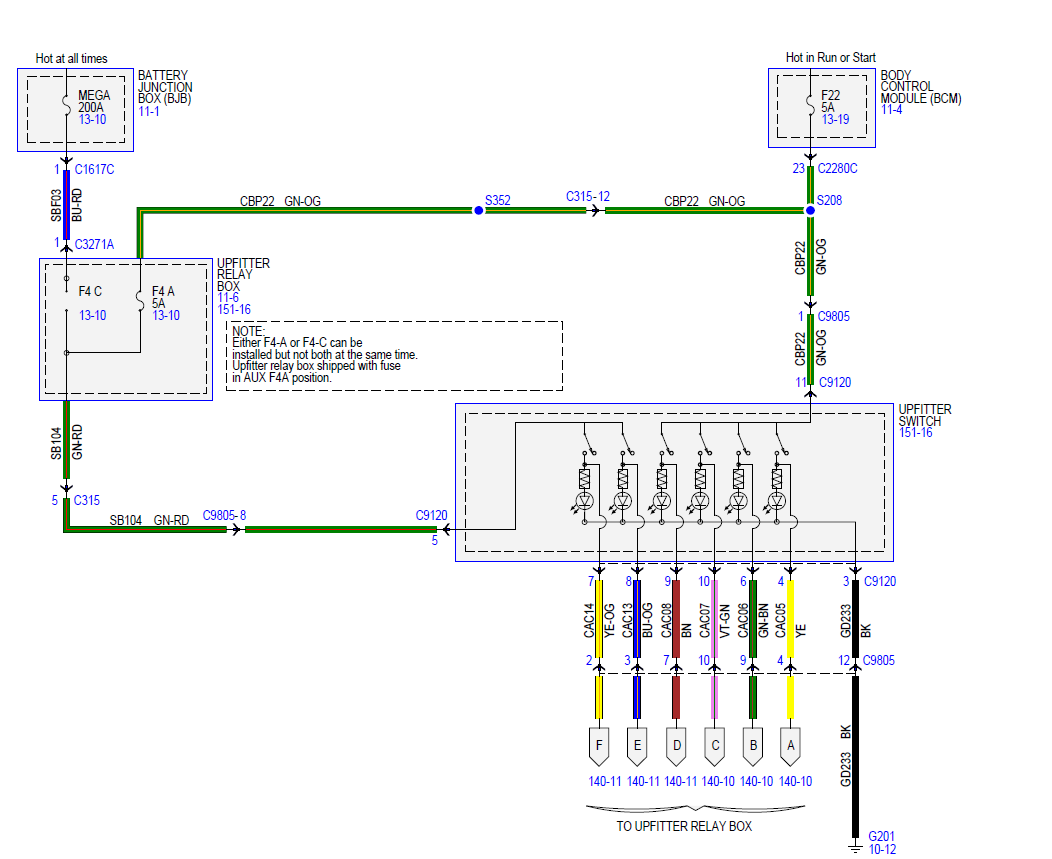

Here's the circuit (2019 model)
