74 steering box conversion
I have a 74 f250 4x4 highboy that I am installing a 78-79 power steering box and front axle with disk brakes.
I bought a plate kit from ebay but how do I know where to drill the holes. I assume that to far forward or back and the box will not be centered.
Any specs out there.
I bought a plate kit from ebay but how do I know where to drill the holes. I assume that to far forward or back and the box will not be centered.
Any specs out there.
Laughing Gas
Joined: May 2015
Posts: 931
Likes: 392
From: Port Orchard, WA
Its a Saturday afternoon, most of us are out working on our trucks and not checking the forum. Give it more than 2 hours and you’ll probably give it a response.
Fleet Owner
Joined: Jan 2004
Posts: 26,007
Likes: 575
From: Brentwood,CA
I have a 74 f250 4x4 highboy that I am installing a 78-79 power steering box and front axle with disk brakes.
I bought a plate kit from ebay but how do I know where to drill the holes. I assume that to far forward or back and the box will not be centered.
Any specs out there.
I bought a plate kit from ebay but how do I know where to drill the holes. I assume that to far forward or back and the box will not be centered.
Any specs out there.
Laughing Gas
Joined: Jan 2005
Posts: 1,011
Likes: 232
Trending Topics
Fleet Owner
Joined: Jan 2004
Posts: 26,007
Likes: 575
From: Brentwood,CA

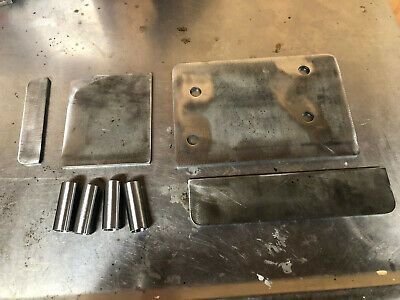

Shouldn't need a rough guess, if you bought the kit I referred to above one of the plates is used as a depth gauge for the notch.
Is this what you bought? Bracket Kit
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
Fleet Owner
Joined: Jan 2004
Posts: 26,007
Likes: 575
From: Brentwood,CA

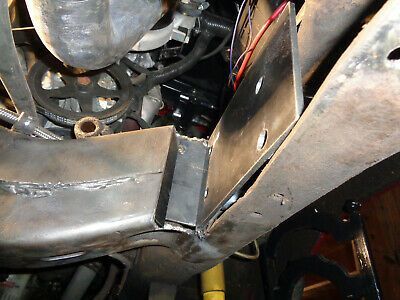

This shows the location of the holes. 72 Highboy, Added 78 Power Steering - The FORDification.com Forums

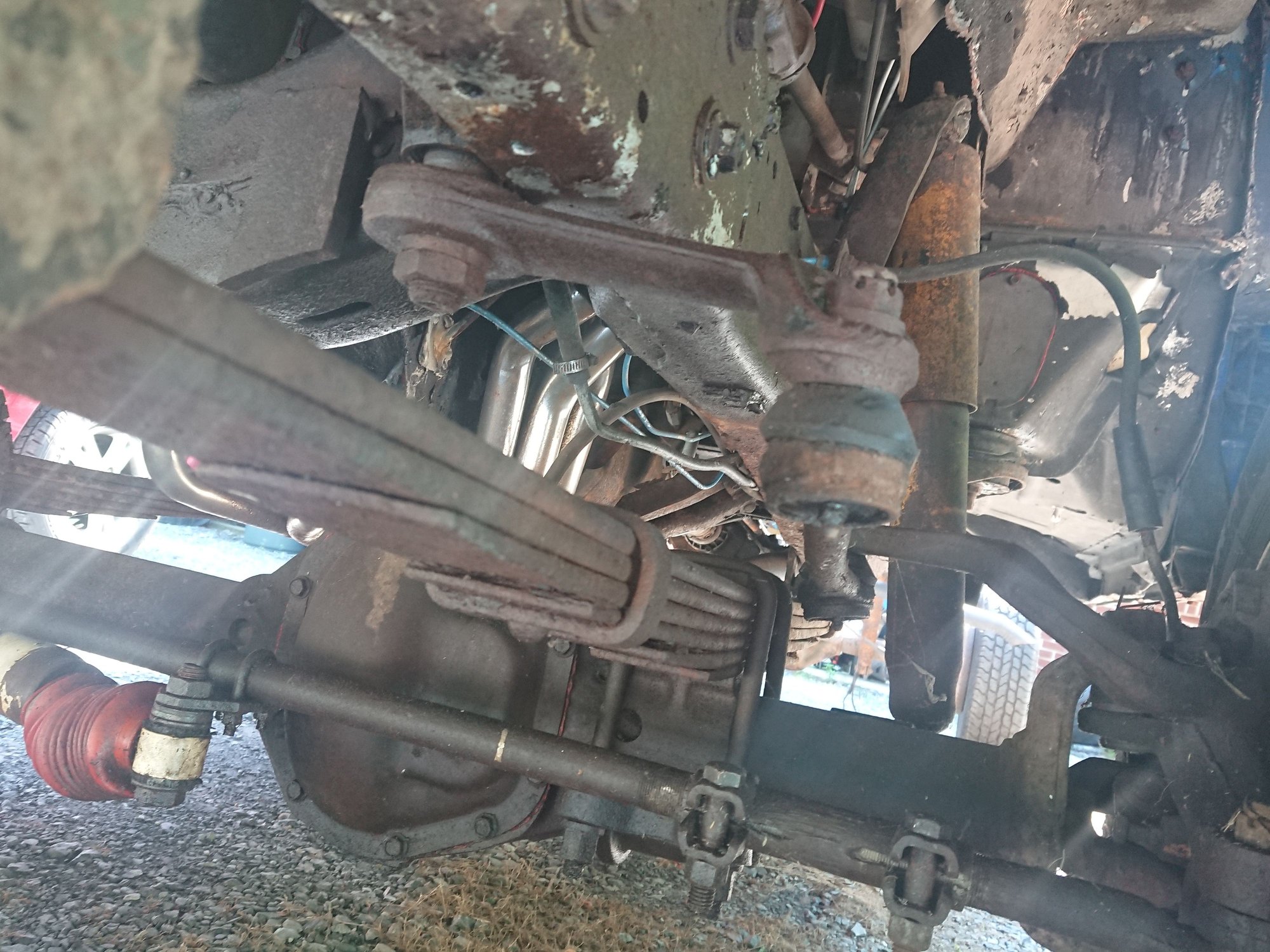

I see you are also installing the front axle. What are you going to use for the drag link? When I did mine to keep the geometry right I had to install a 3" steering block as I couldn't find a Ford raised steering arm. I made the drag link using GM the rods and sleeve.
Here is the steering block, note it's Ford specific.
https://www.ebay.com/itm/25234905578...hoCfMwQAvD_BwE
I see you are also installing the front axle. What are you going to use for the drag link? When I did mine to keep the geometry right I had to install a 3" steering block as I couldn't find a Ford raised steering arm. I made the drag link using GM the rods and sleeve.
Here is the steering block, note it's Ford specific.
https://www.ebay.com/itm/25234905578...hoCfMwQAvD_BwE
Thread Starter
|
Cross-Country
Joined: Oct 2003
Posts: 86
Likes: 6
when I bought the axle and box the guy said everything is there for the swap, it looked like the frame crossmember was already cut, but was a botched up job.
I did not see that block but it has the drag link with the parts. I wanted to do it right with the plate kit
I did not see that block but it has the drag link with the parts. I wanted to do it right with the plate kit
Fleet Owner
Joined: Jan 2004
Posts: 26,007
Likes: 575
From: Brentwood,CA
The drag link won't work in your highboy. To get the steering steering arm in plane with the pitman arm you will need a block.
Fleet Owner
Joined: Jan 2004
Posts: 26,007
Likes: 575
From: Brentwood,CA
Now add 3" of drop to the steering and you will quickly see the issue when installed on a highboy.
