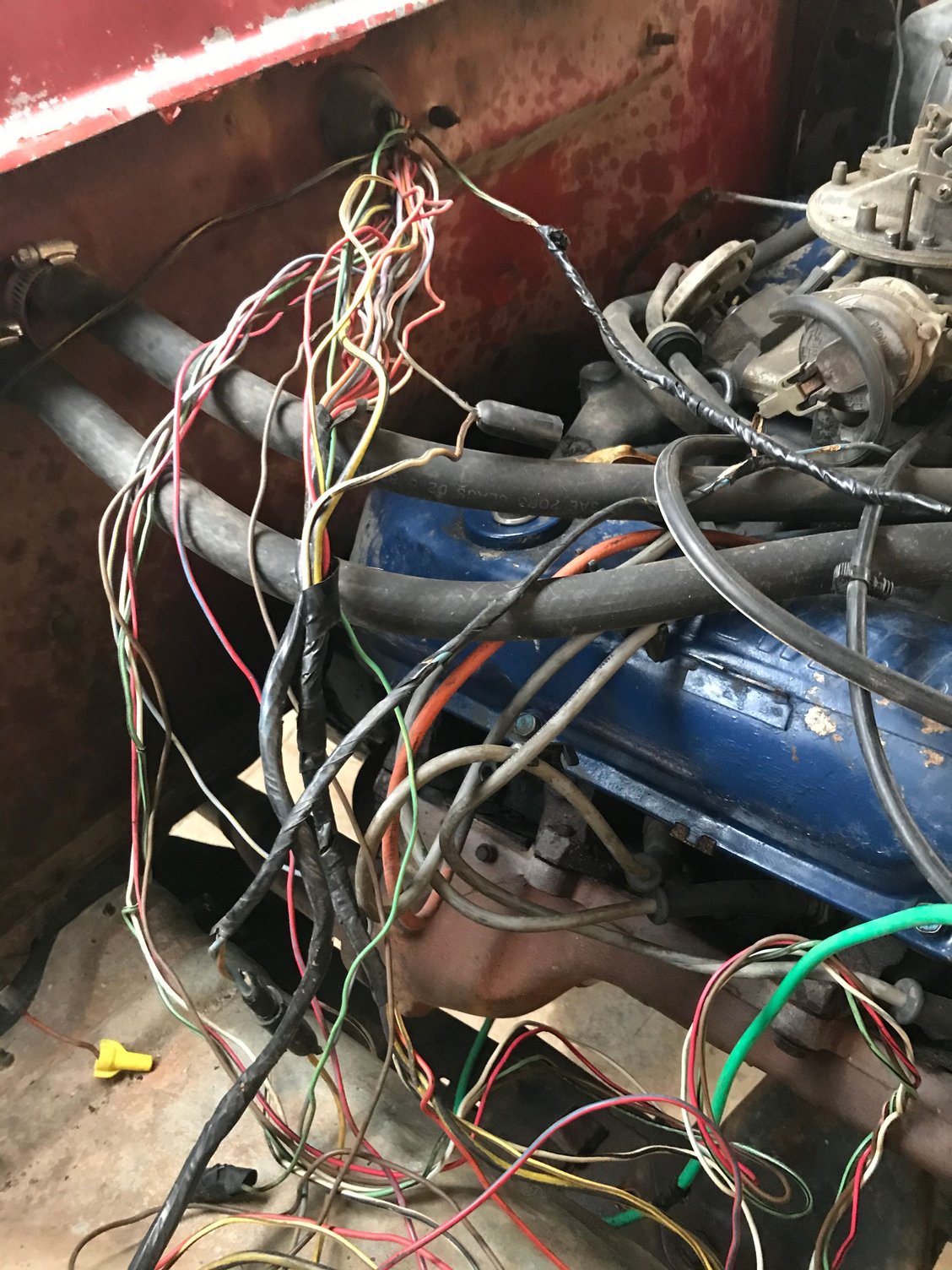

I bought this truck about a month ago and I am trying to get all the wiring figured out. Previous owners did a lot of cutting and tapping. I have no idea where these connectors go or what they are for. Hopefully someone can help me. I have printed off the schematics off of fordification but they are very confusing.

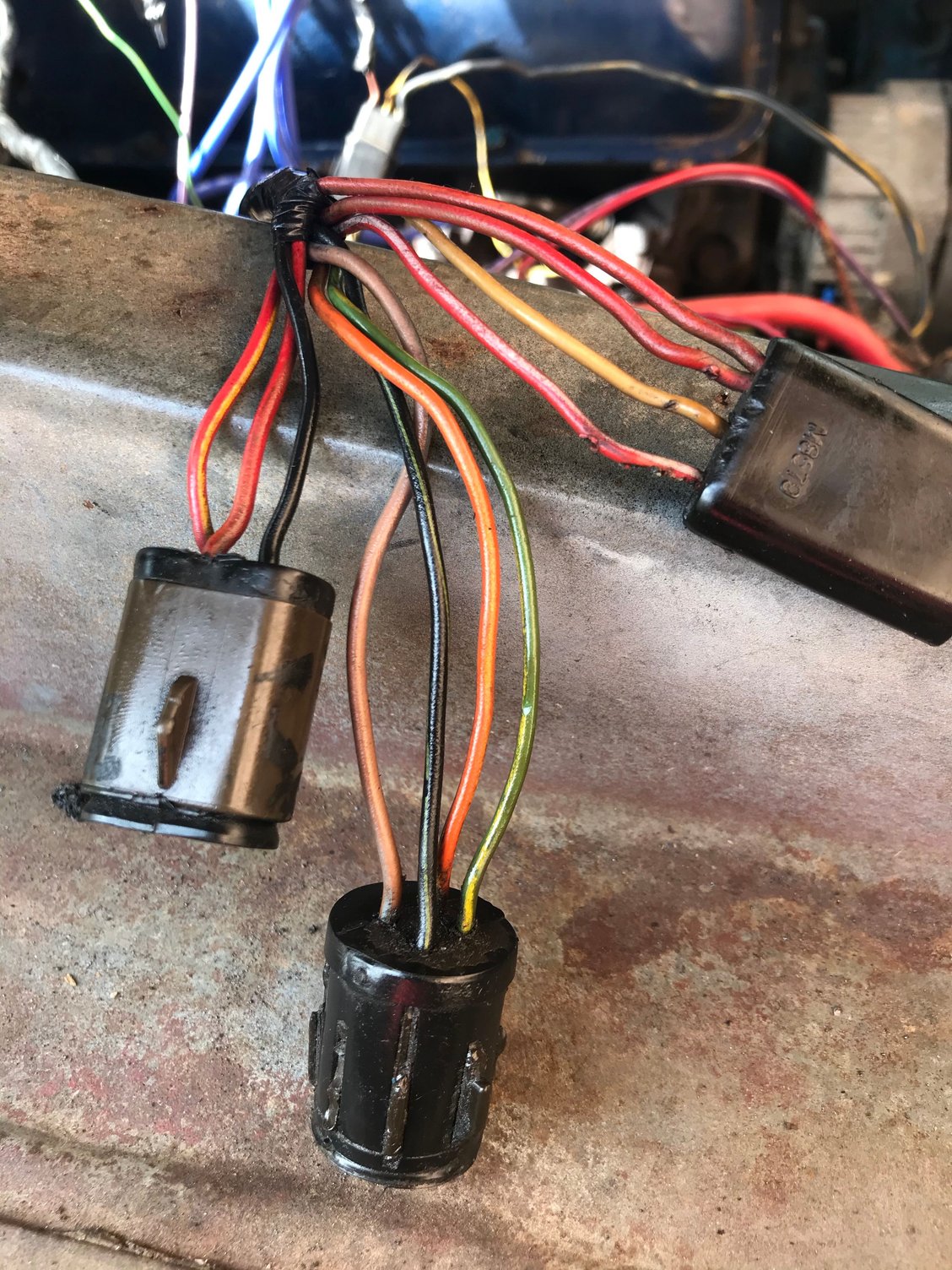

These are on the passenger side and taped together. They are not taped to the stuff that comes to the passenger side. But I have a feeling they are supposed to be behind the engine maybe????
This is a pretty basic truck... no air conditioning... no cruise control... Manuel transmission...
I also can’t find any wires for the back up lights. Nothing plugged into the transmission.
2nd those are for the Duraspark. Could be on the passenger side. If it has an HEI ignition upgrade, you may not need them anymore. I don't remember what the flat one goes to. IRRC, it wasn't needed if it wasn't already connect to something. (Those wires look fried anyway)
