Sorry, should have been more specific....the engine timing pin is adjustable.
EDIT: So, the way around that is also in the FSM/rebuild manual. Essentially, you put a flat plate across #1 and run the piston up to it both directions and mark the damper or crankshaft at each location and then split the difference, which is TDC.
EDIT: So, the way around that is also in the FSM/rebuild manual. Essentially, you put a flat plate across #1 and run the piston up to it both directions and mark the damper or crankshaft at each location and then split the difference, which is TDC.
Thread Starter
|
Fleet Mechanic
Joined: May 2017
Posts: 1,313
Likes: 102
From: TN
Sorry, should have been more specific....the engine timing pin is adjustable.
EDIT: So, the way around that is also in the FSM/rebuild manual. Essentially, you put a flat plate across #1 and run the piston up to it both directions and mark the damper or crankshaft at each location and then split the difference, which is TDC.
EDIT: So, the way around that is also in the FSM/rebuild manual. Essentially, you put a flat plate across #1 and run the piston up to it both directions and mark the damper or crankshaft at each location and then split the difference, which is TDC.
Thread Starter
|
Fleet Mechanic
Joined: May 2017
Posts: 1,313
Likes: 102
From: TN
Fleet Mechanic
Joined: Jan 2017
Posts: 1,665
Likes: 180
Good deal! Yeah, the drop valve method works well too.
On another note, something you may be interested in is a "tool" to help with pump timing. Basically, take a pump gear nut and weld a smaller nut on it. When you spin he nut tight against the shaft, you can then use it to easily rotate the shat on the pump. Makes adjustments in the truck once installed much easier. If I remember, you had Seth doo yours, so you may not ever change it. Then again, sometimes you want a few more ponies!
On another note, something you may be interested in is a "tool" to help with pump timing. Basically, take a pump gear nut and weld a smaller nut on it. When you spin he nut tight against the shaft, you can then use it to easily rotate the shat on the pump. Makes adjustments in the truck once installed much easier. If I remember, you had Seth doo yours, so you may not ever change it. Then again, sometimes you want a few more ponies!
Thread Starter
|
Fleet Mechanic
Joined: May 2017
Posts: 1,313
Likes: 102
From: TN
Good deal! Yeah, the drop valve method works well too.
On another note, something you may be interested in is a "tool" to help with pump timing. Basically, take a pump gear nut and weld a smaller nut on it. When you spin he nut tight against the shaft, you can then use it to easily rotate the shat on the pump. Makes adjustments in the truck once installed much easier. If I remember, you had Seth doo yours, so you may not ever change it. Then again, sometimes you want a few more ponies!
On another note, something you may be interested in is a "tool" to help with pump timing. Basically, take a pump gear nut and weld a smaller nut on it. When you spin he nut tight against the shaft, you can then use it to easily rotate the shat on the pump. Makes adjustments in the truck once installed much easier. If I remember, you had Seth doo yours, so you may not ever change it. Then again, sometimes you want a few more ponies!
Laughing Gas
Joined: Jun 2021
Posts: 983
Likes: 366

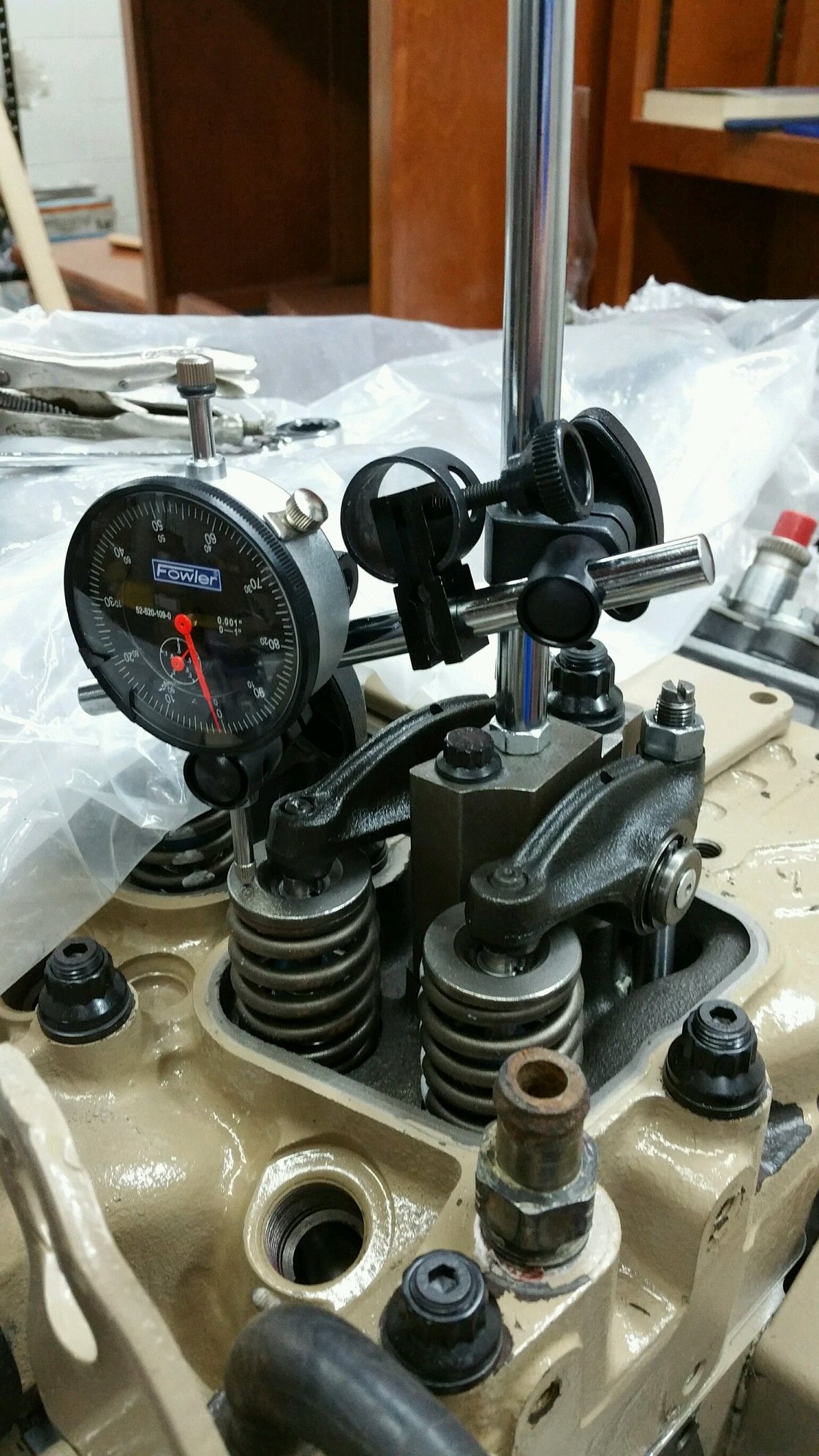

Agreed. Never know if I'm going to want more timing, and I have the mag base and dial indicator for that process also now. Starting with the 18* pin timed I should be pretty close to what I want for towing...we'll see. Seth seemed to agree that was a good starting point.

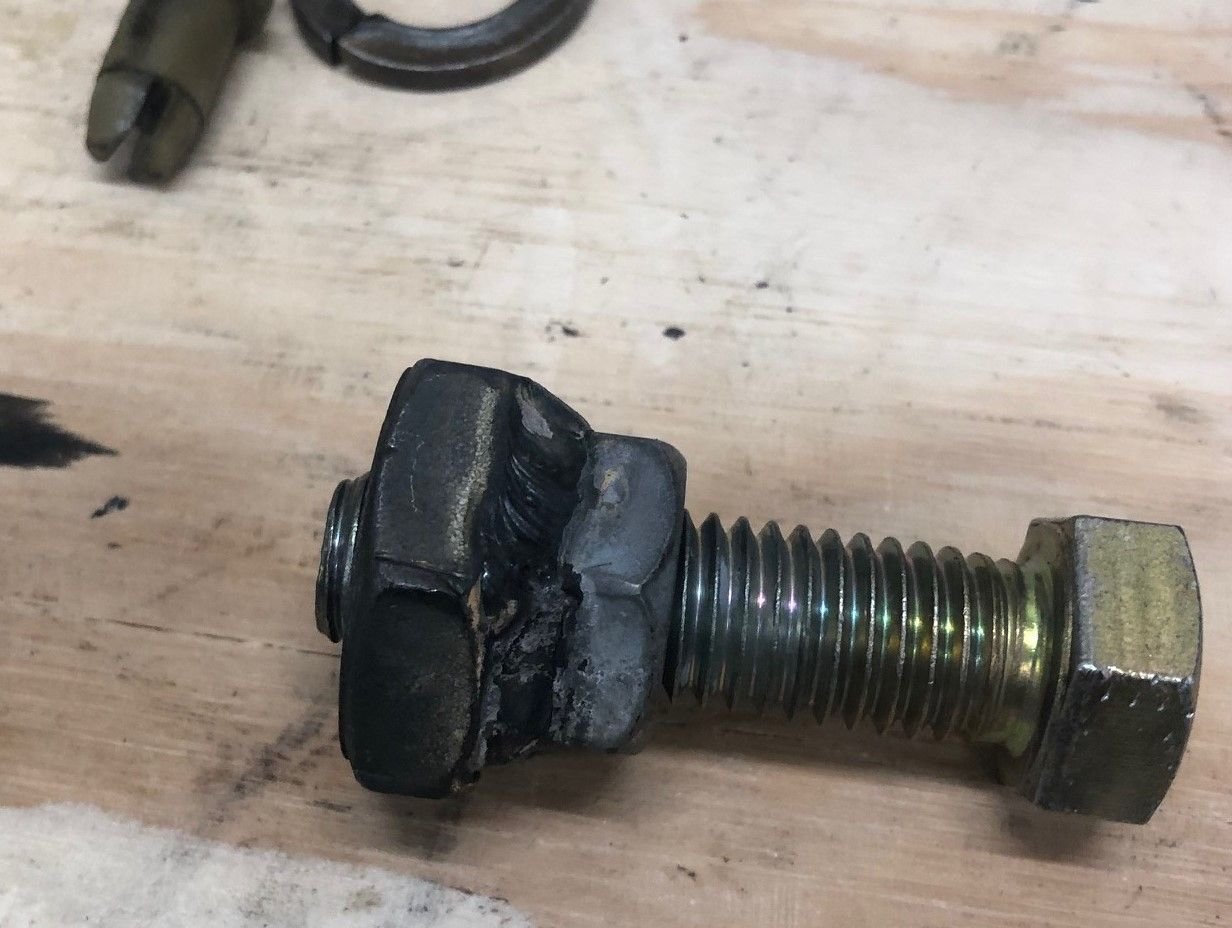

The pump timing pin is fairly accurate, the cam gear timing pin is not. You're way better off using the drop valve method to find TDC over the cam gear pin. The tool that ExSwap was talking about above (ppic below) will help if you're using the dial indicator in the delivery valve hole method of timing. It allows you to turn the pump easily while the gear is disconnected.
Thread Starter
|
Fleet Mechanic
Joined: May 2017
Posts: 1,313
Likes: 102
From: TN

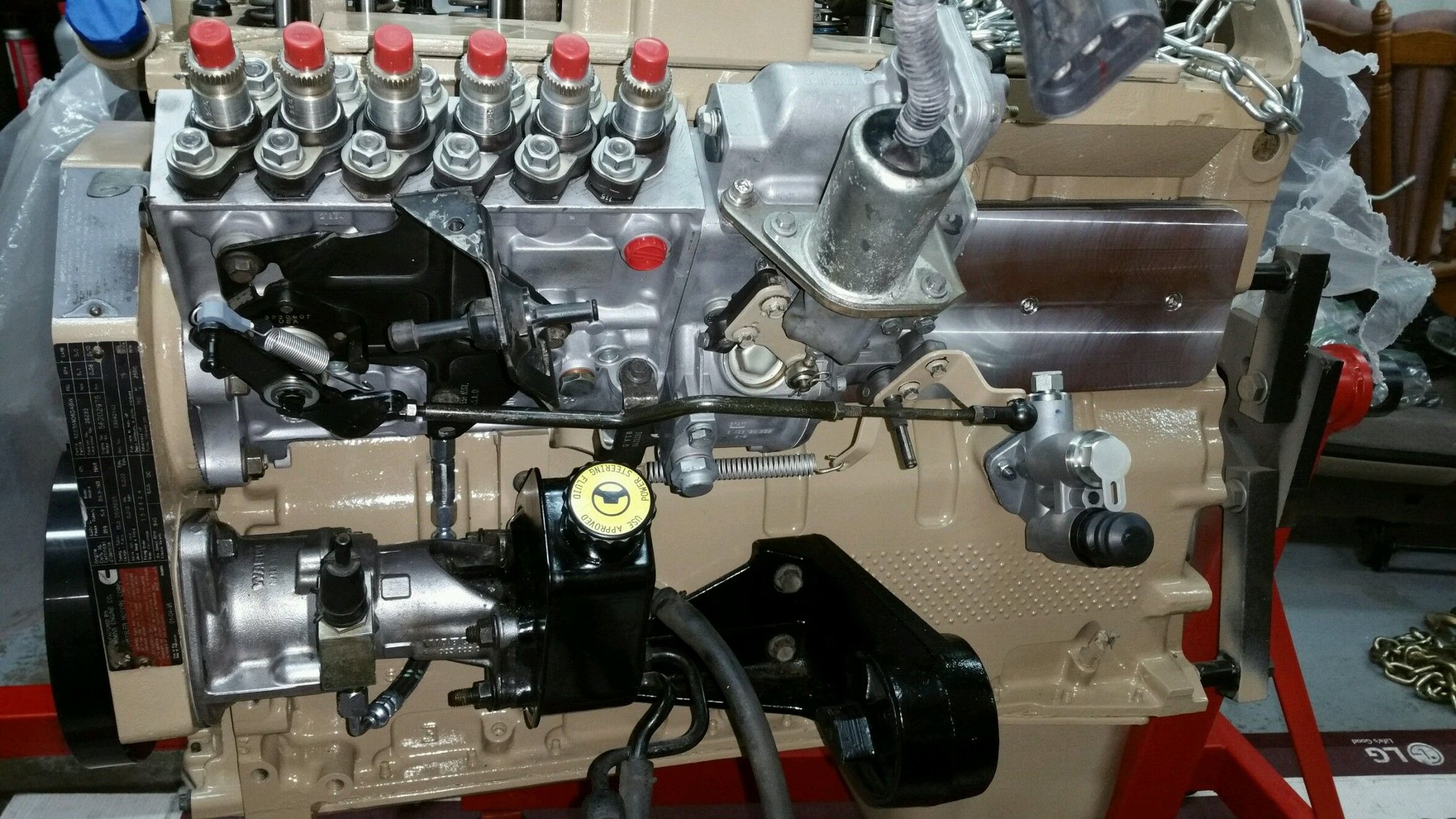

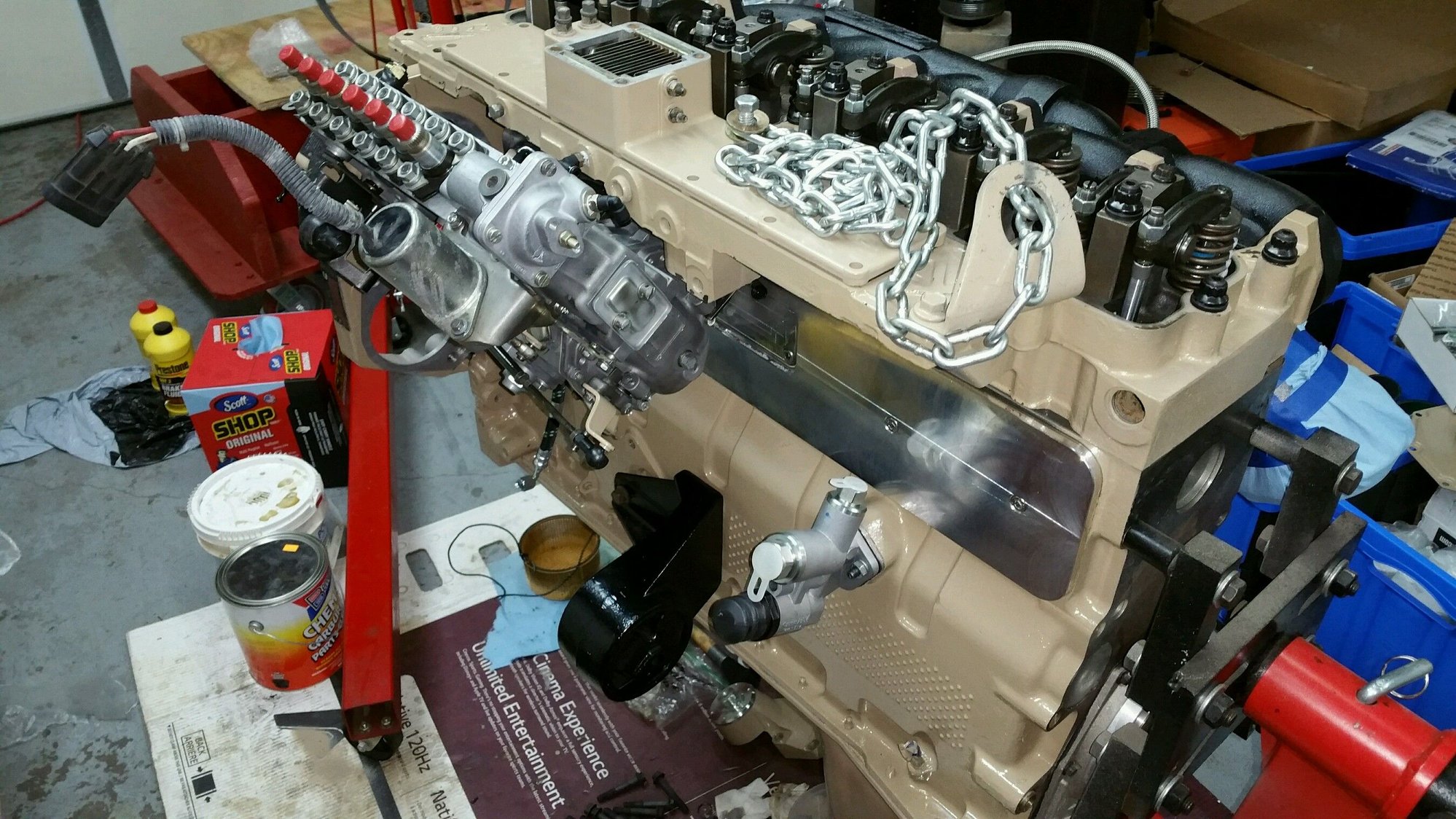

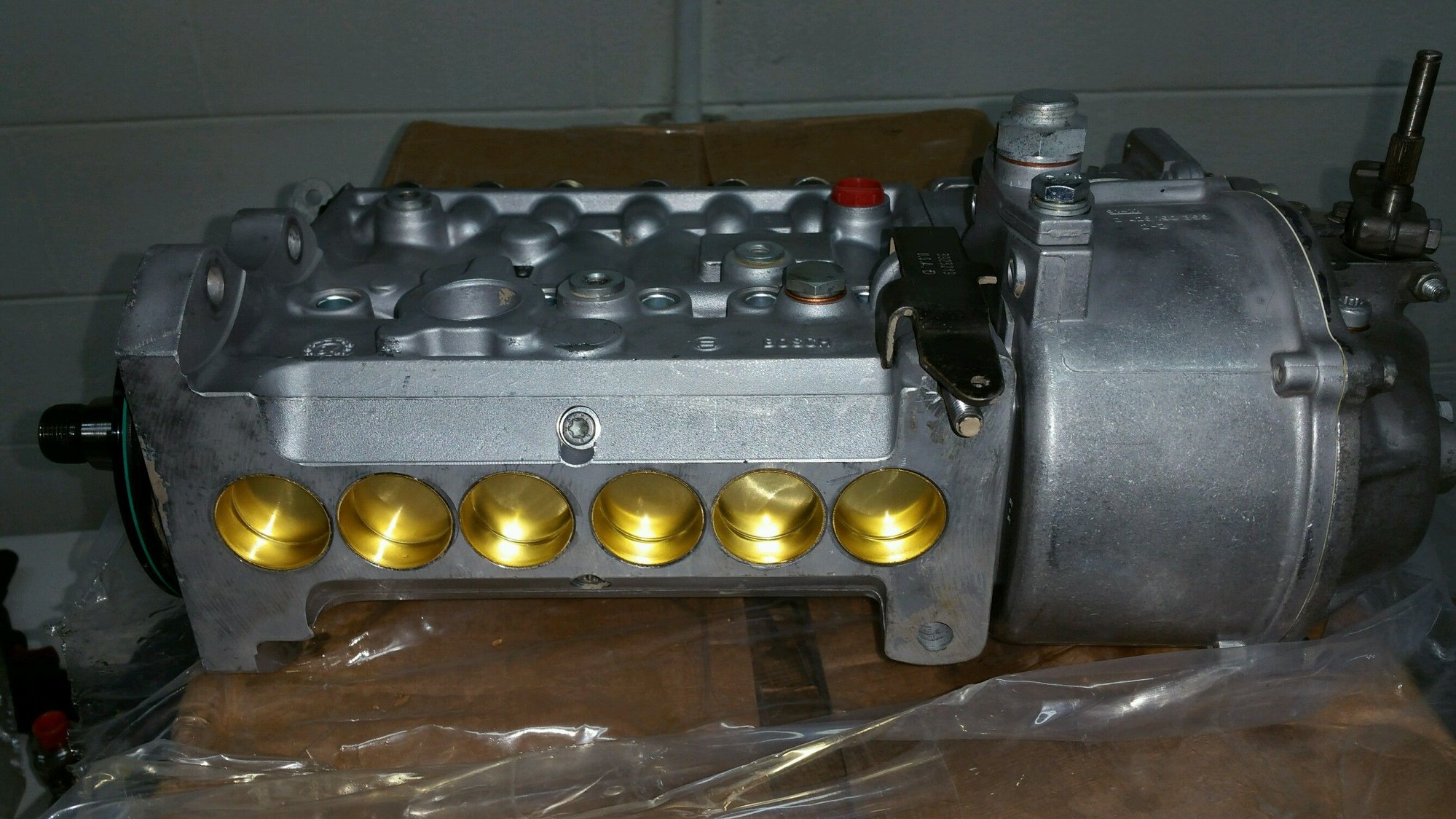

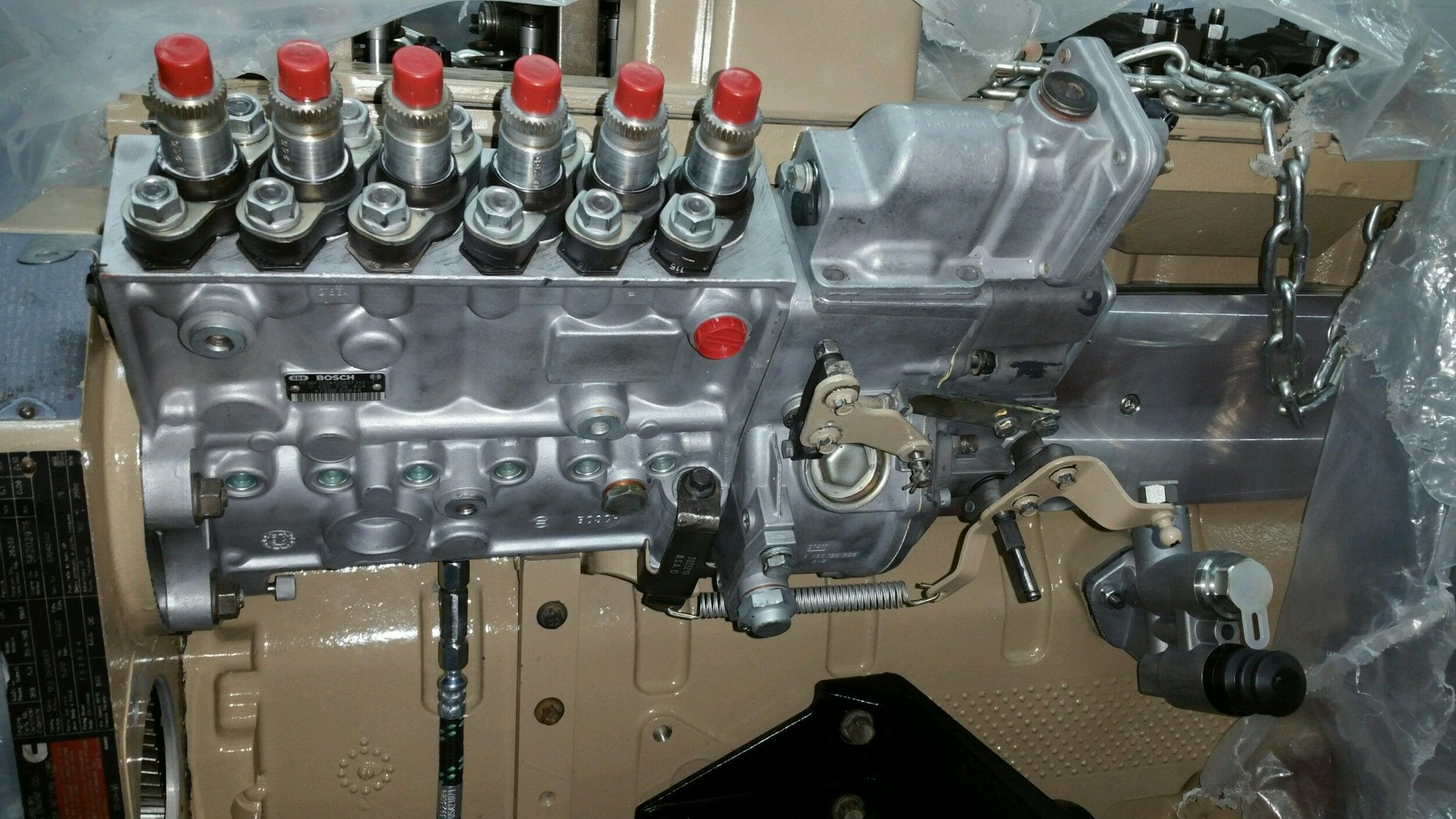

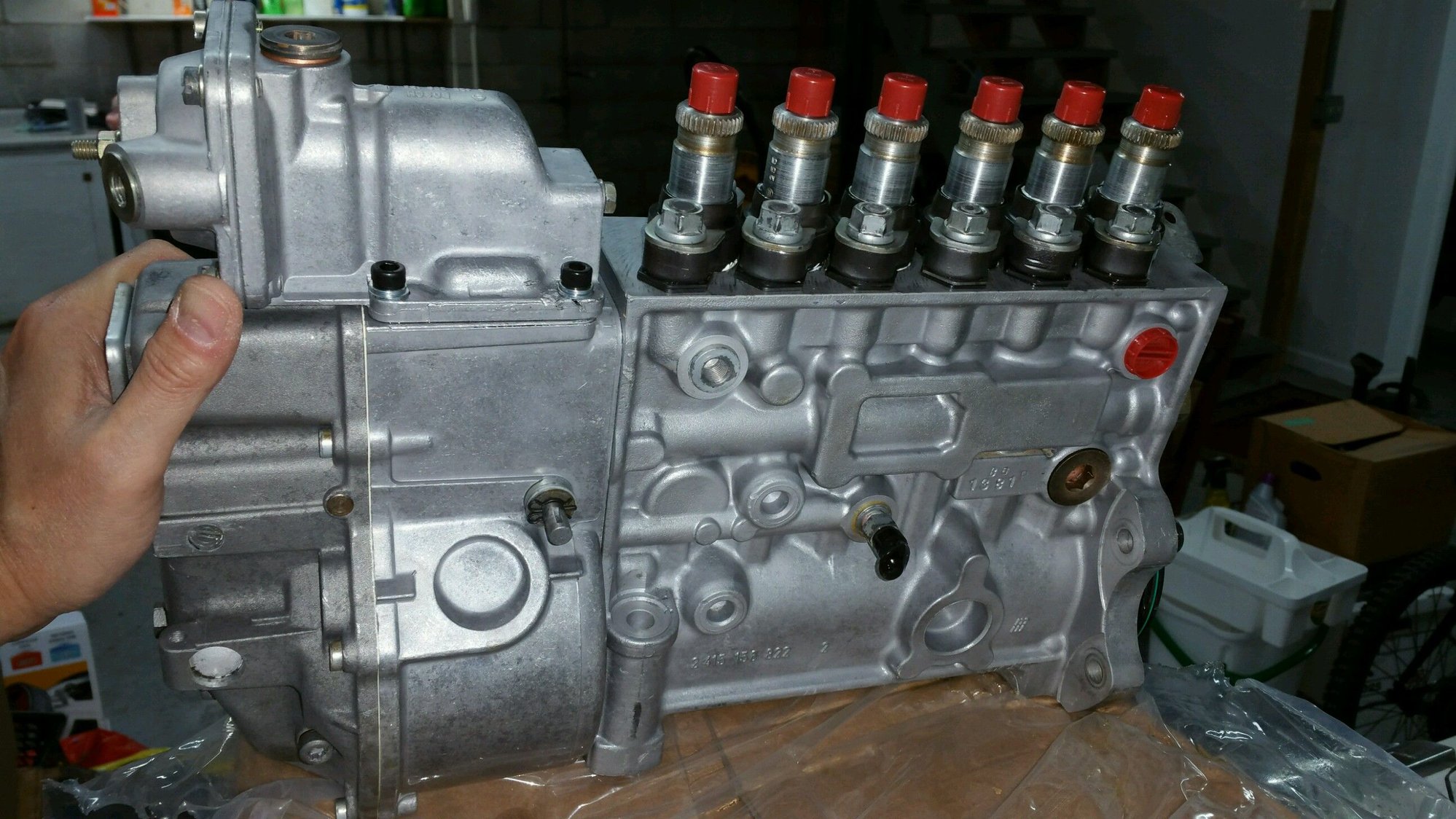

The p-pump was just professionally rebuilt, maxed/balanced, and pin timed at 18*.
Drop valve method is going to be used to find absolute TDC to make sure that the housing for the existing timing pin is correct, but nothing else.

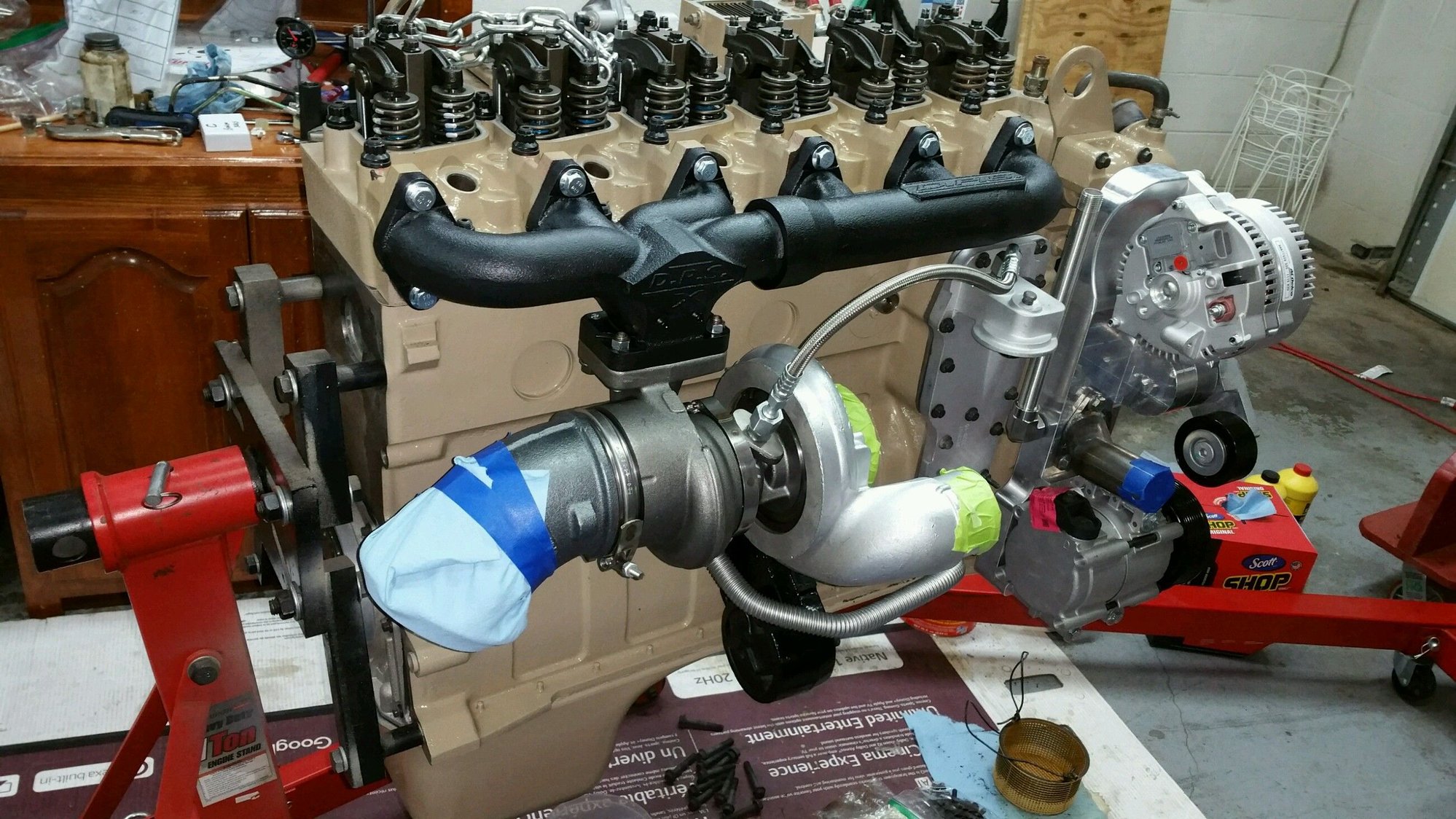

You building a Cummins project too out of curiosity?
