Jul 20, 2020 | 08:26 AM

#16

Rkn E

Thread Starter

New User

Joined: Jun 2020

Posts: 14

Likes: 0

Quote:

Originally Posted by subford

Seems like the head was a 5/16" hex. I used a ground down 1/4" drive 6 point socket.
But all auto part stores sell a tool for those screws.

You might want to watch this video. Its for a newer truck and it has a remote mounted ICM but the PIP works about the same way.
/

Good video. I was trying to do a similar test with the top wire on the module. I am getting 4V on that wire, and I think he says 4-5V is what the normal value would be.
I guess I am losing connection when I plug the harness in. I will give it a try with something like a T-pin as he did in the video.

Jul 20, 2020 | 10:00 AM

#17

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

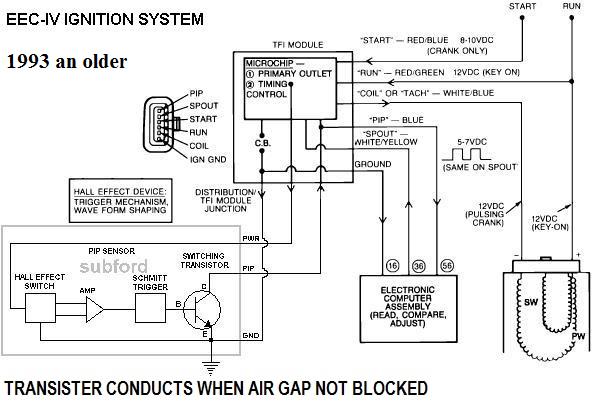

Note you may want to use a test light with an LED when tracing the PIP circuit.

Attachment 279105

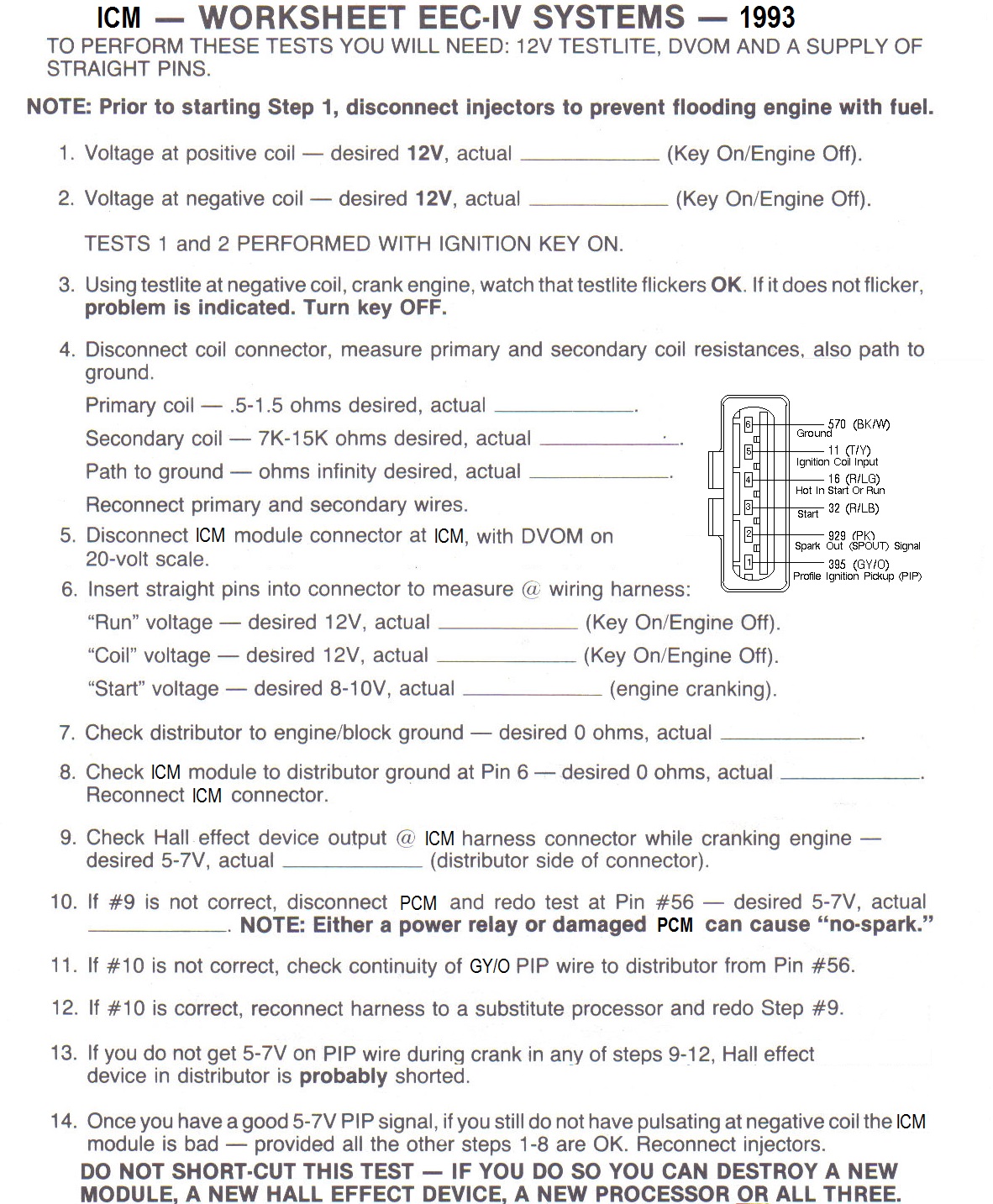

Here is a work sheet and it will be close to what you have.
Attachment 278856/

Jul 22, 2020 | 12:51 PM

#18

Rkn E

Thread Starter

New User

Joined: Jun 2020

Posts: 14

Likes: 0

/[/QUOTE]

Thank you very much for the great information provided.
I will pick up a led testlight as you advised and go through the checklist this weekend.

Jul 25, 2020 | 09:09 PM

#19

Rkn E

Thread Starter

New User

Joined: Jun 2020

Posts: 14

Likes: 0

Went through the checklist. Looks like a bad ICM.
I ordered a new motorcraft ICM. Looks like distributor needs to come off. Intake manifold is blocking the rear bolt that secures the ICM.
I guess switching the location of the ICM over the fender for later models was a good idea.

Jul 26, 2020 | 08:48 AM

#20

jackietreehorn

Cargo Master

Joined: Oct 2016

Posts: 2,738

Likes: 217

From: Northern VA

Can't you just loosen distributor and rotate it in place until TFI screws are accessible?

Jul 27, 2020 | 06:49 AM

#21

Rkn E

Thread Starter

New User

Joined: Jun 2020

Posts: 14

Likes: 0

Quote:

Originally Posted by jackietreehorn

Can't you just loosen distributor and rotate it in place until TFI screws are accessible?

I actually ended up doing just that. Put a couple marks on the distributor, tried to put it back without messing the timing, but it seems the timing went slightly off. Gotta grab a timing light.
