Can someone explain clutch adjustment?
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC
Can someone explain clutch adjustment?
64 F100 223 3 spd
Just replaced my clutch, pressure plate, pilot bearing, throwiut bearing, and clutch return spring. When I set the push rod as specified by the manual, I have no clutch. Maybe I'm understanding the manual wrong?
According to the manual, it sounds as if you should have the TO fork completely retracted with the spring, and then adjust the tapered nut to sitting with 1/4" gap between the nut and fork. Is that correct? It doesnt seem to be. Even pushing the clutch fully to the floor, I dont even begin to engage with the pressure plate.
To have the proper pedal free play, I have to run the tapered nut almost all the way to the end of the the push rod.
And might I add that I have no noticeable play in the linkage from the pedal to the push rod.
Thoughts?
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC
That makes a whole lot more sense there, maybe I just read the manual wrong. Thanks for that.
Last edited by Mearntain; Aug 4, 2019 at 10:09 AM. Reason: Typo
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC

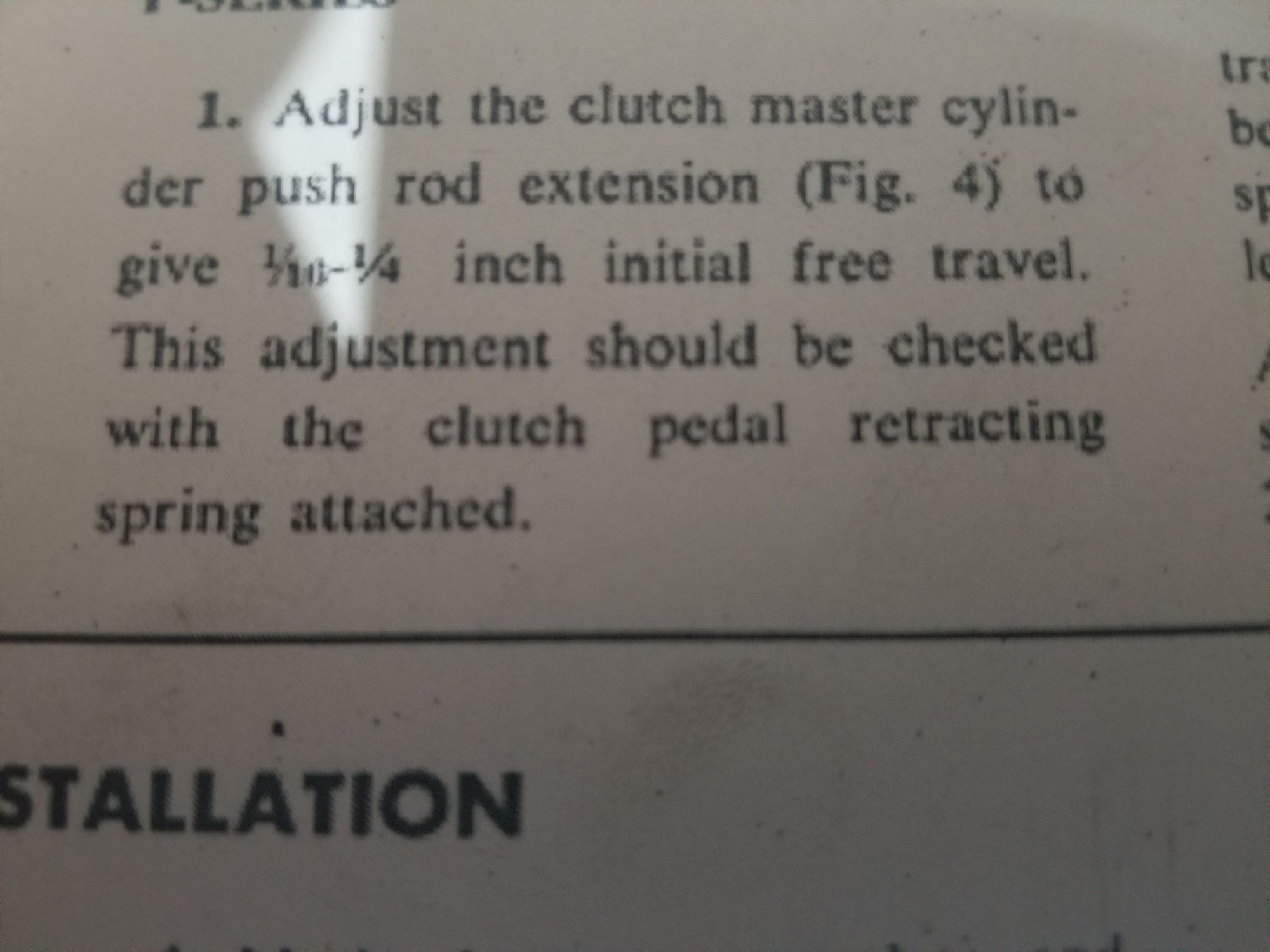

just looked at the manual again it definitely says with the spring attached, that doesnt make sense to me.
(This is was taken from the P series section, the F-serries was kind of blurry but says with spring attached as well)
Logistics Pro
Joined: Mar 2005
Posts: 3,771
Likes: 80
From: tujunga, calif
I think it's is a little confusing, I think they mean the PEDAL spring, thats a different spring then the CLUTCH arm return spring. The clutch arm return spring isn't for the pedal return..
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC
I've pretty much got the tapered nut driven to the end of the rod right now and have barely gotten to the minimum free play adjustment. Does that sound right? As in I'm far enough down the rod that if I move the tapered nut maybe 7 more threads, I'm coming off the rod
Logistics Pro
Joined: Mar 2005
Posts: 3,771
Likes: 80
From: tujunga, calif
That doesn't sound right..
Trending Topics
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC
Somethings definitely not right for sure, even more pressing than the the clutch fork adjustment now.
My motors locked up and wont turn by key or by hand. No clue what I could have done to cause that. It was turning by hand just fine during the replacement because i had to turn it by hand to access all 3 sets of pressure plate bolts...
My motors locked up and wont turn by key or by hand. No clue what I could have done to cause that. It was turning by hand just fine during the replacement because i had to turn it by hand to access all 3 sets of pressure plate bolts...
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC
I didnt check it on the shaft prior to installing it, but I did use the new bearing for sizing a bolt up with tape to the exact size of the hole for hydraulically removing the old one (which had same fitment around the bolt), so ID should be identical. It was a steel one that came out and steel one that went back in, I wasnt aware that they made others.
Logistics Pro
Joined: Jun 2018
Posts: 3,553
Likes: 442
I didnt check it on the shaft prior to installing it, but I did use the new bearing for sizing a bolt up with tape to the exact size of the hole for hydraulically removing the old one (which had same fitment around the bolt), so ID should be identical. It was a steel one that came out and steel one that went back in, I wasnt aware that they made others.
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC
I did hit one of the link arms by accident while working on it, but I'm pretty sure I got it back to where it was supposed to be. I can roll the truck when in neutral, so I think I'm good there.
I did have 2 sets of bolts that had me confused when reassembling. 1 set of 6 short bolts and 1 set of 6 long bolts. I started off trying to put the small ones in, but they would never seem to catch, so I tried the long and they worked. Pretty sure the short ones were supposed to go to the flywheel access cover and long ones to the pressure plate. Being I could spin it all the way until putting the last 2 bolts to torque, i dont think they're catching.
I did have 2 sets of bolts that had me confused when reassembling. 1 set of 6 short bolts and 1 set of 6 long bolts. I started off trying to put the small ones in, but they would never seem to catch, so I tried the long and they worked. Pretty sure the short ones were supposed to go to the flywheel access cover and long ones to the pressure plate. Being I could spin it all the way until putting the last 2 bolts to torque, i dont think they're catching.
