Burned dash circuit board
Thread Starter
|
Trailering
Joined: Aug 2018
Posts: 16
Likes: 0
Burned dash circuit board

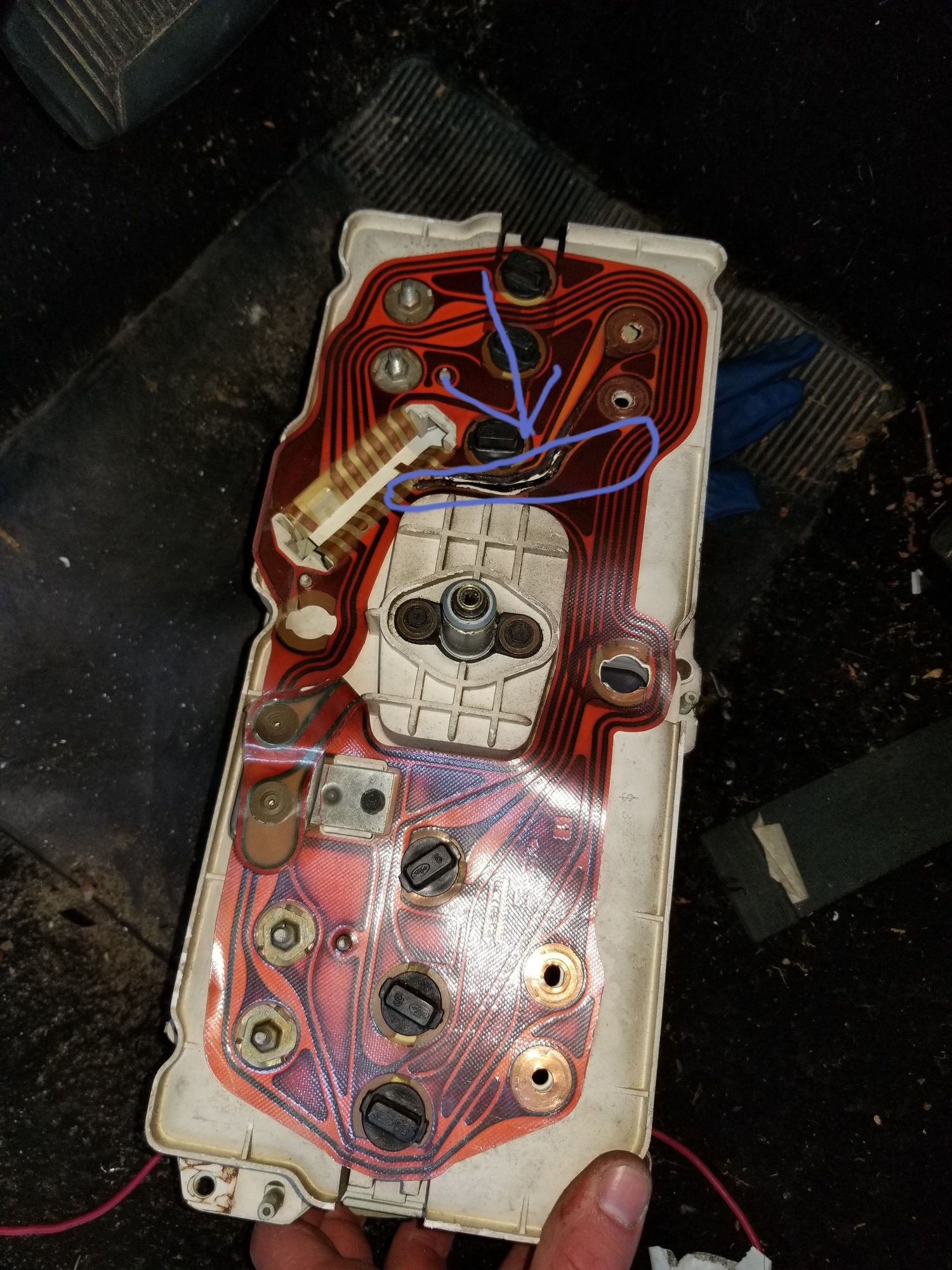

Hey all. the dash on my f350 burned out by the voltage gauge. After that it would turn over but die immediately. Can this be the cause? I found a few new dashes on eBay but I'm not sure if they are interchangeable. Mine has mechanical gauges while the one I'm looking at has a lightbulb for the battery and oil. If it's a 73-78 dash are all those interchangeable? Thanks in advance for the help getting my truck back on the road.
Senior User
Joined: May 2019
Posts: 338
Likes: 3
From: UT - Utah
I don't know if this would be the cause. I would say that you have a deeper issue some place. Maybe voltage reg....
No, They are not interchangeable. You can find the new on LMC or Dennis-Carpenter.
No, They are not interchangeable. You can find the new on LMC or Dennis-Carpenter.
Moderator & parts slinger
Joined: Feb 2007
Posts: 50,194
Likes: 5,793
From: S/W Missouri, Polk county
X2 on NO the instrument clusters are not interchangeable between warning lights and sweep gauges. I believe different pin count on the wiring harness. Also believe you can order just a printed circuit panel?
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 785
From: Simi Valley, CA
1976 F350
D6TZ-10K843-B .. Printed Circuit Board - Use with Oil/Amp GAUGES / Marked: D6TF-10C956-BA / Obsolete
1976/79 F100/350 / 1976/91 Econoline / 1978/79 Bronco.
-----------------------------------------------------------------
D6TZ-10K843-C .. Printed Circuit Board - Use with Oil/Amp WARNING LAMPS / Marked: D6TF-10C956-CA / Obsolete
1976/78 F100/350 & Econoline / 1978 Bronco.
1976/79 F100/350 / 1976/91 Econoline / 1978/79 Bronco.
-----------------------------------------------------------------
D6TZ-10K843-C .. Printed Circuit Board - Use with Oil/Amp WARNING LAMPS / Marked: D6TF-10C956-CA / Obsolete
1976/78 F100/350 & Econoline / 1978 Bronco.
Logistics Pro
Joined: Oct 2006
Posts: 4,029
Likes: 891
From: East Central Ia
The amp gauge is a shunt type gauge and just samples the current. It's a small wire that kind of follows the main power wire path. If the main power wire was damaged somehow to many amps may have tried to follow those small wires. You need to look for other damage on the main power feed before replacing the circuit board.
Thread Starter
|
Trailering
Joined: Aug 2018
Posts: 16
Likes: 0
Does it make sense it was the battery? I just got a brand new one. Also all the other wiring looks to be intact. Is there a way to get it running somehow without the dash working properly? Maybe a bypass or something?
Fleet Mechanic
Joined: Jul 2017
Posts: 1,448
Likes: 163
From: East Texas
It should run without the dash plugged in. At least mine would.
When you say "new" dashes on ebay, do you mean printed circuit? Plastic housing? or both.
Like mentioned above you can get the printed circuit board from various suppliers.
My original plastic housing crumbled to bits, so I got a new one from LMC. I am happy with it.
If yours is original and hasn't crumbled yet it probably will. You might as well replace both.
When you say "new" dashes on ebay, do you mean printed circuit? Plastic housing? or both.
Like mentioned above you can get the printed circuit board from various suppliers.
My original plastic housing crumbled to bits, so I got a new one from LMC. I am happy with it.
If yours is original and hasn't crumbled yet it probably will. You might as well replace both.
Trending Topics
Thread Starter
|
Trailering
Joined: Aug 2018
Posts: 16
Likes: 0
It should run without the dash plugged in. At least mine would.
When you say "new" dashes on ebay, do you mean printed circuit? Plastic housing? or both.
Like mentioned above you can get the printed circuit board from various suppliers.
My original plastic housing crumbled to bits, so I got a new one from LMC. I am happy with it.
If yours is original and hasn't crumbled yet it probably will. You might as well replace both.
When you say "new" dashes on ebay, do you mean printed circuit? Plastic housing? or both.
Like mentioned above you can get the printed circuit board from various suppliers.
My original plastic housing crumbled to bits, so I got a new one from LMC. I am happy with it.
If yours is original and hasn't crumbled yet it probably will. You might as well replace both.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
Tuned
Joined: Feb 2014
Posts: 335
Likes: 2
From: USA
Not an expert...but believe some of the ignition circuit is run through the harness that connects to the back of the gauge cluster, maybe something needs to ground out up there...cant remember from when I rewired my truck.
Regardless...you can easily bypass the key switch "if you know how" and drive the truck around.
Regardless...you can easily bypass the key switch "if you know how" and drive the truck around.
Thread Starter
|
Trailering
Joined: Aug 2018
Posts: 16
Likes: 0
Well I scored this on eBay
https://rover.ebay.com/rover/0/0/0?m...2F173965662195
A whole new dash assembly for the price of just the circuit. I got it also because a few of my gauges are shot.
I worked backwards from the lmc catalog to what was interchangeable the only difference is the Speedo goes until 80 not 100 but that's not past of the circuit anyways. Also I can always swap that out for the original later.
https://rover.ebay.com/rover/0/0/0?m...2F173965662195
A whole new dash assembly for the price of just the circuit. I got it also because a few of my gauges are shot.
I worked backwards from the lmc catalog to what was interchangeable the only difference is the Speedo goes until 80 not 100 but that's not past of the circuit anyways. Also I can always swap that out for the original later.
Logistics Pro
Joined: Oct 2006
Posts: 4,029
Likes: 891
From: East Central Ia
When you replaced the battery did you change the cable? All the power wires for the truck meet the positive cable at the starter solenoid. All connections need to be clean and tight. There is a backup nut on the solenoid posts. Use 2 wrenches to tighten or loosen cables.
Thread Starter
|
Trailering
Joined: Aug 2018
Posts: 16
Likes: 0
I didn't touch any of the cables other than putting in the new battery.
The truck did run for a few minutes prior too cooking the circuit board. But It did stall intermittently before that. I don't know if that has anything to do with it cooking the board though.
The truck did run for a few minutes prior too cooking the circuit board. But It did stall intermittently before that. I don't know if that has anything to do with it cooking the board though.
Thread Starter
|
Trailering
Joined: Aug 2018
Posts: 16
Likes: 0
I think so because the pigtail clip seemed double sided. But I checked to make sure mine went in correctly so that's not the issue with my truck.
Logistics Pro
Joined: Jul 2005
Posts: 4,217
Likes: 154
Seems like a fusible link would protect that trace. Is/are your fusible link(s) there?
You said voltage gauge, is it one of the new volt gauges or the original ammeter (D alt C)? Either way, there is some problem causing that trace to burn up. If it's a volt gauge,, it would only need one input from the circuit board, with a ground replacing the other. Ammeters use two positive inputs.
Only time I've seen a trace burn up like that on one of those floppy printed circuit boards was when the previous owner grounded the Pioneer AM/FM/Cassette to the illumination wire, and he apparently bypassed the fuse. He had a toggle switch rigged up, but I fixed all of that stuff back to OEM.
You said voltage gauge, is it one of the new volt gauges or the original ammeter (D alt C)? Either way, there is some problem causing that trace to burn up. If it's a volt gauge,, it would only need one input from the circuit board, with a ground replacing the other. Ammeters use two positive inputs.
Only time I've seen a trace burn up like that on one of those floppy printed circuit boards was when the previous owner grounded the Pioneer AM/FM/Cassette to the illumination wire, and he apparently bypassed the fuse. He had a toggle switch rigged up, but I fixed all of that stuff back to OEM.
