SD to MAF with e4od specific question
Thread Starter
|
Senior User
Joined: Aug 2011
Posts: 296
Likes: 0
SD to MAF with e4od specific question
So, my 92 f150, 5.0, e4od, 2wd is getting mass air. my eyes are starting to hurt from so much knowledge on the manual and a9L mustang ecm that overloads any and all e4od knowledge. I have now aquired a mass air sensor, the whole intake, and a HUG2 ecm.
My question is, will this HUG2 ecm work with the e4od? and also is this diagram correct for a HUG2 ecm for the injectors?
My other question is, is this a correct pinout for what i am doing of the wiring that will need to be moved?
Not doing any mustang ecm swaps, no standalone trans controllers, but just info on what i have and to determine if my diagrams are correct for this. ecm was from a 95 150 i believe
My question is, will this HUG2 ecm work with the e4od? and also is this diagram correct for a HUG2 ecm for the injectors?
My other question is, is this a correct pinout for what i am doing of the wiring that will need to be moved?
Not doing any mustang ecm swaps, no standalone trans controllers, but just info on what i have and to determine if my diagrams are correct for this. ecm was from a 95 150 i believe
Logistics Pro
Joined: Aug 2010
Posts: 3,716
Likes: 583
From: Chillicothe
The way I read it, you will obviously have to re-pin the injection harness... And move ss1 and ss2 pins, but that looks to be the only difference between the SD and maf computers that I can see.
FTE Chapter Leader
Joined: May 2006
Posts: 12,338
Likes: 1,314
From: Central Mississippi
It runs a 4R70W not E4OD.
I bought a HUG2 thinking it did myself.
Thread Starter
|
Senior User
Joined: Aug 2011
Posts: 296
Likes: 0
So hug2 is 4r70w. My phone is giving me grief and will not allow me to visit long forum posts that would likely have my answer, so i have to ask, what ecm code can i run? I know Bi00, are there others that i can run and operate correctly? Sorry to ask even though i know its somewhere here, my phone will not let me access it anf the laptop is not working at all.
FTE Chapter Leader
Joined: May 2006
Posts: 12,338
Likes: 1,314
From: Central Mississippi
Thanks. Only cause I'd been burned myself.
But I like to think that's why we do this.
I don't know. I would think you'd use the earliest version available which would be a 94, HOG0 & wire to that schematic.
Are the 92/94 E4ODs wired the same?
But I like to think that's why we do this.
Are the 92/94 E4ODs wired the same?
Thread Starter
|
Senior User
Joined: Aug 2011
Posts: 296
Likes: 0
You said you burned yourself, have you done this anf had same set up? If so what ecm did you run?
Trending Topics
FTE Chapter Leader
Joined: May 2006
Posts: 12,338
Likes: 1,314
From: Central Mississippi
I've been collecting parts & I have more/less got my drive train ready to do the swap.
That was the winter intention, but life/things haven't panned out so far.
I have a computer which was ID'd as a "MUT1"
I picked up the HUG ECM without looking at the door trans code & was keeping it for a trade item.
That was the winter intention, but life/things haven't panned out so far.
I have a computer which was ID'd as a "MUT1"
I picked up the HUG ECM without looking at the door trans code & was keeping it for a trade item.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
Thread Starter
|
Senior User
Joined: Aug 2011
Posts: 296
Likes: 0

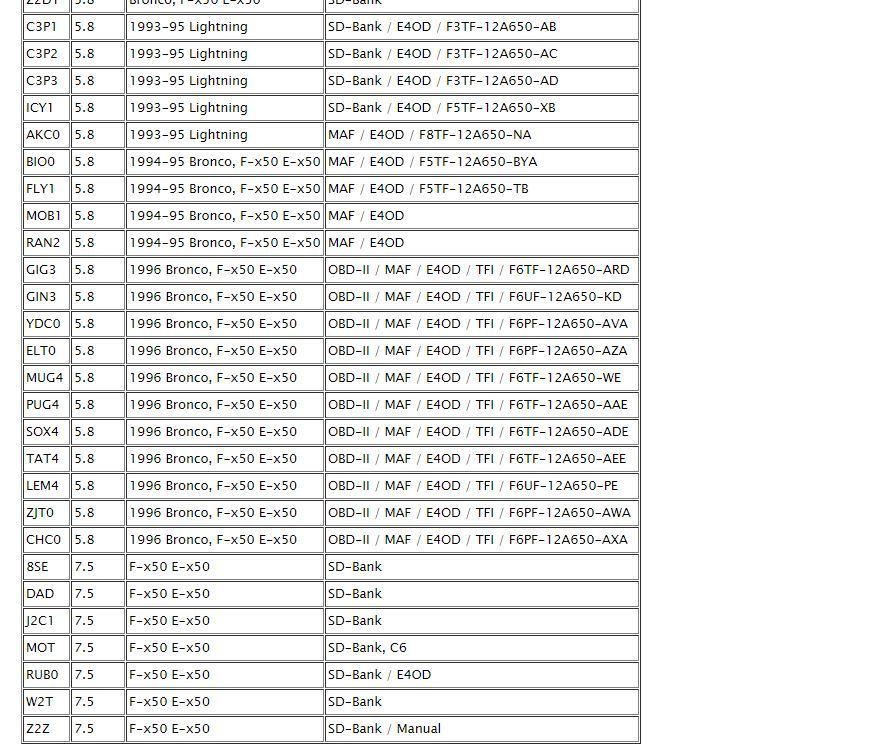

So mut1 is usable in a 92 with the e4od going to mass air? What would be my better chances, that or the BI00 that people use from the CA emission trucks? Or is there another even better we havent said? I know someone wrote 5 or 6 ecm's to use but i cant find it again
