Scarry Brake Light Switch Failure
Thread Starter
|
Senior User
Joined: Jun 2017
Posts: 291
Likes: 0
How many pins in the super duty switch? Did you use just two? What year is the switch from? Per my 1984 factory manual all platforms use the same switch, 13480.
I pressure blead the wheel cylinders, RABS module and front calipers. They are hard as a rock with the vacuum drained but mushy with vacuum. That is normal, right?
The drums (NOS) and shoes are new and were adjusted to a light drag about 100 miles ago.
I pressure blead the wheel cylinders, RABS module and front calipers. They are hard as a rock with the vacuum drained but mushy with vacuum. That is normal, right?
The drums (NOS) and shoes are new and were adjusted to a light drag about 100 miles ago.
Fleet Mechanic
Joined: Aug 2011
Posts: 1,573
Likes: 258
How many pins in the super duty switch? Did you use just two? What year is the switch from? Per my 1984 factory manual all platforms use the same switch, 13480.
I pressure blead the wheel cylinders, RABS module and front calipers. They are hard as a rock with the vacuum drained but mushy with vacuum. That is normal, right?
The drums (NOS) and shoes are new and were adjusted to a light drag about 100 miles ago.
I pressure blead the wheel cylinders, RABS module and front calipers. They are hard as a rock with the vacuum drained but mushy with vacuum. That is normal, right?
The drums (NOS) and shoes are new and were adjusted to a light drag about 100 miles ago.

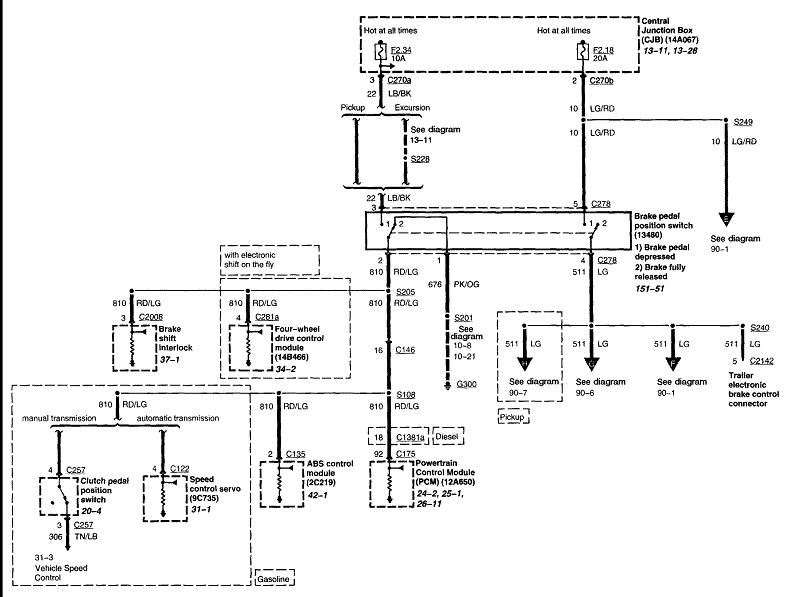

Tie pin 3 and 5 together, tie pin 2 and 4 together and ground pin 1 (or leave it alone if you don't want to overly modify things)
Pin 3+5 hook up to your green with red wire and pin 2+4 hook up to the green brake wire and pin 1 to a good dash ground.
Fleet Mechanic
Joined: Aug 2011
Posts: 1,573
Likes: 258
I did it to run led brake lights without the load resistors.
Thread Starter
|
Senior User
Joined: Jun 2017
Posts: 291
Likes: 0
I finally got a few hours to get back to this brake light switch problem.
The first thing I did was bend the plate where the spring plunger touches on the switch. This causes the switch to close sooner. This eliminated the scary cruse control problem. I can do a proper tap to disengage now.
As seen in the test light, the switch is not quite right yet because the contacts "bounce" (the lights flicker) under light braking.
What I need to do is have more pedal travel before the piston in the master cylinder starts to move. A quarter inch should be enough.
Is the rod between the brake pedal and booster adjustable for length?
Thanks
The first thing I did was bend the plate where the spring plunger touches on the switch. This causes the switch to close sooner. This eliminated the scary cruse control problem. I can do a proper tap to disengage now.
As seen in the test light, the switch is not quite right yet because the contacts "bounce" (the lights flicker) under light braking.
What I need to do is have more pedal travel before the piston in the master cylinder starts to move. A quarter inch should be enough.
Is the rod between the brake pedal and booster adjustable for length?
Thanks
