Have You Removed Your Spare Tire?
Thread Starter
|
Senior User
Joined: Jun 2017
Posts: 291
Likes: 0
Nice diagrams. What catalog did you find it in? Got a link?
The tie-down in the third diagram (part 1474) is what was on my truck except it was installed in the opposite direction shown. It won't work with my wheel style used as shown. I can see how the design is fine if used on the correct wheel. I don't know how it got there but I have a solution now and that is what matters.
The tie-down in the third diagram (part 1474) is what was on my truck except it was installed in the opposite direction shown. It won't work with my wheel style used as shown. I can see how the design is fine if used on the correct wheel. I don't know how it got there but I have a solution now and that is what matters.
Laughing Gas
Joined: Apr 2011
Posts: 913
Likes: 7
Nice diagrams. What catalog did you find it in? Got a link?
The tie-down in the third diagram (part 1474) is what was on my truck except it was installed in the opposite direction shown. It won't work with my wheel style used as shown. I can see how the design is fine if used on the correct wheel. I don't know how it got there but I have a solution now and that is what matters.
The tie-down in the third diagram (part 1474) is what was on my truck except it was installed in the opposite direction shown. It won't work with my wheel style used as shown. I can see how the design is fine if used on the correct wheel. I don't know how it got there but I have a solution now and that is what matters.
Lead Driver
Joined: Oct 2016
Posts: 6,185
Likes: 633
From: Houston/Sugar Land
Thread Starter
|
Senior User
Joined: Jun 2017
Posts: 291
Likes: 0
sandymane

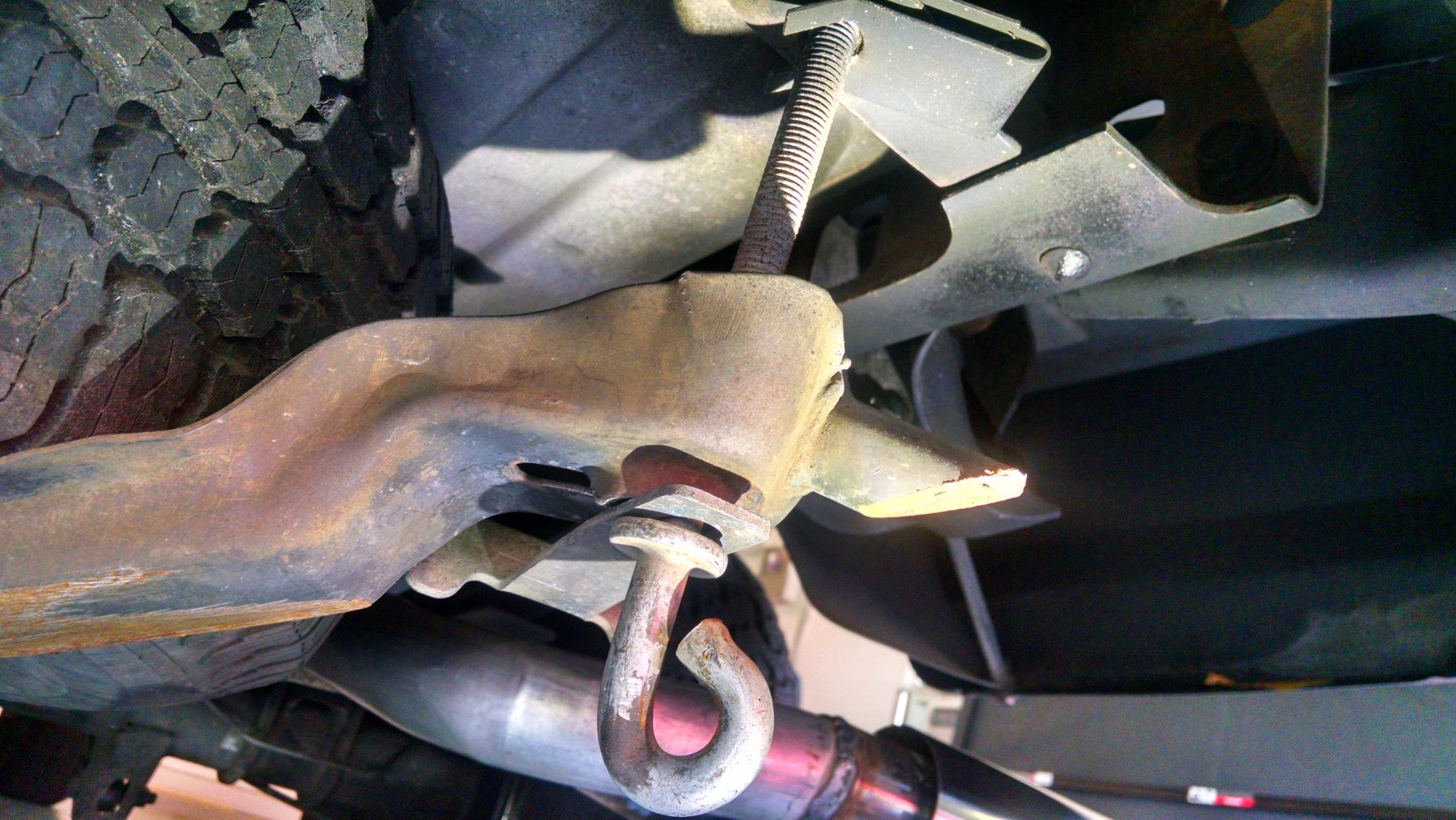

I noticed something in the photo that you might want to check out. The carriage bolt for the tie down is not seated properly. The bolt is likely to spin when you go to remove the tie-down because the diamond shaped feature on the bolt is not captured in the diamond shaped hole in the support bracket. The factory uses a push nut to hold the carriage bolt to the bracket. I'd loose that and get washers and a regular nut to hold it in place. You'll need a washer or two with a large enough hole for the diamond to fit into then one with a smaller hole to span the hole in the larger washer for the nut to seat onto. Some thread locker would be a good idea.
I noticed something in the photo that you might want to check out. The carriage bolt for the tie down is not seated properly. The bolt is likely to spin when you go to remove the tie-down because the diamond shaped feature on the bolt is not captured in the diamond shaped hole in the support bracket. The factory uses a push nut to hold the carriage bolt to the bracket. I'd loose that and get washers and a regular nut to hold it in place. You'll need a washer or two with a large enough hole for the diamond to fit into then one with a smaller hole to span the hole in the larger washer for the nut to seat onto. Some thread locker would be a good idea.
Lead Driver
Joined: Oct 2016
Posts: 6,185
Likes: 633
From: Houston/Sugar Land
sandymane
I noticed something in the photo that you might want to check out. The carriage bolt for the tie down is not seated properly. The bolt is likely to spin when you go to remove the tie-down because the diamond shaped feature on the bolt is not captured in the diamond shaped hole in the support bracket. The factory uses a push nut to hold the carriage bolt to the bracket. I'd loose that and get washers and a regular nut to hold it in place. You'll need a washer or two with a large enough hole for the diamond to fit into then one with a smaller hole to span the hole in the larger washer for the nut to seat onto. Some thread locker would be a good idea.
I noticed something in the photo that you might want to check out. The carriage bolt for the tie down is not seated properly. The bolt is likely to spin when you go to remove the tie-down because the diamond shaped feature on the bolt is not captured in the diamond shaped hole in the support bracket. The factory uses a push nut to hold the carriage bolt to the bracket. I'd loose that and get washers and a regular nut to hold it in place. You'll need a washer or two with a large enough hole for the diamond to fit into then one with a smaller hole to span the hole in the larger washer for the nut to seat onto. Some thread locker would be a good idea.
First are you talking about replacing the carriage bolt or cutting the head of it off........ "You'll need a washer or two with a large enough hole for the diamond to fit into? then one with a smaller hole to span the hole in the larger washer for the nut to seat onto". ......Thanks Sandy
Laughing Gas
Joined: Nov 2013
Posts: 1,210
Likes: 7
From: Minnesota
I would really like to find a truck with this style spare mount. Seems like it is the easiest to deal with, and was lockable.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Ford Super Duty: 5 Things Owners LOVE, 5 Things They LOATHE!
Joe Kucinski
Every 2026 Ford Truck Engine RANKED from WORST to FIRST!
Michael S. Palmer
The Best F-150 Deal of Every Trim Level (XL through Raptor)
Joe Kucinski
Laughing Gas
Joined: Feb 2004
Posts: 1,115
Likes: 13
From: west plains spokane,wa
Check the local junkyard & u pull lots.
I had to replace my bed a couple years ago & the one I got from pull & save had one in it.
Thread Starter
|
Senior User
Joined: Jun 2017
Posts: 291
Likes: 0
No, you should be able to use the bolt that you have now if the threads are good all the way down to the head. You may have to chase the threads to get the rust off so that the new nut will spin on. Wire brushing may be enough. This is like a carriage bolt except it has a diamond shape anti-spin feature rather than a square, at least on my truck it is that way. Since the diamond is thicker than the bracket, a washer is needed to build up the thickness so that the nut will draw the head tight against the bracket rather than seating on the diamond. Depending on the thickness of the washer it may require two. The other washer would have a hole for size of the bolt. A fender washer would be best. Then just run the nut down and tighten it up. Thread locker would be a good idea. If you cut the bolt until it is just the right length it will make it easier to get the wheel off and on.
Lead Driver
Joined: Oct 2016
Posts: 6,185
Likes: 633
From: Houston/Sugar Land
No, you should be able to use the bolt that you have now if the threads are good all the way down to the head. You may have to chase the threads to get the rust off so that the new nut will spin on. Wire brushing may be enough. This is like a carriage bolt except it has a diamond shape anti-spin feature rather than a square, at least on my truck it is that way. Since the diamond is thicker than the bracket, a washer is needed to build up the thickness so that the nut will draw the head tight against the bracket rather than seating on the diamond. Depending on the thickness of the washer it may require two. The other washer would have a hole for size of the bolt. A fender washer would be best. Then just run the nut down and tighten it up. Thread locker would be a good idea. If you cut the bolt until it is just the right length it will make it easier to get the wheel off and on.
Elder User
Joined: Dec 2013
Posts: 655
Likes: 0
From: Kansas City, KS
I've had my share of troubles with the spare tire mounts on my trucks. I totally agree that changing a tire on the highway with this setup would be scary to say the least. In the future, you might try a better penetrating oil than WD-40.
Laughing Gas
Joined: Apr 2011
Posts: 913
Likes: 7
I can tell you i have probably seen 1000+ of these trucks in yards and have not once seen this style of mount - dont know how common they were down here in the south. I have scoured for one as i wish to retain the ability to carry a spare and to replace the rear tank with a bronco one.
Laughing Gas
Joined: Feb 2004
Posts: 1,115
Likes: 13
From: west plains spokane,wa
I can tell you i have probably seen 1000+ of these trucks in yards and have not once seen this style of mount - dont know how common they were down here in the south. I have scoured for one as i wish to retain the ability to carry a spare and to replace the rear tank with a bronco one.
Thread Starter
|
Senior User
Joined: Jun 2017
Posts: 291
Likes: 0
I can tell you i have probably seen 1000+ of these trucks in yards and have not once seen this style of mount - dont know how common they were down here in the south. I have scoured for one as i wish to retain the ability to carry a spare and to replace the rear tank with a bronco one.
The bed mount?
