93 E4od wiring Questions

Hey guys, Im having an issue with the wiring for my 93 Idi's E4od. Its the connections that sit by the driver side kicker panel under the dash. Someone previously hacked into the wiring and none of it match up. At least i think thats what my issue is. The truck will not shift in Drive at all and i have to rev the crud out of it to move. its like its slipping. But i can manually put it in 1 or 2 and it will drive normal in those gears. What im really looking for is the wiring diagram for those connectors. when i wiggle them and/or play with them the trans sometimes starts working. Thanks guys

Sep 14, 2016 | 12:08 PM

southern-old-bold

Senior User

Joined: Aug 2014

Posts: 188

Likes: 0

If you are sure that the connector is the problem, I would go search for your model truck in a junkyard and clip the piece of harness to match out of it to use as your wiring diagram

Sep 14, 2016 | 06:19 PM

rnfordahillshick

Thread Starter

New User

Joined: May 2014

Posts: 19

Likes: 0

From: Blue Ridge Mnts

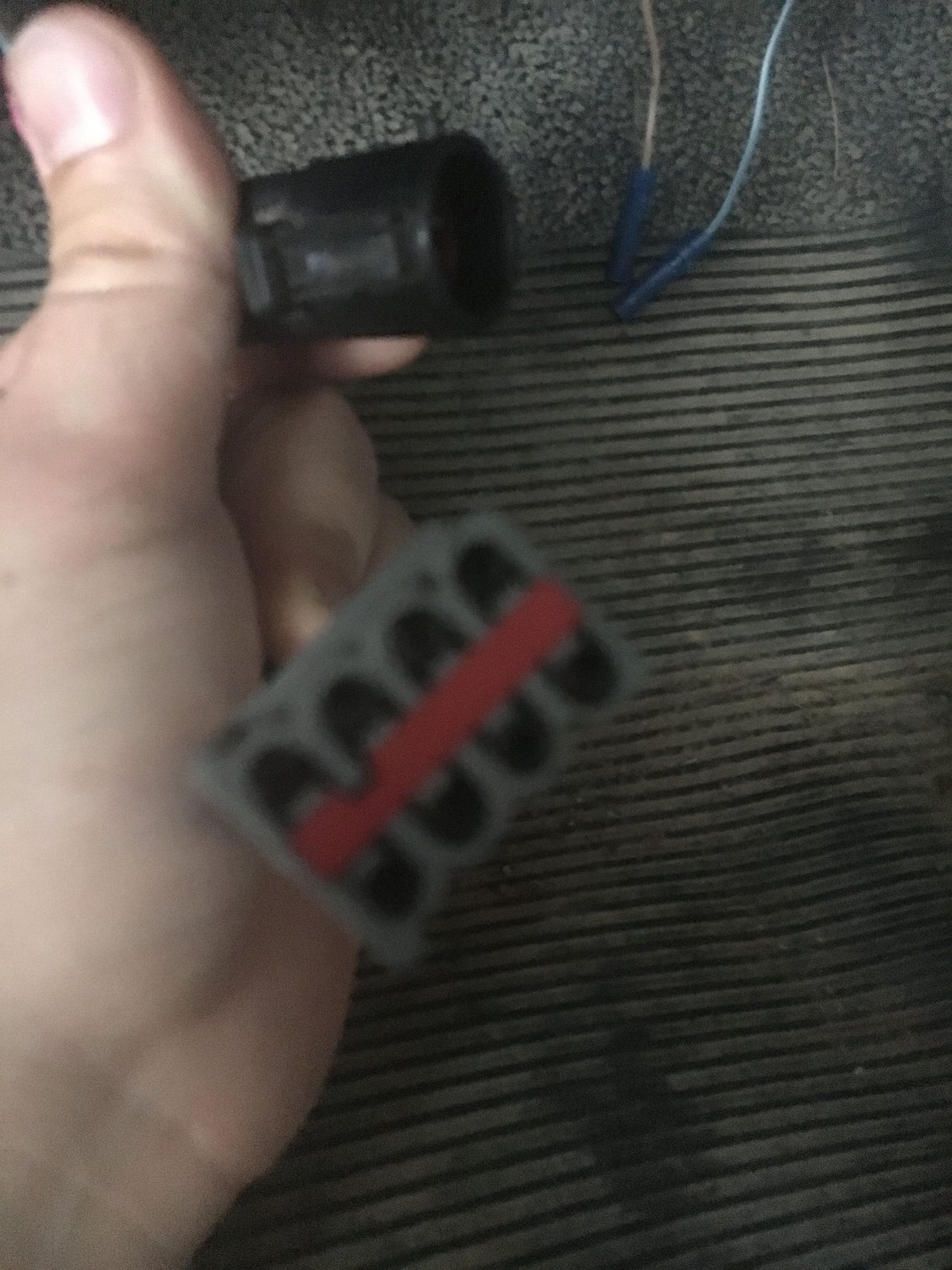

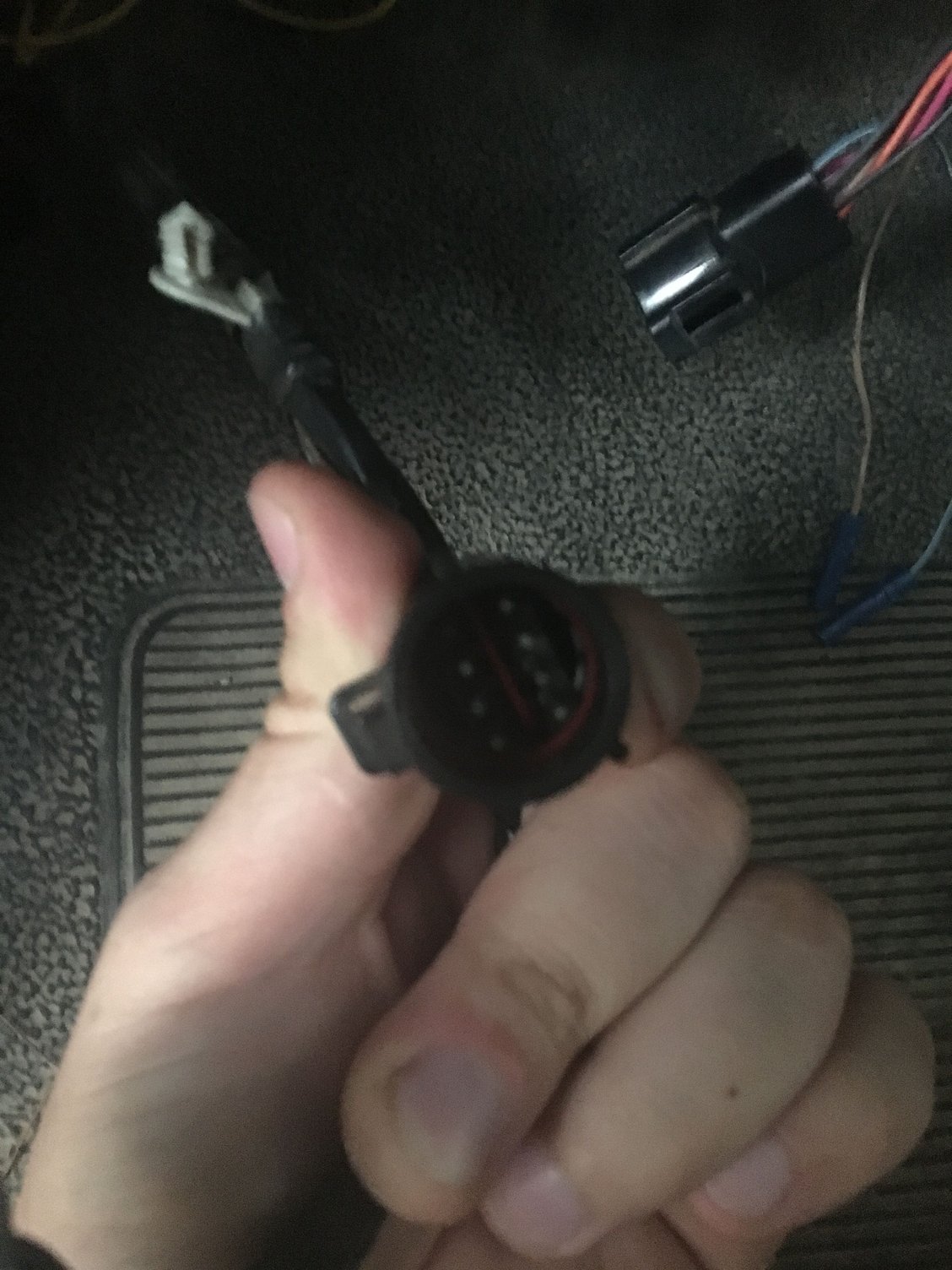

These are the plugs I'm talking about. Anyone know what they are for or what they do? Any help would be great thank you

Sep 14, 2016 | 09:50 PM

khconstruction

New User

Joined: Apr 2013

Posts: 24

Likes: 0

I can snap pics on Friday since i have a 94 torn down with entire harness exposed if you're still in need, but i dont have a right now solution for ya
