2003 E250 full body chassis, gasoline motor..........

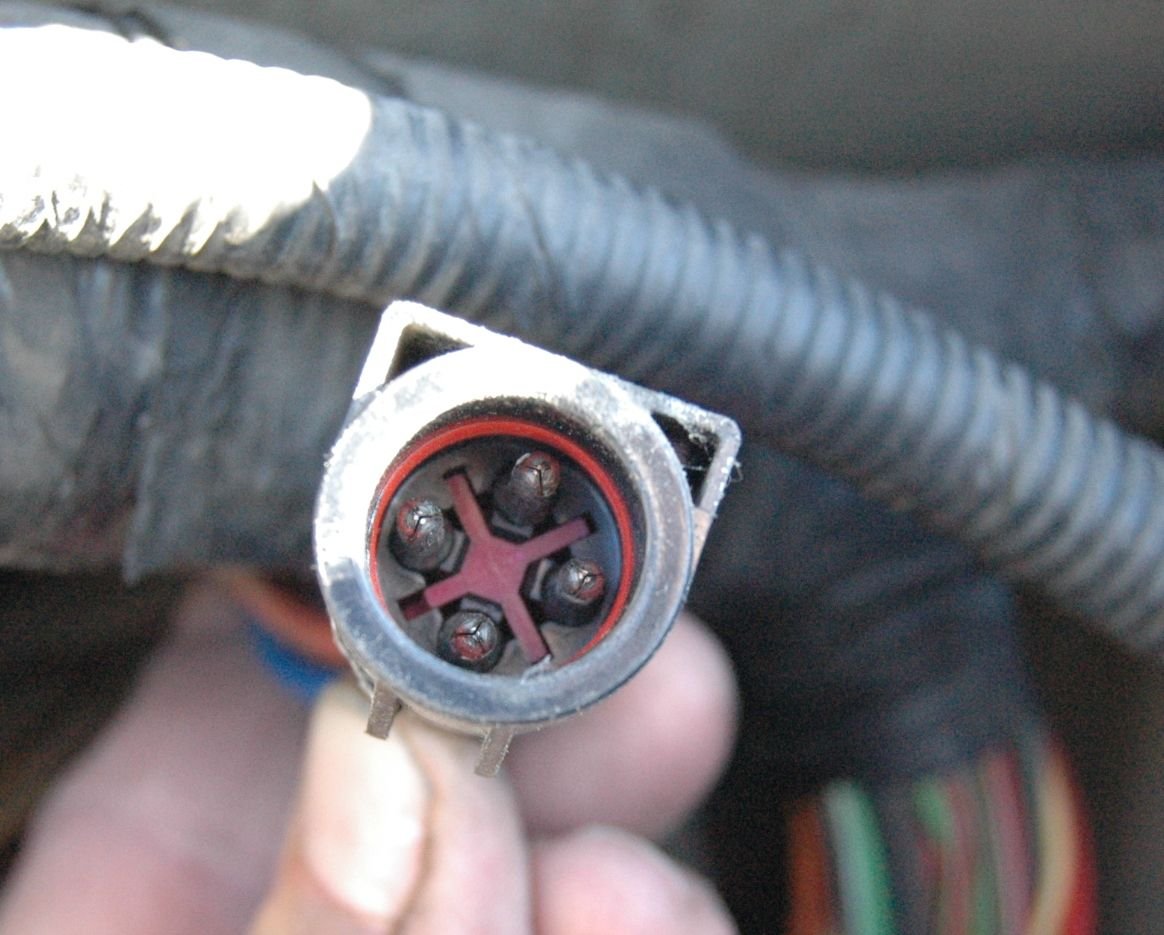

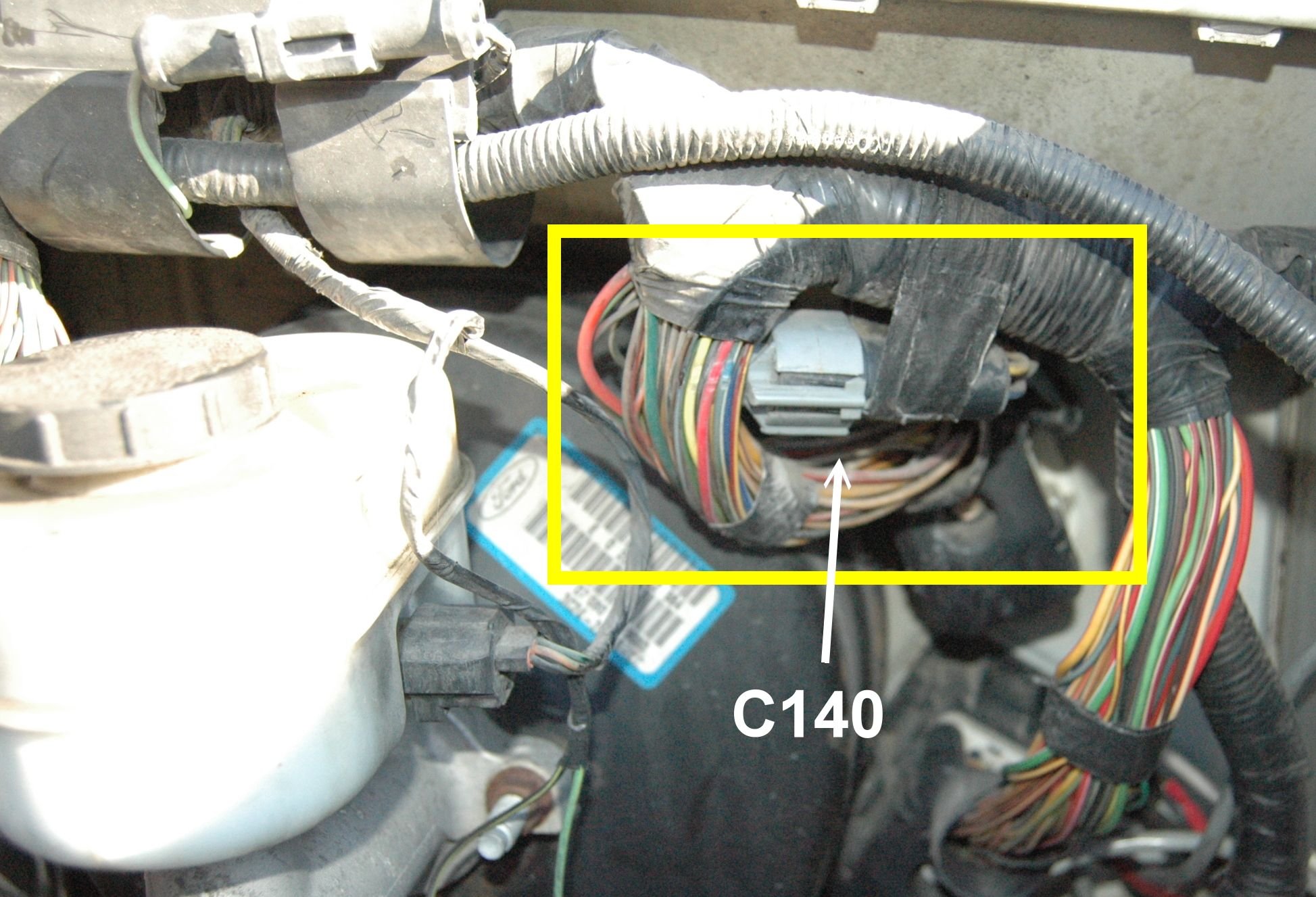

Connector C140 is present but capped off and not mated with a male version. Looking over my printed EVTM I physically locate it on the Location Guide Grid, it shows up in the pin outs/faces section too----wire colors matching that portion of the EVTM. Nothing to ID what its intended to connect after manufacture. Photos:
Any help ID'ing the circuits its carries would be greatly appreciated. Unless I'm just plain blind it (so far) can't be found.
Orange is the trailer battery charge. It goes to the rear trailer plug and backfeeds through under the dash also.

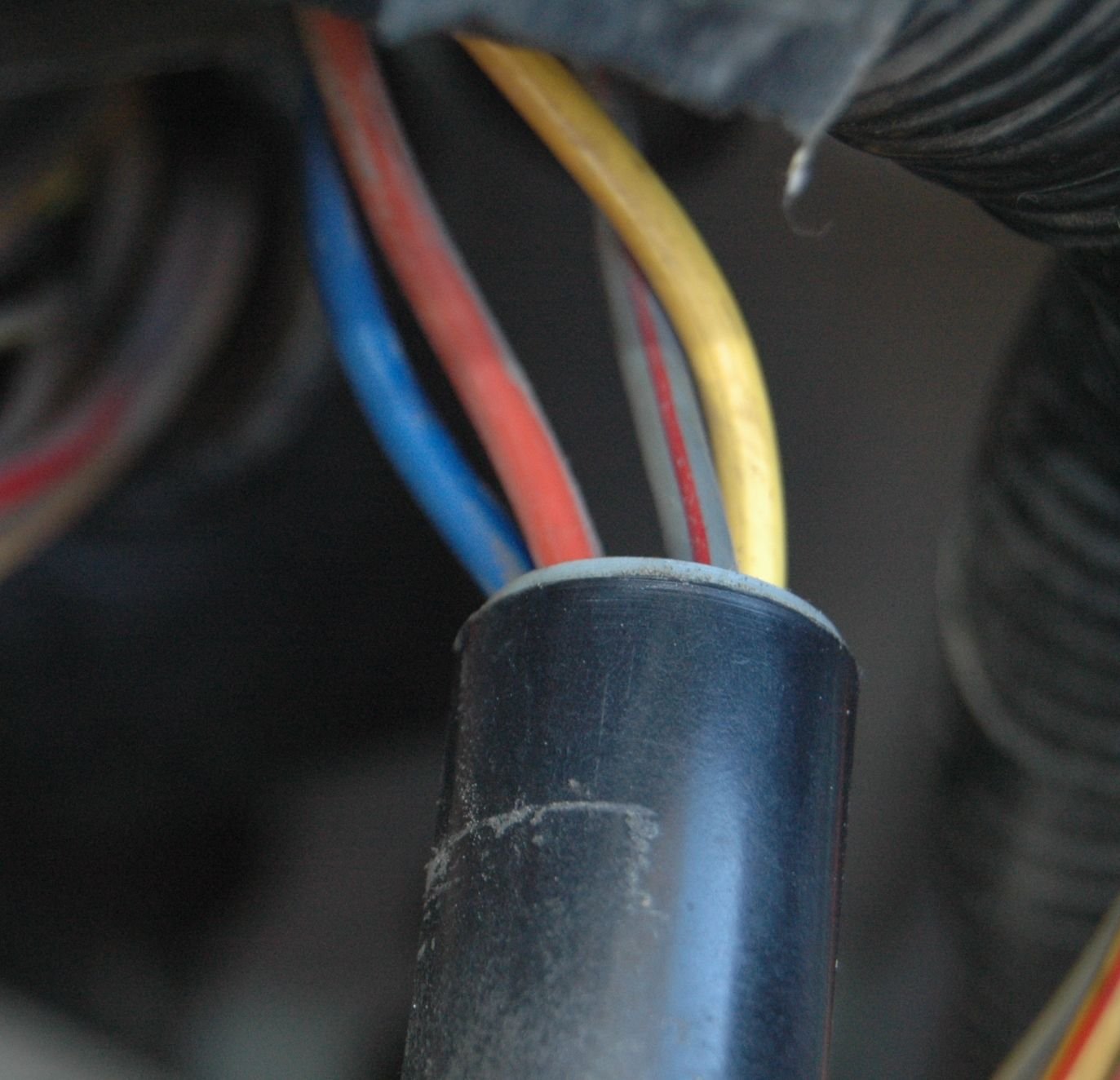

The grey/red and darkblue should be hanging under the dash either bare wires or in some sort of plug.
The yellow wire is probably a hot wire but I can't seem to find it right away.
Thank Ya Sir-----question becomes are you finding that in the EVTM and if so what cell? I believe I also have a DVD or CD-ROM EVTM so more info on the C140 is there only it might have to be employed and/or printed.
This is the same diagram that I found in Alldata(this is Autozone's). C140 is in the lower right corner, and those wire colors match your wires. You will have to keep looking for the yellow, but I suspect it might be in one of the power distribution diagrams. Yellow is usually a hot wire directly from the battery through a fusible link or fuse.
