First let me say I've spent a lot of time trying to search for these particular connectors on the net and haven't been successful so I'm hoping someone in here can help me out. I have a 95 F250 XL 5.8L 4x4

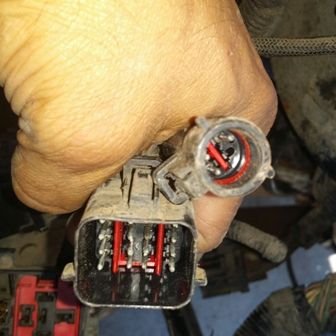

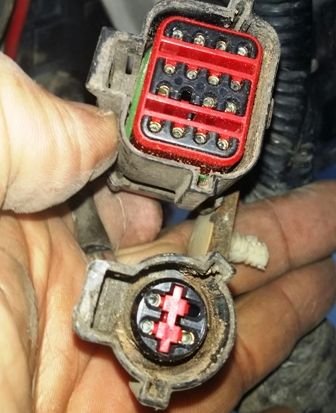

The first two pics are the female and male connections. The wires connected to the male are wires coming from the transmission harnesses. It is located on driver's side close to the firewall and exiting wires branch out to fuse box (under hood) and pcm
The next connector has a is connected to the fuse box plate under the hood on the driver's side. It has a number on it but when looking it up on Ford Dealership website it said it couldn't fine it.
Thank you in advance for taking the time to respond. I appreciate it.
Danny
The only way to relate it to the diagrams are the wire colors and the locations the wires go. You said one was related to the transmission. How many wires are in it, and what are their colors?
The larger connector; It goes to the fuse box or it passes by the fuse box and feeds something else? How many wires and what are their colors?
Ok Franklin.. I'll get the wire colors and match them with wiring diagrams to find out. The first pics I know has all the wires colors that go to the transmission wiring harness. It also includes the MLPS wires. I'll spend more time with matching wire colors with the wiring diagrams though and make sure. Thanks again for all your help.
