Bendix Pitman Arm vs. Ford/Saginaw
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 785
From: Simi Valley, CA

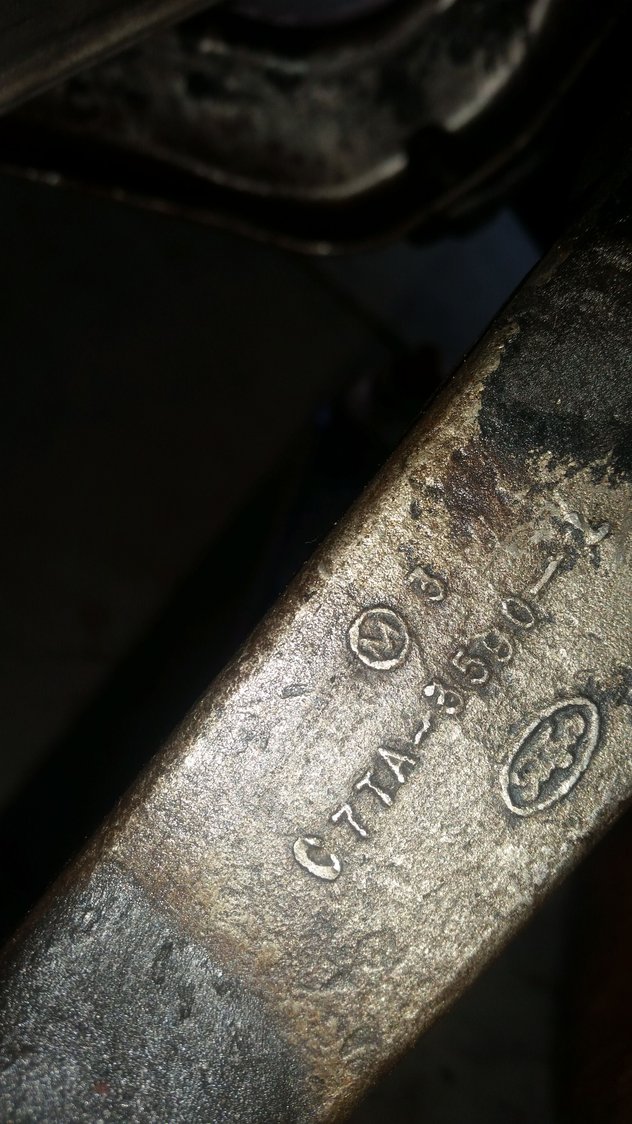

C7TZ-3590-F .. Pitman Arm-Use with Bendix P/S / Marked: C7TA-3590-L / Obsolete
1967/68 F100/250 2WD / 1969 F100/250 2WD before serial number D96,001.
----------------------------------------------------------------------------------------
C9TZ-3590-C .. Pitman Arm-Use with Ford/Saginaw P/S / Marked: C9TA-3590-E / Obsolete
1969 F100/250 2WD from serial number D96,001 / 1970 F100/250 2WD / 1971 F100/250 2WD before serial number M00,001.
----------------------------------------------------------------------------------------------------------------------------------------------
D2TZ-3590-B .. Pitman Arm-Use with Ford/Saginaw P/S / Marked: D2TA-3590-BA / Obsolete
1971 F100/250 2WD from serial number M00,001 / 1972 F100/250 2WD / 1973/79 F100 2WD / 1973/79 F250 2WD Regular & Super Cab under 8,100 lbs. GVWR / 1975/79 F150 2WD
1967/68 F100/250 2WD / 1969 F100/250 2WD before serial number D96,001.
----------------------------------------------------------------------------------------
C9TZ-3590-C .. Pitman Arm-Use with Ford/Saginaw P/S / Marked: C9TA-3590-E / Obsolete
1969 F100/250 2WD from serial number D96,001 / 1970 F100/250 2WD / 1971 F100/250 2WD before serial number M00,001.
----------------------------------------------------------------------------------------------------------------------------------------------
D2TZ-3590-B .. Pitman Arm-Use with Ford/Saginaw P/S / Marked: D2TA-3590-BA / Obsolete
1971 F100/250 2WD from serial number M00,001 / 1972 F100/250 2WD / 1973/79 F100 2WD / 1973/79 F250 2WD Regular & Super Cab under 8,100 lbs. GVWR / 1975/79 F150 2WD
