E-250 fuel gauge problem
Thread Starter
|
Mountain Pass
Joined: Mar 2015
Posts: 189
Likes: 11
E-250 fuel gauge problem
Did a search found some subject that covered this;
printed the diagram to know wires code ...
But some things , I dont understand
vehicle :1988 E-250 with two tanks :
Both sending unit give me around 75 ohms at the front/rear selector switch connector ,( unplugged)
switch is working : verified with ohmeter
one tank is definitely full ,
fuel gauge shows empty all the time ( barely moves when ignition on )
grounded thegauge stud , it goes to about half ....never to full !
I switch front/rear both pumps run ok .....
I`m confused !!!!
thanks ,
Dan ,
printed the diagram to know wires code ...
But some things , I dont understand
vehicle :1988 E-250 with two tanks :
Both sending unit give me around 75 ohms at the front/rear selector switch connector ,( unplugged)
switch is working : verified with ohmeter
one tank is definitely full ,
fuel gauge shows empty all the time ( barely moves when ignition on )
grounded thegauge stud , it goes to about half ....never to full !
I switch front/rear both pumps run ok .....
I`m confused !!!!
thanks ,
Dan ,
Thread Starter
|
Mountain Pass
Joined: Mar 2015
Posts: 189
Likes: 11
did one more test .....
I dont have any voltage going in the gauge ( left stud )
verified voltage at the little box entry gives 12volts , no voltage at the exit going to the gauge

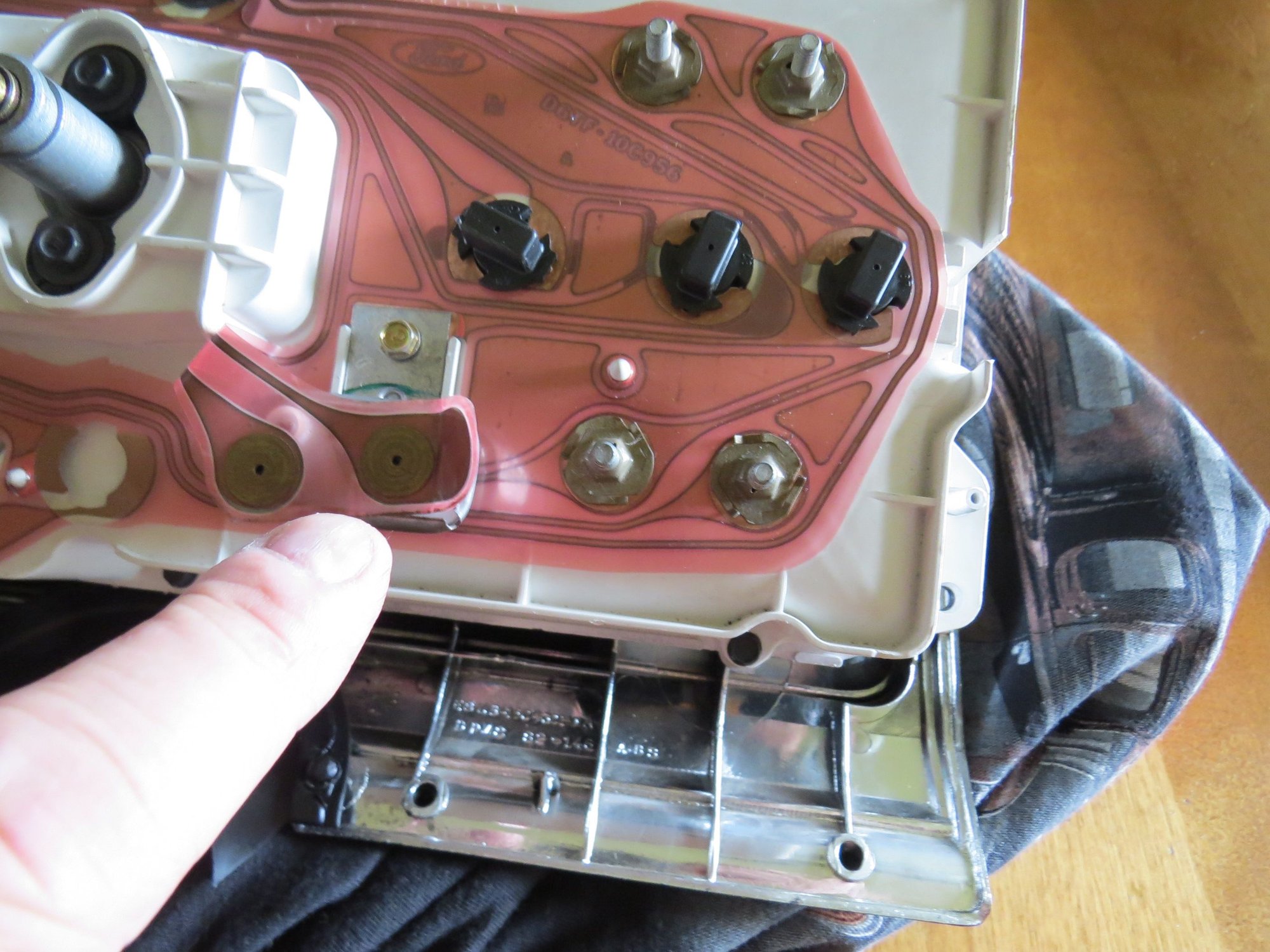

the little box being what my finger points at !
could it be faulty ?
thanks
Dan
Freshman User
Joined: Apr 2015
Posts: 31
Likes: 0
From: Portland, Oregon
hey BigDan,
I have had to replace that voltage regulator unit you're pointing to for the same symptoms that you are having. That fixed the gauge issue. I also had to replace the fuel gauge itself at a different time. The connectors on those voltage regulators are similiar to how 9 volt batteries plug in, so they easily snap out.
I have had to replace that voltage regulator unit you're pointing to for the same symptoms that you are having. That fixed the gauge issue. I also had to replace the fuel gauge itself at a different time. The connectors on those voltage regulators are similiar to how 9 volt batteries plug in, so they easily snap out.
Freshman User
Joined: Apr 2015
Posts: 31
Likes: 0
From: Portland, Oregon
Hey BigDan,
I couldn't say if it is available from Ford and if it is, be sitting down for the price, but I have always grabbed one at the wrecking yard. I hope you have a nearby wrecking yard with 75 to 91 econolines !
I couldn't say if it is available from Ford and if it is, be sitting down for the price, but I have always grabbed one at the wrecking yard. I hope you have a nearby wrecking yard with 75 to 91 econolines !
Fleet Owner
Joined: Aug 2010
Posts: 21,255
Likes: 1,657
From: Reynoldsburg, Ohio
Most like a cluster repair part wouldn't be available from Ford. With the proper part number searching the internet for NOS and/or obsolete parts might yield results.
I'd search for a guaranteed working complete cluster via eBay----something with the ability to return for exchange or refund if the replacement part doesn't work. This would probably be the easier route.
HTH
I'd search for a guaranteed working complete cluster via eBay----something with the ability to return for exchange or refund if the replacement part doesn't work. This would probably be the easier route.
HTH
Trending Topics
Thread Starter
|
Mountain Pass
Joined: Mar 2015
Posts: 189
Likes: 11
One of my friened that works in electronics components
told me that it looks like a regular LM1205 voltage regulator
goes from 12V to 5V ...... For him ,it should work ,
Dan
told me that it looks like a regular LM1205 voltage regulator
goes from 12V to 5V ...... For him ,it should work ,
Dan
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Logistics Pro
Joined: Oct 2014
Posts: 3,677
Likes: 172
I havent fixed my problem yet but here is what I came up with
Motorcraft GR513 Instrument Voltage Regulator
STANDARD MOTOR PRODUCTS VRC-606
WELLS IVR606
FORD 77FB10804AB
FORD D1AZ-10804-A
AIRTEX 1V1005
GM 12321923
GM 19113668
CARQUEST 52-1401
instrument voltage regulator | eBay
Motorcraft GR513 Instrument Voltage Regulator
STANDARD MOTOR PRODUCTS VRC-606
WELLS IVR606
FORD 77FB10804AB
FORD D1AZ-10804-A
AIRTEX 1V1005
GM 12321923
GM 19113668
CARQUEST 52-1401
instrument voltage regulator | eBay
