looking for transfer case bolt specs
i need to install a new bearing and seal on the output shaft on my t-case. Been trying to find the torque specs on the bolts and nut but havent found it. Anyone know what they are?

Reply
0
Old Dec 2, 2012 | 03:00 PM
Share
  #2
SuperDutyScaler's Avatar
SuperDutyScaler
Thread Starter
|
Lead Driver
15 Year Member
Liked
Loved
Community Favorite
Joined: Nov 2008
Posts: 8,450
Likes: 70
From: South Jersey


Reply
0
Old Dec 2, 2012 | 03:01 PM
Share
  #3
SuperDutyScaler's Avatar
SuperDutyScaler
Thread Starter
|
Lead Driver
15 Year Member
Liked
Loved
Community Favorite
Joined: Nov 2008
Posts: 8,450
Likes: 70
From: South Jersey
i need the torque spec on nut #58 in the breakdown
and bolts that hold on the tail piece in the picture

Reply
0
Old Dec 2, 2012 | 03:29 PM
Share
  #4
Lou Braun's Avatar
Lou Braun
Fleet Mechanic
20 Year Member
Joined: Nov 2003
Posts: 1,372
Likes: 14
From: West Cornwall, CT
Club FTE Gold Member
My service manual lists tthe torque at 186 ft-lb. This is for a 2006 truck.

There is a caution to support the rear flange while torquing that nut. You do not want to apply that torque through the gear train.

Lou Braun

Reply
0
Old Dec 2, 2012 | 04:14 PM
Share
  #5
1975StroppeBaja's Avatar
1975StroppeBaja
Cargo Master
15 Year Member
Joined: Apr 2006
Posts: 3,215
Likes: 8
From: WV

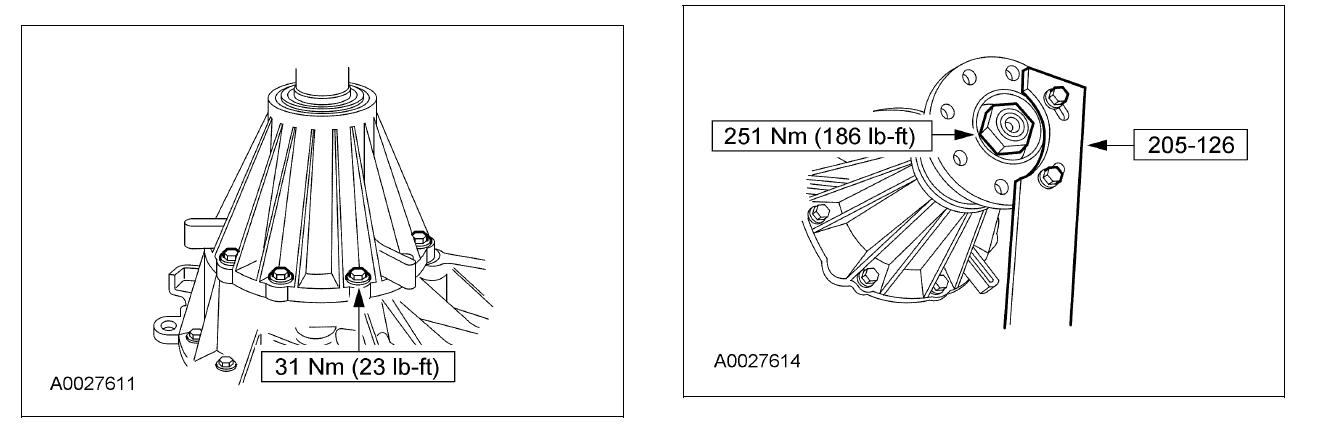

Here's a screenshot of the disassy&assy of the t-case from the manual. PM me your email addr if you'd like a pdf of the whole thing.


Reply
0
Old Dec 3, 2012 | 09:57 AM
Share
  #6
SuperDutyScaler's Avatar
SuperDutyScaler
Thread Starter
|
Lead Driver
15 Year Member
Liked
Loved
Community Favorite
Joined: Nov 2008
Posts: 8,450
Likes: 70
From: South Jersey
THANKS GUYS! i looked for two hours yesterday trying to find the dam torque specs and nothing! Even my Haynes repair book i bought was a waste of money and time

Reply
1
Old Dec 3, 2012 | 09:58 AM
Share
  #7
SuperDutyScaler's Avatar
SuperDutyScaler
Thread Starter
|
Lead Driver
15 Year Member
Liked
Loved
Community Favorite
Joined: Nov 2008
Posts: 8,450
Likes: 70
From: South Jersey
Jason what repair manual do you have that shows you everything?

Reply
0

Trending Topics

Old Dec 3, 2012 | 11:19 AM
Share
  #8
1975StroppeBaja's Avatar
1975StroppeBaja
Cargo Master
15 Year Member
Joined: Apr 2006
Posts: 3,215
Likes: 8
From: WV
Several years ago someone posted a link to a bunch of pdfs and I saved them all. Its not complete but the t-case was one thing that was included.

Reply
1
FTE Stories

Ford Trucks for Ford Truck Enthusiasts

story-0

10 Things Every Truck Owner NEEDS (2026 Edition)

 Michael S. Palmer
story-1

Rezvani's Latest Post-Apocalytic Monster Is a Ford F-150 Raptor Underneath

 Verdad Gallardo
story-2

Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer

 Joe Kucinski
story-3

2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)

 Brett Foote
story-4

Top 10 Ford Truck Tragedies

 Joe Kucinski
story-5

AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

 Brett Foote
story-6

Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

 Michael S. Palmer
story-7

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

 Verdad Gallardo
story-8

10 Best Ford Truck Engines We Miss the Most!

 Joe Kucinski
story-9

2026 Shelby F-150 Off-Road: Better Than a Raptor R?

 Brett Foote
Old Dec 6, 2012 | 12:28 PM
Share
  #9
SuperDutyScaler's Avatar
SuperDutyScaler
Thread Starter
|
Lead Driver
15 Year Member
Liked
Loved
Community Favorite
Joined: Nov 2008
Posts: 8,450
Likes: 70
From: South Jersey
just wanted to give Jason a big thanks man, the PDF helped out tremendously when tearing the t-case apart

Reply
0
Old Dec 6, 2012 | 05:37 PM
Share
  #10
redford's Avatar
redford
FTE Leadership Emeritus
25 Year Member
Liked
Loved
Community Favorite
Joined: Sep 2000
Posts: 23,174
Likes: 1,678
From: Stephensville WI
Club FTE Gold Member
Originally Posted by SuperDutyScaler
just wanted to give Jason a big thanks man, the PDF helped out tremendously when tearing the t-case apart
Give him rep points!

Reply
0
Old Dec 6, 2012 | 08:04 PM
Share
  #11
1975StroppeBaja's Avatar
1975StroppeBaja
Cargo Master
15 Year Member
Joined: Apr 2006
Posts: 3,215
Likes: 8
From: WV
Awesome! Glad to help

And, thanks redford!

Reply
0
Old Dec 7, 2012 | 09:40 AM
Share
  #12
SuperDutyScaler's Avatar
SuperDutyScaler
Thread Starter
|
Lead Driver
15 Year Member
Liked
Loved
Community Favorite
Joined: Nov 2008
Posts: 8,450
Likes: 70
From: South Jersey
whats rep points?

Reply
0
Old Dec 20, 2019 | 02:07 AM
Share
  #13
Kenyi's Avatar
Kenyi
New User
Joined: Dec 2019
Posts: 3
Likes: 1
Manual
Hi Jason I'm rebuilding my transfer case Nv271 is it possible for you to share the manual you have that would help a lot.

Thanks in advance

Reply
0
Old Dec 20, 2019 | 10:40 PM
Share
  #14
SuperDutyScaler's Avatar
SuperDutyScaler
Thread Starter
|
Lead Driver
15 Year Member
Liked
Loved
Community Favorite
Joined: Nov 2008
Posts: 8,450
Likes: 70
From: South Jersey
Originally Posted by Kenyi
Hi Jason I'm rebuilding my transfer case Nv271 is it possible for you to share the manual you have that would help a lot.

Thanks in advance
http://www.frontiernet.net/~jray1977...0/manual-1.zip

Reply
0
Old Dec 20, 2019 | 11:16 PM
Share
  #15
Kenyi's Avatar
Kenyi
New User
Joined: Dec 2019
Posts: 3
Likes: 1
Hi thanks but I'm getting this message from the link you posted.

Not Found

The requested URL was not found on this server.



Reply
1
