Sharing a picture

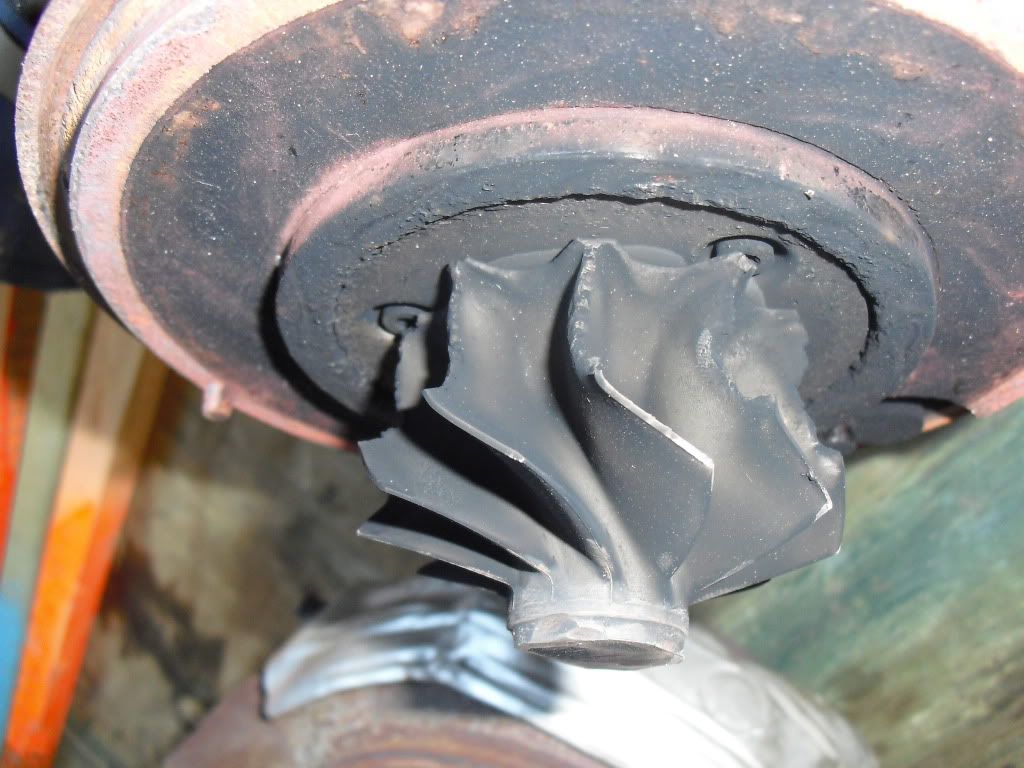

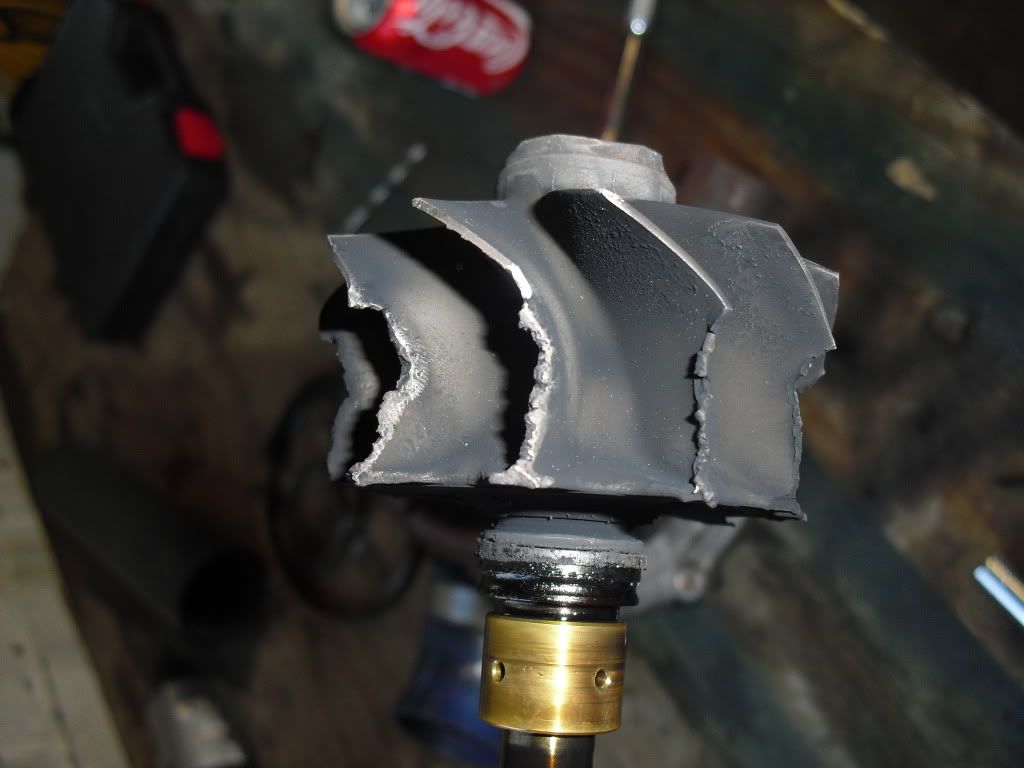

This is from the turbo I pulled out of a truck from the company I work for...

I wonder what would have caused this.

May 21, 2011 | 06:50 AM

Chief-e9

Junior User

Joined: Jan 2009

Posts: 54

Likes: 0

Could one vane have failed and a piece broke off; then that piece hit the other vanes causing them to break, also? Is it possible a "foreign object" entered into the area resulting in this damage? If yes, I imagine you would have found it. It will be interesting to see what you determine. Roy

May 21, 2011 | 09:29 AM

cheezit

Post Fiend

Joined: Oct 2009

Posts: 12,123

Likes: 35

From: N. Fort Worth, tx

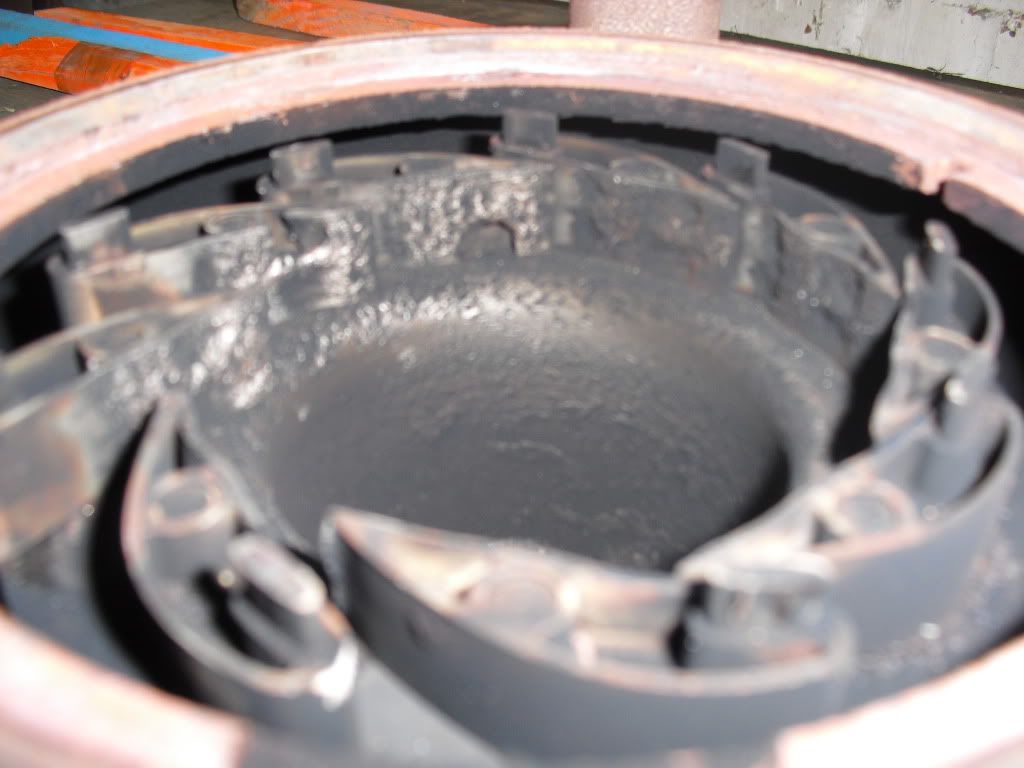

if you look at the vgt fins you will the damage will match the size and shape of the fins. turbo got stuck and unison ring overtravled.

May 21, 2011 | 09:35 AM

High Binder

Posting Guru

Joined: Sep 2009

Posts: 1,441

Likes: 5

When I took apart my turbo to clean it, I found that the unison ring would allow the VGT veins to come into contact with the fins right where you're damage is, which like Cheezit said may be your culprit.

May 21, 2011 | 10:07 AM

smokersteve

Posting Guru

Joined: Nov 2008

Posts: 1,458

Likes: 2

From: CA Sacramento

Quote:

Originally Posted by High Binder

That seems like a very stupid design....

Is there a way to modify the turbo so that it will not do this?

May 21, 2011 | 10:08 AM

cheezit

Post Fiend

Joined: Oct 2009

Posts: 12,123

Likes: 35

From: N. Fort Worth, tx

not a common issue

May 21, 2011 | 01:54 PM

2006powerstroke90

Thread Starter

Logistics Pro

Joined: Nov 2010

Posts: 3,673

Likes: 6

Trending Topics

64 and 63 f100 4x4s

71

1.7k
2025 F250 Travel Trailer WDH setup

75

4k
Can a Super Duty ever ride like an F-150 unloaded?

18

523
What to do with my unused spare tire?

18

662
LIFETIME POWERTRAIN WARRANTY - IS IT WORTH IT?

14

403

May 21, 2011 | 02:46 PM

High Binder

Posting Guru

Joined: Sep 2009

Posts: 1,441

Likes: 5

Quote:

Originally Posted by smokersteve

That seems like a very stupid design....

Is there a way to modify the turbo so that it will not do this?

Yeah it's a very stupid design. I would expect to get fired for such a thing however I bet the reason it is like these is because this ring/vein/ect parts can fit into many of their models of turbos (saves money). You could modify the slot in the ring to disallow that interference it wouldn't take but a mm or so in the slot itself but you'd have to weld the slot and then mill it to spec. If I had one in hand I could do run the numbers and figure it out for you if you really want to do it. I doubt it would trip any codes or cause a problem with the VGT sensor because the sensor isn't going to (under normal conditions) force the veins into an interference condition. In short, if everything is working right you shouldn't need to mod the ring but if yours had been modded, it prob would have saved your company a $grand$.
