Hey guys, I set my timing back marks back exactly on the crank and both cams. If I turn the engine over are they supposed to line back up again? I just wanted to confirm that they DO NOT line back up once you turn the engine over... someone says so earlier in this thread.
__________________
1998 F150 5.4L Lariat 3.55 E4OD 4x4 OffRoad xcab - 249k miles @ Dec 23, 2012
2006 F150 5.4L FX4 3.73 LS 4D - 68k miles @ Dec 23, 2012
Reply With Quote
  #47
Old 04-09-2011, 07:56 PM
m-chan68's Avatar
m-chan68 m-chan68 is offline
Postmaster

Join Date: Mar 2010
Location: Brampton, Ontario, Canada
Posts: 3,032
m-chan68 has a brilliant futurem-chan68 has a brilliant futurem-chan68 has a brilliant futurem-chan68 has a brilliant futurem-chan68 has a brilliant futurem-chan68 has a brilliant futurem-chan68 has a brilliant futurem-chan68 has a brilliant futurem-chan68 has a brilliant futurem-chan68 has a brilliant futurem-chan68 has a brilliant future
Quote:
Originally Posted by RoyalFord View Post
Hey guys, I set my timing back marks back exactly on the crank and both cams. If I turn the engine over are they supposed to line back up again? I just wanted to confirm that they DO NOT line back up once you turn the engine over... someone says so earlier in this thread.
That is correct.
__________________
http://www.yorkdaleford.com/service.html[/url]
Ford Diesel/Senior/Master Tech
....who works at a dealership that now employs SOME half decent looking female employees since they overhauled most of the administrative staff
....but STILL loves hot women with big boobies
....and STILL hates working on E-Series with 6.0L
Reply With Quote
  #48
Old 04-11-2011, 09:49 AM
RoyalFord RoyalFord is offline
Elder User

Join Date: Apr 2004
Location: North Carolina
Posts: 866
RoyalFord is starting off with a positive reputation.
excellent news... I thought I had screwed it up.
__________________
1998 F150 5.4L Lariat 3.55 E4OD 4x4 OffRoad xcab - 249k miles @ Dec 23, 2012
2006 F150 5.4L FX4 3.73 LS 4D - 68k miles @ Dec 23, 2012
Reply With Quote
  #49
Old 04-12-2011, 02:51 PM
RoyalFord RoyalFord is offline
Elder User

Join Date: Apr 2004
Location: North Carolina
Posts: 866
RoyalFord is starting off with a positive reputation.
I started up the truck last night after replacing the drivers side head gasket... she is purring like a kitten! I guess I got the timing correct

I appreciate all the help again guys!
__________________
1998 F150 5.4L Lariat 3.55 E4OD 4x4 OffRoad xcab - 249k miles @ Dec 23, 2012
2006 F150 5.4L FX4 3.73 LS 4D - 68k miles @ Dec 23, 2012
Reply With Quote
  #50
Old 04-12-2011, 04:54 PM
Moto Mel's Avatar
Moto Mel Moto Mel is offline
Postmaster

Join Date: Jan 2009
Location: Chesapeake, Va.
Posts: 4,574
Moto Mel has a great reputation on FTE.Moto Mel has a great reputation on FTE.Moto Mel has a great reputation on FTE.Moto Mel has a great reputation on FTE.Moto Mel has a great reputation on FTE.
Glad you got it done and done right the first time. Happy Motoring.
Reply With Quote
  #51
Old 09-16-2011, 10:43 AM
7.3ericpaul 7.3ericpaul is offline
New User

Join Date: Sep 2011
Posts: 1
7.3ericpaul is starting off with a positive reputation.
This helped me alot recently when timing a 04 5.4 3v. i now understand the timing of these engines. one last thing i want to add for the next feller needing to do an 04. it IS DIFFERENT, the old style phasers mentioned aren't timed by the same marks. mine had L's on both sides which i timed off of. the truck started but ran like dukey. it throwed a p0345. bank two was running backwards! it din't bend the valves because it was still getting out of the way. you have to time one side off of the other mark 180 degrees of the L on the phaser on the driver side. instead of tearing of the tc cover AGAIn. I just pulled the valve cover, put vise grips on the came behind the phaser, unbolted it rotated the phaser in the chain 180 and rotated the cam in relation to the marks, lined it up, tourqed 30 lbs, rotate 09 degree and bam. runs like a effin beast.
Reply With Quote
  #52
Old 09-27-2011, 03:40 AM
hastings17 hastings17 is offline
New User

Join Date: Sep 2011
Posts: 2
hastings17 is starting off with a positive reputation.
hey guys im trying to git my truck back in time. its a 1997 ford f150 2 valve 5.4 i had to take the passenger side head off to git re worked and now i dont know how to set the timing on it back. im only 17 so i didnt have the money to git the cam holding tools so im trying to just wing it. so far everythings going back together good i just need help gittin this timing set so i can git back on the road
Reply With Quote
  #53
Old 09-27-2011, 09:52 AM
70f100longbed's Avatar
70f100longbed 70f100longbed is offline
Posting Guru

Join Date: Aug 2002
Location: Raleigh USA
Posts: 1,041
70f100longbed has a good reputation on FTE.70f100longbed has a good reputation on FTE.70f100longbed has a good reputation on FTE.
Quote:
Originally Posted by hastings17 View Post
hey guys im trying to git my truck back in time. its a 1997 ford f150 2 valve 5.4 i had to take the passenger side head off to git re worked and now i dont know how to set the timing on it back. im only 17 so i didnt have the money to git the cam holding tools so im trying to just wing it. so far everythings going back together good i just need help gittin this timing set so i can git back on the road
Go back to the first page and read my post. You dont need any special tools.
__________________
Ford senior master tech
Every 5.4 3V owner should have Lisle tool #65600
8L3Z-6M280-B updated VCT solenoids for 5.4 3V rattle
Reply With Quote
  #54
Old 10-11-2011, 11:18 PM
hastings17 hastings17 is offline
New User

Join Date: Sep 2011
Posts: 2
hastings17 is starting off with a positive reputation.
Quote:
Originally Posted by 70f100longbed View Post
Go back to the first page and read my post. You dont need any special tools.
i looked at some pictures a guy posted of him timing marks and i read what you wrote on here and set it like the picture showed i think i got it right but i havent got a chance to put the rest back together yet
Reply With Quote
  #55
Old 10-12-2011, 07:11 PM
kbsupercrew's Avatar
kbsupercrew kbsupercrew is offline
Senior User

Join Date: Sep 2011
Posts: 411
kbsupercrew is starting off with a positive reputation.
Any pictures?
Reply With Quote
  #56
Old 10-22-2011, 10:29 PM
darkestskydiver darkestskydiver is offline
Freshman User

Join Date: Jan 2011
Posts: 29
darkestskydiver is starting off with a positive reputation.
hey guy's i have a 2000 5.4 i replaced the head gaskets and the cams moved a little but they are in the pre positions. i put the crank one tdc #1 as per the instructions in the service manual. but the timing marks will not line up. so i tried the way listed at the start of this thread.
i put the crank keyway at the 12o clock position then put the drivers cam at aprox 12o clock was able to get the marks to line up then did the passenger side the same way. but when i went to rotate the engine by hand i got about 12 degrees and it stopped. from what i can tell the exhaust valve on the #5 is hitting the piston.
i just dont get it all the marks are lined up and it still will not turn. i'll try and attach some pics if i can. need some help here this is really got me frustrated.
Reply With Quote
  #57
Old 10-22-2011, 10:41 PM
darkestskydiver darkestskydiver is offline
Freshman User

Join Date: Jan 2011
Posts: 29
darkestskydiver is starting off with a positive reputation.
Click the image to open in full size.

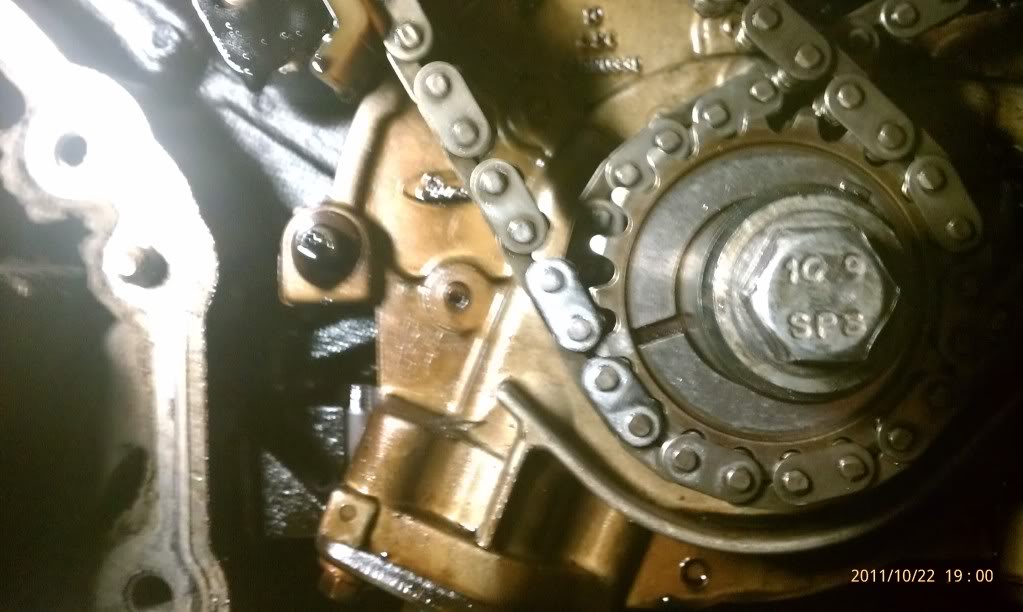

it's hard to see but this is the drivers side in the back.
Click the image to open in full size.

Click the image to open in full size.

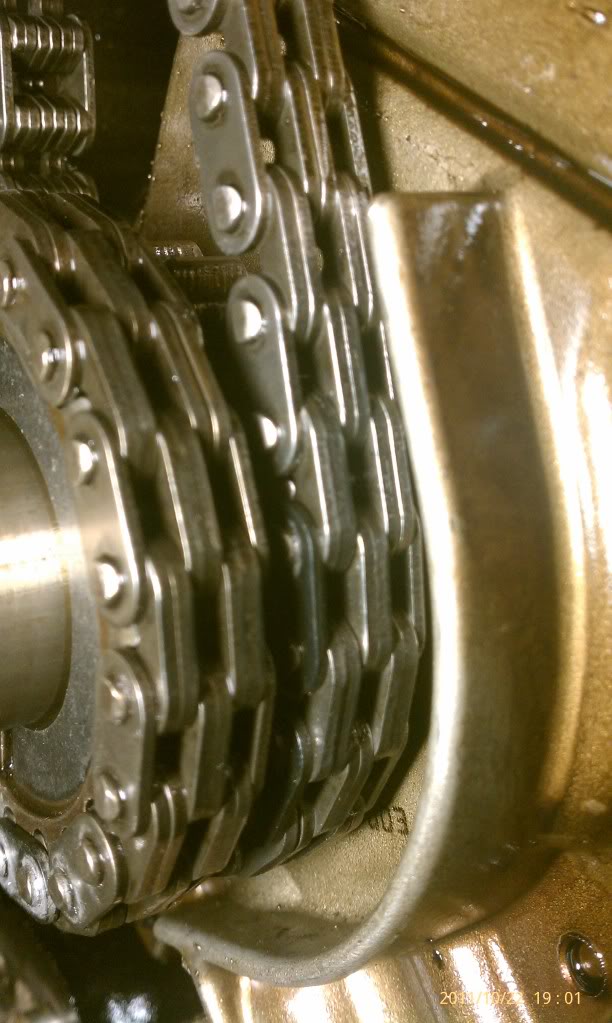

drivers side cam.
Click the image to open in full size.passenger side.
Reply With Quote
  #58
Old 10-23-2011, 12:15 AM
kbsupercrew's Avatar
kbsupercrew kbsupercrew is offline
Senior User

Join Date: Sep 2011
Posts: 411
kbsupercrew is starting off with a positive reputation.
Looks like you have the chains on backwards, the double colored links are to be on the cams with the mark on the cams between the links and the single colored link is on the crank mark, with that said, the crank should be in the position where 1 cylinder is at top dead center and the crank mark should be at 6 oclock at this time to verify you should slip the crank pully on and the tdc marks on the pully should line up with the marks on the timing cover hope this helps
Reply With Quote
  #59
Old 10-23-2011, 12:21 AM
kbsupercrew's Avatar
kbsupercrew kbsupercrew is offline
Senior User

Join Date: Sep 2011
Posts: 411
kbsupercrew is starting off with a positive reputation.
Fyi the crank colored links ( the single links ) should be on the same tooth , so if you look at them they will back to back, i know the crank gear has two marks one on each side JUST USE ONE, the mark facing you at 6 both chains need the colored links at 6oclock, they do that so you can put the gear on either way and have a mark
Reply With Quote
  #60
Old 10-23-2011, 12:23 AM
kbsupercrew's Avatar
kbsupercrew kbsupercrew is offline
Senior User

Join Date: Sep 2011
Posts: 411
kbsupercrew is starting off with a positive reputation.
I just did mine 2000 5.4 2 valve hope this helps , the passenger cam will have spin pressure in this position it is kinda difficult to move the passenger cam fit the chain on
Reply With Quote
