  #271
Old 11-21-2012, 09:16 AM
bobbytnm's Avatar
bobbytnm bobbytnm is online now
Roast em' if you got 'em

Join Date: Mar 2005
Location: Rio Rancho, NM
Posts: 10,730
bobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to behold
That is fantastic!!

Thanks for sharing the ingenuity

Bobby
__________________
...Someday our foes may win...
...but NOT today!!
1949 F1, 500ci Caddy
1967 Jeepster Commando
1994 Harley Road King
Reply With Quote
  #272
Old 11-21-2012, 11:05 AM
JimG1098's Avatar
JimG1098 JimG1098 is offline
Elder User

Join Date: Jan 2007
Location: Eastern shore,Hebron,MD
Posts: 716
JimG1098 is gaining momentum as a positive member of FTE.JimG1098 is gaining momentum as a positive member of FTE.
It will never get old, watching the tallent emerge on this site.
__________________
USAF 65'--69'
71st FIS F-106
54 F-750 Fire Truck
http://www.ford-trucks.com/forums/12...ire-truck.html
Empire H&L Co.No.1, Nyack FD, 1965-2001
Reply With Quote
  #273
Old 12-03-2012, 09:32 PM
topmoo's Avatar
topmoo topmoo is offline
Posting Guru

Join Date: Aug 2003
Location: Houston
Posts: 2,168
topmoo is a splendid one to beholdtopmoo is a splendid one to beholdtopmoo is a splendid one to beholdtopmoo is a splendid one to beholdtopmoo is a splendid one to beholdtopmoo is a splendid one to beholdtopmoo is a splendid one to beholdtopmoo is a splendid one to behold
MP&C, really nice work and fantastic ingenuity. Who would have thought vice grips could do so much (other than someone with a great imagination and experience). Thanks for the tips, they are great.
Reply With Quote
  #274
Old 12-31-2012, 03:50 PM
MP&C's Avatar
MP&C MP&C is offline
Senior User

Join Date: Aug 2007
Location: Maryland
Posts: 317
MP&C has a good reputation on FTE.MP&C has a good reputation on FTE.MP&C has a good reputation on FTE.
Credits: (and all that legal stuff) this is a slight variation on a similar tool by Per (Metalman Sweden) and Bill Gibson, as shown on Metalmeet.

This is a tool for tipping flanges, as one would do on door skins or inner doors, offered as a low buck alternative for those who may only need a one-time/limited use of such a device. I started with 1/2" key stock, which came in a one foot length. The gave me enough material for two, if I ever get to finishing both.

The short leg was marked at about 1-1/2" in, clamped in the vise, heated with a rosebud torch and persuaded to a 90 degree angle with a hammer.
Click the image to open in full size.
Used the bandsaw to cut some notches about an inch in. These should be about twice the thickness (or so) of the metal you plan on using, to allow some free play in using the device.

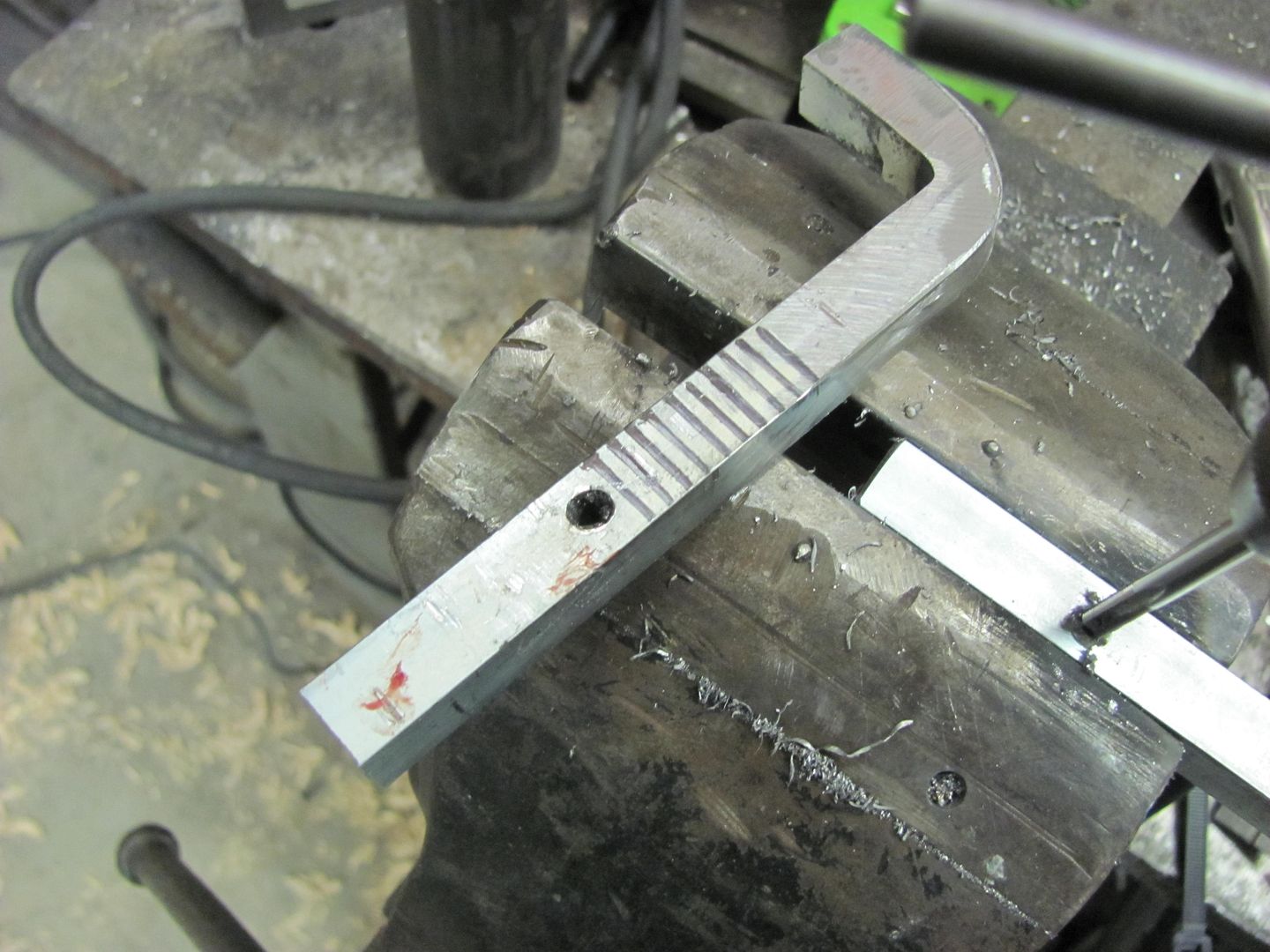

The short end had a #21 hole drilled through the slot and tapped for 10-32 screw to use as a "distance stop". The long end would use a tapped hole to secure a separate stop device.
Click the image to open in full size.

Click the image to open in full size.

The second tool was used as a drilling/milling fixture for making the stop device for the long arm. A tight clearance hole was drilled centered on the 1/2 stock, a cap device was bent to fit snugly and come down the sides past the slot, and it was clamped in the vise at the various marks shown to start the slot. Although I neglected in-process pictures of this step, follow along with the descriptions.

Click the image to open in full size.

Click the image to open in full size.

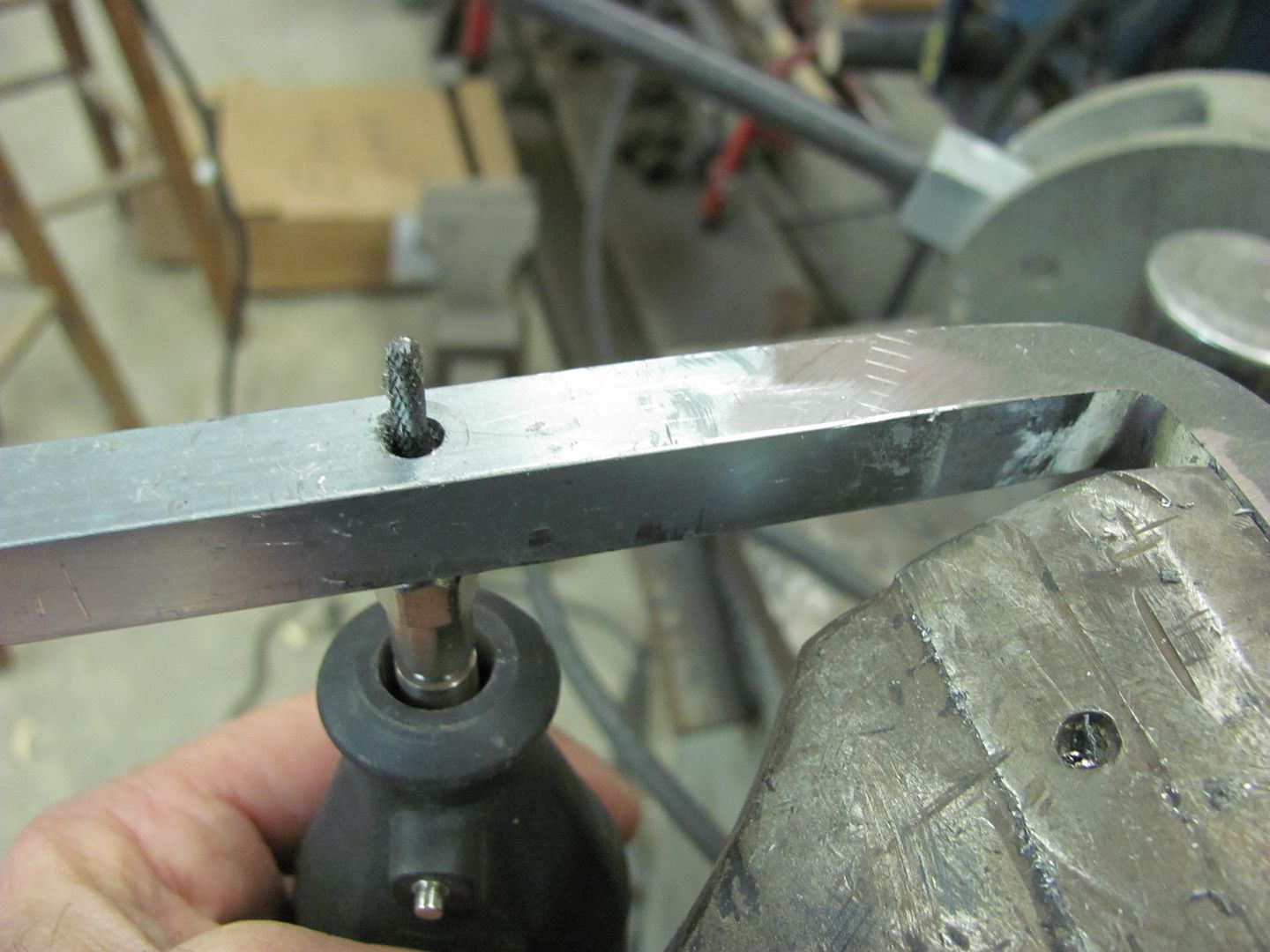

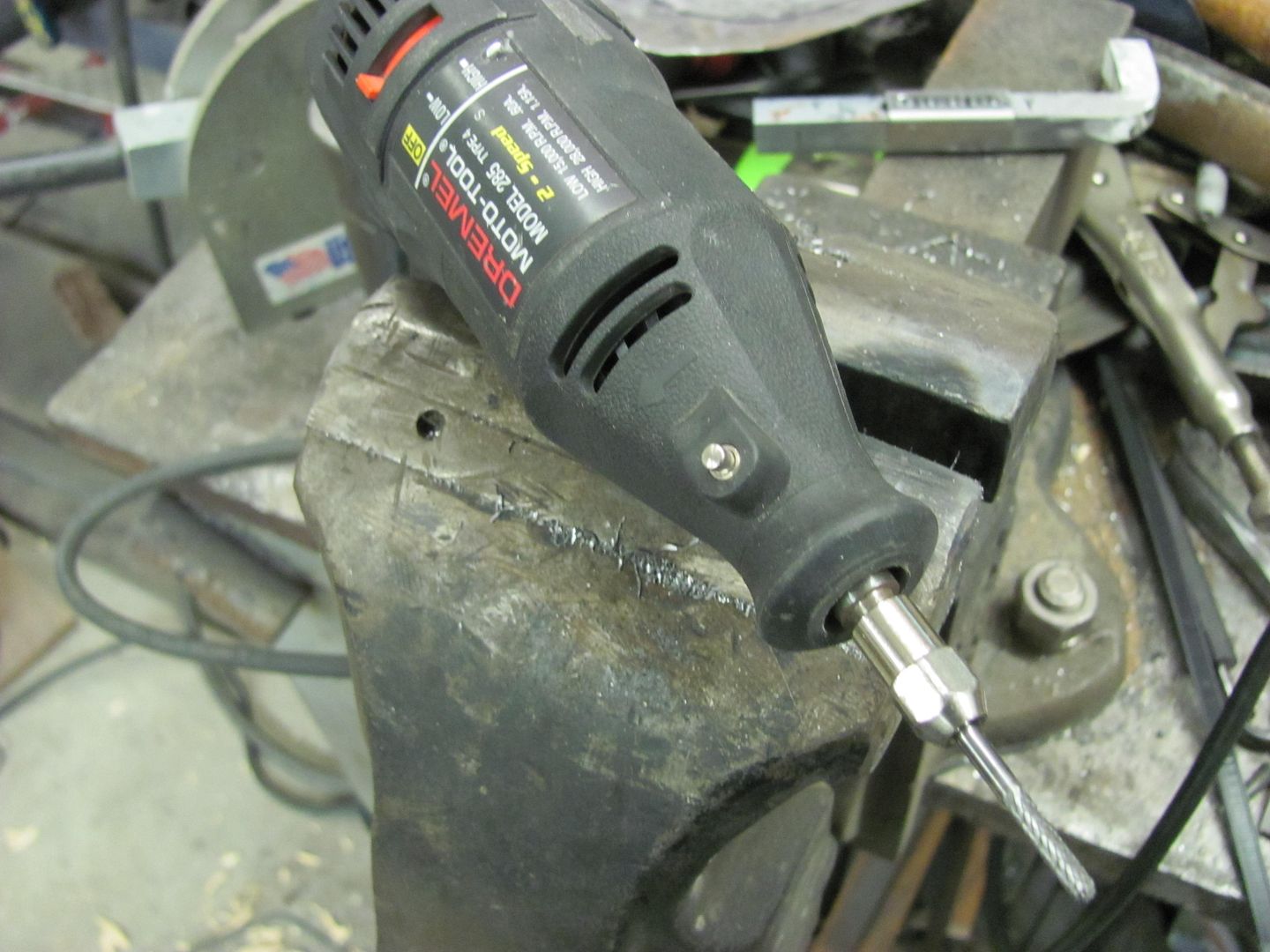

Then, to clean between the holes, a dremel with an 1/8 diameter ball end burr was used as a "milling" bit. Be sure to extend a good (safe) amount of the smooth side, so the cutter has less tendency to eat away at the drill guide. Then with the dremel bit inserted, place stop device over and work back and forth to open up the slotted hole. Repeat for other side of the slot, as this cutter is considerably smaller than our clearance hole.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Use caution with moving fingers in close proximity of metal cutting devices, as I did draw a bit of blood (note pictures 4 and 5). Your results may vary, better or worse, so take appropriate precautions. (have band-aids handy or 911 pre-dialed, depending on how your luck runs)

Short 10-32 screw and washer added to secure the stop at dimension desired.

Click the image to open in full size.

Click the image to open in full size.

Here's an "inner door" sample I whipped up real quickly, sorry for the lack of precision

Click the image to open in full size.

After panel and folded edge is cut to correct size for the application, mark desired flange width and adjust tool stops accordingly.

Click the image to open in full size.

Bend slightly, working from one end to the other. Repeat repeatedly.

Click the image to open in full size.

Two-ended tool allows you to use whichever end provides best leverage.

Click the image to open in full size.

Click the image to open in full size.

All ready for the "door skin" ............

Click the image to open in full size.
__________________
MP&C Shop Projects Thread
Reply With Quote
  #275
Old 01-02-2013, 03:06 PM
ALBUQ F-1's Avatar
ALBUQ F-1 ALBUQ F-1 is online now
postin' fool

Join Date: Jul 2004
Location: Albuquerque area
Posts: 16,755
ALBUQ F-1 has much to be proud ofALBUQ F-1 has much to be proud ofALBUQ F-1 has much to be proud ofALBUQ F-1 has much to be proud ofALBUQ F-1 has much to be proud ofALBUQ F-1 has much to be proud ofALBUQ F-1 has much to be proud ofALBUQ F-1 has much to be proud of
Very clever!
__________________
Ross
1952 F-1 Flat V8 3-on-the-tree MSD, Rochester 2G, Red's Headers
Malo periculosam, libertatem quam quietam servitutem
Reply With Quote
  #276
Old 01-04-2013, 06:23 PM
MP&C's Avatar
MP&C MP&C is offline
Senior User

Join Date: Aug 2007
Location: Maryland
Posts: 317
MP&C has a good reputation on FTE.MP&C has a good reputation on FTE.MP&C has a good reputation on FTE.
Thanks!

When I built my rotisserie, I used 1/4" wall square tubing (actually .22) which gives a slight clearance except for the welded seam down the inside. I had to make a tool to remove this weld for the various pieces to be able to telescope inside each other. My solution was to Tig a 1/4 diameter rod to the end of my cutoff wheel arbor. Got it right the first time, no wobble at all. Added a cheap 1/4" id bearing to the rod (not shown in picture) to be able to slide the bearing where needed, & apply pressure to the weld without the rotating rod burning your hand.

Click the image to open in full size.

Click the image to open in full size.

Works well for accessing those hard to reach areas
__________________
MP&C Shop Projects Thread
Reply With Quote
  #277
Old 01-04-2013, 08:29 PM
bobbytnm's Avatar
bobbytnm bobbytnm is online now
Roast em' if you got 'em

Join Date: Mar 2005
Location: Rio Rancho, NM
Posts: 10,730
bobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to beholdbobbytnm is a splendid one to behold
Nice solution to a common problem. That welded seam can be a real pain in the rear

Bobby
__________________
...Someday our foes may win...
...but NOT today!!
1949 F1, 500ci Caddy
1967 Jeepster Commando
1994 Harley Road King
Reply With Quote
  #278
Old 01-04-2013, 09:29 PM
AXracer's Avatar
AXracer AXracer is online now
Post Fiend

Join Date: Oct 2004
Location: Durham NC
Posts: 14,061
AXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to behold
Chuck Frank
MP&C,
I need a "tipping tool" to do similar work to your tool, but not often enough to spend the time to make a special tool to do it. I simply use an adjustable wrench of an appropriate size adjusted to be a slip fit on the metal. I draw a line where the bend is desired with an ultra fine sharpie marker and slip the wrench on up to the line and lift or drop the handle to start the bend. I start at the tightest curve and work towards the straight sections. Bend about 5 degrees a pass. Working slowly away from the center of a tight curve you can turn a lip around almost any curve. You can easily turn a smooth 90 degree 1/2" wide lip around a 4" disk of 20 ga cold rolled, just don't rush it.
__________________
Passionate about autocross racing!

1956 F100 Panel "GRACIE"
2007 Solstice GXP racer, the "KRAZED KANARY"
Third place finish 2009 SCCA National Championships
Reply With Quote
  #279
Old 01-14-2013, 06:16 PM
jniolon's Avatar
jniolon jniolon is offline
Postmaster

Join Date: Jul 1997
Location: Beautiful Hueytown Alabam
Posts: 3,213
jniolon is a splendid one to beholdjniolon is a splendid one to beholdjniolon is a splendid one to beholdjniolon is a splendid one to beholdjniolon is a splendid one to beholdjniolon is a splendid one to beholdjniolon is a splendid one to behold
removing large allen head bolts..

here's one that made me say 'duh' I'd never thought of this... If you have a large allen head bolt and no wrench... use an appropriate sized bolt head for the wrench...double nutted on the other end to turn it...

from the Homemade Tool Website Homemadetools.net A really neat website if you haven't visited with nothing but homemade tools... something we all love

here's the link to the page on the allen wrench substitute..

Large Allen Bolt Removal - by irmiger
later
John
__________________
my stuff.....
jniolon.classicpickup.com
Reply With Quote
  #280
Old 01-14-2013, 07:55 PM
Alvin in AZ's Avatar
Alvin in AZ Alvin in AZ is offline
Postmaster

Join Date: Aug 2005
Location: Gadsden Purchase
Posts: 2,760
Alvin in AZ is gaining momentum as a positive member of FTE.Alvin in AZ is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by jniolon View Post
here's one that made me say 'duh' I'd never thought of this... If you
have a large Allen head bolt and no wrench... use an appropriate sized
bolt head for the wrench...double nutted on the other end to turn it...
Or weld a big bolt to a length of iron to use it to adjust an old air-cooled
VW steering gear. :) That one was from when I was a kid. :)

Quote:
from the Homemade Tool Website Homemadetools.net A really neat
website if you haven't visited with nothing but homemade tools...
something we all love
here's the link to the page on the allen wrench substitute..
Large Allen Bolt Removal - by irmiger
later
John
Wow that's a cool site, thanks John. :)

Well I guess I should add something to this thread huh?
Uhhh...
http://www.panix.com/~alvinj/file12/DoALL1.jpg
http://www.panix.com/~alvinj/file12/DoALL2.jpg
...scanned big for printing. ;)

To remove the bronze oil-lite bearing from an FE...
http://www.panix.com/~alvinj/file12/bushing&remover.jpg
...BTW use a sealed ball bearing instead, 6303 in the case of an FE/FT. :)

How about 5/8" i.d. A/C hose for a bypass hose? LOL :)
http://www.panix.com/~alvinj/file12/bypass.jpg

This one is just plain ol' weird...
http://www.panix.com/~alvinj/file12/extensioncord.jpg
...but I like the heck out of it. :)

With the front of my T18 resting on these and the rear resting on its rear
mount and crossmember the dangged thing slides in and out of place like
it's on rails! No kidding. :)
http://www.panix.com/~alvinj/file12/guidepins.jpg
http://www.panix.com/~alvinj/file12/guidepin.jpg <--351w+ZF

http://www.panix.com/~alvinj/file12/Ford9inch.jpg
http://www.panix.com/~alvinj/file12/Ford9inch-B.jpg
http://www.panix.com/~alvinj/file12/Ford9inch-S.jpg
Tapped the normalized file, jammed the bolts in, double-nutted 'em then
cut 'em short. It needs a cheater pipe to use it, they need to be cranked
down that hard. LOL :) Ok, so it was fine the first several times cranking
it down but after that my hand hurt. LOL :)

Here's another tool from a normalized file...
http://www.panix.com/~alvinj/file12/...icbalancer.jpg
...it was already sway-backed and the tool needed that "relief".
The holes need to be just right to allow 3/8" bolts to slip though the
harmonic balancer on an FE and the tool at the same time and not be
sloppy. The tool fits my '91 351w real nice but didn't need to be sway
backed?

Alvin in AZ
ps-
This is for MP&C. :)
A 4+1/2" handgrinder extension made from a hunk of 5/8" grade-8 bolt,
a 1/4"-28 set screw and a grade-5 or better coupling nut from McMaster
-Carr, I've only used "plugs" (mounted grinding wheels) on it...
http://www.panix.com/~alvinj/file12/BroncoYd.jpg

pps-
I made it when I did this...
http://www.panix.com/~alvinj/file12/exhaustY.jpg
http://www.panix.com/~alvinj/file12/exhaustY1.jpg
Ever cut a factory Y pipe apart and check it out? :/
I did that on my '75 F150, man did they ever rip me off! :/
The hole in the pipe was football shaped and no way a golf ball would
go through it, even being mashed with a vice. It was like turning the
old 360FE from a 6 cylinder into an 8 cylinder. No less than that, what
a friggin' rip--off. :/ Ripped off of two-cylinders from Feb '75 to Jan '09.
I don't bleed blue. ;) YMMV
Reply With Quote
  #281
Old 01-14-2013, 10:15 PM
Alvin in AZ's Avatar
Alvin in AZ Alvin in AZ is offline
Postmaster

Join Date: Aug 2005
Location: Gadsden Purchase
Posts: 2,760
Alvin in AZ is gaining momentum as a positive member of FTE.Alvin in AZ is gaining momentum as a positive member of FTE.
Whew, took almost two hours to read this whole crazy thread. LOL :)

Early in the thread there was a couple posts about bezel tools and
I just happen to have a couple pictures so here they are...
Click the image to open in full size.
That first one is made from a junk shorty double boxed end the other
end was bent to hell an' gone. ;) This end is the 7/16" end, just pick
the size you need and go to hacksawing and filling away the steel
you don't need. LOL :)

Here's the switch and the threaded "nut" it fits...
http://www.panix.com/~alvinj/file12/switch.jpg
...also fits the wiper switch. (this stuff is for my '75 F150 mostly, sorry)

Here's one for my '75's ignition switch made it from 1" black steel pipe...
Click the image to open in full size.
...worked at it quite a while to get those three center punched holes
evenly spaced then just went to hacksawing and filing. Used an
automatic type center punch, I use those almost every time I need a
center punch. ;)

Alvin in AZ
Reply With Quote
  #282
Old 01-15-2013, 10:00 AM
AXracer's Avatar
AXracer AXracer is online now
Post Fiend

Join Date: Oct 2004
Location: Durham NC
Posts: 14,061
AXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to behold
Chuck Frank
Quote:
Originally Posted by Alvin in AZ View Post
ps-
This is for MP&C.
A 4+1/2" handgrinder extension made from a hunk of 5/8" grade-8 bolt,
a 1/4"-28 set screw and a grade-5 or better coupling nut from McMaster
-Carr, I've only used "plugs" (mounted grinding wheels) on it...
http://www.panix.com/~alvinj/file12/BroncoYd.jpg

pps-
I made it when I did this...
http://www.panix.com/~alvinj/file12/exhaustY.jpg
http://www.panix.com/~alvinj/file12/exhaustY1.jpg
Ever cut a factory Y pipe apart and check it out? :/
I did that on my '75 F150, man did they ever rip me off! :/
The hole in the pipe was football shaped and no way a golf ball would
go through it, even being mashed with a vice. It was like turning the
old 360FE from a 6 cylinder into an 8 cylinder. No less than that, what
a friggin' rip--off. :/ Ripped off of two-cylinders from Feb '75 to Jan '09.
I don't bleed blue. YMMV
Maybe it because I don't have an FE or ?, but I have no idea what these are or what they do or how they're used? They look interesting, I'd like to know more please.
__________________
Passionate about autocross racing!

1956 F100 Panel "GRACIE"
2007 Solstice GXP racer, the "KRAZED KANARY"
Third place finish 2009 SCCA National Championships
Reply With Quote
  #283
Old 01-15-2013, 12:06 PM
Alvin in AZ's Avatar
Alvin in AZ Alvin in AZ is offline
Postmaster

Join Date: Aug 2005
Location: Gadsden Purchase
Posts: 2,760
Alvin in AZ is gaining momentum as a positive member of FTE.Alvin in AZ is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by AXracer View Post
what these are or what they do or how they're used?
They look interesting, I'd like to know more please.
Cool. :)

http://new.grainger.com/search/grind.../N-i6qZ1z13l16

Wow, most of my "cone and plug grinders" are really old, looks like
they've lowered the RPM ratings on 'em, or something?

Mine are rated at like 33K+ RPMs. LOL :)

----------------------------

This is a Y pipe off a '91 351w that I added 2 more oxygen sensor
bungs to, and just laid out some tools I had out for show and tell...
Click the image to open in full size.
Four grind stones/wheels called "plugs" and a one wire brush and
two of the extensions that MP&C's last-post reminded me of. :)

What's not shown is one of my little 4+1/2" hand grinders that the
extensions work on. Hmmm... they also work on the 9"hand grinder
I got since it's 5/8"-11 threaded too. I only used an extension with
those "plug and cone type" grind stones.

The pictures of the FE exhaust pipe Y is where I opened it up so it
looks like a header's collector inside.

Before it was a short pipe welded to the long pipe that continued
back to the muffler.

The factory torch cut a ragged hole in the long pipe and welded on
the short pipe over it. The torch cut hole was -way- too small to be
anything other than a bad joke! :/

I cut the long pipe off right after the Y junction and opened the side
wall of the long pipe with what ever I could reach in there with but
did a bunch of it (including the finishing work) using a plug type grind
stone and later added the extension to reach farther into the joint.

At that point it could flow like it was supposed to have been able to
do from the start.
Click the image to open in full size.
Click the image to open in full size.
...the weld along the bottom is just where I shrank the size of the
hole to match the 2+1/2" pipe. Was fixin' to weld on a short piece of
3" pipe but changed my mind. :)

Used a Walker "Thrush" straight thru muffler 45" long so it's not real
loud but flows like it's straight piped since the Walker Thrush doesn't
shrink down inside like -every- Cherry Bomb I ever looked thru. ;)

Alvin in AZ
Reply With Quote
  #284
Old 01-15-2013, 03:18 PM
AXracer's Avatar
AXracer AXracer is online now
Post Fiend

Join Date: Oct 2004
Location: Durham NC
Posts: 14,061
AXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to beholdAXracer is a splendid one to behold
Chuck Frank
OK, now it makes sense to me. I thought the y pipe was the extension you were talking about (???) Thanks for clearing up my confusion. Many years ago a friend of mine worked as a welder building headers at a fire truck conversion co. This was in the days of stick welders, before MIG and TIG. To make a Y pipe he would weld the two pipes together without an opening, then crank up the amps on the welder and stick a rod inside the pipe and use it to burn a hole thru.
__________________
Passionate about autocross racing!

1956 F100 Panel "GRACIE"
2007 Solstice GXP racer, the "KRAZED KANARY"
Third place finish 2009 SCCA National Championships
Reply With Quote
  #285
Old 01-27-2013, 01:46 AM
56fromm 56fromm is offline
Freshman User

Join Date: Jan 2013
Posts: 47
56fromm is starting off with a positive reputation.
A rusted nut can be heated with A oxy acetylene torch causing it to expand and break loose the rust holding it on.

Brake fluid is a better penetrating lube then anything in a spray can, sucks on paint though.
Reply With Quote
Old 01-27-2013, 01:46 AM



Reply

Go Back   Ford Truck Enthusiasts Forums > Older, Classic & Antique Trucks > 1948 - 1956 F1, F100 & Larger F-Series Trucks

Tags
2002, 53, bolt, carriage, cooltips, f250, ford, frames, machinist, rails, remove, rusty, tips, trade, tricks, truck

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
E350 wont fire Tnash542 1968-2013 Full Size Vans 1 02-07-2014 09:25 PM
Firewall fuse block short some where. Suggestions wanted. finitetime Pre-Power Stroke Diesel (7.3L IDI & 6.9L) 5 09-26-2013 10:54 PM
I done did it... help? silly34 Modular V8 (4.6L, 5.4L) 7 03-10-2013 12:55 PM
Wiring ? hutch246 1980 - 1986 Bullnose F100, F150 & Larger F-Series Trucks 25 10-01-2012 10:20 AM
'89 5.8L no start, no spark 1nwmike 1987 - 1996 F150 & Larger F-Series Trucks 0 07-28-2012 12:36 PM



All times are GMT -5. The time now is 09:29 PM.


Powered by vBulletin® Version 3.8.7 AC1
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Advertising - Terms of Use - Privacy Statement - Jobs
This forum is owned and operated by Internet Brands, Inc., a Delaware corporation. It is not authorized or endorsed by the Ford Motor Company and is not affiliated with the Ford Motor Company or its related companies in any way. FordŽ is a registered trademark of the Ford Motor Company.

vbulletin Admin Backup
