turn signal flasher relay location

  #1
Old 12-20-2008, 11:40 PM
hammerheads06
hammerheads06 is offline
New User
Thread Starter
Join Date: Dec 2008
Posts: 3
hammerheads06 is starting off with a positive reputation.
turn signal flasher relay location

Hey guys I just traded my motorcycle for a 1965 F100 custom cab and Im going through it and fixing all the P.O.'s little band-aids and i need a little help finding the turn signal flasher location. Thanks in advance.

  #2
Old 12-21-2008, 01:51 AM
dfwrider's Avatar
dfwrider
dfwrider is offline
Junior User
Join Date: Aug 2007
Posts: 86
dfwrider is new and has a neutral reputation at this point.
just replaced mine tonight. found it under the dash, just left of center. a little gold hued metal cylinder around an inch in diameter, maybe 1.5 inches long. It said "FLASHER" right on it. autozone had a compatible one, they had to find it for a 1969, cause their computer didn't show it for 1965. part number was 577 I think...

  #3
Old 12-21-2008, 06:49 AM
NumberDummy's Avatar
NumberDummy
NumberDummy is offline
Ford Parts Specialist
Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 78,459
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
Welcome to FTE

The same turn signal flasher was used 1957/96: SF224.

1967 and later trucks have two flashers, one for the turn signals, another for the emergency flashers.

The emergency flasher is the same thru 1996: SF552B

SF552B can be substituted for SF224. It's a heavy duty flasher, it's used for the turn signals when a trailer towing package is present.

Another reason for using SF552B is....it's louder, which helps peeps that are hard of hearing.


  #4
Old 12-21-2008, 10:38 AM
daveengelson
daveengelson is online now
Post Fiend
Join Date: Aug 2003
Location: Ca
Posts: 5,720
daveengelson has a good reputation on FTE.daveengelson has a good reputation on FTE.daveengelson has a good reputation on FTE.
First and foremost, welcome to FTE, family of Ford truck enthusiast. When time permits, suggest browsing some of the other forums, espcially the 'articles/specs' forum. The flasher unit on my 65 is mounted on the steering column, or brake assembly bracket behind the instrument cluster, or in the general area. Should be able to find a replacement at local Napa, or auto parts store. Posting pic of the circuit you may want to copy, usually only keep the pic's in the online photo album for day or so. Again, welcome to FTE!!

http://i300.photobucket.com/albums/n...WireDiagP7.jpg

  #5
Old 12-21-2008, 06:48 PM
hammerheads06
hammerheads06 is offline
New User
Thread Starter
Join Date: Dec 2008
Posts: 3
hammerheads06 is starting off with a positive reputation.
thanks alot guys, another quick question, whats the button to the far right of the dash that says blinker? just a push button, doesnt do anything when i push it.

  #6
Old 12-21-2008, 07:01 PM
hammerheads06
hammerheads06 is offline
New User
Thread Starter
Join Date: Dec 2008
Posts: 3
hammerheads06 is starting off with a positive reputation.
btw heres a pic of my baby

  #7
Old 12-22-2008, 02:07 AM
NumberDummy's Avatar
NumberDummy
NumberDummy is offline
Ford Parts Specialist
Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 78,459
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
Originally Posted by hammerheads06 View Post
thanks alot guys, another quick question, whats the button to the far right of the dash that says blinker? just a push button, doesnt do anything when i push it.
Prolly an aftermarket emergency flasher unit, or one retrofitted from a 1966, which was the first year Ford offered it.

What it's doing way over on the right side, I dunno. Ford installed the switch on a bracket inside the glove box originally.

Post a pic, please.

  #8
Old 12-22-2008, 10:46 AM
garbz2's Avatar
garbz2
garbz2 is offline
Post Fiend
Join Date: Nov 2000
Location: Glendale Arizona
Posts: 6,038
garbz2 is a name known to allgarbz2 is a name known to allgarbz2 is a name known to allgarbz2 is a name known to allgarbz2 is a name known to allgarbz2 is a name known to all
The blinker button is to flash your roof and trailer clearance lights. A trucking courtesy...

Four ways use a pull on switch with underdash bracket or can be installed in the dash and remote bezel light. for 61 through 66. The add on is a plug and play unit that installs inline with the steering column wiring.

"Another reason for using SF552B is....it's louder, which helps peeps that are hard of hearing." Yep this one i use as i leave the turns on for miles on non loud equipped units.......

Garbz

  #9
Old 03-26-2012, 04:06 PM
twages
twages is offline
New User
Join Date: Mar 2012
Posts: 4
twages is starting off with a positive reputation.
Angry Same Problem

I am having the same problem...
O'reilly told me that the part has been discontinued. The flasher relay.
I have been looking everywhere and have no idea how to fix the break lights and turn signals. Can some one help me? Its on a 1967 F-100

  #10
Old 03-28-2012, 04:06 PM
NumberDummy's Avatar
NumberDummy
NumberDummy is offline
Ford Parts Specialist
Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 78,459
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
Originally Posted by twages View Post
I am having the same problem...
O'reilly told me that the part has been discontinued.

The flasher relay. Its on a 1967 F-100
No such thing as a flasher relay was ever installed on these trucks.

1967: The T/S flasher is located on the backside of the instrument cluster. The 4 way emergency flasher is located adjacent to the radio, nestled into a bracket that screws to the dash.

Both flashers look identical, are round with two spade comnnectors, but the 4 way flasher is a Heavy Duty unit.

Both flashers were used for decades on Passenger Cars/Trucks/Bronco's and Econolines, are available from every autoparts store.

  #11
Old 09-03-2018, 01:30 PM
The Nellie's Avatar
The Nellie
The Nellie is offline
New User
Join Date: Aug 2018
Location: Washington State
Posts: 10
The Nellie is starting off with a positive reputation.
I am in the process of updating Nellie’s lights to LED.

Originally Posted by daveengelson View Post
First and foremost, welcome to FTE, family of Ford truck enthusiast. When time permits, suggest browsing some of the other forums, espcially the 'articles/specs' forum. The flasher unit on my 65 is mounted on the steering column, or brake assembly bracket behind the instrument cluster, or in the general area. Should be able to find a replacement at local Napa, or auto parts store. Posting pic of the circuit you may want to copy, usually only keep the pic's in the online photo album for day or so. Again, welcome to FTE!!

http://i300.photobucket.com/albums/n...WireDiagP7.jpg
Good day-

I tried your link, no luck it states that your image is private.

I am looking into replacing my relay, instead of using a “load equalizer”
Do you have any info on the subject? So far I’ve found that the stock relay is a ?sf244? and sf-248-s sounds like the one for switching to LEDs.
I hope that you and yours have had a wonderful weekend!
Thank you in advance,
Reverend M

  #12
Old 09-03-2018, 01:41 PM
The Nellie's Avatar
The Nellie
The Nellie is offline
New User
Join Date: Aug 2018
Location: Washington State
Posts: 10
The Nellie is starting off with a positive reputation.
Hello and good day to all...

Originally Posted by NumberDummy View Post
Prolly an aftermarket emergency flasher unit, or one retrofitted from a 1966, which was the first year Ford offered it.

What it's doing way over on the right side, I dunno. Ford installed the switch on a bracket inside the glove box originally.

Post a pic, please.
I am unsure about the location of your “blinker switch” from what I’ve read..

I thought I would share what Nellie has as she’s a stock F-256 aka F-260 or on the title she’s a F-2 (part tank/part fighter jet)

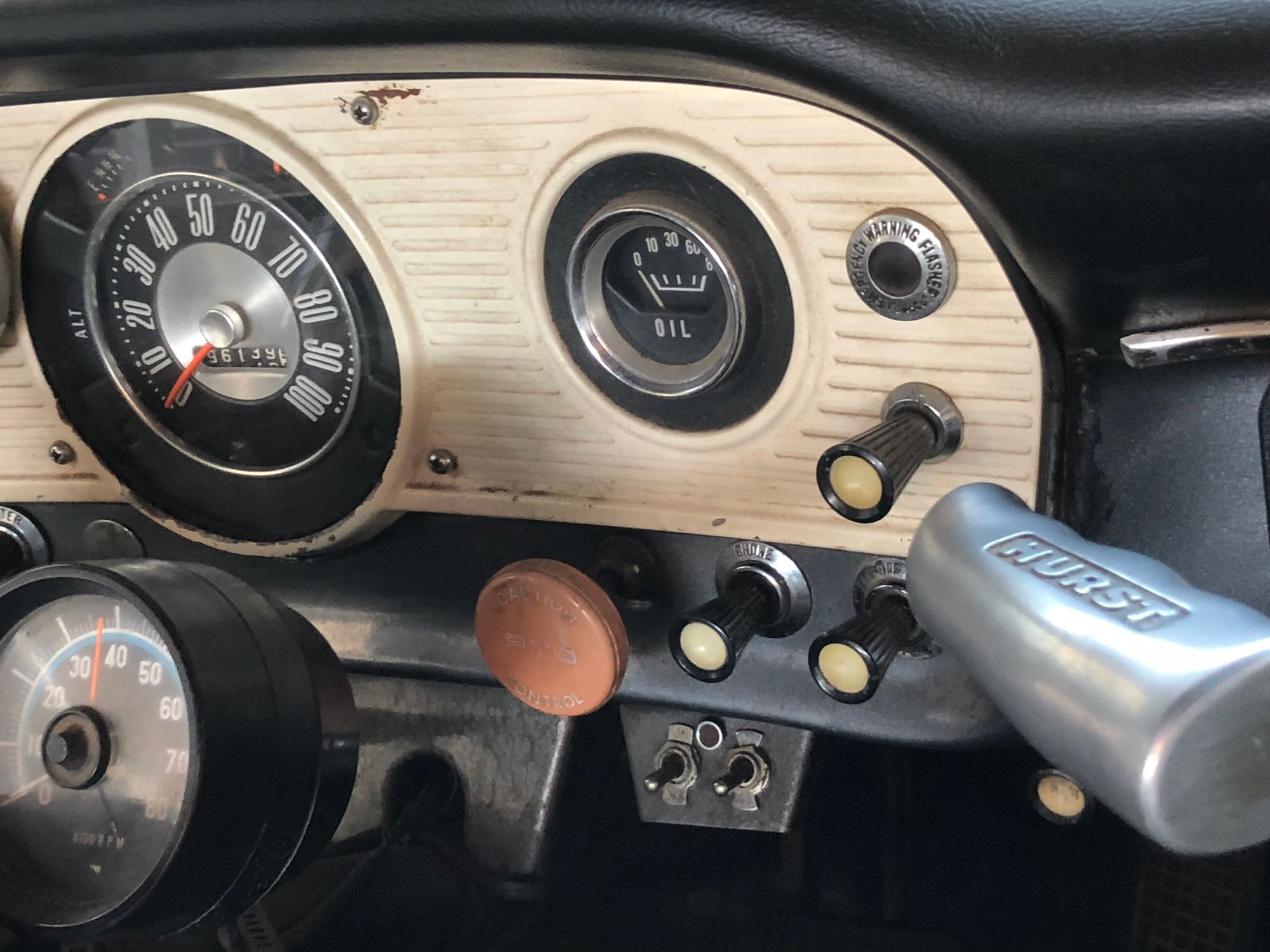

The hazard light switch is mounted from factory in the far right of the instrument gauge panel, directly below a quarter sized red bezel. You pull it out for hazards, red bezel flash’s with the signals, push. it in to turn it off.


Here you are.

  #13
Old 09-03-2018, 01:45 PM
The Nellie's Avatar
The Nellie
The Nellie is offline
New User
Join Date: Aug 2018
Location: Washington State
Posts: 10
The Nellie is starting off with a positive reputation.
Hello and good day to all...

Originally Posted by NumberDummy View Post
Prolly an aftermarket emergency flasher unit, or one retrofitted from a 1966, which was the first year Ford offered it.

What it's doing way over on the right side, I dunno. Ford installed the switch on a bracket inside the glove box originally.

Post a pic, please.
I am unsure about the location of your “blinker switch” from what I’ve read..

I thought I would share what Nellie has as she’s a stock F-256 aka F-260 or on the title she’s a F-2 (part tank/part fighter jet)
The hazard light switch is mounted from factory in the far right of the instrument gauge panel, directly below a quarter sized red bezel. You pull it out for hazards, red bezel flash’s with the signals, push. it in to turn it off. The flasher itself, I have not looked for yet. I’m updating her lighting to LED, so I will know for certain in a couple days. Hope this help you...


Here you are.

  #14
Old 09-03-2018, 03:45 PM
NumberDummy's Avatar
NumberDummy
NumberDummy is offline
Ford Parts Specialist
Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 78,459
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
Originally Posted by The Nellie View Post


I am unsure about the location of your “blinker switch” from what I’ve read..

I thought I would share what Nellie has as she’s a stock F-256 aka F-260 or on the title she’s a F-2 (part tank/part fighter jet)
The hazard light switch is mounted from factory in the far right of the instrument gauge panel, directly below a quarter sized red bezel. You pull it out for hazards, red bezel flash’s with the signals, push. it in to turn it off. The flasher itself, I have not looked for yet. I’m updating her lighting to LED, so I will know for certain in a couple days. Hope this help you...


Here you are.




The OP's truck is a 1965 F100 and from the looks of the pic it's 2WD. Your setup was used with 4WD, so the switch is in a different location.

btw: My post you referenced was typed almost 10 years ago (12/22/2008). I didn't begin posting parts catalog pics until 4/2013.
