In Dash Navigational
Freshman User
Joined: Mar 2004
Posts: 32
Likes: 0
i looked at them too and i agree with you - its just too much - plus i didnt like the fact that i would have add a cd changer too because eclipse unit is a single disc unit - thats the main reason i am intriged about installing an oe unit - you get the navigation and still have a 6 cd changer. there has got to be more than a few super duty owners who would like to do this
Freshman User
Joined: Mar 2004
Posts: 32
Likes: 0
it looks like the oe units are made by pioneer - so if a pioneer after market unit hooks up - you would think you could get the oe unit up and running too. just from pictures - it looks like the 06 explorer unit has the correct mounting tabs too
Freshman User
Joined: Dec 2003
Posts: 37
Likes: 0
From: South Shore, MA
Anything can be done.... it's just a matter of figuring out which wire is which on the harnesses and matching them up correctly.
I'm sure if you can find both wiring diagrams for the navigator and your superduty it would be as simple as cutting and crimping.
I'm sure if you can find both wiring diagrams for the navigator and your superduty it would be as simple as cutting and crimping.
Freshman User
Joined: Mar 2004
Posts: 32
Likes: 0
i hope you are right but my experience with mustangs and super coupes - it just wont be that simple - usually the harness is missing a wire or two - it wasnt so bad in the seventies when the harness was the size of your index finger - now it is the size of your arm
New User
Joined: Aug 2005
Posts: 10
Likes: 0
From: Back in Ft Bragg, NC
I don't want to hijack the thread. I'm just curious if anyone has any pictures of the eclipse or pioneer units mounted in their Super Duty. I have a 2005 SD and I am very interested how one of these units would look.
Thanks
Thanks
Senior User
Joined: Sep 2005
Posts: 177
Likes: 0
Originally Posted by abnchris
I don't want to hijack the thread. I'm just curious if anyone has any pictures of the eclipse or pioneer units mounted in their Super Duty. I have a 2005 SD and I am very interested how one of these units would look.
Thanks
Thanks
Freshman User
Joined: Dec 2003
Posts: 37
Likes: 0
From: South Shore, MA
Well.... I just bit the bullet and picked up the eclipse avn5435.
True it's Eclipse's baseline navigation model... but man, this thing works, looks and sounds amazing. Best $1400 I've ever spent (got the rear camera w/ it as well)
Install took about 3hrs... got the nice easy wiring harness adapter from crutchfield. If you've EVER put in an aftermarket stereo before you WILL NOT have a problem w/ this install. Just take your time and read the destructions.
The toughest part, (and I shouldn't even say toughest... more like time consuming part) is running the GPS antenna wire to the top, and rear view camera wire to the rear of the truck while keeping it outta sight.
All in all, simple install and I wish I had done it sooner.
True it's Eclipse's baseline navigation model... but man, this thing works, looks and sounds amazing. Best $1400 I've ever spent (got the rear camera w/ it as well)
Install took about 3hrs... got the nice easy wiring harness adapter from crutchfield. If you've EVER put in an aftermarket stereo before you WILL NOT have a problem w/ this install. Just take your time and read the destructions.
The toughest part, (and I shouldn't even say toughest... more like time consuming part) is running the GPS antenna wire to the top, and rear view camera wire to the rear of the truck while keeping it outta sight.
All in all, simple install and I wish I had done it sooner.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Freshman User
Joined: Mar 2004
Posts: 32
Likes: 0
been thinking about how to put in an oe unit and came up with this - since the unit is made by pioneer - get the unit and get the repair connector from ford (its the unit connector with flying leads to patch into the main harness - get the pioneer adaper harnesses that they make to install on the thier after market units - make an new harness for the oe unit between the pioneer harness and repair connectors from ford and that way you wont have to hack up the main harness (which just kills me) - this might just work - any thoughts out there???
Senior User
Joined: Sep 2005
Posts: 177
Likes: 0
Originally Posted by tbirdsc
been thinking about how to put in an oe unit and came up with this - since the unit is made by pioneer - get the unit and get the repair connector from ford (its the unit connector with flying leads to patch into the main harness - get the pioneer adaper harnesses that they make to install on the thier after market units - make an new harness for the oe unit between the pioneer harness and repair connectors from ford and that way you wont have to hack up the main harness (which just kills me) - this might just work - any thoughts out there???
Freshman User
Joined: Mar 2004
Posts: 32
Likes: 0
what are the odds that the oem connectors on back of the pioneer oe naviagational unit is the same as the pioneer after marker unit?? slim or non - also - i have not taken out my oe am/fm/6 cd changer - how does it mount - the four tabs on the side or the slider and the two tabs on the bottom???
Junior User
Joined: Sep 2005
Posts: 87
Likes: 0

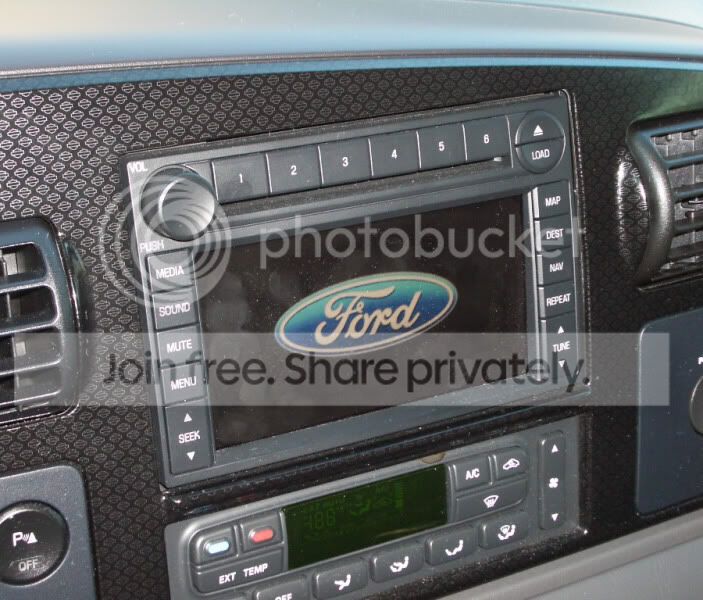

BTDT A year ago I installed the Nav system from a Ford 500 and I had to relocate the brackets to one of the other locations on the head unit and plug in the connectors. The brackets matched up to new holes in the dash so I had to install/relocate the speed nuts. There are a few issues that I have like day/night illumination switch and speed volumn but these look like they are program changes in the HU. You can go into the diagnostic mode and it shows what settings are active and not active but I do not know how to change the programming. I can not find anybody to help with the programming so I manually switch from day to night illumination.
I also installed the Homelink from a donor sunvisor from vehicle x into my overhead console. My console is small and only has the map lights and sunroof switches. Now I can control the gate at work and either of the doors at home.
I also installed the Homelink from a donor sunvisor from vehicle x into my overhead console. My console is small and only has the map lights and sunroof switches. Now I can control the gate at work and either of the doors at home.
Mountain Pass
Joined: Jun 2005
Posts: 152
Likes: 4
Originally Posted by pachangalpina
BTDT A year ago I installed the Nav system from a Ford 500...
