Generator vs Alternator
Thread Starter
|
Mountain Pass
Joined: Dec 2017
Posts: 124
Likes: 53

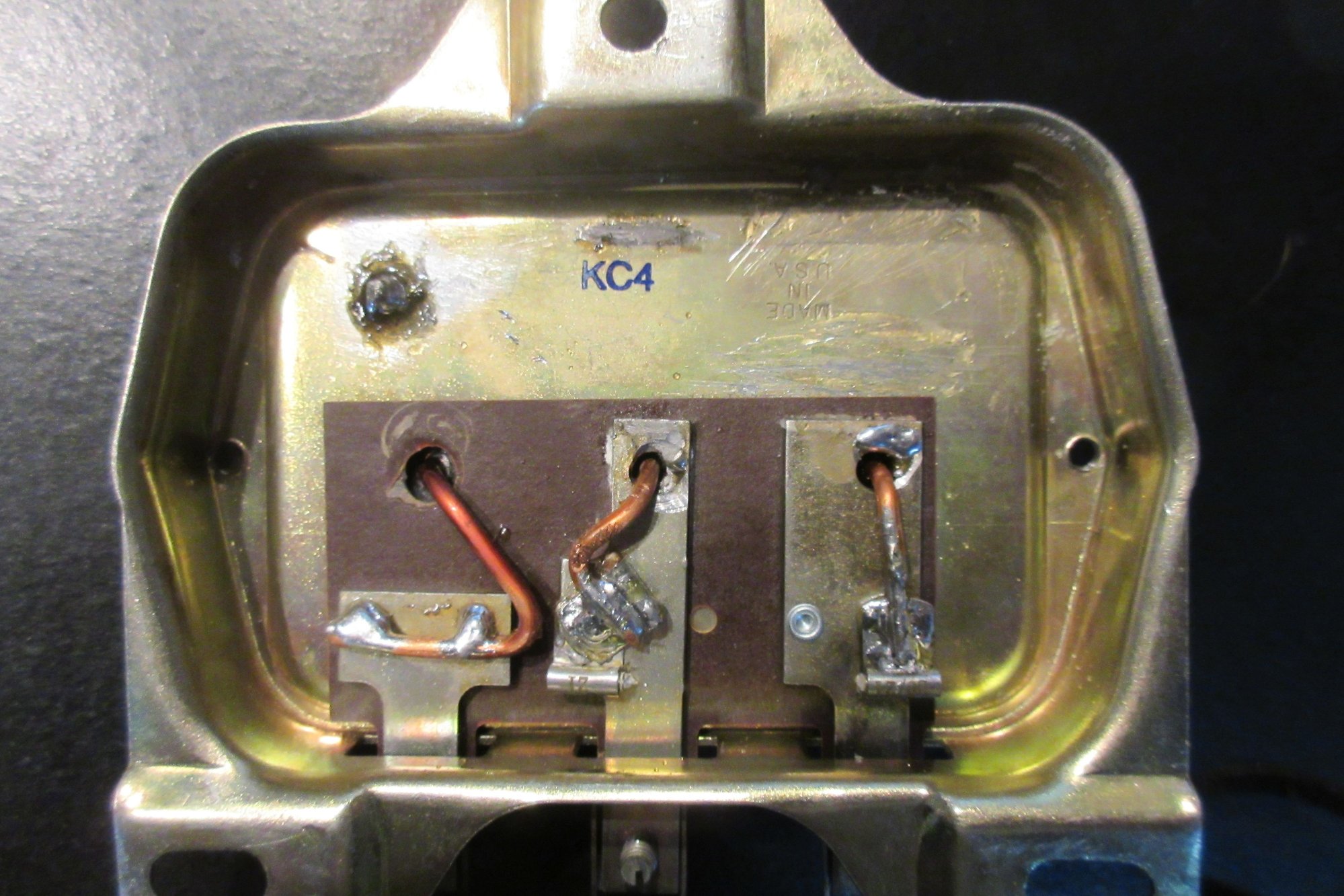

Okay my friends, here is the photo of the 6 volt pos ground regulator that my friend made up out of another regulator. This one is solid state with a circuit board and diodes. As I said it has been bench tested with positive results. I should have my 49 F1 back from winter storage by the end of next week and we are going to give it a try. I will let you know how it goes
Fleet Mechanic
Joined: Sep 2018
Posts: 1,520
Likes: 532
Mountain Pass
Joined: Nov 2007
Posts: 185
Likes: 80
looks professional and very cool! Is SJB someones initials? and does "REV 4" mean 4th revision?
The only other thing it needs is "6V Pos Gnd" printed on the circuit board. Well done, I hope it works! Your gonna need a clear cover to show it off !
The only other thing it needs is "6V Pos Gnd" printed on the circuit board. Well done, I hope it works! Your gonna need a clear cover to show it off !
Thread Starter
|
Mountain Pass
Joined: Dec 2017
Posts: 124
Likes: 53
I am in Auburn, one town west of Worcester
Thread Starter
|
Mountain Pass
Joined: Dec 2017
Posts: 124
Likes: 53
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Hotshot
Joined: Oct 2009
Posts: 16,155
Likes: 4,754
From: Burbank, WA
Thread Starter
|
Mountain Pass
Joined: Dec 2017
Posts: 124
Likes: 53
Generator and alternator regulators are different. Solid state alternator regulators have been around for decades. Having something custom made just for our old trucks like this is pretty cool. https://www.partsgeek.com/8bqx4rn-fo...a93aab739f8466
Thread Starter
|
Mountain Pass
Joined: Dec 2017
Posts: 124
Likes: 53
Solid state regulator
Okay guys, I had posted earlier about the solid state regulator for my 6 volt pos ground 49 Ford F1. A friend of mine who is a retired professor from WPI college in Worcester Ma developed a circuit board solid state regulator for my truck. . I got the truck out of winter storage this past weekend and installed it with no problems. I took it out and have test driven it both day and night time with fantastic charging results. A question was asked on this forum as to how it would handle the extra heat under the hood. It was constructed with high temp automotive diodes so there should not be any problems. Since I installed it I haven't had to use the knife switch disconnect on the battery since. So far I am impressed with it
Cargo Master
Joined: Jan 2004
Posts: 2,196
Likes: 351
From: Mandan, ND
Hats off to your friend for making this, and you for trying it out. Shaping up to be a viable solution for bad regulators. I have a couple original Fomoco ones, one I cosmetically restored , internals not tested.
Parts Nerd Extraordinaire
Joined: Sep 2010
Posts: 4,347
Likes: 1,772
From: Western NY
A properly functioning regulator will disconnect the battery from the charging system at rest, thus your symptoms are indicative of a regulator issue.
Fleet Mechanic
Joined: Sep 2018
Posts: 1,520
Likes: 532
Okay guys, I had posted earlier about the solid state regulator for my 6 volt pos ground 49 Ford F1. A friend of mine who is a retired professor from WPI college in Worcester Ma developed a circuit board solid state regulator for my truck. . I got the truck out of winter storage this past weekend and installed it with no problems. I took it out and have test driven it both day and night time with fantastic charging results. A question was asked on this forum as to how it would handle the extra heat under the hood. It was constructed with high temp automotive diodes so there should not be any problems. Since I installed it I haven't had to use the knife switch disconnect on the battery since. So far I am impressed with it
Parts Nerd Extraordinaire
Joined: Sep 2010
Posts: 4,347
Likes: 1,772
From: Western NY
A few technical questions...
What is the theory of operation?
Does it simply drive the generator at a constant and then raise/lower the BAT terminal voltage?
What is the frequency range and/or shape of the Field terminal signal?
What are the capacitance limits (ie for Radio noise suppression etc) on the Arm terminal?
What is the current limit? Is it adaptable to the different Ford/Mercury generator options (I see no configuration components such as jumpers or dip switches)?
What is the theory of operation?
Does it simply drive the generator at a constant and then raise/lower the BAT terminal voltage?
What is the frequency range and/or shape of the Field terminal signal?
What are the capacitance limits (ie for Radio noise suppression etc) on the Arm terminal?
What is the current limit? Is it adaptable to the different Ford/Mercury generator options (I see no configuration components such as jumpers or dip switches)?
