alternator splash shield pic request
Thread Starter
|
Tuned
Joined: May 2020
Posts: 292
Likes: 21
alternator splash shield pic request
Hello all! I have a 1977 F100. Does anyone have a picture of a correctly installed alternator splash shield? A view from up top would be great, but a variety of pictures would be even greater! I would like to install mine the right way before winter. Thanks so much!
Thread Starter
|
Tuned
Joined: May 2020
Posts: 292
Likes: 21

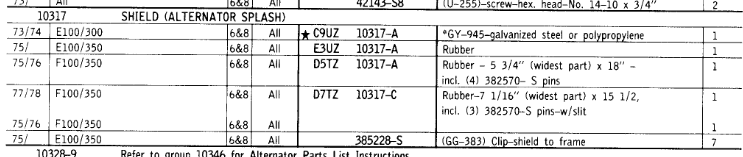

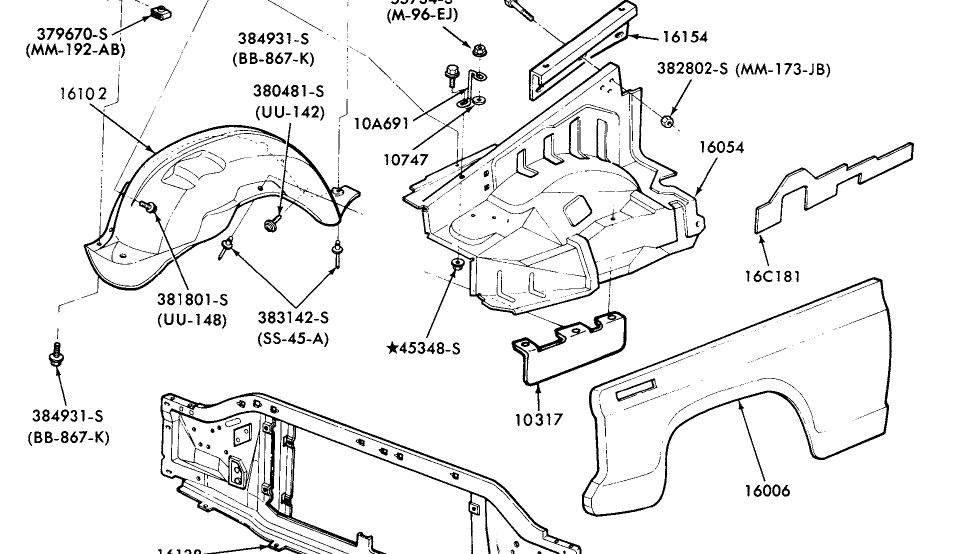

ok thanks...reading your chart, in 73/74 these shields were galvanized steel or plastic. In 75 they switched to rubber. I'm assuming they all installed in a similar fashion. Sorry about the picture I posted. I found it online. I too think it's upside down which is why I couldn't figure it out initially. The shield I bought is rubber. It looks like (according to your diagram) the tabs fold down and I assume the plastic pins go in from the top. Hopefully, I can figure it out and do it right. Thanks for the pics. I hope other pics are posted by other members.
Logistics Pro
Joined: Oct 2006
Posts: 4,028
Likes: 890
From: East Central Ia
Trending Topics
Tuned
Joined: Oct 2021
Posts: 291
Likes: 59
From: Willamette Valley
ok thanks...reading your chart, in 73/74 these shields were galvanized steel or plastic. In 75 they switched to rubber. I'm assuming they all installed in a similar fashion. Sorry about the picture I posted. I found it online. I too think it's upside down which is why I couldn't figure it out initially. The shield I bought is rubber. It looks like (according to your diagram) the tabs fold down and I assume the plastic pins go in from the top. Hopefully, I can figure it out and do it right. Thanks for the pics. I hope other pics are posted by other members.
And then I realise I actually still have one on my truck and it never really registered!
I see one of my attaching holes is torn....i'll have to get to fixin that, although I'm not sure that the shield does a whole lot. Maybe cuts wheel splash a bit.
This is on a 77 RWD 460
