Ecu pin out

I need a pin out for the ecu in my 1983 f150 4wd 5.0l 302

Reply

Old

Mar 28, 2022 | 02:04 PM

#2

Franklin2

Moderator

Joined: Jan 2001

Posts: 56,977

Likes: 2,734

From: Virginia

Club FTE Gold Member

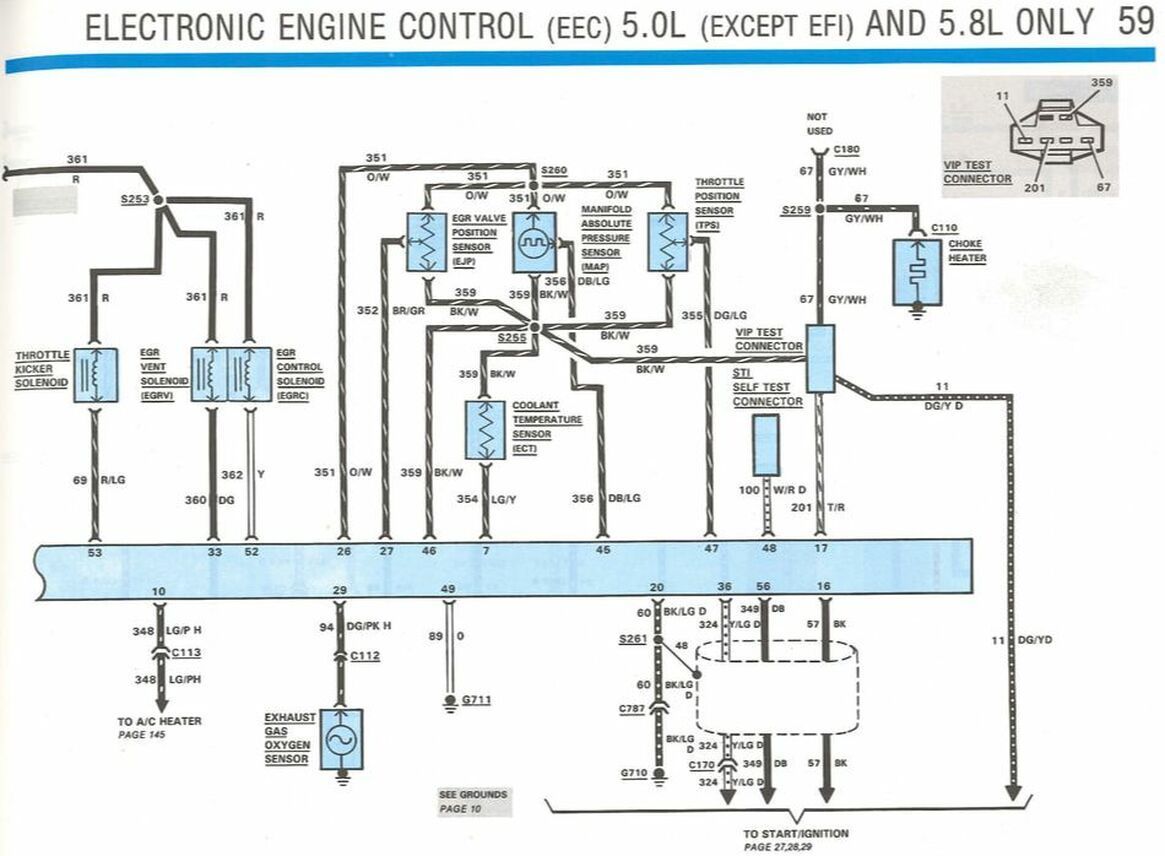

Here's a 1985. Should be very similar to yours.

Reply

Old

Mar 28, 2022 | 02:05 PM

#3

Franklin2

Moderator

Joined: Jan 2001

Posts: 56,977

Likes: 2,734

From: Virginia

Club FTE Gold Member

Here is the rest of it.

Reply

Old

Mar 28, 2022 | 02:09 PM

#4

Franklin2

Moderator

Joined: Jan 2001

Posts: 56,977

Likes: 2,734

From: Virginia

Club FTE Gold Member

The above was if you have a EECIV. If you have EECIII, here is a manual for a 1984 EECIII system.

https://www.garysgaragemahal.com/ele...ntrol-eec.html

Reply

Old

Mar 28, 2022 | 02:18 PM

#5

Franklin2

Moderator

Joined: Jan 2001

Posts: 56,977

Likes: 2,734

From: Virginia

Club FTE Gold Member

I just answered your other question about the sensor on the crankshaft. You might have the EECIII. Look on the sticker on the radiator top. It should have info about your truck, and say EECIII if that is what it has.
