Missed a connection

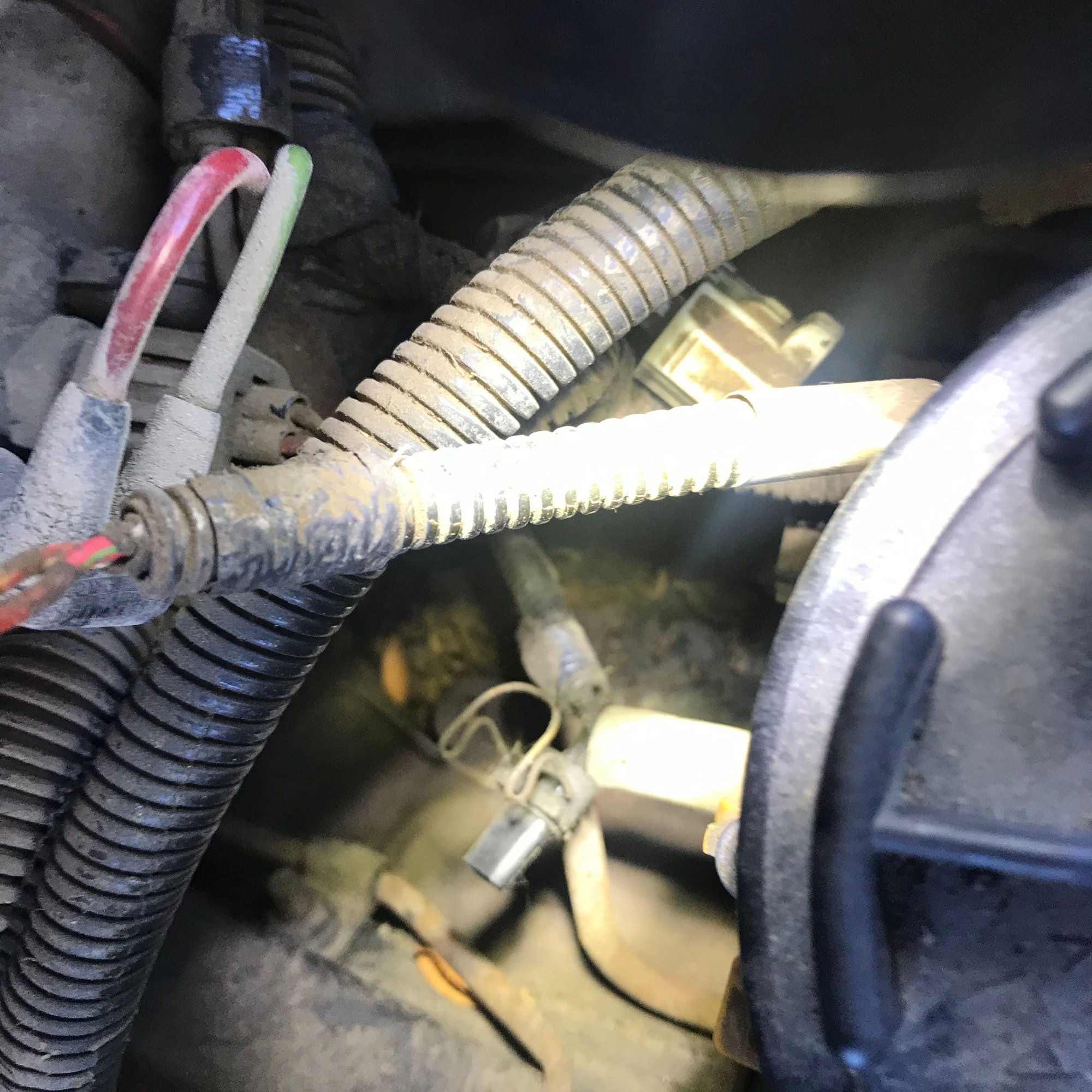

Hi guys. I just got done replacing the injectors on my '99 last night. After I got done I gave it a once over and noticed I missed a connection that I can't find it's home. It comes from the wiring harness right in front of the turbo, the one in the middle of the picture with the clip. Thought I'd check here before I started tearing things back apart.
Thanks
FTE Leadership Emeritus
Joined: May 2014
Posts: 27,346
Likes: 5,941
From: Lake Hartwell, GA
Originally Posted by Colorado350
Fuel bowl heater, looks like it’s in the right location
That is either the IPR or the EBPV plug. The fuel bowl heater does not have a capture wire like the one in the image posted by Stymied1. In addition, this connector works for injectors as well. A lot of times people will take an old injector UVCH pigtail/connector and use it to apply 12v to an IPR during a HPOP dead head test. I sent one of these to FTE'r AndyM when his Excursion took a lightning strike.

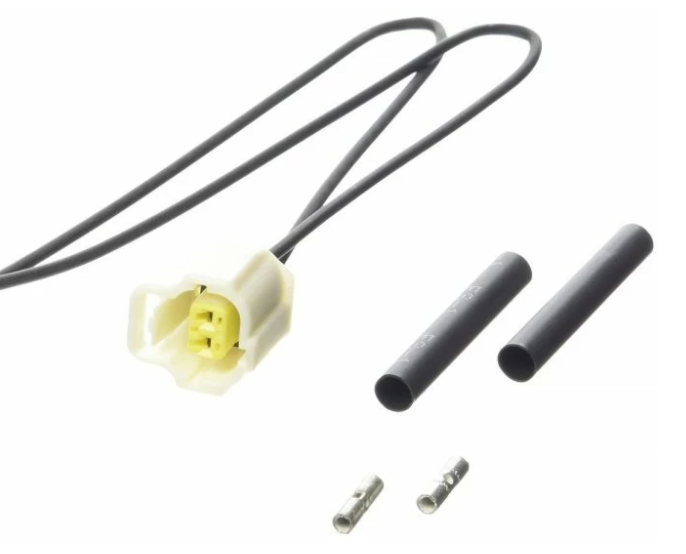

Fuel bowl heater pigtail/connector...
Source: https://www.riffraffdiesel.com/water...ail-wif-99-03/

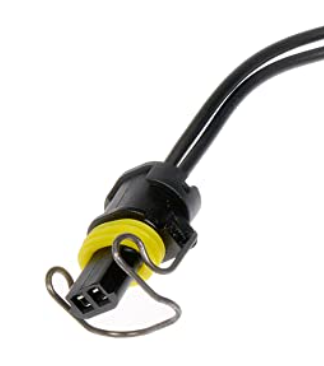

IPR pigtail/connector...
Source: https://www.riffraffdiesel.com/allia...xoC8KMQAvD_BwE
Cargo Master
Joined: Oct 2007
Posts: 2,712
Likes: 107
From: BoCoMo
It is not the fuel bowl heater connector as Sous points out....
But this is a good time to suggest.... unhook the fuel bowl connection... (it almost falls off) don't need it, and if the heating element burns out, fuse #30 blows and truck will not run. This fuel bowl sensor connection is also for the 'water in fuel' sensor. If one 'wants' the 'water in fuel' sensor and not have to worry about the heating element burning in half and leaving you on the side of the road, you can take a little time in the garage and take the fuel bowl filter out and unplug the wire in the bowl and never worry about it again (like.... Who worries about a fuel bowl heating element??? yep, no body.. until it breaks)
But this is a good time to suggest.... unhook the fuel bowl connection... (it almost falls off) don't need it, and if the heating element burns out, fuse #30 blows and truck will not run. This fuel bowl sensor connection is also for the 'water in fuel' sensor. If one 'wants' the 'water in fuel' sensor and not have to worry about the heating element burning in half and leaving you on the side of the road, you can take a little time in the garage and take the fuel bowl filter out and unplug the wire in the bowl and never worry about it again (like.... Who worries about a fuel bowl heating element??? yep, no body.. until it breaks)
Thread Starter
|
4wd Low
Joined: Oct 2020
Posts: 13
Likes: 0
Thanks guys, I haven't gotten back out to look at it again, but It's not the fuel bowl heater,. That's the white one that Sous shows. I already had it unhooked from leaving me stranded at work a few years ago.
