I6 4.9 manifold bolt and stud sizes

Guys, I am trying to find the sizes of bolts connecting the I6 4.9L intake and exhaust manifolds together. These would be fairly long bolts that go through the intake and screw into the top of the exhaust manifold.

I also need the size of the studs that go from exhaust manifold to exhaust inlet pipe/exhaust.

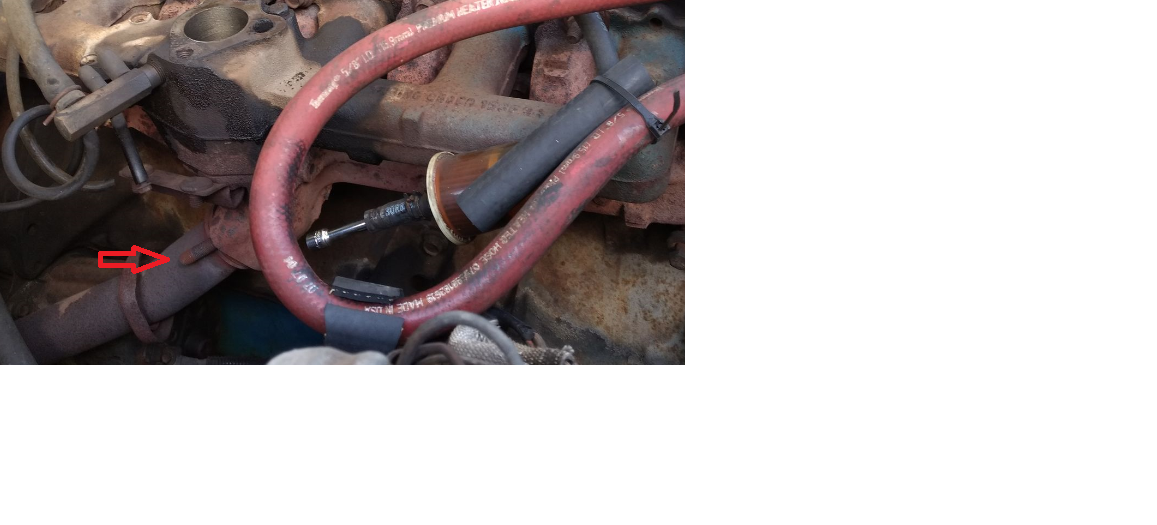

See pictures for the bolts/studs I'm looking for dimensions for.
