Screw in studs and guide plates

Reply



Thread Tools Search this Thread
  #1
Old 12-28-2017, 12:32 AM
Ron/RPMS Ron/RPMS is offline
Senior User
Thread Starter

Join Date: Dec 2008
Posts: 129
Ron/RPMS is starting off with a positive reputation.
Screw in studs and guide plates

Did a search and did'nt find the answer.
Do they make a dedicated guide plate for the 300 EFI head or do you need to buy the adjustable ones or split and weld SBF ones?


I will be mill pedestal and tap 7/16-14 and probably use the earlier rockers.
I may try the 1.73 chevy rocker later, but will check for push rod clearance on mock up.

thanks ron...............
Reply With Quote
  #2
Old 12-28-2017, 11:05 AM
AbandonedBronco's Avatar
AbandonedBronco AbandonedBronco is offline
Moderator

Join Date: Dec 2007
Location: Boise, Idaho
Posts: 6,577
AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.
These are what is used stock. For some reason, they only sell them for the V8s in a set of 16, but they're the same and I used them on my pedestal rockers (you'll just have 2 left over).

https://www.summitracing.com/parts/f...UaAlx8EALw_wcB






If this isn't what you're looking for, maybe I misunderstood.
Reply With Quote
  #3
Old 12-28-2017, 12:25 PM
Ron/RPMS Ron/RPMS is offline
Senior User
Thread Starter

Join Date: Dec 2008
Posts: 129
Ron/RPMS is starting off with a positive reputation.
I am going to convert my head to an adjustable valve train and I was looking for guide plates like these for the 300.

Ford Performance Parts M-6566-D311 - Ford Performance Parts

Thanks for the reply.
Reply With Quote
  #4
Old 12-28-2017, 12:34 PM
AbandonedBronco's Avatar
AbandonedBronco AbandonedBronco is offline
Moderator

Join Date: Dec 2007
Location: Boise, Idaho
Posts: 6,577
AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.
Oh I gotcha now.

Yeah, if I recall right, the EFI head has round pushrod holes (which can be nice since you can install larger diameter pushrods if you so choose). The older heads (like mine that I converted to screw in adjustable rockers) have square holes which keep the pushrods lined up (but then limit them to 5/16").

If that's the case, I can't help you there since I didn't need them for my build.
However, if the pedestal rocker channels for the 302 work on the 300, then I would think the guide plates would as well.

Maybe someone here who's used them will chime in.
Reply With Quote
  #5
Old 12-28-2017, 12:46 PM
old28's Avatar
old28 old28 is offline
Junior User

Join Date: May 2017
Location: Southern CA
Posts: 68
old28 is starting off with a positive reputation.

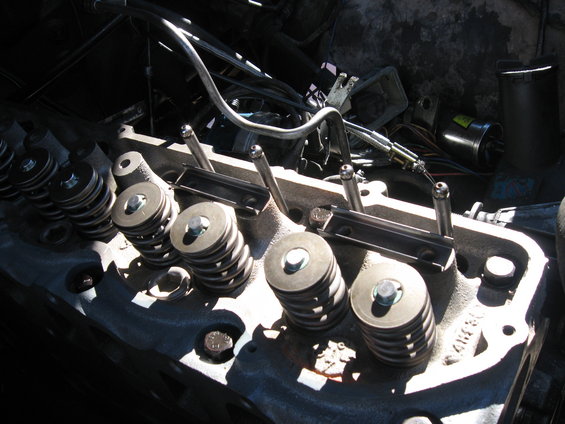

I am currently installing 7/16" screw in rocker studs in my 1992 EFI head that has round hole where the push rod come through the head. As you know already you will need guide plates to make the system work.

I am using a set of Comp Cam SBC adjustable guide plates that are tacked welded. They are #4835-8, $59 at Summit. They are for 5/16" push rods. Remember you must run heat treated hardend push rods with the guide plates.

Reply With Quote
  #6
Old 12-28-2017, 01:22 PM
AbandonedBronco's Avatar
AbandonedBronco AbandonedBronco is offline
Moderator

Join Date: Dec 2007
Location: Boise, Idaho
Posts: 6,577
AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.AbandonedBronco has a great reputation on FTE.
It looks like O'Reilly carries guide plates for the 302 (Melling MGP1084), so maybe you could pick one up at a parts store and see if it fits? Getting one locally would be nice for sizing it up, and for returning it if it doesn't work. (Or even if it does work and then order a full set on line since they're $13 each.)
Reply With Quote
  #7
Old 12-28-2017, 02:12 PM
fordman75 fordman75 is online now
Postmaster

Join Date: Dec 2000
Location: South central, Minnesota
Posts: 4,449
fordman75 has a great reputation on FTE.fordman75 has a great reputation on FTE.fordman75 has a great reputation on FTE.fordman75 has a great reputation on FTE.fordman75 has a great reputation on FTE.fordman75 has a great reputation on FTE.
Don't forget about changing to hardened push rods too.
Reply With Quote
  #8
Old 12-29-2017, 07:13 PM
old28's Avatar
old28 old28 is offline
Junior User

Join Date: May 2017
Location: Southern CA
Posts: 68
old28 is starting off with a positive reputation.
Ron/RPMS -- Did you get what you were looking for or do we need to

get a little more information out there.
Reply With Quote
  #9
Old 12-29-2017, 11:07 PM
Ron/RPMS Ron/RPMS is offline
Senior User
Thread Starter

Join Date: Dec 2008
Posts: 129
Ron/RPMS is starting off with a positive reputation.
Thanks guys for the information given. The multi quote option never seems to work for me so I will go back and answer each post.
Reply With Quote
  #10
Old 12-29-2017, 11:14 PM
Ron/RPMS Ron/RPMS is offline
Senior User
Thread Starter

Join Date: Dec 2008
Posts: 129
Ron/RPMS is starting off with a positive reputation.
Quote:
Originally Posted by AbandonedBronco View Post




However, if the pedestal rocker channels for the 302 work on the 300, then I would think the guide plates would as well.
Yes I check the channels with a set of 302 heads I have, and they appear to be the same, but in the past I have had to cut 302 plates to make them line up. I'm leaning toward the adjustable right now. thanks
Reply With Quote
  #11
Old 12-29-2017, 11:22 PM
Ron/RPMS Ron/RPMS is offline
Senior User
Thread Starter

Join Date: Dec 2008
Posts: 129
Ron/RPMS is starting off with a positive reputation.
Quote:
Originally Posted by old28 View Post
I am currently installing 7/16" screw in rocker studs in my 1992 EFI head that has round hole where the push rod come through the head. As you know already you will need guide plates to make the system work.

I am using a set of Comp Cam SBC adjustable guide plates that are tacked welded. They are #4835-8, $59 at Summit. They are for 5/16" push rods. Remember you must run heat treated hardend push rods with the guide plates.

This is most likely the way I will go. Just need to decide on weather to go with early model 300 rockers or chebby 250-6 rockers. When i mock up for the plates I'll look at the geometry of the different rockers. thanks
Reply With Quote
  #12
Old 12-30-2017, 03:20 PM
old28's Avatar
old28 old28 is offline
Junior User

Join Date: May 2017
Location: Southern CA
Posts: 68
old28 is starting off with a positive reputation.
Ron/RPMS -- Glad you got what you needed to make the modification to screw in studs.

Keep in mind that if you drill/tap the pedestals for 7/16-14 threads you can install 7/16 x 7/16 or 3/8 x 7/16 screw in studs. Maybe the 3/8 type for a stock cam & springs and 7/16 later with a bigger cam and higher lift springs.

I know we have said it more than once but you must replace your stock push rods with hardened/heat treated units when you use guide plates.

Might want to try a set of stamped steel 250/292 chevy 1.75 x 3/8 rockers with your current cam for a little low dollar power gain. With your pedestals taped for 7/16 you can switch to straight 7/16 studs if you want to use BBC 1.7 ratio roller rockers with a big lift cam & springs.
Reply With Quote
  #13
Old 01-02-2018, 06:21 PM
BaronVonAutomatc's Avatar
BaronVonAutomatc BaronVonAutomatc is offline
Postmaster

Join Date: Mar 2005
Location: Earth
Posts: 2,867
BaronVonAutomatc is gaining momentum as a positive member of FTE.
Rather than milling pedestals on a later model head, just find an older head with studs and the pushrod slots are machined so no need for guideplates.
Reply With Quote
  #14
Old 01-02-2018, 06:29 PM
fordman75 fordman75 is online now
Postmaster

Join Date: Dec 2000
Location: South central, Minnesota
Posts: 4,449
fordman75 has a great reputation on FTE.fordman75 has a great reputation on FTE.fordman75 has a great reputation on FTE.fordman75 has a great reputation on FTE.fordman75 has a great reputation on FTE.fordman75 has a great reputation on FTE.
Quote:
Originally Posted by BaronVonAutomatc View Post
Rather than milling pedestals on a later model head, just find an older head with studs and the pushrod slots are machined so no need for guideplates.
You still need to mill and tap them for screw in studs. Unless you just pin them.
Reply With Quote
  #15
Old 01-02-2018, 07:05 PM
BaronVonAutomatc's Avatar
BaronVonAutomatc BaronVonAutomatc is offline
Postmaster

Join Date: Mar 2005
Location: Earth
Posts: 2,867
BaronVonAutomatc is gaining momentum as a positive member of FTE.
Well, it's nice insurance on a street engine but unless you're running 300lb valve springs for some reason probably not required.
Reply With Quote
