63 F100 223 carb Frustration

Reply



Thread Tools Search this Thread
  #1
Old 06-02-2017, 02:39 PM
Wolfracing Wolfracing is offline
Senior User
Thread Starter

Join Date: Sep 2013
Posts: 331
Wolfracing is gaining momentum as a positive member of FTE.Wolfracing is gaining momentum as a positive member of FTE.
63 F100 223 carb Frustration

I have a carb issue that I must just be not very smart about. It won't run without the choke on after the long winter. I knew we were getting crud in the needle and seat. So I stripped out the old rubber fuel line and put new in, as it was really brittle, and I figured that's where it was coming from. There's a lot more rubber line than I care for, but I will have to correct that later.

So I spray everywhere looking for vacuum leaks. Nothing. I plugged the distributer vac line and that didn't help. I plugged the big vacuum line to the, well the thingy. I don't know what this canister is at the rear of the engine with a vacuum line going to it. But it didn't help.

I ordered a rebuild kit, and stripped the carb off. Gaskets LOOK good for what that is worth. Well the rebuild kit is wrong so I can't work on that carb. But what in the world can be causing this. The carb doesn't appear to be all that old.


Reply With Quote
  #2
Old 06-02-2017, 03:09 PM
Wolfracing Wolfracing is offline
Senior User
Thread Starter

Join Date: Sep 2013
Posts: 331
Wolfracing is gaining momentum as a positive member of FTE.Wolfracing is gaining momentum as a positive member of FTE.
I seem to be getting fuel from the pump in plenty of supply. The mixture screw seemed to have no affect on how it would run.
Reply With Quote
  #3
Old 06-02-2017, 03:57 PM
Tedster9's Avatar
Tedster9 Tedster9 is online now
Post Fiend

Join Date: Apr 2002
Location: Waterloo, Iowa
Posts: 11,160
Tedster9 has a superb reputationTedster9 has a superb reputationTedster9 has a superb reputationTedster9 has a superb reputationTedster9 has a superb reputationTedster9 has a superb reputationTedster9 has a superb reputationTedster9 has a superb reputationTedster9 has a superb reputationTedster9 has a superb reputationTedster9 has a superb reputation
Tough to say from here, but the fact that it won't idle or run without the choke in definitely points to a vacuum leak somewhere.
Reply With Quote
  #4
Old 06-02-2017, 04:31 PM
NumberDummy's Avatar
NumberDummy NumberDummy is online now
Ford Parts Specialist

Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 70,715
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
Quote:
Originally Posted by Wolfracing View Post
I have a carb issue that I must just be not very smart about. It won't run without the choke on after the long winter. I knew we were getting crud in the needle and seat. So I stripped out the old rubber fuel line and put new in, as it was really brittle, and I figured that's where it was coming from. There's a lot more rubber line than I care for, but I will have to correct that later.

So I spray everywhere looking for vacuum leaks. Nothing. I plugged the distributer vac line and that didn't help. I plugged the big vacuum line to the, well the thingy.

I don't know what this canister is at the rear of the engine with a vacuum line going to it. But it didn't help.

I ordered a rebuild kit, and stripped the carb off. Gaskets LOOK good for what that is worth.

Well the rebuild kit is wrong so I can't work on that carb. But what in the world can be causing this. The carb doesn't appear to be all that old.

1963/64 F100 223 I-6 originally came with the Auto-Lite 1100 series 1V carb.

There were two versions, one for A/T .. t'other for M/T .. but the carb kit (C3AZ-9A586-F / Motorcraft CT-188) is the same for both.

This carb kit is also the same for 1963/64 Galaxie 223 I-6.

btw: I have no idea what the canister with the vacuum line leading from it at the rear of the engine is for, but it wasn't there originally.

It might be a vacuum reservoir, especially if it's shaped like a coffee can, but no F100/350 has one of these until the 1973 and then only with factory A/C
Reply With Quote
  #5
Old 06-02-2017, 09:11 PM
Wolfracing Wolfracing is offline
Senior User
Thread Starter

Join Date: Sep 2013
Posts: 331
Wolfracing is gaining momentum as a positive member of FTE.Wolfracing is gaining momentum as a positive member of FTE.
The line that goes to the canister goes from the intake under the carb to a line that is attached to a bracket that looks factory and shares the mount for the throttle linkage. The canister is maybe 4" in diameter and at least twice that tall.

Are the intake gaskets known for leaking on these?
Reply With Quote
  #6
Old 06-02-2017, 09:17 PM
Wolfracing Wolfracing is offline
Senior User
Thread Starter

Join Date: Sep 2013
Posts: 331
Wolfracing is gaining momentum as a positive member of FTE.Wolfracing is gaining momentum as a positive member of FTE.
It does look like the autolite with a manual choke to me.
Reply With Quote
  #7
Old 06-02-2017, 09:19 PM
NumberDummy's Avatar
NumberDummy NumberDummy is online now
Ford Parts Specialist

Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 70,715
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
Quote:
Originally Posted by Wolfracing View Post
The line that goes to the canister goes from the intake under the carb to a line that is attached to a bracket that looks factory and shares the mount for the throttle linkage. The canister is maybe 4" in diameter and at least twice that tall.

Are the intake gaskets known for leaking on these?
Truck is 54 years old, how long has the gasket been in place? Nothing lasts forever.
I don't care what it's for or where the line goes, the canister was not there originally.

No I-6 or V8 truck of this vintage came with a canister, vacuum reservoir or otherwise.

1960's and later Passenger Cars with A/C and/or Speed Control have vacuum reservoirs, some are shaped like a coffee can.

If yours resembles a coffee can and has 1 or 2 nipples used for vacuum hoses on the top dead center, this may be what it's from.

Otherwise I haven't a clue...until you post a pic of it.
Reply With Quote
  #8
Old 06-03-2017, 06:17 AM
Wolfracing Wolfracing is offline
Senior User
Thread Starter

Join Date: Sep 2013
Posts: 331
Wolfracing is gaining momentum as a positive member of FTE.Wolfracing is gaining momentum as a positive member of FTE.


I don't think it has anything to do with my troubles. But it certainly is a curiosity to me. I probably didn't describe it well.
Reply With Quote
  #9
Old 06-03-2017, 06:20 AM
Wolfracing Wolfracing is offline
Senior User
Thread Starter

Join Date: Sep 2013
Posts: 331
Wolfracing is gaining momentum as a positive member of FTE.Wolfracing is gaining momentum as a positive member of FTE.

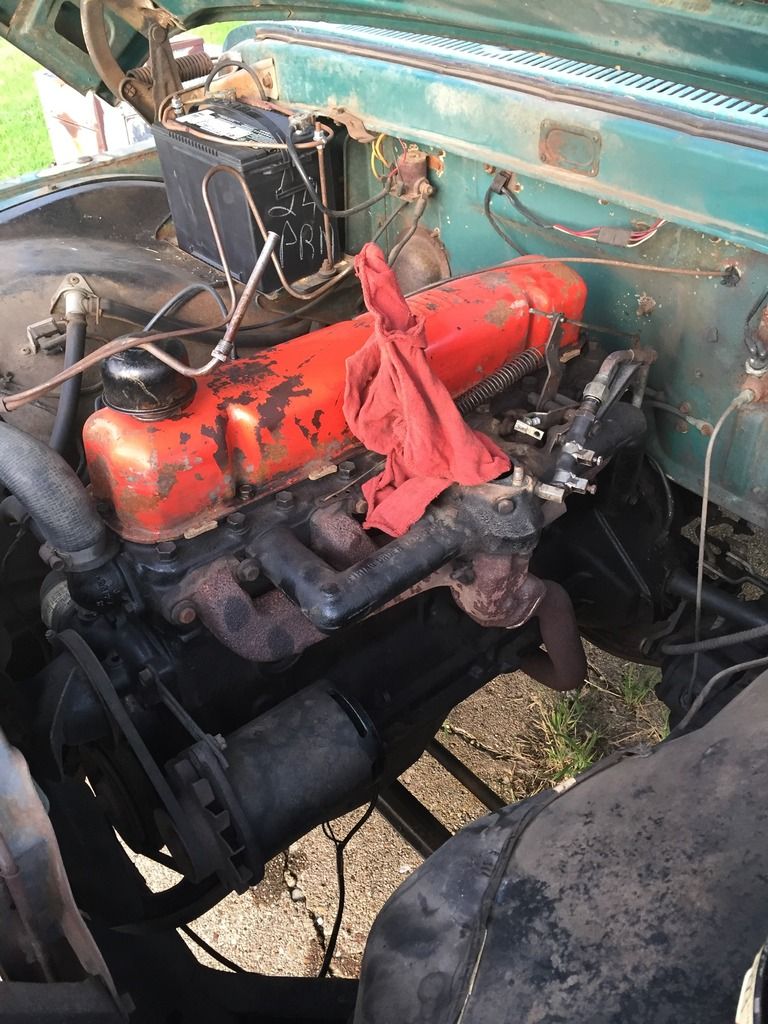

Overall view
