Engine bay pics

I'm looking for some pics of a 351 windsor engine bay. I'm missing some stuff but wanna see an almost to full complete engine bay. I have a 77 f150 2wd
Reply With Quote
  #2
Old 01-11-2017, 09:36 PM
HIO Silver's Avatar
HIO Silver HIO Silver is offline
Post Fiend

Join Date: Dec 2009
Location: NorCal
Posts: 19,947
HIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud of
Quote:
Originally Posted by Brett McNeill View Post
I'm looking for some pics of a 351 windsor engine bay. I'm missing some stuff but wanna see an almost to full complete engine bay. I have a 77 f150 2wd
Good luck with that! 351W engines swapped into a Dent will be slim pickings because these trucks weren't offered with a 351W.

How about a 302 Windsor? It'll only be missing about one inch of deck height.

Are you sure ya know what ya got???
Reply With Quote
  #3
Old 01-12-2017, 12:16 AM
tonymontanna1983's Avatar
tonymontanna1983 tonymontanna1983 is offline
Senior User

Join Date: Oct 2008
Posts: 130
tonymontanna1983 is starting off with a positive reputation.
Name:  37F356F9-4212-4343-BB6C-3658F6EBCF29-20182-000021781A280338.jpg
Views: 41
Size:  114.3 KB




That's not what you had in mind, is it? ^^^^^^^^^^^^^^^
Reply With Quote
  #4
Old 01-12-2017, 09:26 PM
Brett McNeill Brett McNeill is offline
New User
Thread Starter

Join Date: Jan 2017
Posts: 17
Brett McNeill is starting off with a positive reputation.

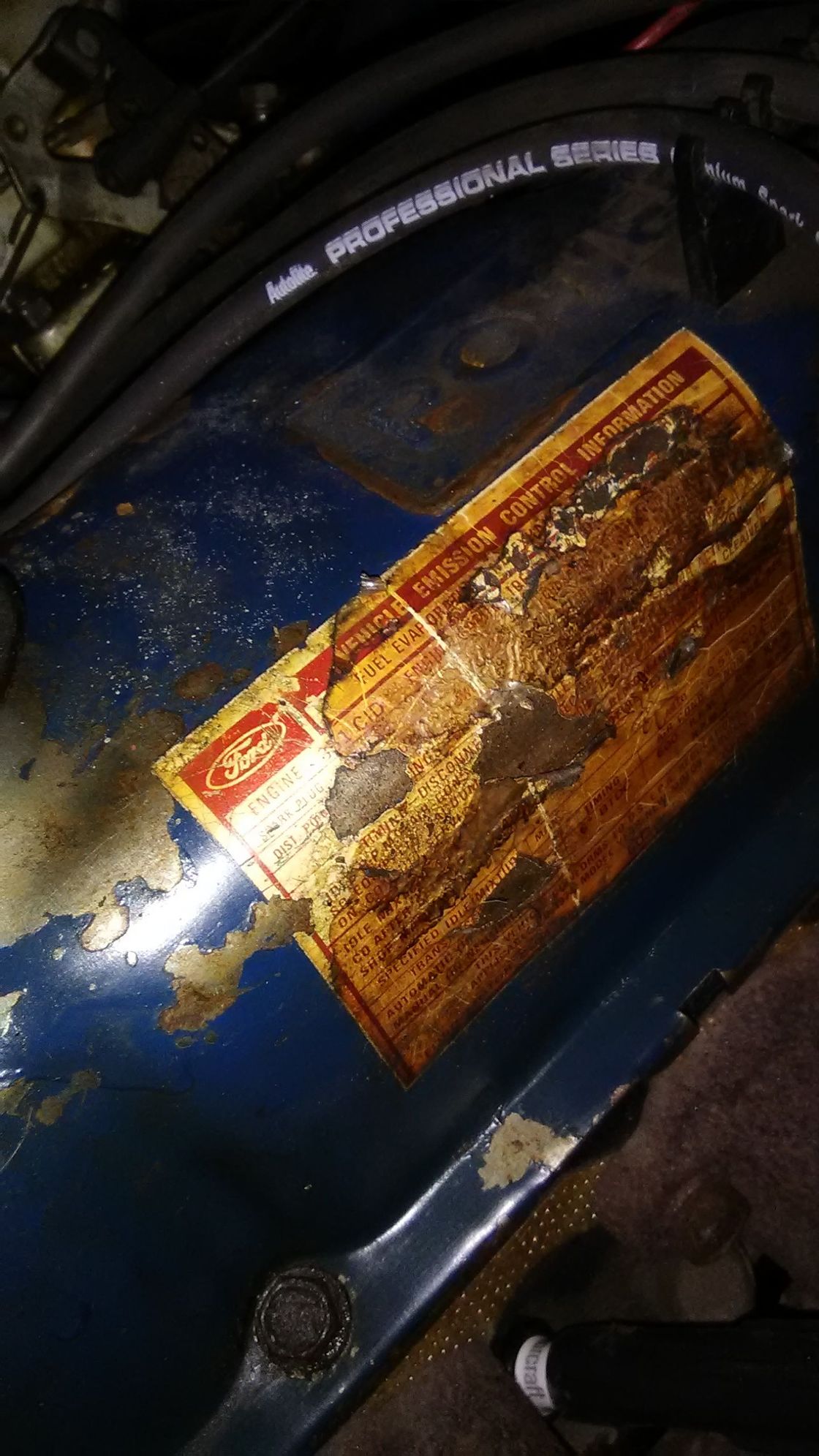

Well the valve cover has a factory sticker saying 351. So it may not be a windsor but its a 351. All the parts I've bought have fit for a windsor. Not sure how many are inner changable if any but they do fit.
Reply With Quote
  #5
Old 01-12-2017, 09:54 PM
HIO Silver's Avatar
HIO Silver HIO Silver is offline
Post Fiend

Join Date: Dec 2009
Location: NorCal
Posts: 19,947
HIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud ofHIO Silver has much to be proud of
Quote:
Originally Posted by Brett McNeill View Post
Well the valve cover has a factory sticker saying 351. So it may not be a windsor but its a 351. All the parts I've bought have fit for a windsor. Not sure how many are inner changable if any but they do fit.
Uh-oh...... I hope you have receipts because I bet your rig has a 351M and not a 351W... not much will swap since they are from two completely different engine families.

Let's figure it out:

351M/400
351C, 351M, or 400 Ford Engine - What is the difference? - FordMuscle
M-Block 351M/400 Photo Archive

351W
351w Pictures, Images & Photos | Photobucket
Reply With Quote
  #6
Old 01-12-2017, 10:24 PM
NumberDummy's Avatar
NumberDummy NumberDummy is offline
Ford Parts Specialist

Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 72,654
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
351M & 400 introduced in 1977 F100/350, have 8 valve cover bolt holes per side. There is no timing cover per se, just a flat engine cover plate.

The fuel pump bolts to the left side of the engine block, the bolt pattern is 12 & 6 o'clock.

351W wasn't available until 1981 in F150/350 & Bronco. Never installed in any year F100.
Reply With Quote
  #7
Old 01-12-2017, 10:25 PM
Brett McNeill Brett McNeill is offline
New User
Thread Starter

Join Date: Jan 2017
Posts: 17
Brett McNeill is starting off with a positive reputation.
Quote:
Originally Posted by HIO Silver View Post
Uh-oh...... I hope you have receipts because I bet your rig has a 351M and not a 351W... not much will swap since they are from two completely different engine families.

Let's figure it out:

351M/400
351C, 351M, or 400 Ford Engine - What is the difference? - FordMuscle
M-Block 351M/400 Photo Archive

351W
351w Pictures, Images & Photos Photobucket


Reply With Quote
  #8
Old 01-12-2017, 10:28 PM
Brett McNeill Brett McNeill is offline
New User
Thread Starter

Join Date: Jan 2017
Posts: 17
Brett McNeill is starting off with a positive reputation.
Quote:
Originally Posted by HIO Silver View Post
Uh-oh...... I hope you have receipts because I bet your rig has a 351M and not a 351W... not much will swap since they are from two completely different engine families.

Let's figure it out:

351M/400
351C, 351M, or 400 Ford Engine - What is the difference? - FordMuscle
M-Block 351M/400 Photo Archive

351W
351w Pictures, Images & Photos Photobucket


Reply With Quote
  #9
Old 01-12-2017, 10:31 PM
NumberDummy's Avatar
NumberDummy NumberDummy is offline
Ford Parts Specialist

Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 72,654
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
The dizzy on the OP's engine was last installed in 1976. 1977 and later dizzy cap has male ends and a plastic adapter below that the cap attaches to.
Reply With Quote
  #10
Old 01-12-2017, 10:39 PM
Brett McNeill Brett McNeill is offline
New User
Thread Starter

Join Date: Jan 2017
Posts: 17
Brett McNeill is starting off with a positive reputation.
Quote:
Originally Posted by HIO Silver View Post
Uh-oh...... I hope you have receipts because I bet your rig has a 351M and not a 351W... not much will swap since they are from two completely different engine families.

Let's figure it out:

351M/400
351C, 351M, or 400 Ford Engine - What is the difference? - FordMuscle
M-Block 351M/400 Photo Archive

351W
351w Pictures, Images & Photos Photobucket

I only have 6 valve cover bolts. Put new gaskets on today
Reply With Quote
  #11
Old 01-13-2017, 10:24 PM
F-250 WARHORSE's Avatar
F-250 WARHORSE F-250 WARHORSE is offline
Posting Guru

Join Date: Nov 2009
Location: montrose, co
Posts: 1,451
F-250 WARHORSE has a good reputation on FTE.F-250 WARHORSE has a good reputation on FTE.
HMMM! 6? sounds like 90* 302/289/351w/221/255/260 I bet.
Reply With Quote
  #12
Old 01-13-2017, 10:48 PM
meangreen92's Avatar
meangreen92 meangreen92 is offline
Elder User

Join Date: Jul 2005
Posts: 942
meangreen92 has a good reputation on FTE.meangreen92 has a good reputation on FTE.meangreen92 has a good reputation on FTE.
Definitely looks like a small block/Windsor.
If you can easily reach the lower thermostat bolt, then it's a 351W. If that lower bolt is hopelessly obscured by the timing cover, then it's a 302, or possibly a 289/260/255.
How many bolts holding your crankshaft pulley to the balancer?
Reply With Quote
  #13
Old 01-13-2017, 11:05 PM
Brett McNeill Brett McNeill is offline
New User
Thread Starter

Join Date: Jan 2017
Posts: 17
Brett McNeill is starting off with a positive reputation.
4 bolts holding the crankshaft pulley to the balancer
Reply With Quote
  #14
Old 01-13-2017, 11:11 PM
redcreekauto redcreekauto is offline
Senior User

Join Date: Oct 2016
Location: San Angelo, Texas
Posts: 374
redcreekauto is starting off with a positive reputation.
Its a windsor for certain. Have you decoded the Vin to see what the original engine was?
Reply With Quote
  #15
Old 01-13-2017, 11:16 PM
Brett McNeill Brett McNeill is offline
New User
Thread Starter

Join Date: Jan 2017
Posts: 17
Brett McNeill is starting off with a positive reputation.
No not yet
