Modded Suspensions Call - Request your measurents

  #31
Old 12-14-2014, 11:23 PM
Immortal_Ben's Avatar
Immortal_Ben
Immortal_Ben is offline
Posting Guru
Join Date: Nov 2007
Location: Peyton, CO
Posts: 1,914
Immortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud of
Fronts: 25 3/4" - ATS X code replacements springs, just a few months old.

Rears: 26 3/4" - ATS C_XL code replacement springs, a couple of months old.

This will soon change, however. I will edit or re-post when that happens.

  #32
Old 02-06-2015, 07:20 AM
WE3ZS's Avatar
WE3ZS
WE3ZS is offline
World Famous Mod
Join Date: Jul 2010
Location: Media PA
Posts: 8,094
WE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputation
Thumbs up This is a great thread!

This thread should be required reading for anyone thinking of doing any suspension mods to their EX, so for that reason I'm bumping it back to the top!

I think we also need more folks here with both stock and modded EXs to post up their measurements, having all of this info in one place makes for an excellent resource for anyone researching or comparing suspension mods.

  #33
Old 02-06-2015, 09:36 PM
Immortal_Ben's Avatar
Immortal_Ben
Immortal_Ben is offline
Posting Guru
Join Date: Nov 2007
Location: Peyton, CO
Posts: 1,914
Immortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud ofImmortal_Ben has much to be proud of
Agreed, I have taken notes from this thread and written them inside my Ex maintenance/mod file in my filing cabinet.

  #34
Old 02-09-2015, 11:53 AM
A Rodder
A Rodder is offline
Posting Guru
Join Date: Feb 2015
Posts: 1,091
A Rodder has much to be proud ofA Rodder has much to be proud ofA Rodder has much to be proud ofA Rodder has much to be proud ofA Rodder has much to be proud ofA Rodder has much to be proud ofA Rodder has much to be proud ofA Rodder has much to be proud ofA Rodder has much to be proud of
My 2005 with 115k

center of hub to bottom of fender
Drivers front 22 3/16
Pass front 22 3/8
Drivers rear 23 1/2
Pass rear 23 13/16

Ground to bottom of fender
Drivers front 36 11/16
Pass front 36 7/8
Drivers rear 37 15/16
Pass rear 38 3/8

Last week I put on F550 x codes,
And CaryT type modded B codes.

All used, I netted 2.25 in rear
And netted 2 7/16 up front.

I also used the stock rear ex blocks and u bolts all the way around, the shackles that came with the x codes (appear to be an inch longer the the EX stock ones)



EDIT after a week and a few miles I dropped 1/4" all the way around. Being the springs were used, I don't think they will drop much more.

  #35
Old 02-10-2015, 07:33 AM
sccamper's Avatar
sccamper
sccamper is offline
Senior User
Join Date: Jun 2012
Location: Upstate, SC
Posts: 151
sccamper is gaining momentum as a positive member of FTE.
Stock 01, 2wd, V10.
Front 20.5
Rear 21.5

Installed Hellwig rear helper springs
No real change in ride height but has firmer ride.
I will remeasure after I put a few miles on it.

  #36
Old 02-21-2015, 11:46 PM
exbxtoy
exbxtoy is offline
Senior User
Join Date: Jan 2014
Posts: 354
exbxtoy has a good reputation on FTE.exbxtoy has a good reputation on FTE.
2003 7.3L 4x4 EB 135,000 miles

Front Driver: 25"
Front Passenger: 24 5/8"
Rear Driver: 28"
Rear Passenger: 27 1/2"

As a side note, I removed all of the Eddie Bauer cladding from my X, and measured from center of Hub to the bottom most lip of the fender. I am not sure if by removing the cladding if that would skew the results by the thickness and gap of the cladding, which I am estimating at a .25" at most.

This is with my latest suspension modification, wanting to get back down to earth. When I purchased the X, it was lifted sky high, the PO said it had a 6" ProComp lift. I should have taken before measurements, but the above numbers are where I sit now. I had AB Spring in Grand Rapids, MI de-arch my springs 3 inches in the front, and 5 inches in the rear. The rear spring they made for me have a V shape to them, and they swear by them eliminating axle wrap. By having the spring built for me, I told them my goal was to get rid of the lift block in the rear, and have all spring, to keep axle wrap to a minimum. The truck drives a lot nicer now, and feels more sure footed.

I would get a bad rear driveshaft vibration before, very noticeable right around 78 MPH, it would get really buzzing and you could feel it/ hear it. I also had a front driveline issue, that is still not all gone but is better when the hubs are locked, and especially when driving over 50 MPH in 4HI.

I am running stock 265/75/16 Cooper M/S tires now for the winter, and I will see about fitting 37" Goodyear Wrangler MT/R's from a HMWWV. I had a set that were at near 100% tread, and they actually measured at 35.5" tall. Anyone know with my current numbers if they would fit?

I already cut out the front bumper plastic air damn, and I know that I might have to cut more out.

  #37
Old 02-22-2015, 08:42 PM
BigBlueX's Avatar
BigBlueX
BigBlueX is offline
Senior User
Join Date: Dec 2014
Location: Miami, Fl
Posts: 234
BigBlueX is gaining momentum as a positive member of FTE.BigBlueX is gaining momentum as a positive member of FTE.
Stock suspension all around with 275/65/20 tires.

Front R 23
Front L 23
Rear R 24
Rear L 24

  #38
Old 03-01-2015, 08:04 PM
nelms
nelms is offline
New User
Join Date: Jan 2014
Location: West Union SC
Posts: 22
nelms is gaining momentum as a positive member of FTE.nelms is gaining momentum as a positive member of FTE.




2004 Excursion 4x4 EB, 6.0 6in BDS all spring lift kit. FOX shocks all the way around, dual steering stabilizers. 315-75-r16 BFG's (had driveshaft vibration until new u joints) Still gonna get double cardan DS to be safe.

LF - 29.5
RF - 29.5
LR - 30.5
RR - 30.5

Hub center to stock cladding

If you have any other questions just ask.

  #39
Old 03-11-2015, 11:34 PM
ChadTaylor's Avatar
ChadTaylor
ChadTaylor is offline
Senior User
Join Date: Feb 2015
Location: Noblesville, IN
Posts: 280
ChadTaylor has a good reputation on FTE.ChadTaylor has a good reputation on FTE.ChadTaylor has a good reputation on FTE.
I currently have the stock wheels with LT265/75R16 tires.

I just measured mid hub to lip of fender and got 23" in front and 26" in rear. I'm not sure what was added to the rear end or how to find out. I'd like to level the truck and be able to upgrade the wheels to 18" but I have no clue what I need to do...going to do some reading in the tech folder.

  #40
Old 03-12-2015, 12:39 AM
harley4jcs's Avatar
harley4jcs
harley4jcs is offline
Posting Guru
Join Date: Aug 2012
Location: Central Tx.
Posts: 1,678
harley4jcs has a great reputation on FTE.harley4jcs has a great reputation on FTE.harley4jcs has a great reputation on FTE.harley4jcs has a great reputation on FTE.harley4jcs has a great reputation on FTE.harley4jcs has a great reputation on FTE.
Originally Posted by ChadTaylor View Post
I currently have the stock wheels with LT265/75R16 tires.

I just measured mid hub to lip of fender and got 23" in front and 26" in rear. I'm not sure what was added to the rear end or how to find out. I'd like to level the truck and be able to upgrade the wheels to 18" but I have no clue what I need to do...going to do some reading in the tech folder.


You are right at 2" over stock in the rear.. My guess is the PO installed 4" factory F-350 rear blocks. CT look under the rear springs on the axel & see if the block that the springs are sitting on is 2" or 4"

  #41
Old 03-12-2015, 01:13 AM
ChadTaylor's Avatar
ChadTaylor
ChadTaylor is offline
Senior User
Join Date: Feb 2015
Location: Noblesville, IN
Posts: 280
ChadTaylor has a good reputation on FTE.ChadTaylor has a good reputation on FTE.ChadTaylor has a good reputation on FTE.
Originally Posted by harley4jcs View Post
You are right at 2" over stock in the rear.. My guess is the PO installed 4" factory F-350 rear blocks. CT look under the rear springs on the axel & see if the block that the springs are sitting on is 2" or 4"
Hey Harley,

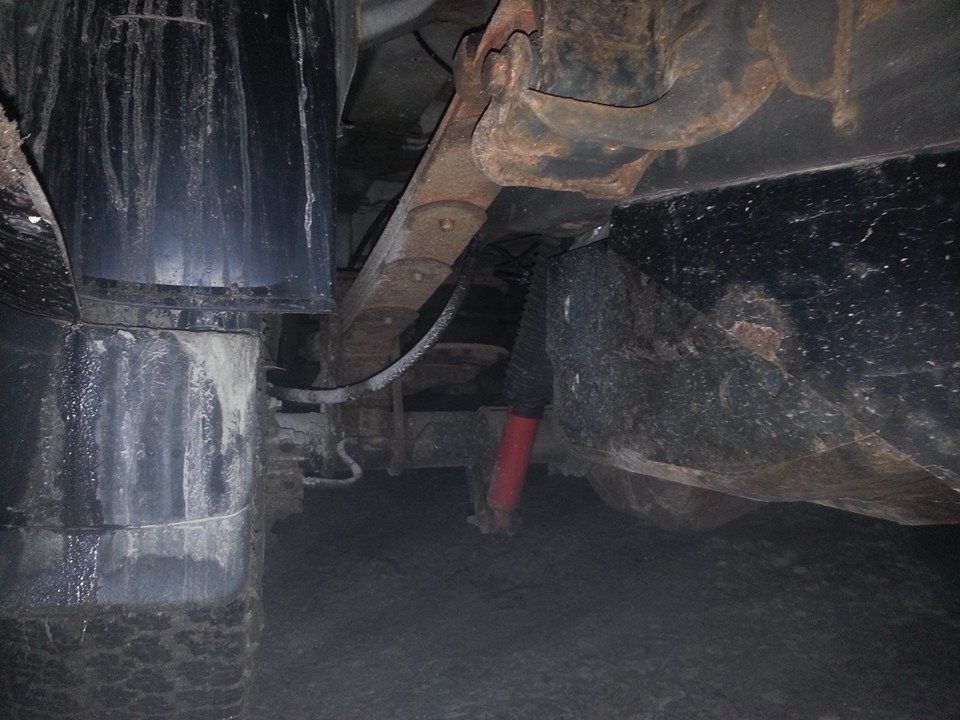

I don't know what I'm looking at. Tom suggested I posted these pictures. Thoughts?




























  #42
Old 03-12-2015, 01:21 AM
WE3ZS's Avatar
WE3ZS
WE3ZS is offline
World Famous Mod
Join Date: Jul 2010
Location: Media PA
Posts: 8,094
WE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputationWE3ZS has a superb reputation
Bone stock rear EX springs and block..............plus airbags! look just above the 2" block's bumpstop arm and there are airbags present, that would explain the added height.
Chad, look around for an air fitting or two on the rear bumper area, they will be the fill locations for the bags.

  #43
Old 03-12-2015, 01:35 AM
ChadTaylor's Avatar
ChadTaylor
ChadTaylor is offline
Senior User
Join Date: Feb 2015
Location: Noblesville, IN
Posts: 280
ChadTaylor has a good reputation on FTE.ChadTaylor has a good reputation on FTE.ChadTaylor has a good reputation on FTE.
Originally Posted by WE3ZS View Post
Bone stock rear EX springs and block..............plus airbags! look just above the 2" block's bumpstop arm and there are airbags present, that would explain the added height.
Chad, look around for an air fitting or two on the rear bumper area, they will be the fill locations for the bags.
Who knew!? I'll have to check in the morning.

  #44
Old 03-12-2015, 08:54 AM
Krazee Matt's Avatar
Krazee Matt
Krazee Matt is offline
Leadfoot
Join Date: Jan 2014
Posts: 3,582
Krazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputationKrazee Matt has a superb reputation
Originally Posted by WE3ZS View Post
Bone stock rear EX springs and block..............plus airbags! look just above the 2" block's bumpstop arm and there are airbags present, that would explain the added height. Chad, look around for an air fitting or two on the rear bumper area, they will be the fill locations for the bags.
Sonuva... I had the brightness turned down on my phone and didn't even see the airbags... Nice work Tom!

  #45
Old 03-12-2015, 11:20 AM
ChadTaylor's Avatar
ChadTaylor
ChadTaylor is offline
Senior User
Join Date: Feb 2015
Location: Noblesville, IN
Posts: 280
ChadTaylor has a good reputation on FTE.ChadTaylor has a good reputation on FTE.ChadTaylor has a good reputation on FTE.
I've been searching for leveling kits but they're all showing for the trucks and not specifically for the Excursion.

I'd appreciate opinions on if either of these (or others you're willing to suggest) to get me the 2" in the front. Thanks!

2 Leveling System - 2005-15 Ford F250/F350 4WD


2in Leveling Coil Spacers Lift Kit for 05-15 Ford 4wd F-250 / F-350 Super Duty [514] | Rough Country Suspension SystemsŪ
