1949 F4 V8 to Mercedes diesel build thread


  #196
Old 05-06-2016, 08:07 PM
mechmagcn's Avatar
mechmagcn
mechmagcn is offline
Diesel Junky
Join Date: Dec 2005
Location: Moro Bay, AR
Posts: 4,165
mechmagcn is a name known to allmechmagcn is a name known to allmechmagcn is a name known to allmechmagcn is a name known to allmechmagcn is a name known to allmechmagcn is a name known to all
Mark, that is looking great! One of these days I'm gonna find time to come up that way and see this ride in person.

  #197
Old 05-07-2016, 08:04 AM
38 coupe's Avatar
38 coupe
38 coupe is offline
Posting Guru
Join Date: Aug 2010
Location: Houston
Posts: 2,436
38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.
Bummer on the auxiliary transmission sound. One question (feel free to give the look you give someone who asks a really dumb question), did you fill the auxiliary with oil?

As always, great looking work.

  #198
Old 05-07-2016, 08:22 PM
49fordv8f4's Avatar
49fordv8f4
49fordv8f4 is offline
Posting Guru
Thread Starter
Join Date: Aug 2014
Location: North Central Arkansas
Posts: 2,020
49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold
Thanks Jeff, Come up anytime I look forward to meeting you. I'd love to see your truck also!
Mark

  #199
Old 05-07-2016, 08:37 PM
49fordv8f4's Avatar
49fordv8f4
49fordv8f4 is offline
Posting Guru
Thread Starter
Join Date: Aug 2014
Location: North Central Arkansas
Posts: 2,020
49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold
Fred, that's not a dumb question. It would be very easy to forget the oil in the excitement of hearing it run. But, I did have oil in it. It probably should be 140W, I have 85-90W in it. I rebuilt it several years ago but for some reason I didn't make a cover gasket and seal the top cover. I had the truck in my side shed on my shop for a while and some rain must have blown in while parked there. When I removed the top cover I could see evidence of water getting in, so I think maybe one of the input shaft bearings may be damaged. At least I hope it is that simple. I will have to pull it back apart and check. It does shift easy though, so the shifter is going to work ok.
Thanks for the compliments, Mark

  #200
Old 05-09-2016, 09:00 PM
49fordv8f4's Avatar
49fordv8f4
49fordv8f4 is offline
Posting Guru
Thread Starter
Join Date: Aug 2014
Location: North Central Arkansas
Posts: 2,020
49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold
I pulled out my 3 speed carrier bearing, aka Brownie, today and disassembled it. Water had damaged both input shaft tapered roller bearings and both cluster tapered roller bearings. I did find another issue that I didn't see when I rebuilt it several years ago. I was checking the gears for excess clearance before I removed any of the bearing retainers and I noticed the overdrive gear didn't feel smooth when I turned it on the shaft. It turns free on the splined mainshaft when not in overdrive. When I pulled the shafts out, I pulled the overdrive gear off and checked the I.D. The I.D. should be smooth, but I can feel grooves worn into the I.D. by the splines. Since parts are made from unobtainium, I will try to repair what I have. But to do the repair, I will have to eliminate low gear in the Brownie, so I will end up with straight thru and overdrive. I would probably used low very seldom, if ever, anyways. I guess we can't always move forward on our projects.
Thanks, Mark

  #201
Old 05-13-2016, 06:08 PM
38 coupe's Avatar
38 coupe
38 coupe is offline
Posting Guru
Join Date: Aug 2010
Location: Houston
Posts: 2,436
38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.
Can you grind-plate-grind the ID of the overdrive gear? That was the repair method of choice for worn gear IDs and journals at the aircraft engine overhaul shop where I used to work.

I'm looking at the cross section in the parts manual. Out of curiosity what are you planning that would eliminate low?

  #202
Old 05-13-2016, 07:41 PM
49fordv8f4's Avatar
49fordv8f4
49fordv8f4 is offline
Posting Guru
Thread Starter
Join Date: Aug 2014
Location: North Central Arkansas
Posts: 2,020
49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold
Fred, I was thinking of turning the splines off of the shaft B-1 and bushing the overdrive gear B-4, so I would have to eliminate low gear B-7 and low gear shift hub and ring B-8 and B-9, as there would be no splines for B-8 hub. I have thought about it some more and my thinking now is to bush the overdrive gear and low gear with a hardened steel sleeve with a bore .005" smaller than stock and grind the O.D. of the splines down about .006" to clean them up. I believe the splines on the shaft will center the low speed shift hub ok. I had thought about having the I.D. of both gears hard chrome plated and ground to size, but I think that would be more money than I could afford to put in it right now. Is that just a parts manual you copied that out of, or is it a service/installation manual also?
Thanks, Mark

  #203
Old 05-14-2016, 10:46 PM
38 coupe's Avatar
38 coupe
38 coupe is offline
Posting Guru
Join Date: Aug 2010
Location: Houston
Posts: 2,436
38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.38 coupe has a great reputation on FTE.
That image is from a parts manual. I have that parts manual in individual pictures over on photobucket here; I have the same manual combined into one PDF file. I also have scans of the 1975 Hollander interchange for Spicer products. It has a very nice exploded view of the 5531. PM me your email address and I will send them to you.
I do not have an installation or service manual for the 5531. I do have scans of pages out of a GM manual that cover the 5831.

  #204
Old 05-15-2016, 06:14 PM
49fordv8f4's Avatar
49fordv8f4
49fordv8f4 is offline
Posting Guru
Thread Starter
Join Date: Aug 2014
Location: North Central Arkansas
Posts: 2,020
49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold
Thank you Fred for the offer to scan the pages for me. I really appreciate it. I sent you a PM.
Thanks again, Mark

  #205
Old 09-04-2016, 05:25 PM
49fordv8f4's Avatar
49fordv8f4
49fordv8f4 is offline
Posting Guru
Thread Starter
Join Date: Aug 2014
Location: North Central Arkansas
Posts: 2,020
49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold

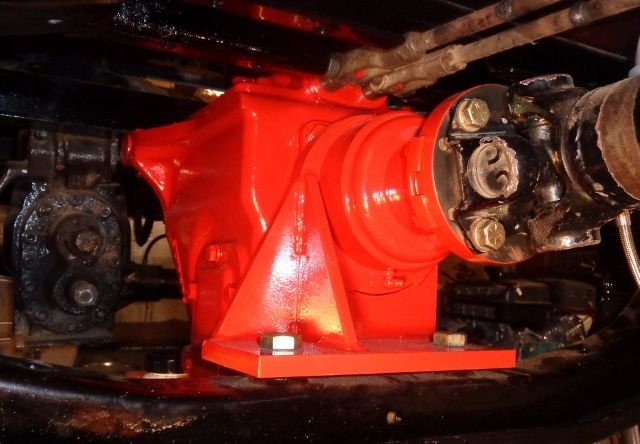

I have the Brownie rebuilt and ready to reinstall in the truck. I replaced all the bearings and bushed the overdrive and low speed gears with a hardened tool steel bushing honed to fit the reworked tailshaft. Everything seems smooth. Hopefully it will be quiet now. Here are a couple of pics.
Name:  DSC02920%20640x479_zps3sky5w6t.jpg
Views: 215
Size:  207.7 KB
Name:  DSC02921%20640x433_zps2eiy1udl.jpg
Views: 210
Size:  196.3 KB
Thanks, Mark

  #206
Old 09-19-2016, 08:58 PM
49fordv8f4's Avatar
49fordv8f4
49fordv8f4 is offline
Posting Guru
Thread Starter
Join Date: Aug 2014
Location: North Central Arkansas
Posts: 2,020
49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold

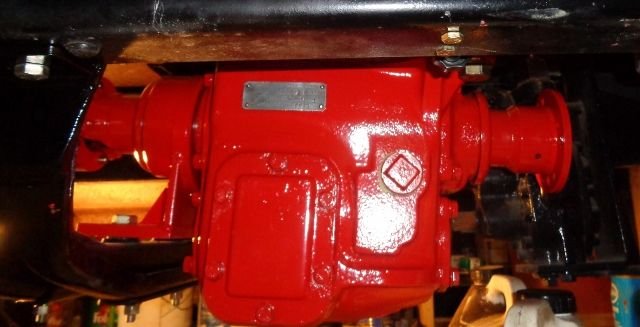

Brownie is back in and quiet. I have 3 qts of 140W and 1 qt of Lucas oil stabilizer in it. I noticed this evening while taking pictures that the PTO access covers are seeping a little. I have to replace all the u-joints in both driveshafts, so I will paint them after I do that. I also have to make new shift rods for the brownie and paint those also. The Brownie shifts really smooth.
Mark

  #207
Old 09-19-2016, 09:15 PM
49fordv8f4's Avatar
49fordv8f4
49fordv8f4 is offline
Posting Guru
Thread Starter
Join Date: Aug 2014
Location: North Central Arkansas
Posts: 2,020
49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold

The MC has metric threads and the only fittings that I could find were AN fittings. I have two -4 AN brake hoses that I ordered from a racing supply. They are not DOT rated, but they are rated for 3000 psi. No one that I checked with sells DOT rated -4 AN hose with the 90 degree bend on the end. I plan on putting a piece of rubber hose over them to keep them from chaffing on the edge of the frame. I also have a couple of tube straps to install.

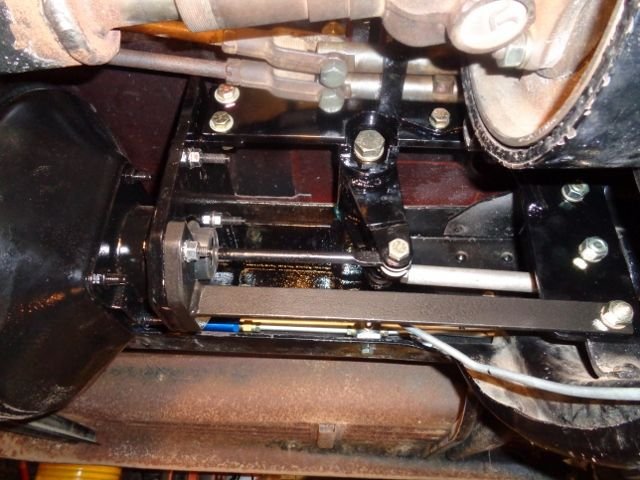

I added a brace, the grey colored piece, to the lower edge of the MC mount, I noticed it flexed a little.

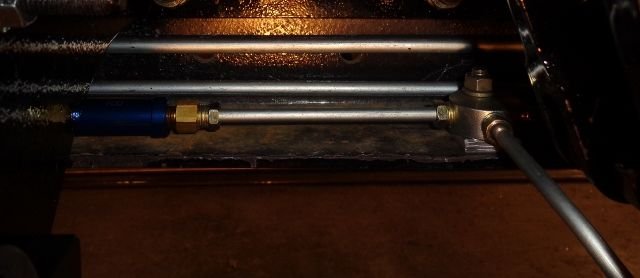

This is the residual pressure valve and the tee to the front disc brakes.

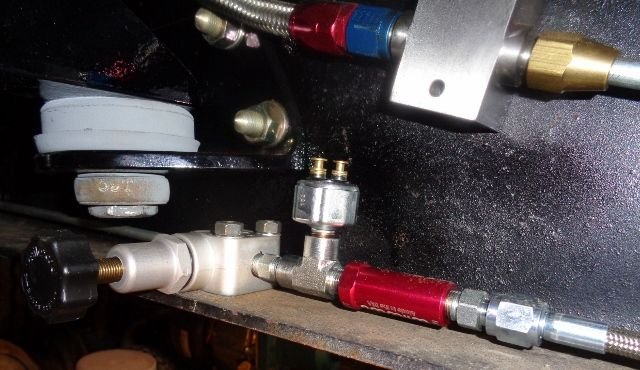

This is the Wilwood proportioning valve, the residual pressure valve and the brake light switch to the rear brakes. I used Loctite 569 hydraulic thread sealant and Loctite Primer T on all of the 1/8"npt fitting threads.
Thanks, Mark

  #208
Old 11-20-2016, 06:01 PM
daves77crew's Avatar
daves77crew
daves77crew is online now
Junior User
Join Date: Oct 2014
Posts: 60
daves77crew is starting off with a positive reputation.
Mark, How is your project going?

  #209
Old 11-20-2016, 09:20 PM
49fordv8f4's Avatar
49fordv8f4
49fordv8f4 is offline
Posting Guru
Thread Starter
Join Date: Aug 2014
Location: North Central Arkansas
Posts: 2,020
49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold49fordv8f4 is a splendid one to behold

Dave, Here is were I'm at right now. I have driven it to my Mom and Dad's, about a mile away, several times now. Next I will remove the inner fenders and radiator frame so I can take them and all the fender brackets and air deflectors to have them powder coated.
Thanks, Mark

  #210
Old 11-21-2016, 07:36 AM
daves77crew's Avatar
daves77crew
daves77crew is online now
Junior User
Join Date: Oct 2014
Posts: 60
daves77crew is starting off with a positive reputation.
Mark, I can see your ear to ear grin from all the way over here in Tennessee.
Great looking truck.
Dave
