90 Bronco 4BT Diesel Build

I got a 1990 Eddie Bauer bronco with 240k miles on her. Had a 351w that had a few mods but I was getting 10mpg on a good day and just wasnt happy with it. Decided it was time for a diesel and ZF-5 swap to beef up my drivetrain and get some better mpgs out of her.

What I started with:
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.


Bought me a 86 Chevy P-30 step van with a 4bta. Couldnt find a buyer for the van so it got the axe and the rest got sold for parts.

Scrapping:
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

Overall about 1800lbs of aluminum and 2000lbs of steel.

What 1200lbs of steel looks like in a bronco:
Click the image to open in full size.
Reply With Quote
  #2
Old 08-10-2010, 04:32 PM
jfritts jfritts is offline
Junior User

Join Date: Aug 2010
Location: Virginia Beach
Posts: 88
jfritts is starting off with a positive reputation.
Pulling the 4bta:
Click the image to open in full size.
Click the image to open in full size.

Safe in my very crowded garage:
Click the image to open in full size.

Found a ZF-5 S-42 from a member on 4btswaps.com.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

Parts hauling in my wifes car
Click the image to open in full size.

Got a stock step van 4bt to small block ford adapter setup. Included adapter plate, flywheel, starter, clutch, pressure plate, and master cylinder. I ended up getting a new clutch, pressure plate, and master cylinder just to be safe tho.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

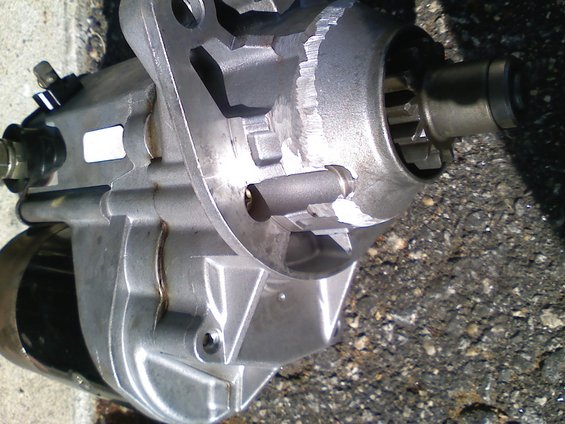

Starter had been ground a bit for clearance i guess
Click the image to open in full size.
Reply With Quote
  #3
Old 08-10-2010, 04:37 PM
jfritts jfritts is offline
Junior User

Join Date: Aug 2010
Location: Virginia Beach
Posts: 88
jfritts is starting off with a positive reputation.
At the time I thought I could do the swap in a week sooo I took a week off from work. My brother and I got started by tearing my bronco apart.

Engine out:
Click the image to open in full size.

Transmission and tcase pulled. Goodbye E4OD!
Click the image to open in full size.

My workspace, apartment complex parking lot. Definitely not the recommended spot for a engine swap and we will touch on that more later.
Click the image to open in full size.

Empty space
Click the image to open in full size.

Cleaned up and repainted
Click the image to open in full size.
Click the image to open in full size.

Had the drivetrain out in one day. Thought I was making good progress but I only had downhill to go.
Reply With Quote
  #4
Old 08-10-2010, 04:44 PM
jfritts jfritts is offline
Junior User

Join Date: Aug 2010
Location: Virginia Beach
Posts: 88
jfritts is starting off with a positive reputation.
Pulled the engine outside to degrease it and put on some fresh Cummins beige paint.

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

Painted the exhaust manifold as well
Click the image to open in full size.

Found out the ZF-5 needs a different crossmember so it was back to the junkyard.

ZF-5 in her new home, held in by only a ratchet strap and resting the crossmember on the frame.
Click the image to open in full size.

Tuesday morning I woke up to no bronco. Apartment complex cracked down on my work and had her towed. Lucked out because my transmission didnt fall out while being towed.

Picking it up from the impound lot, This is also the fastest way to get more lift
Click the image to open in full size.
Click the image to open in full size.

Had it towed to the hobby shop on base. Probably where I should have started in the first place.
Reply With Quote
  #5
Old 08-10-2010, 04:53 PM
jfritts jfritts is offline
Junior User

Join Date: Aug 2010
Location: Virginia Beach
Posts: 88
jfritts is starting off with a positive reputation.
Started mounting the flywheel and clutch up to the engine. Tip for other people, The chevy flexplate has a adapter on the back of the 4bt which just comes off with a few taps of a hammer. No reason to start freaking out because your flywheel doesnt fit

Click the image to open in full size.

Testing the fit for the 4bt and mocking up motor mounts. Ended up using the stock mounts that bolt to the engine and then some 300 I6 mounts. Had to get a bushing from Autozone and then some grade 8 bolts.
Click the image to open in full size.
Click the image to open in full size.

Mated up to the transmission
Click the image to open in full size.

Hood clearance is a little close
Click the image to open in full size.

All bolted in. It was a PITA getting it lined up and both sides bolted down
Click the image to open in full size.

tons of room in front. Plenty of space for a very very large intercooler
Click the image to open in full size.

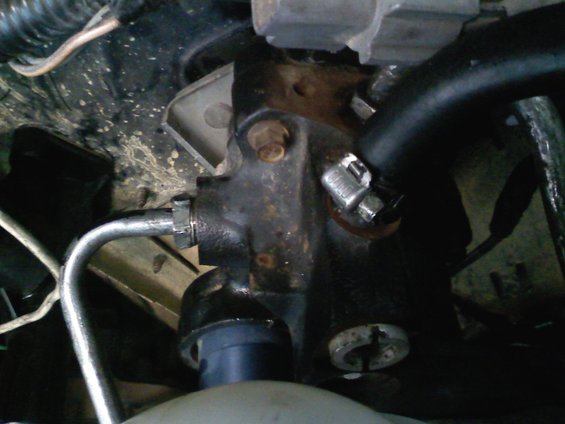

Tried using the hydroboost setup from the chevy stepvan but it was nothing but hassles.
Click the image to open in full size.
Click the image to open in full size.

Ended up pulling a new hydroboost setup from a later 90s early 2000s model truck and used that.
Click the image to open in full size.

The failboost
Click the image to open in full size.

All bolted up:
Click the image to open in full size.
Click the image to open in full size.
Reply With Quote
  #6
Old 08-10-2010, 04:57 PM
jfritts jfritts is offline
Junior User

Join Date: Aug 2010
Location: Virginia Beach
Posts: 88
jfritts is starting off with a positive reputation.

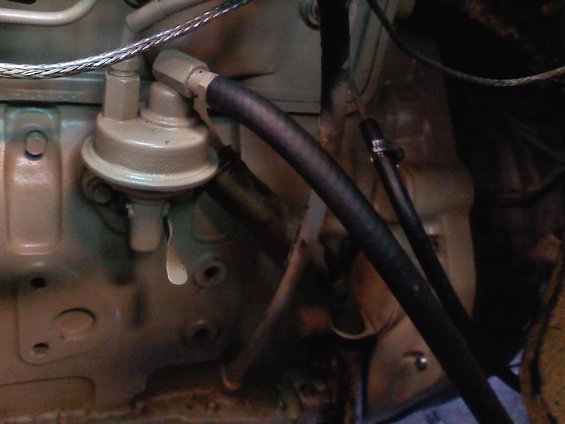

For the fuel system I pulled out the intake pump and pulled all the stock EFI lines. Then I just ran a pickup line into the tank and new lines all the way up to the engine.
Click the image to open in full size.

Finally got a third pedal in my rig!!
Click the image to open in full size.

Engine must have moved the ZF-5 back some because I was able to retain my stock driveshaft. I havent tried to put the front one back in yet but time will tell.
Click the image to open in full size.
Reply With Quote
  #7
Old 08-10-2010, 05:00 PM
jfritts jfritts is offline
Junior User

Join Date: Aug 2010
Location: Virginia Beach
Posts: 88
jfritts is starting off with a positive reputation.
Few random pics:
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.


Order some gauges from summit racing. Boost, oil pressure, and exhaust gas temp. Along with a A-pillar gauge pod.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Reply With Quote
  #8
Old 08-10-2010, 05:03 PM
jfritts jfritts is offline
Junior User

Join Date: Aug 2010
Location: Virginia Beach
Posts: 88
jfritts is starting off with a positive reputation.
Picked up a stock dodge intercooler. For reference it is leaning against a 38 inch tire.
Click the image to open in full size.


Future mods to the engine include: 3200rpm spring, dennyt fuel pin, intercooler, turbo from a 6bt.

I got it all back together and driveable in 25 days. Runs pretty good and has plenty of power once the turbo spools up. All i have left is cleaning up my wiring mess, hooking up my a/c and heater.
