Powerstroke upgrade! Engine swap started..

Hopefully I am posting in the right spot, but I wanted to share pics of the swap I am starting! I found a donor truck (97 F-250 7.3 DI) to swap out the engine and everything else into my 94 F-350 (5.8). My truck just doesnt have the power and economy that it needs to have for the work I do! LOL! As a person can tell, I am working on it one piece at a time!

I originally picked up mine for a steal, but it had some issues. Low mileage, 120,000, e4od, and so on, but its an XL, and has no options. The fenders were cracked, then they got finished off by my horses eating what was left, LOL! It didnt come with bumpers, and had been "used". So a part here, a part there.. its coming along!

The donor truck, has the 7.3 DI and auto trans, 4 wheel drive, AC, PW, PD, Tilt, Cruise and so on.. So all thats coming off of it and going on mine!

Enjoy the pics, more to come!
Click the image to open in full size.
Click the image to open in full size.

The donor truck and motor..
Click the image to open in full size.
Click the image to open in full size.

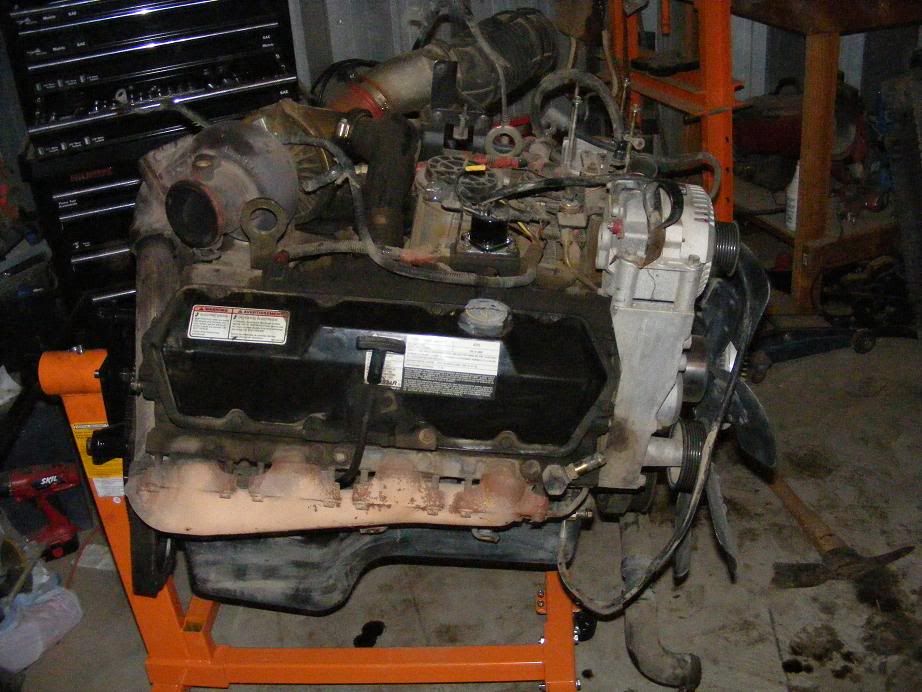

The engine before I started this morning..
Click the image to open in full size.
And after a couple hours..
Click the image to open in full size.

The garage filled up quick with all the parts so far that I will need to do the swap! Cool thing, I have a Catapillar Mechanic coming over to replace all the seals and O-Rings in the engine before I drop it into mine. We will be replacing all the seals and all that good noise prior to install. What was nice, was the donor truck hit pretty hard, had three flats, and the rear drive line was disconnected, but she made it in on her own steam to the garage! I did replace the GPR as the plunger wasnt dropping in it, I have an idea i will have to replace the CPS as well, since its a huge PIA to get started. But it never smokes!

I will keep updating pics as I go!
__________________
- Chris -

1994 F-350 CC Dually : DRW 4x4 XLT, 97 7.3 DIT conversion, tuned, open pipe and modded!.
http://www.ford-trucks.com/forums/94...p-started.html
2010 F-250 CC SRW 6.4PS: 6.4 Powerstroke, 3" lift, Ranch hand F+R Bumpers and guards, ARE Topper, PIAA Off road lighting, more to come!
Reply With Quote
  #2
Old 04-05-2010, 09:54 PM
jstnromero's Avatar
jstnromero jstnromero is offline
Postmaster

Join Date: Nov 2006
Location: Broken Arrow, OK
Posts: 2,725
jstnromero has a great reputation on FTE.jstnromero has a great reputation on FTE.jstnromero has a great reputation on FTE.jstnromero has a great reputation on FTE.jstnromero has a great reputation on FTE.jstnromero has a great reputation on FTE.
subscribing...looks like a fun project.

That donor truck must have been hit hard!!!
__________________

~Justin~
2012 Ford F250 XLT FX4 6.2L V8
2005 F150 XL 4.2L V6-- SOLD 10/2014
Reply With Quote
  #3
Old 04-05-2010, 11:31 PM
Midwest Dually's Avatar
Midwest Dually Midwest Dually is offline
Posting Guru

Join Date: Jan 2009
Location: Wyoming
Posts: 1,946
Midwest Dually has a good reputation on FTE.Midwest Dually has a good reputation on FTE.Midwest Dually has a good reputation on FTE.
Thank you! It is going to be.. I am super excited to get this engine in mine and running! I am even more pleased to have 4 wheel drive (not that it matters now that I moved to the desert!) LOL! And Air conditioning and power everything.. Whoo!

I am really shocked as the wiring came out nicely without anything breaking, snapping or being cut. Usually when I pull a swap, I get some kind of an issue with a connector breaking, but I didnt this time!
__________________
- Chris -

1994 F-350 CC Dually : DRW 4x4 XLT, 97 7.3 DIT conversion, tuned, open pipe and modded!.
http://www.ford-trucks.com/forums/94...p-started.html
2010 F-250 CC SRW 6.4PS: 6.4 Powerstroke, 3" lift, Ranch hand F+R Bumpers and guards, ARE Topper, PIAA Off road lighting, more to come!
Reply With Quote
  #4
Old 04-10-2010, 12:50 PM
hanklin's Avatar
hanklin hanklin is offline
Ambassador

Join Date: Oct 2003
Location: Here in No. Calif
Posts: 10,104
hanklin has a superb reputationhanklin has a superb reputationhanklin has a superb reputationhanklin has a superb reputationhanklin has a superb reputationhanklin has a superb reputationhanklin has a superb reputationhanklin has a superb reputationhanklin has a superb reputationhanklin has a superb reputationhanklin has a superb reputation
At first picture I thought what was wrong with donor truck? Bent frame maybe from drivers door then I got to the 2nd. Well that said it all. Sounds like everything is going smoothly for you so congrats and a happy rep sent.
Kinda funny but years back I had a toyota truck and I heard my queensland just going crazy barking, I look out and see my quarter horse had him pinned in the cab. I walk over and then I realize that the horse ate 1/2 my seat. I hear ya on the fenders! lol
__________________
2001 7.3l F-444(Monkey Wrench Racing) PSD 4x4 SC ;stainless ruenel bumper,glasstite,exhaust,superchip autometer cobalt gauges,tymar,sonnax ,zoodad mod:-Line-X, prodigy & 358 k miles
2003 EB Excursion 6.0L 4X4 All the gadgets

Buford T Justice "There aint No way, No way, that you could come from my loins"
Reply With Quote
  #5
Old 04-12-2010, 11:12 PM
Midwest Dually's Avatar
Midwest Dually Midwest Dually is offline
Posting Guru

Join Date: Jan 2009
Location: Wyoming
Posts: 1,946
Midwest Dually has a good reputation on FTE.Midwest Dually has a good reputation on FTE.Midwest Dually has a good reputation on FTE.
UPDATE...

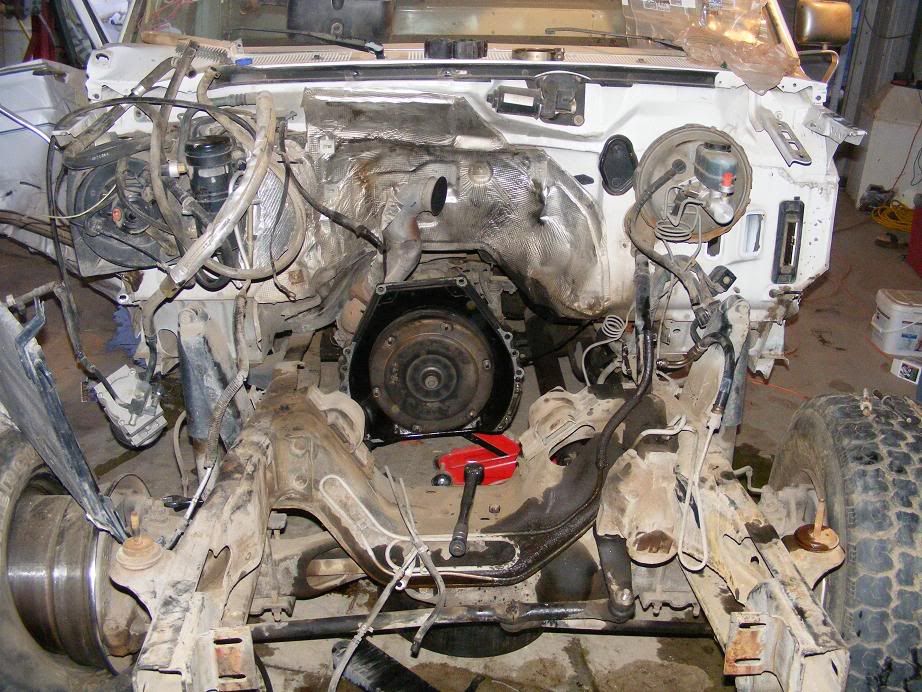

Well, I finally got another minute from the working world to escape into the garage! I got back to working on the removal of all the goodies! I also picked up one of those cool little fuel line tools.... WORTH every penny spent! Came of quickly!

But here's where I am at now..
Click the image to open in full size.
I finally got it out!

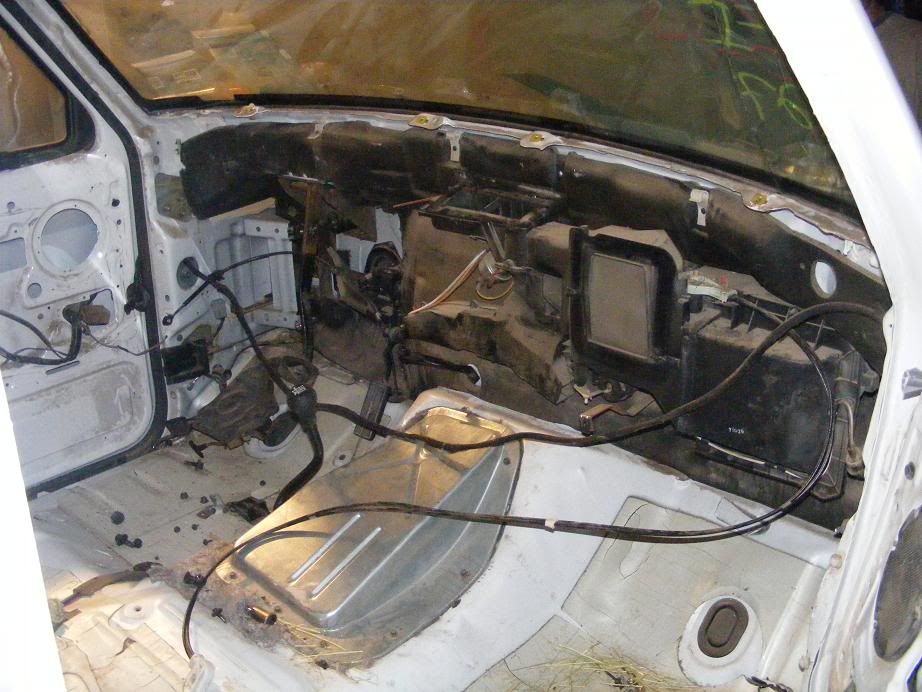

Also got started in the cab for the electrical swap (power windows, door locks, so on) and the HVAC system. I am sure that you noticed that the evaporater and condenser are still attached to the heater assembly, with the engine gone. I wanted to see if it could be done, this way I dont have to recharge the system. So far so good!
