Tractor turbo swap

Just thought I would make a new thread instead of fill up the BS thread with 15 pictures. Old turbo was definitely tired at nearly 7600 hours, worked hard many of those. New turbo really cleans up the smoke good. Backed out the fuel screw after the install and it smokes less than before. Only purchases to complete the install were: turbo, manifold, exhaust sleeve, manifold to turbo adapter. Not a truck but it is a Ford engine, one I wouldn't mind having in a truck either.

Click the image to open in full size.
The candidate, Ford 9600, round screen on the front is a self cleaning radiator shroud from a combine.

Click the image to open in full size.
Underhood view before

Click the image to open in full size.

Click the image to open in full size.
Old turbo and connections

Click the image to open in full size.
Manifold, old to new. Picked a divided manifold from newer tractor.

Click the image to open in full size.
Compressor comparison

Click the image to open in full size.
Same picture as in the BS thread

Click the image to open in full size.
Exhaust sleeve plate, bored on lathe to accept the larger exhaust sleeve.

Click the image to open in full size.
Exhaust sleeve tested for fit

Click the image to open in full size.
Manifold

Click the image to open in full size.
T3 to T4 adapter

Click the image to open in full size.

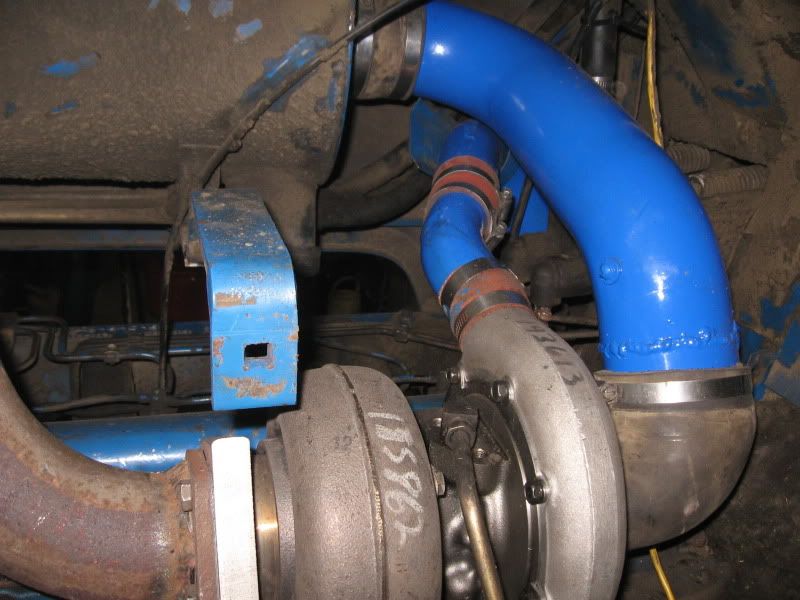

Turbo and connections

Click the image to open in full size.
Another view

Click the image to open in full size.
intake connections

Click the image to open in full size.
Hood support back in place with heat shield
__________________
Thomas H.
1997 F-250 4x3 7.3L Auto, 285/200%, Modded H2E, headstuds, 7.3 IC, Stealth Dual-HPOP, FASS, D60
1984 F-150 4x4 351W C-6, intake, exhaust, NO rust, the looker
1985 Mustang 302 T-5, GT-40P heads, intake, exhaust(for sale)
Reply With Quote
  #2 (permalink)
Old 03-22-2010, 11:25 AM
fordpower88's Avatar
fordpower88 fordpower88 is online now
MN Chapter Ldr

Join Date: Mar 2005
Location: Suppertown, MN
Posts: 14,588
fordpower88 is a splendid one to beholdfordpower88 is a splendid one to beholdfordpower88 is a splendid one to beholdfordpower88 is a splendid one to beholdfordpower88 is a splendid one to beholdfordpower88 is a splendid one to behold
Looks great Thomas!! Nice pics! Can you tell a big difference in power with the new one on there? I like the chrome stack on the tractor too!!
