Exclusive photos of 2011 Super Duty launch event

Hi guys,

Recently, we were fortunate enough to get an in-depth look and ride of the new 2011 Super Duty. Here are all the pictures below, which you can view as slideshows on our homepage. We also have a great article detailing the experience.

Check it out and give us your thoughts as well. Thanks!


Slideshow 1
Slideshow 2


Launch Event Part 1
Launch Event Part 2


view of Prescott Valley from first night's hotel room
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

F450 King Ranch
Click the image to open in full size.

Click the image to open in full size.

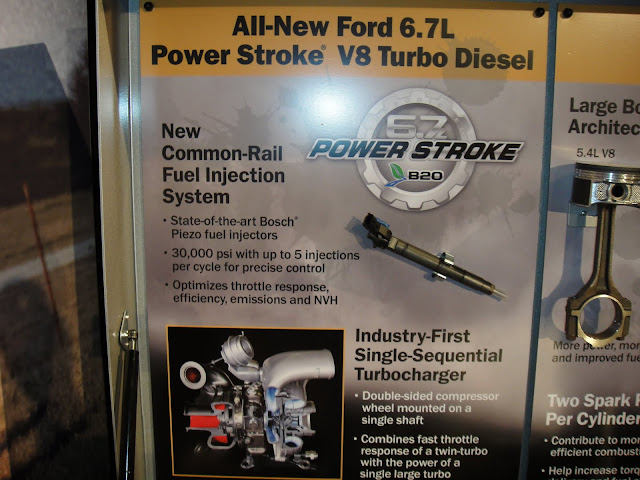

6.7 diesel & 6R140 trans
Click the image to open in full size.

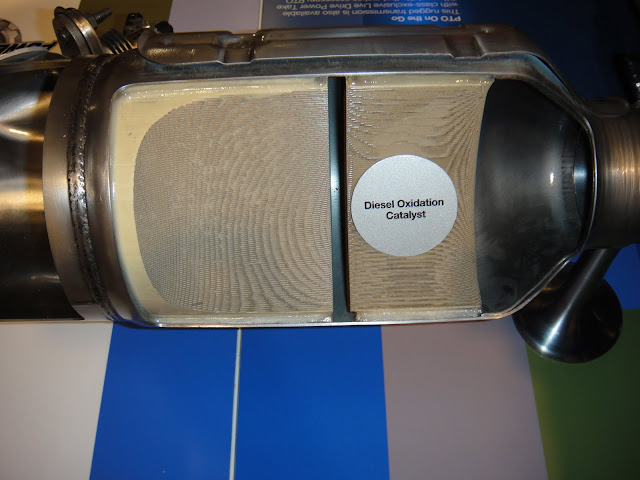

diesel oxidation catalyst , DEF dosing module & DPF
Click the image to open in full size.

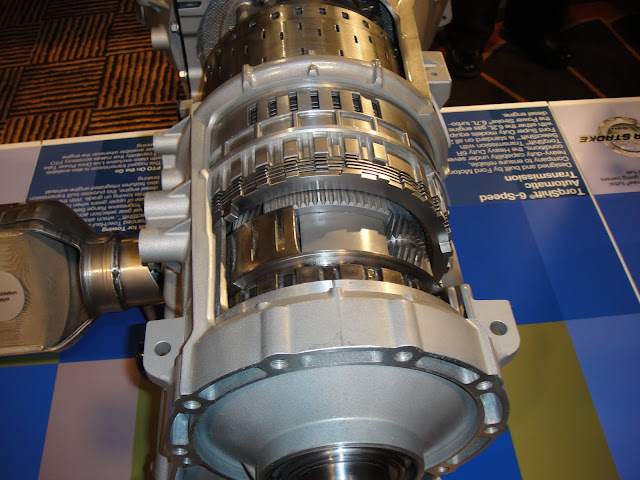

6R140 trans
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

6.2 gas engine
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

6.2 in F250
Click the image to open in full size.

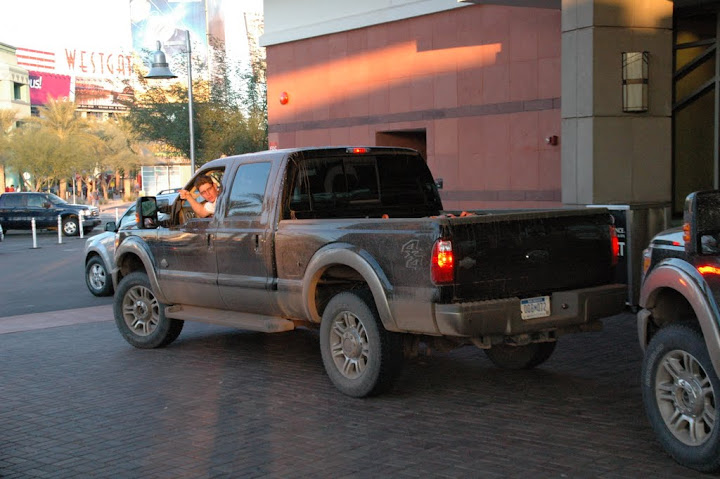

Super Duty's in Hotel parking lot - Prescott
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

First stop in Kirkland Az
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

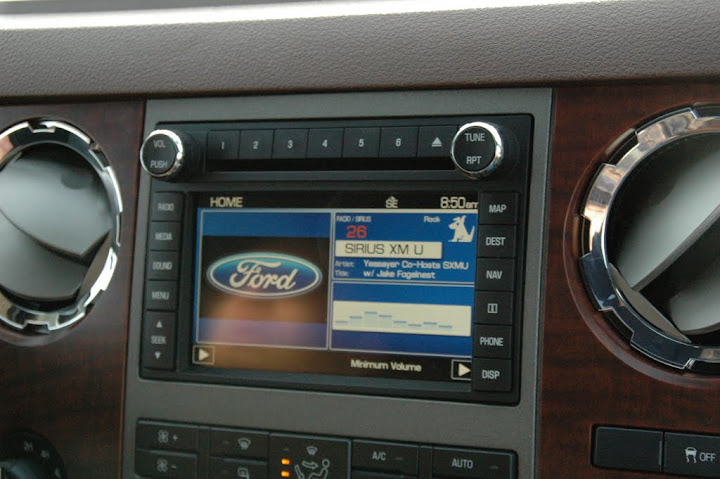

head unit&climate control
Click the image to open in full size.

Click the image to open in full size.

chassis/w 6.7 diesel
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

6r140 trans
Click the image to open in full size.

6.2 gas engine
Click the image to open in full size.

pass side 6.7 diesel
Click the image to open in full size.

rear of 6.7 showing CCV system
Click the image to open in full size.

view if 6.7 turbo
Click the image to open in full size.

driver's side 6.7 showing ccv system
Click the image to open in full size.

ccv system
Click the image to open in full size.

rear of 6.7 showing turbo waste gate
Click the image to open in full size.

view of grade where towing demonstration took place
Click the image to open in full size.

parked near congress, az
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

view of grade where towing demonstration took place
Click the image to open in full size.

exhaust emissions system as installed
Click the image to open in full size.

front view chassis
Click the image to open in full size.

F550 demonstration vehicles at the quarry
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

trucks at quarry after drive from Congress
Click the image to open in full size.

Click the image to open in full size.

part of quarry
Click the image to open in full size.

various axles identified
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

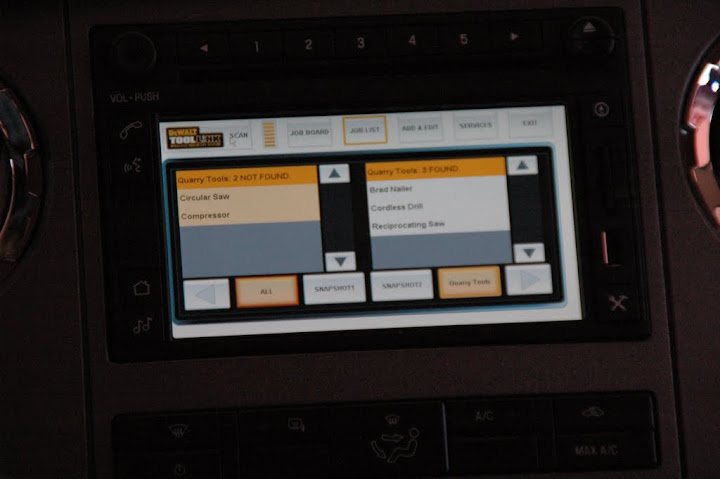

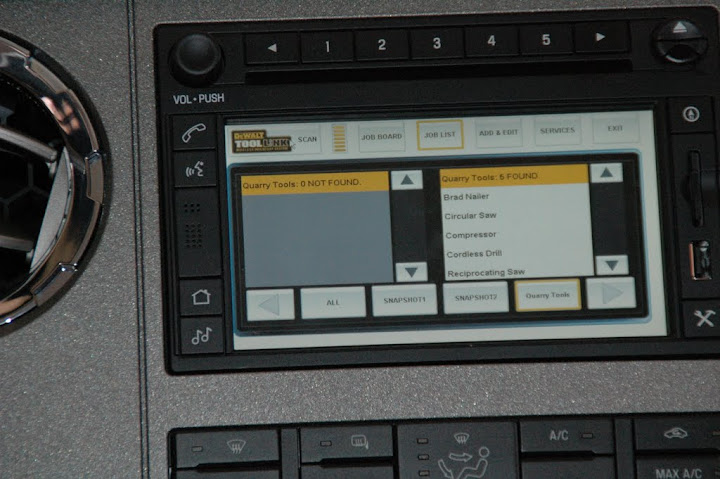

"tool link" screen - part of "ford Works Solutions"
Click the image to open in full size.

optional HP printer
Click the image to open in full size.

"tool link" screen - part of "ford Works Solutions"
Click the image to open in full size.

power points
Click the image to open in full size.

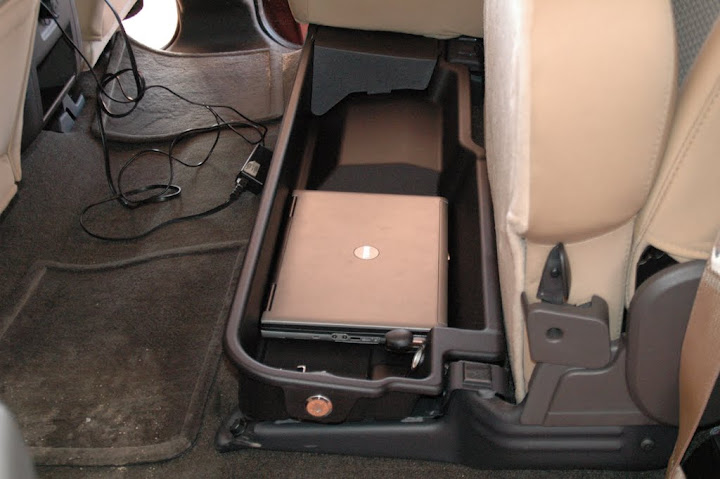

locking storage beneath rear seat
Click the image to open in full size.

Click the image to open in full size.

F550 at work pulling 33k lbs
Click the image to open in full size.

Click the image to open in full size.

F450's pulling 85k lb Caterpillar D988's
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

F550 dump bed during "live drive PTO" session
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

F250 in quarry
Click the image to open in full size.

F550 dump bed
Click the image to open in full size.

F550 at work pulling 33k lbs
Click the image to open in full size.

Click the image to open in full size.

F250 on off road course
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

F250 at Renaissance Hotel in Glendale, AZ where we stayed the second night
Click the image to open in full size.

locking storage beneath rear seat
Click the image to open in full size.

Click the image to open in full size.

33k lb load behind F550 in quarry
Click the image to open in full size.

Click the image to open in full size.

pulling 85k lb Caterpillar D988
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

dump bed F550
Click the image to open in full size.

Click the image to open in full size.

Room (obviously ) and view of Prescott Valley from balcony thereof
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

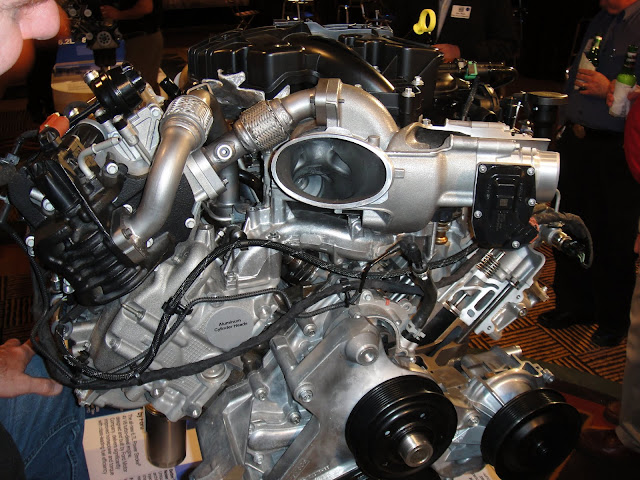

6.2 liter gas motor. 2 spark plugs per cylinder, 2 valves per cylinder
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

6.7 diesel
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

6R140 trans
Click the image to open in full size.

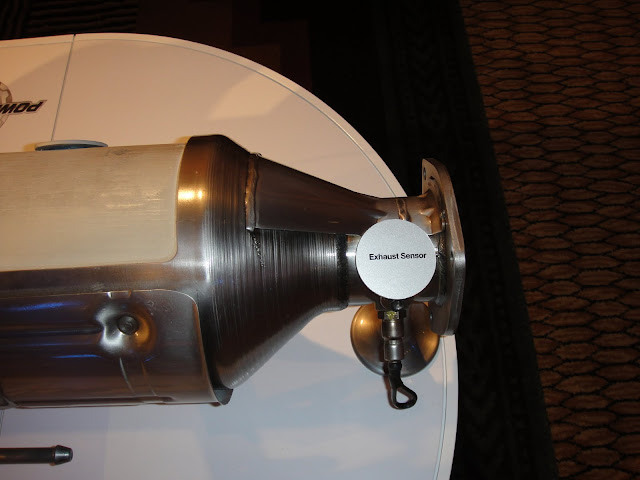

with DEF dosing module, DPF, exhaust sensors, and oxidation catalyst
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.


Click the image to open in full size.

6R140 trans
Click the image to open in full size.

Spin-on oil filter - 6.7 diesel 10w/30 oil recommended.Change interval is determined by computer based on riving style...can go up to 10k miles
Click the image to open in full size.

GCI engine block
Click the image to open in full size.

Passenger side of 6.7 showing twin egr coolers. In some running strategies the engine will use up to 60% EGR
Click the image to open in full size.

Variable Geometry Turbo
Click the image to open in full size.

Composite intake manifold
Click the image to open in full size.

Front view 6.7
Click the image to open in full size.

composite oil pan - 6.7
Click the image to open in full size.

aluminum heads
Click the image to open in full size.

internal vibration damper from torque converter used/w 6.7 diesel engine
Click the image to open in full size.

self explanatory
Click the image to open in full size.

Click the image to open in full size.

6.7 cylinder/head cutaway
Click the image to open in full size.

turbine wheels - 6.7
Click the image to open in full size.

6.7 diesel
Click the image to open in full size.

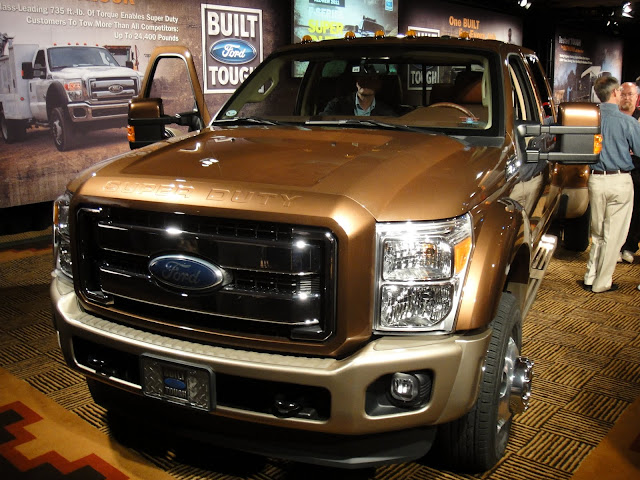

F450 King Ranch
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

F250 XLT
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

F450 King Ranch
Click the image to open in full size.

Bed of F450 King Ranch showing Ford's integral 5th wheel/gooseneck system
Click the image to open in full size.

cable lock and inside the bed mounted trailer plug
Click the image to open in full size.

6.7 diesel twin compressor wheels
Click the image to open in full size.

6.7 externally mounted oil cooler
Click the image to open in full size.

6R140 trans
Click the image to open in full size.

Waste gate for 6.7 diesel's Variable Geometry Turbo
Click the image to open in full size.

6.7 pass side cutaway
Click the image to open in full size.

internally mounted vacuum pump - 6.7 diesel
Click the image to open in full size.

6.7 diesel piston - new bowl design
Click the image to open in full size.

6.7 diesel - valves, rocker arms
Click the image to open in full size.

CCV system -6.7 diesel. Internal baffles to coalesce oil mist.
Click the image to open in full size.

6.7 composite intake
Click the image to open in full size.

self explanatory
Click the image to open in full size.

rocker arms - 6.7
Click the image to open in full size.

6.7 roller lifter - 2 pushrods each
Click the image to open in full size.

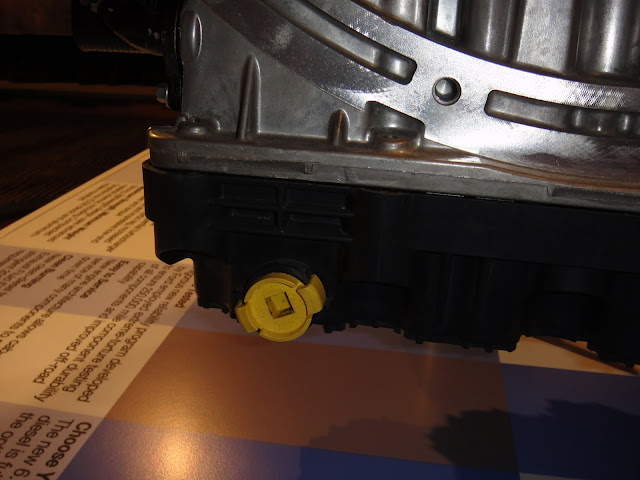

oil drain plug in composite oil pan -6.7. 3/8" drive - removes with 1/4 turn
Click the image to open in full size.

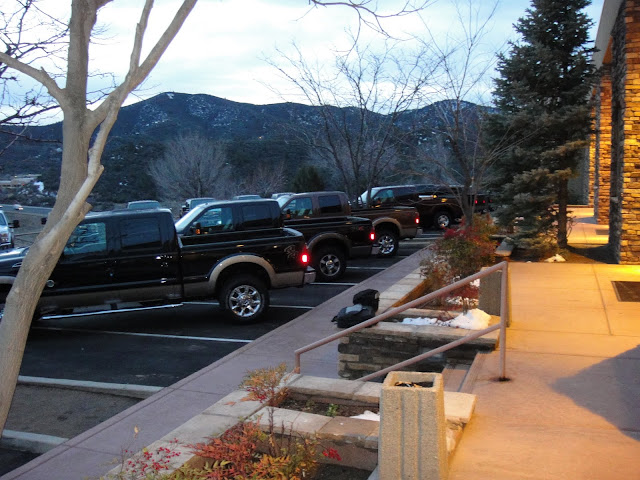

Trucks parked outside hotel - Prescott
Click the image to open in full size.

Click the image to open in full size.

Motel/restaurant/bar/roadhouse in Kirkland, Az
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

6.7 turbo
Click the image to open in full size.

top cutaway view 6.7 twin compressor wheels
Click the image to open in full size.

integrated 5th wheel/gooseneck installation
Click the image to open in full size.

Click the image to open in full size.

front end of cassis/cab configuration
Click the image to open in full size.

23k lb trailer behind F450
Click the image to open in full size.

5th wheel behind F450
Click the image to open in full size.

F450/w 23k lb trailer
Click the image to open in full size.

gooseneck ball
Click the image to open in full size.

Click the image to open in full size.

new asymmetric cooling fan design
Click the image to open in full size.
__________________
Adrian | 2005 4x4 Diesel Courier CrewCab in Aus | 2012 4x4 CC/SB F250 6.7 in the US
2000 4x4 SC/LB F350 7.3 ZF-6 (sold)

Last edited by BigF350; 03-08-2010 at 05:38 PM.
Reply With Quote
  #2
Old 03-08-2010, 07:13 PM
texastech_diesel's Avatar
texastech_diesel texastech_diesel is offline
Disgruntled Texan

Join Date: Jun 2007
Location: Justin, TX
Posts: 5,526
texastech_diesel has a superb reputationtexastech_diesel has a superb reputationtexastech_diesel has a superb reputationtexastech_diesel has a superb reputationtexastech_diesel has a superb reputationtexastech_diesel has a superb reputationtexastech_diesel has a superb reputationtexastech_diesel has a superb reputationtexastech_diesel has a superb reputationtexastech_diesel has a superb reputationtexastech_diesel has a superb reputation
At least they're better looking than the 08-10, the grill being shaped more like the 05-07 is much better
__________________
Bryan- 2007 F-250 FX4 6.0L

Nancy, you been going to that healer for twelve years, and you still get headaches every night.
Reply With Quote
  #3
Old 03-08-2010, 07:23 PM
Fordfanatic4life Fordfanatic4life is offline
Postmaster

Join Date: Oct 2008
Location: Richmond BC
Posts: 3,924
Fordfanatic4life has a very good reputation on FTE.Fordfanatic4life has a very good reputation on FTE.Fordfanatic4life has a very good reputation on FTE.Fordfanatic4life has a very good reputation on FTE.
hmmm anyone else notice the F250 and F350 axles appear different now ?

did the F350 move up to the Dana 70 by chance ??

p.s. it also appears someone stole the piston display for the new 6.2... haahahh
__________________
2003 F250 4x4 CC V10 4" Procomp, all white beauty

"list of previous owned Fords much to long to list here.."
Reply With Quote
  #4
Old 03-08-2010, 07:29 PM
1975StroppeBaja's Avatar
1975StroppeBaja 1975StroppeBaja is offline
Postmaster

Join Date: Apr 2006
Location: WV
Posts: 2,935
1975StroppeBaja is a splendid one to behold1975StroppeBaja is a splendid one to behold1975StroppeBaja is a splendid one to behold1975StroppeBaja is a splendid one to behold1975StroppeBaja is a splendid one to behold1975StroppeBaja is a splendid one to behold
Holy cow! Awesome pictures, thanks a bunch for posting up all of those.

What's up with the 411HP for the 6.2L on that one sign? Is that only for the Raptor?

Click the image to open in full size.
__________________
Jason - 2004 F250 XLT Sport CC, 5.4L, 4.10LS, AT, JBA's & SPD y-pipe

Click - My Super Duty Tech Articles
1975 Baja Bronco Project
1984 Ranger 4x4 R.I.P Nov 2007
Reply With Quote
  #5
Old 03-08-2010, 07:33 PM
SteveBricks's Avatar
SteveBricks SteveBricks is offline
Admin Emeritus

Join Date: Aug 2007
Location: Lakewood, Ca.
Posts: 42,089
SteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputation
Yep...the standard 6.2 is rated 385.
__________________
'06 F250 6.0 / '94 F350 7.5
Regional Chapters Moderator
SoCal FTE
Join our Chapter *HERE*
9/21/54 - 9/25/09
Reply With Quote
  #6
Old 03-08-2010, 08:56 PM
jstnromero's Avatar
jstnromero jstnromero is offline
Postmaster

Join Date: Nov 2006
Location: The Woodlands, Texas
Posts: 2,697
jstnromero has a great reputation on FTE.jstnromero has a great reputation on FTE.jstnromero has a great reputation on FTE.jstnromero has a great reputation on FTE.jstnromero has a great reputation on FTE.jstnromero has a great reputation on FTE.
looks good.....most pics I have seen. Being from AZ, I know the area that the tests took place....looks like a good time! Can't wait to try them out in person.
__________________

~Justin~
2012 Ford F250 XLT FX4 6.2L V8
2005 F150 XL 4.2L V6
Reply With Quote
  #7
Old 03-08-2010, 09:29 PM
Quill Gordon's Avatar
Quill Gordon Quill Gordon is offline
Senior User

Join Date: May 2009
Location: Sandy, Utah
Posts: 132
Quill Gordon is starting off with a positive reputation.
Does anyone know of a easy bank to rob?
__________________
http://img.photobucket.com/albums/v380/QuillGordon/Da%20Yerd/P1490373II-1.jpg
Reply With Quote
  #8
Old 03-08-2010, 10:16 PM
2001SuperDuty's Avatar
2001SuperDuty 2001SuperDuty is offline
Senior User

Join Date: Oct 2008
Location: Cincinnati, Ohio
Posts: 130
2001SuperDuty is starting off with a positive reputation.
Super Jealous right now . I would still be drolling after that awesome trip. Thanks for all the pics.
Reply With Quote
  #9
Old 03-09-2010, 05:35 AM
SGnAZ's Avatar
SGnAZ SGnAZ is offline
Posting Guru

Join Date: Oct 2008
Location: San Tan Valley,AZ
Posts: 1,593
SGnAZ has a good reputation on FTE.SGnAZ has a good reputation on FTE.SGnAZ has a good reputation on FTE.
The oil drain plug is interesting.I like the factory mounted 5th wheel,gooseneck set-up,very clean.Nice looking trucks.
__________________
Steve
2000 F-250 XLT 7.3L 4x4 LB
Reply With Quote
  #10
Old 03-09-2010, 06:07 AM
sammy77's Avatar
sammy77 sammy77 is offline
Postmaster

Join Date: Oct 2007
Location: Illinois
Posts: 3,570
sammy77 has a brilliant futuresammy77 has a brilliant futuresammy77 has a brilliant futuresammy77 has a brilliant futuresammy77 has a brilliant futuresammy77 has a brilliant futuresammy77 has a brilliant futuresammy77 has a brilliant futuresammy77 has a brilliant futuresammy77 has a brilliant futuresammy77 has a brilliant future
Great pictures Thank you. Holy crap I cant wait.
Reply With Quote
  #11
Old 03-09-2010, 10:21 AM
miller_feed's Avatar
miller_feed miller_feed is offline
Hook it, I'll pull it.

Join Date: May 2007
Location: Grand Lake, La.
Posts: 15,009
miller_feed has a superb reputationmiller_feed has a superb reputationmiller_feed has a superb reputationmiller_feed has a superb reputationmiller_feed has a superb reputationmiller_feed has a superb reputationmiller_feed has a superb reputationmiller_feed has a superb reputationmiller_feed has a superb reputationmiller_feed has a superb reputationmiller_feed has a superb reputation
Well, I guess I laughed at the fenders on my buddy's dodge to hard. Now Ford comes out with the same UGLY fender on the dually.
__________________
RICK, PAA MEMBER #4
2001, F-350, DRW. CC. LWB, 4X4, LARIAT,
MODS: 6637 W/Pete's cover, BTS-TRANS, DP-TUNER LIVE, MBRP 4" SS, Isspro 3 gauge kit, TN-BB turbo, Bellowed up pipes, HPX, TRU-COOL cooler, SS Stage II injectors, and the Chris-fifty.
Reply With Quote
  #12
Old 03-14-2010, 11:06 AM
duck fan's Avatar
duck fan duck fan is offline
Because racetruck

Join Date: Apr 2007
Location: Monterey Bay, CA
Posts: 2,157
duck fan has much to be proud ofduck fan has much to be proud ofduck fan has much to be proud ofduck fan has much to be proud ofduck fan has much to be proud ofduck fan has much to be proud ofduck fan has much to be proud ofduck fan has much to be proud ofduck fan has much to be proud ofduck fan has much to be proud of
I actually saw one of these driving near Speedworld in Wittmann during the Desert Diesel Nationals. They look much better in person.
__________________

Peter - NHRDA# 5078
2000 Excursion 7.3 - Lots of parts SOLD 2/2014
1997 F350 CCLB 4wd 7.3 PSD
1996 F250 XCab LB 4wd 7.3 PSD
Reply With Quote
  #13
Old 03-14-2010, 01:58 PM
tseekins's Avatar
tseekins tseekins is offline
Moderator

Join Date: Jan 2008
Location: Hampton, Virginia
Posts: 19,194
tseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputation
Thanks for sharing Adrian! I love the new fender flares on the dually,it gives the truck a whole new look aft of the cab.

I'm really excited for Ford right now. I know the 6.2L is going to be a great engine and I feel that they have done all the right things right on the 6.7L.
__________________
Tim
SCPO United States Coast Guard Retired
2011 F-150 XLT 4x4 Ecoboost
2010 Ford Focus
2004 Expedition XLT 4x2

FTE Guidelines
Reply With Quote
  #14
Old 03-14-2010, 02:06 PM
SteveBricks's Avatar
SteveBricks SteveBricks is offline
Admin Emeritus

Join Date: Aug 2007
Location: Lakewood, Ca.
Posts: 42,089
SteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputationSteveBricks has a superb reputation
I like the dually fenders also Tim, but from what I've heard from others we are definitely in the minority with our opinion.
__________________
'06 F250 6.0 / '94 F350 7.5
Regional Chapters Moderator
SoCal FTE
Join our Chapter *HERE*
9/21/54 - 9/25/09
Reply With Quote
  #15
Old 03-14-2010, 02:15 PM
tseekins's Avatar
tseekins tseekins is offline
Moderator

Join Date: Jan 2008
Location: Hampton, Virginia
Posts: 19,194
tseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputationtseekins has a superb reputation
Quote:
Originally Posted by SteveBricks View Post
I like the dually fenders also Tim, but from what I've heard from others we are definitely in the minority with our opinion.
Oh well, I've stood alone and with minimal friends before! I always liked th at style fender when Dodge was using them.
__________________
Tim
SCPO United States Coast Guard Retired
2011 F-150 XLT 4x4 Ecoboost
2010 Ford Focus
2004 Expedition XLT 4x2

FTE Guidelines
Reply With Quote
Old 03-14-2010, 02:15 PM
Reply

Go Back   Ford Truck Enthusiasts Forums > Super Duty/Heavy Duty > Super Duty & Heavy Duty

Tags
2011, 67, colors, cutaway, date, duty, engine, ford, interior, king, launch, pictures, ranch, release, super

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On
Forum Jump



All times are GMT -5. The time now is 02:55 AM.


Powered by vBulletin® Version 3.7.5
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Advertising - Terms of Use - Privacy Statement - Jobs
This forum is owned and operated by Internet Brands, Inc., a Delaware corporation. It is not authorized or endorsed by the Ford Motor Company and is not affiliated with the Ford Motor Company or its related companies in any way. FordŽ is a registered trademark of the Ford Motor Company.

vbulletin Admin Backup
